Description

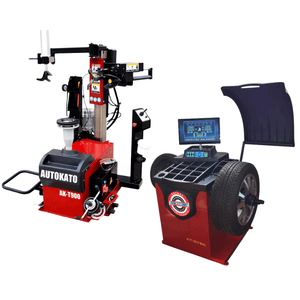

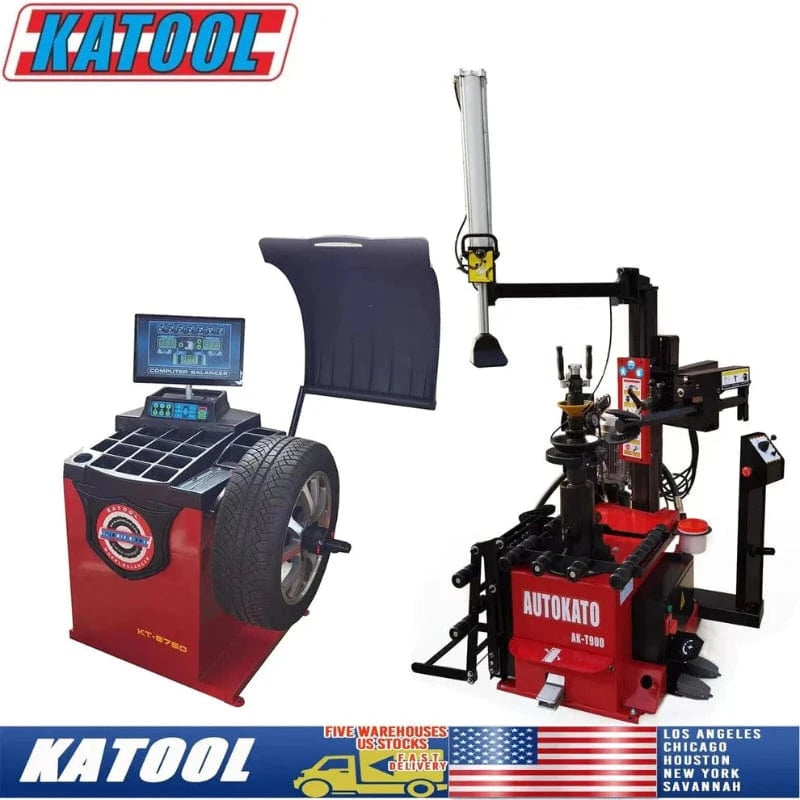

-The Katool KT-T900 Wheel Clamp Tire Changer and KT-B750 Wheel Balancer combo is a reliable and efficient solution for professional tire shops. The KT-T900 features a powerful 2HP motor, a 1.5HP hydraulic system, and a capacity to handle wheels up to 47 inches in diameter and 16 inches in width. Built for speed and durability, it simplifies tire changing and boosts productivity.
The KT-B750 Wheel Balancer complements this setup with precise balancing accuracy of ±1g, a quick 7-second measurement time, and the ability to accommodate rims up to 30 inches in diameter and 15 inches wide. Together, this duo enhances efficiency and ensures smooth operations, making it an essential addition to any tire shop.
Features
-Tire Changer T900 Features:
- All hydraulic power system to work on all car wheels
- Built-in top assist arm allow you to change even difficult run flat and low-profile wheels
- Leverless design. Stainless steel mounting head and included plastic cover for protect rim
- Assist wheel lift device
- High quality motor with pure copper winding, low defect rate and longer life
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- High quality filter
Wheel Balancer B750 Features:
- Automatic measurement ruler for auto input A and D values.
- The body uses 3mm thickness steel, offering high strength, solid welding, and minimal vibration.
- All-in-one pressure sensor support design with an 8mm thick bottom board and side board, ensuring stable and high-precision sensor performance.
- Top-level motor with pure copper winding for more power, faster heat dissipation, low defect rate, and longer lifespan.
- The φ36mm shaft thread is treated with quenching for high strength.
- Top-level motor with pure copper winding for fast heat dissipation, low defect rate, and longer lifespan.
- The computer board uses advanced welding technology for moistureproof, dustproof, and anti-static properties, enhancing durability.
- Various balance modes tailored to different rims for precise balancing.
- Built-in fault diagnosis and self-calibration program with double-sided calibration, simplifying operation without requiring memory parameters.
- Unit selection for Ounce/Gram and MM/Inch measurements.
- High-quality integrated power board for stable and reliable performance.
- Optional wheel guard available.
- Longer shaft to accommodate wider wheels.
Specifications
-Tire Changer T900 Specifications:
Max wheel diameter:
|
47" / 1200 mm |
Max wheel width:
|
16" / 406 mm
|
Wheel clamp:
|
12"-30"
|
Power supply:
|
110V / 1PH / 60HZ
|
Gear Box Motor power :
|
1.5KW / 2HP
|
Hydraulic power :
|
1.1KW / 1.5HP
|
Rotation speed:
|
6.8r/min
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
Net weight :
|
188KG / 414 lbs
|
Wheel Balancer B750 Specifications:
Rim Diameter:
|
<30"
|
Wheel Width:
|
3"-12"
|
Wheel Diameter:
|
<880mm
|
Balancing Speed:
|
180rpm
|
Power Supply:
|
120V 1PH
|
Motor Power:
|
0.25KW
|
Rim Center Hole Dia.:
|
<135mm
|
Wheel Weight:
|
<65KG
|
Balancing Accuracy:
|
±1g
|
Measuring Time:
|
7S
|
Warranty
-Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
