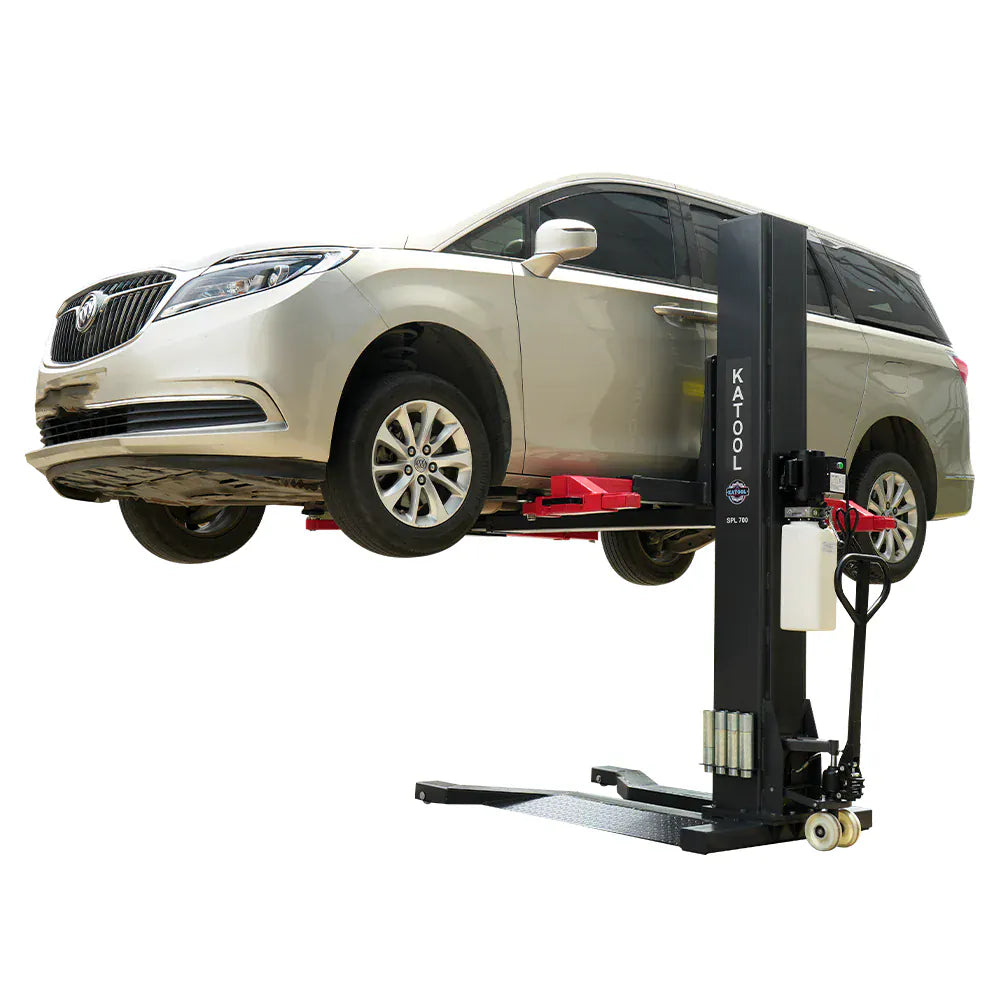

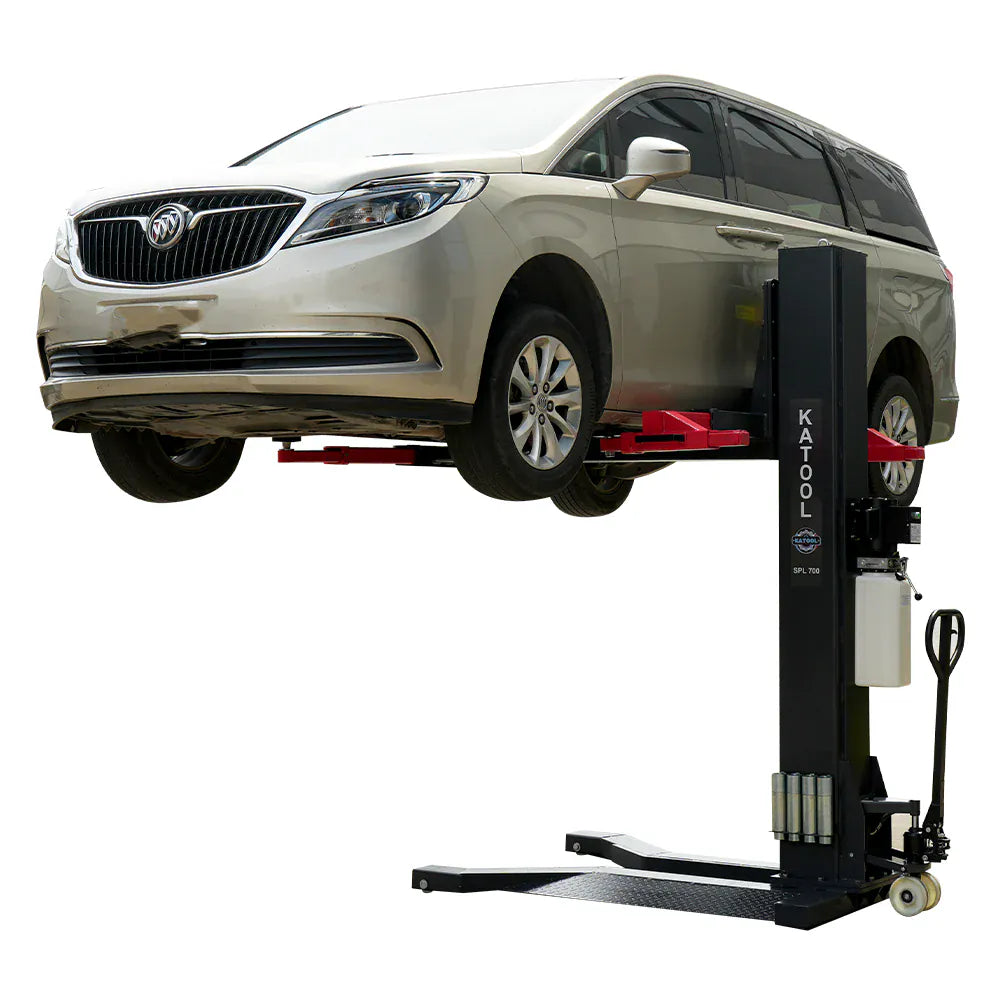

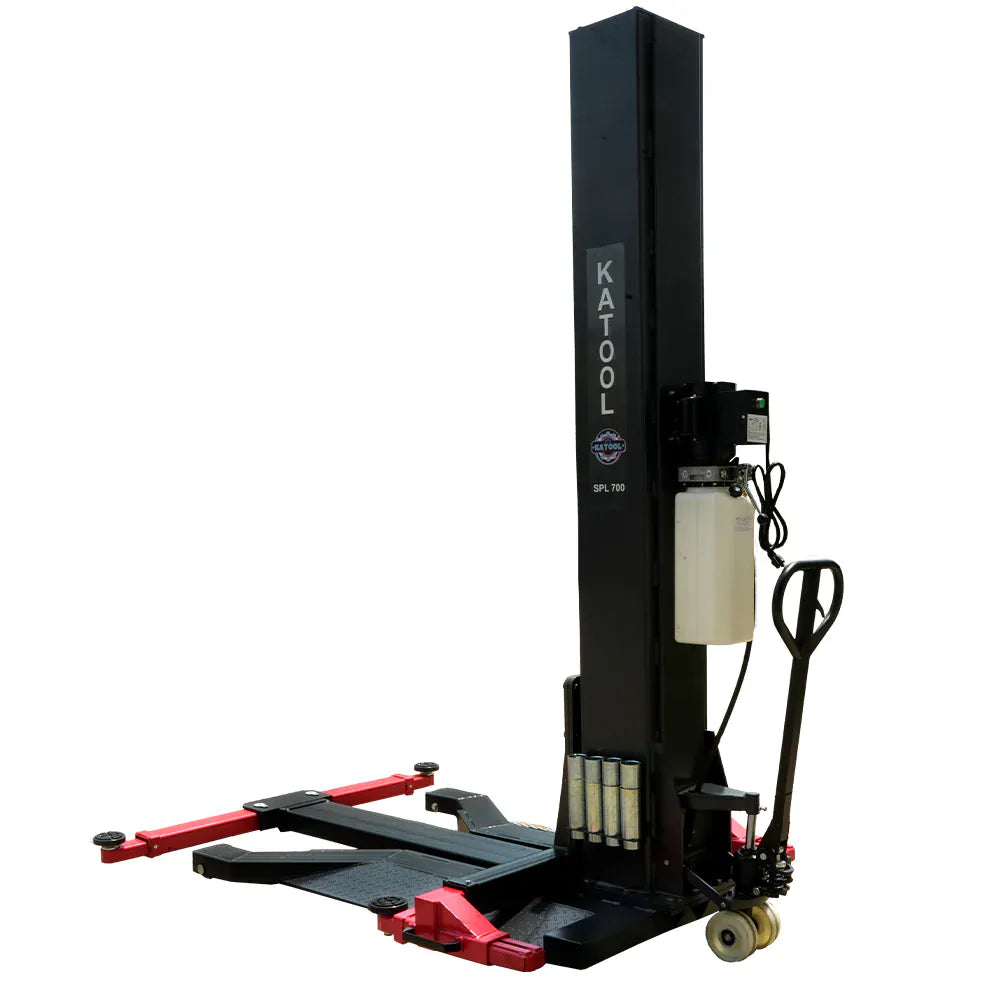

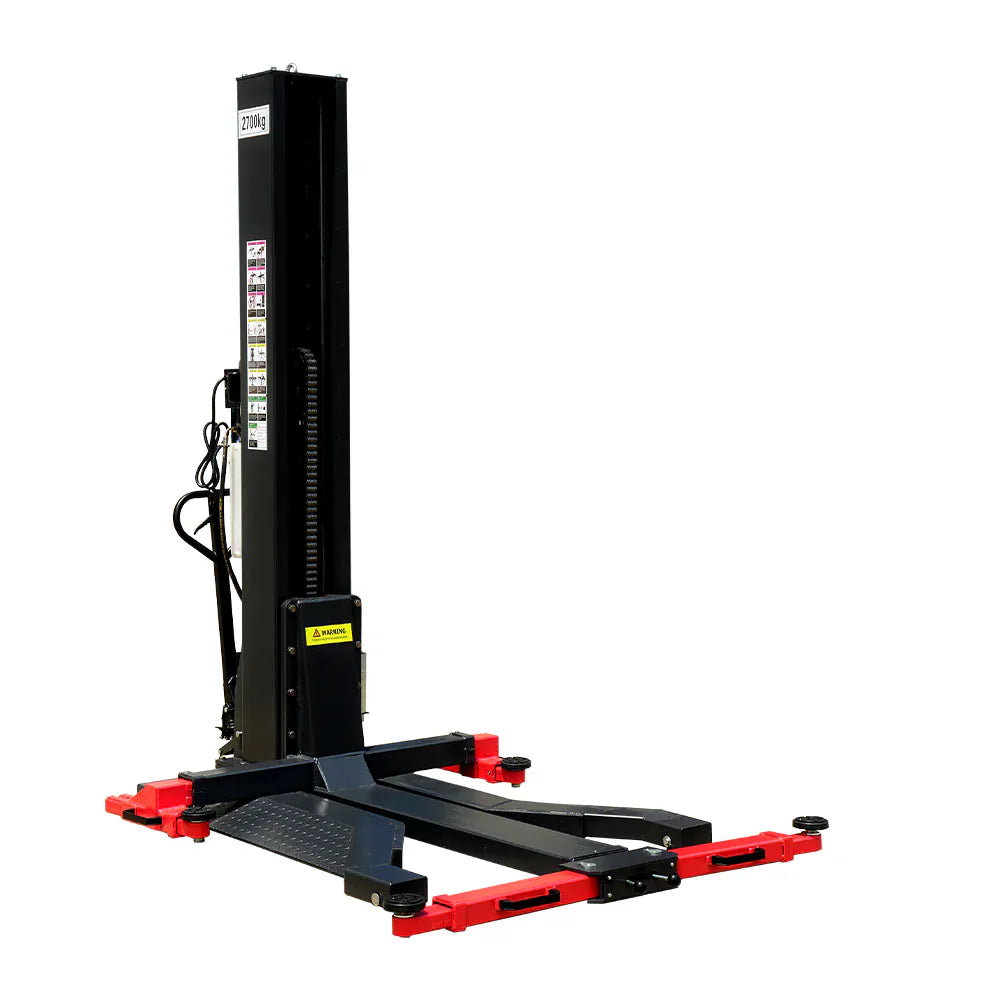

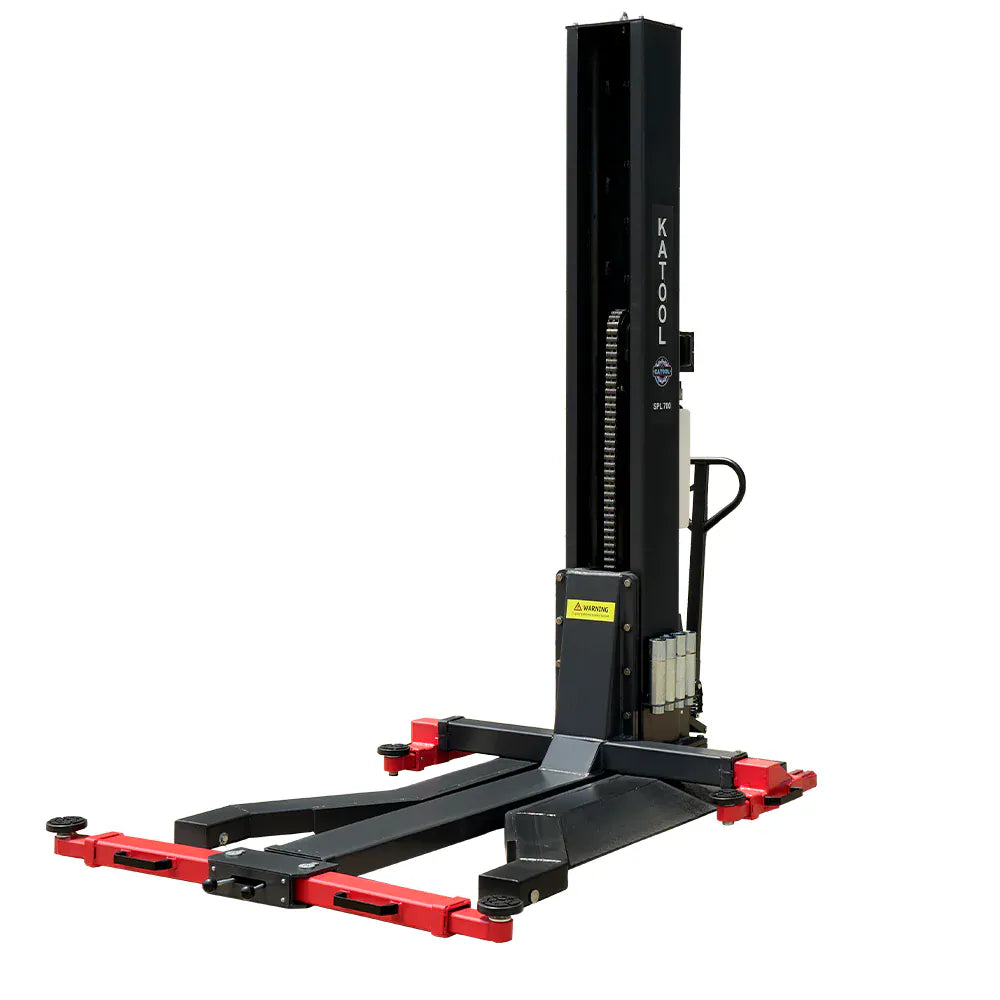

Katool KT-SPL700 portable 7,000 lb single post vehicle lift, KATOOL-branded column.

Katool KT-SPL700 7,000 lb Single Post Lift

SKU KT-SPL 700

In Stock
$5,900.00 - $5,900.00
$5,900.00
$5,900.00 - $5,900.00
$5,900.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Katool KT-SPL700 is a portable 7,000 lb single post vehicle lift built for shops, home garages, and mobile technicians who work in tight spaces. The single-column design opens up access to all four wheels and the full undercarriage, which is what makes it useful for tire, brake, suspension, and exhaust work where you need clear access without committing the floor space of a two-post or four-post lift.

Power runs off a standard 110 V single-phase circuit on a 30-amp breaker, so the lift drops into most home and small-shop electrical setups without a service upgrade. The lifting pad reach is fully adjustable across a wide range of vehicle widths, and the unit ships with eight stackable truck adapters — four at 2.75" and four at 6" — to set pad height for trucks and vans.

Katool KT-SPL700 single post lift overall footprint, 103 inches tall by 69 inches wide.
Overall footprint — 103" tall × 69" wide.

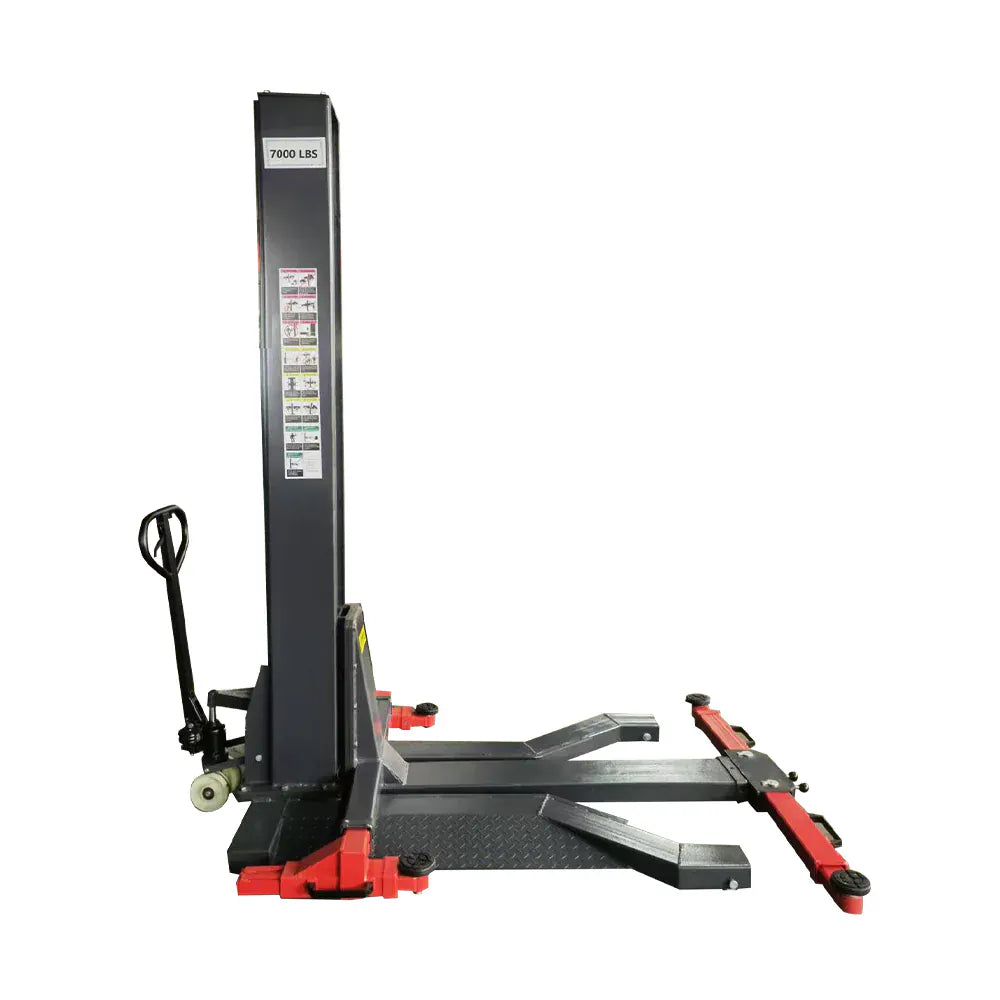

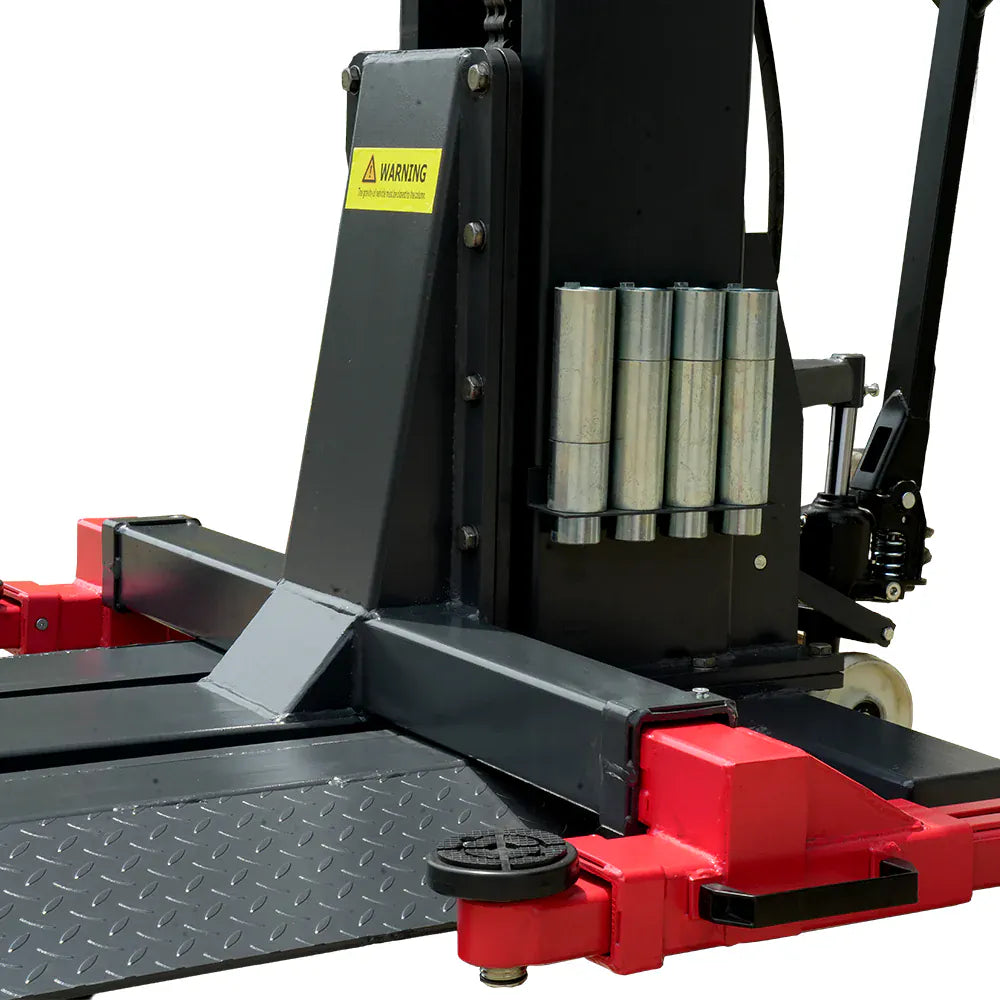

Mobility is built in: a pair of caster wheels and an integrated pump handle let one technician roll the lift between bays. The diamond-plate drive-on platform keeps the operator clear during loading, and an automatic safety lock engages at every lift position. Initial offloading from the freight truck requires a forklift — the unit ships at roughly 1,900 lbs.

Dimensions

Katool KT-SPL700 side dimension diagram showing 102 3/4 inch overall height and 71 2/3 inch maximum lift height.
Side view — overall height 102 3/4", max lift 71 2/3".
Katool KT-SPL700 top-view dimension diagram showing arm reach ranges and base footprint.
Top view — arm reach ranges and full pad-distance spread.

Features

-
  • 7,000 lb (3,175 kg) lifting capacity — sized for sedans, SUVs, and light trucks
  • 71 2/3" max lifting height with 68" clearance under the pads
  • Single-post design clears all four wheels and the full undercarriage at once
  • Drive-on diamond-plate platform with low-profile arms for low-clearance vehicles
  • Adjustable lifting pad reach for sedans through full-size light trucks
  • 110 V single-phase, 30 A — runs on standard garage power, no service upgrade
  • Caster wheels and integrated pump handle for repositioning by one technician
  • Automatic safety lock engages at every lift position

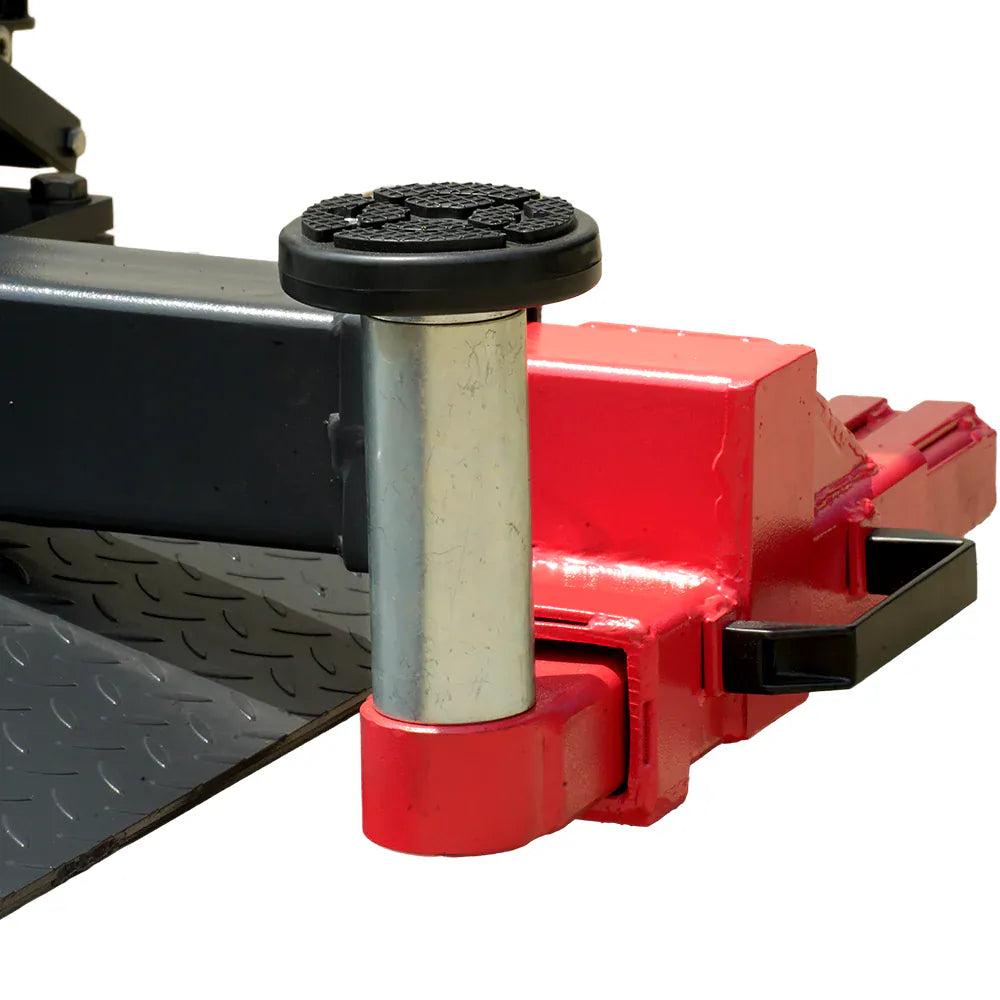

  • Includes (4) 2.75" and (4) 6" stackable truck adapters; 2" peg size
  • Hydraulic operation; AW32 or AW46 fluid (3–5 gal) sold separately
  • Shipping weight ~1,900 lbs

Specifications

-
Katool KT-SPL700 Single Post Lift Specifications
Lifting Capacity 7,000 lbs (3,175 kg)
Max Lifting Height (no adapters) 71 2/3" (5' 11 2/3")
Max Clearance Height 68" (5' 8")
Minimum Pad Height 5"
Overall Height 102 3/4" (8' 6 3/4")
Overall Dimensions (L × W × H) 111 1/2" × 96" × 102 3/4"
Column Size 10 1/2" × 12 1/2"
Pad Distance — Column to Offside 39 1/2" – 81"
Pad Distance — Column to Column 53" – 73"
Pad Distance — Offside to Offside 54 1/3" – 91 1/2"
Motor / Electrical Requirement 110 V single-phase, 30 A breaker
Hydraulic Fluid 3–5 gallons AW32 or AW46 (not included)
Shipping Weight ~1,900 lbs
Adapter Heights Included (4) 2.75" and (4) 6"
Adapter Peg Size 2"
