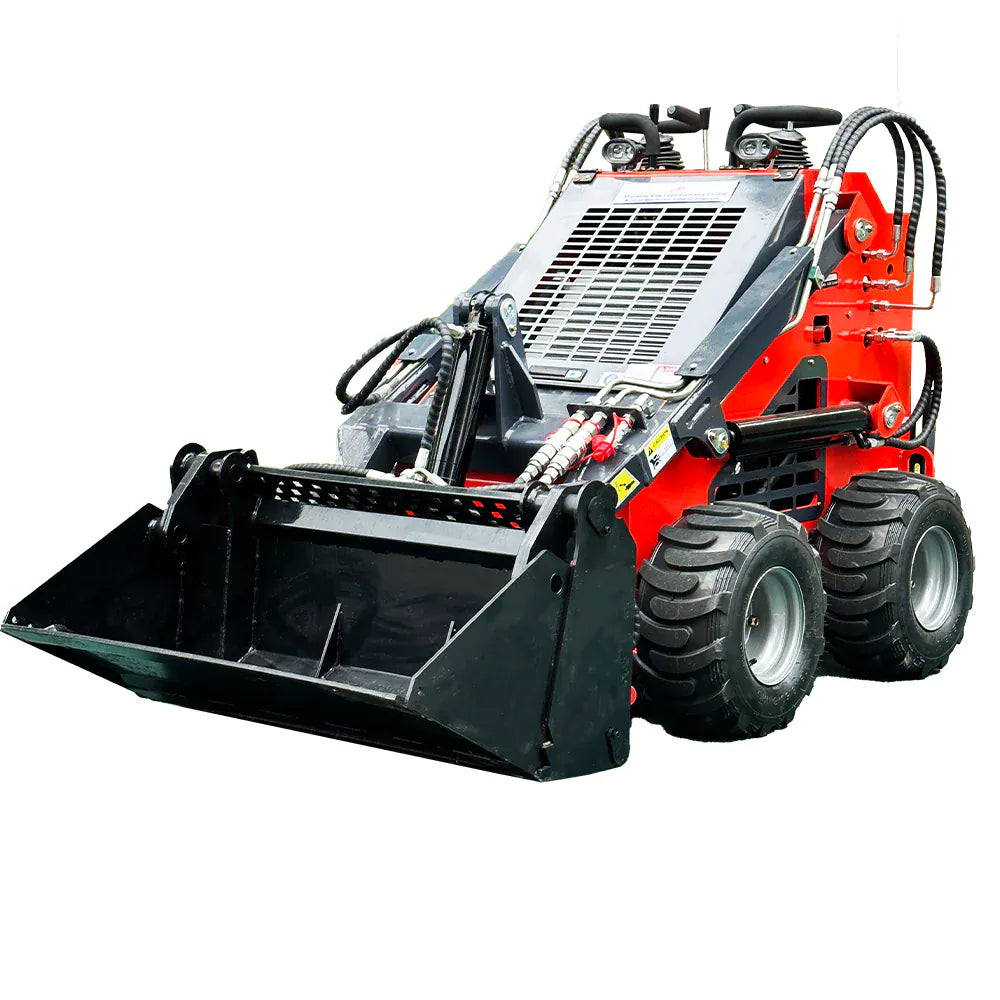

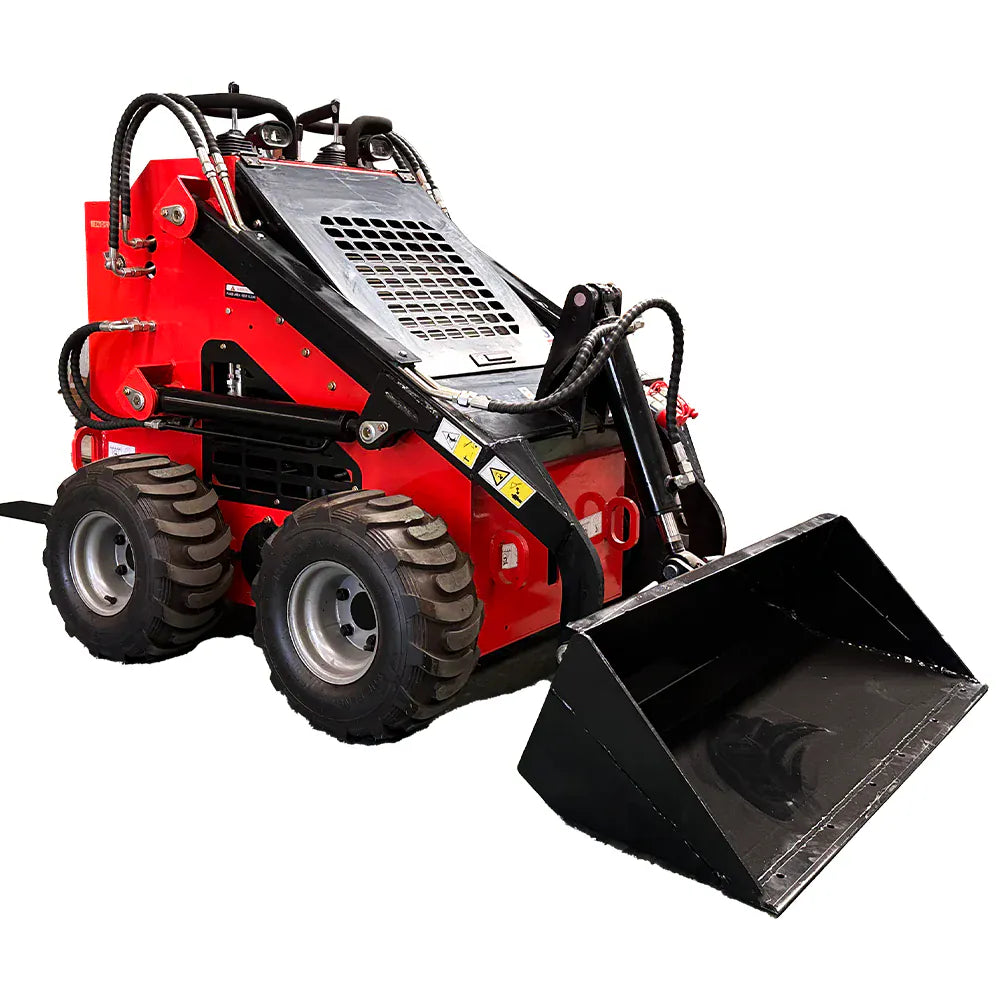

Katool KT-SK26W mini skid steer track loader, 23 HP RATO engine, front three-quarter view with bucket lowered

Katool KT-SK26W Mini Skid Steer Track Loader — 23 HP RATO Engine, 837 lb Capacity

SKU KT-SK26W

In Stock
$5,390.00 - $5,390.00
$5,390.00
$5,390.00 - $5,390.00
$5,390.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Katool KT-SK26W mini skid steer track loader is a compact ride-behind machine sized for landscaping crews, contractors, and property owners working in tight-access job sites where a full-size skid steer cannot fit. Power comes from a 23 HP EPA-certified RATO gasoline engine with electric start, paired with a single-joystick control system that integrates steering, travel, and speed selection in one lever.

Rated lifting capacity is 837 lbs, with a 661 lb (300 kg) standard bucket capacity for soil, gravel, debris, and palletized material handling. The track-loader configuration improves traction and stability on dirt, mud, and uneven terrain, and dual-speed travel reaches up to 3.7 mph. The frame is built from Q235 / Q245 structural steel, and the hydraulic plumbing uses galvanized rigid piping in place of rubber hose for corrosion resistance and longer service life.

Katool KT-SK26W galvanized rigid hydraulic piping replacing rubber hose, three-line manifold close-up

The operator station includes a widened foot pedal platform and reinforced double side handles for safer mounting and dismounting. Service access is opened up by a removable inspection panel that exposes the drive motors and sprockets without disassembly. Standard fuel capacity is 5.3 gallons (20 L) and hydraulic oil capacity is 6.6 gallons (25 L), with a 12V / 36Ah battery feeding the electric start system.

Katool KT-SK26W widened 16-inch foot pedal guard with reinforced double side handles
Widened 16-inch foot pedal guard with reinforced side handles.

Features

-
  • 23 HP RATO gasoline engine — EPA-certified with electric start
  • 837 lb rated lifting capacity — handles soil, gravel, debris, and palletized loads
  • Track loader configuration — improved traction and stability on dirt, mud, and uneven terrain
  • Single-joystick control — integrated steering and speed selection reduces operator fatigue
  • Galvanized rigid hydraulic piping — corrosion resistance for extended service life
  • Dual-speed travel — selectable for productivity vs. terrain handling

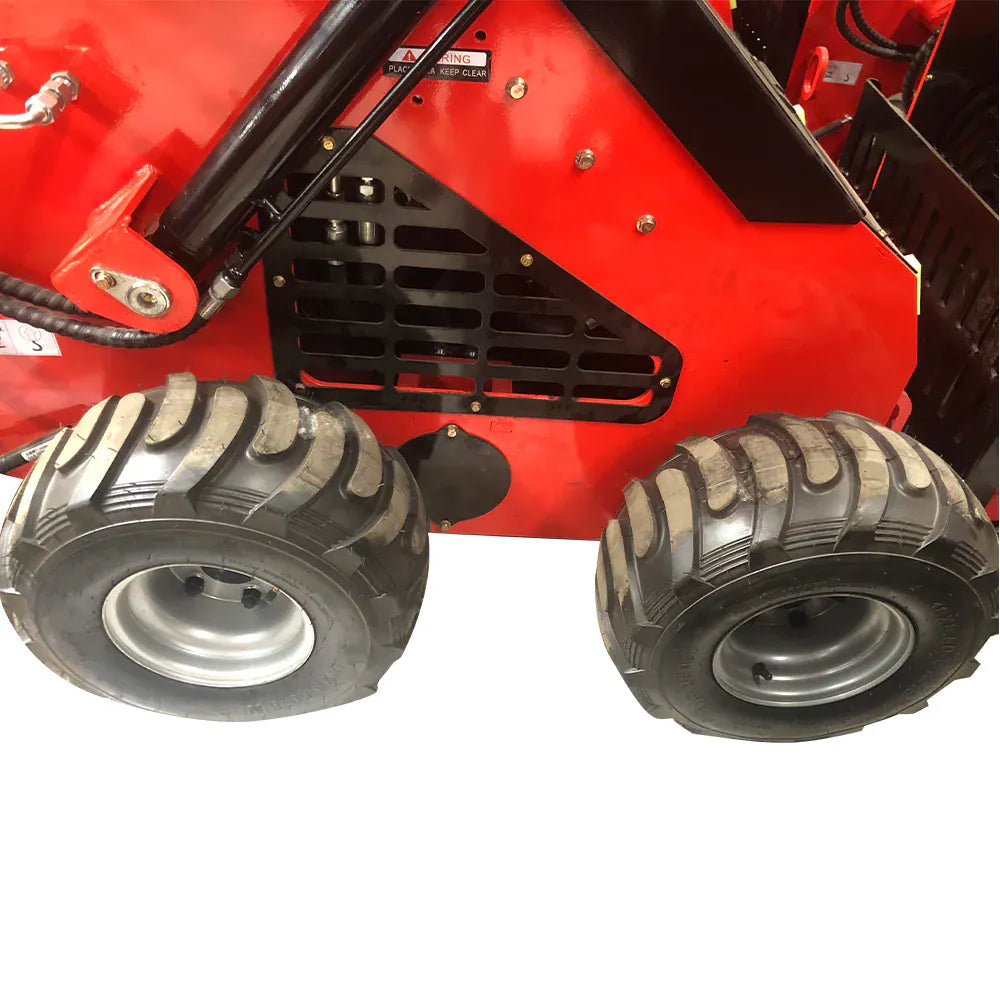

  • Accessible service panels — open inspection of drive motors and sprockets
  • Operator safety enhancements — widened foot pedal guard and reinforced double side handles
  • Q235 / Q245 structural steel — heavy-duty welded frame

Specifications

-
Katool KT-SK26W Mini Skid Steer Track Loader Specifications
Model KT-SK26W
Engine 23 HP RATO Gasoline (EPA Certified)
Starting System Electric Start
Rated Lifting Capacity 837 lbs
Standard Bucket Capacity 661 lbs (300 kg)
Operating Weight Approx. 1,984 lbs (900 kg)
Fuel Tank Capacity 5.3 gal (20 L)
Hydraulic Oil Tank 6.6 gal (25 L)
Travel Speed Up to 3.7 mph
Drive Pressure 2,611 PSI
Battery 12V / 36Ah
Machine Dimensions (L × W × H) 115" × 45.5" × 54.7"
Shipping Dimensions 82" × 48" × 51"
Frame Construction Q235 / Q245 Structural Steel

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
