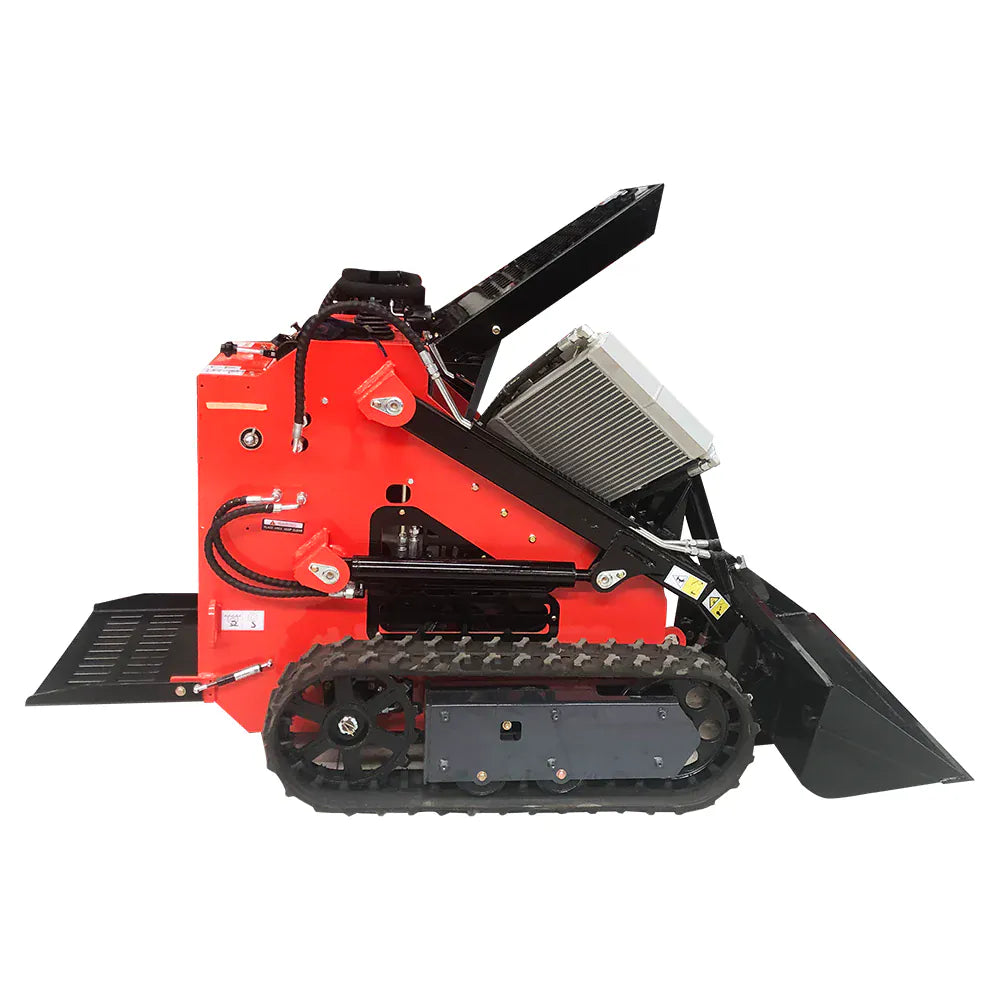

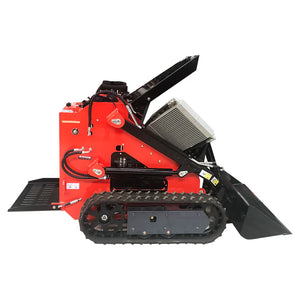

Katool KT-SK26B mini skid steer track loader, side view with engine cover open

Katool KT-SK26B 23HP Mini Skid Steer Track Loader — 837 lb Lifting Capacity

Name: Katool KT-SK26B 23HP Mini Skid Steer Track Loader — 837 lb Lifting Capacity
Brand: Katool
SKU: KT-SK26B
Price: 5290.0 USD
Availability: InStock

SKU KT-SK26B

In Stock

$5,290.00 - $5,290.00

$5,290.00

$5,290.00 - $5,290.00

$5,290.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

The Katool KT-SK26B is a compact, gasoline-powered mini skid steer track loader rated for an 837 lb lift capacity on a 23 HP engine, sized for property owners, landscapers, farm operators, and small contractors who need real lifting performance on jobsites where a full-size skid steer can't fit.

The frame is welded from Q235 and Q245 structural steel — the same low-carbon grades used on full-size construction equipment — over a compact rubber-track undercarriage. The track footprint clears standard yard gates and follows narrow side passages while distributing the loader's 1,984 lb operating weight across a wider contact patch than tires would, holding traction on dirt, gravel, and uneven ground without tearing up finished landscaping.

Katool KT-SK26B 837 lb rated lift capacity shown across three arm positions — 837 lb rated lift capacity across the full arm range.

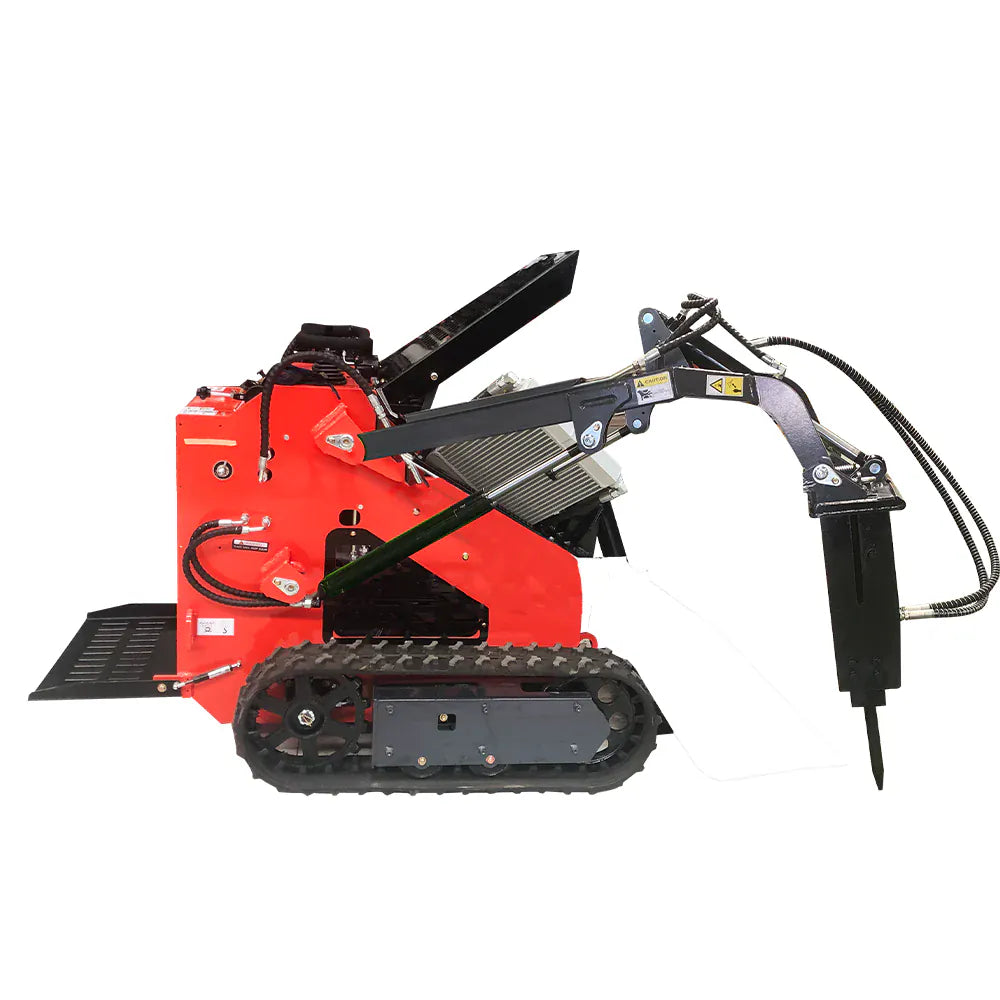

Hydraulic four-wheel drive transfers the engine's output to the tracks at travel speeds of 0–6 km/h (0–3.7 mph), with a hydraulic closed brake holding the loader on inclines. Auxiliary hydraulics power bucket, breaker, auger, and pallet-fork attachments through quick-disconnect couplers.

Features

23 HP gasoline drivetrain with hydraulic four-wheel drive

The 16.8 kW engine drives a hydraulic four-wheel-drive system through a 50 L / 180 bar hydraulic circuit. Travel speed runs 0–6 km/h, and a hydraulic closed brake holds the loader in place when the operator releases the levers.

Katool KT-SK26B drive motor and sprocket assembly behind hinged inspection panel

Twin-lever operator station

Single-operator design with two control levers handling forward, reverse, and steering. The instrument panel includes a 12V power outlet, choke, fuel gauge, oil-temperature gauge, hour meter, lamp and horn switches, ignition lock, and throttle.

Katool KT-SK26B twin-lever operator controls and gear-pattern decal

Katool KT-SK26B instrument panel with fuel gauge, oil-temperature gauge, and hour meter

Galvanized rigid hydraulic piping

Rigid galvanized steel lines replace softer rubber hoses through the high-flex sections of the hydraulic circuit, reducing the corrosion and chafing failures that take rubber lines out of service first.

Compact rubber-track undercarriage

Rubber tracks distribute the 900 kg operating weight evenly across uneven terrain, holding traction on soft ground and gravel where tires would dig in or slip. The compact track frame is sized to clear standard residential gates and tight side-yard passages.

Katool KT-SK26B rubber track undercarriage and lift cylinder viewed from underneath

Service-friendly access panels

Hinged inspection panels open on either side of the engine bay, exposing the sprocket, drive motor, hydraulic lines, and battery for routine inspection without removing body panels — relevant when the loader is being serviced in the field rather than a shop.

Quick-disconnect auxiliary hydraulics

Auxiliary hydraulic ports use quick-disconnect couplers, so swapping between bucket, breaker, auger, or pallet-fork attachments is a tool-free change at the front of the machine.

Katool KT-SK26B auxiliary hydraulic quick-disconnect couplers with red dust caps

Specifications

Katool KT-SK26B Mini Skid Steer Track Loader Specifications
Model	KT-SK26B
Engine Power	23 HP (16.8 kW), gasoline
Rated Lifting Capacity	837 lbs
Standard Bucket Capacity	661 lbs (300 kg)
Operating Weight	~1,984 lbs (900 kg)
Drive System	Hydraulic four-wheel drive
Hydraulic Drive Circuit	50 L / 180 bar
Travel Speed	0–6 km/h (0–3.7 mph)
Braking System	Hydraulic closed brake
Fuel Tank Capacity	20 L (~5.3 US gal)
Hydraulic Oil Tank	25 L (~6.6 US gal)
Electrical System	12V / 36 Ah battery
Machine Dimensions	2924 × 1155 × 1390 mm (115" × 45" × 55")
Packing Dimensions	82" × 48" × 51"
Frame Construction	Q235 / Q245 structural steel

Katool KT-SK26B crate packing dimensions: 82 by 48 by 51 inches

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
