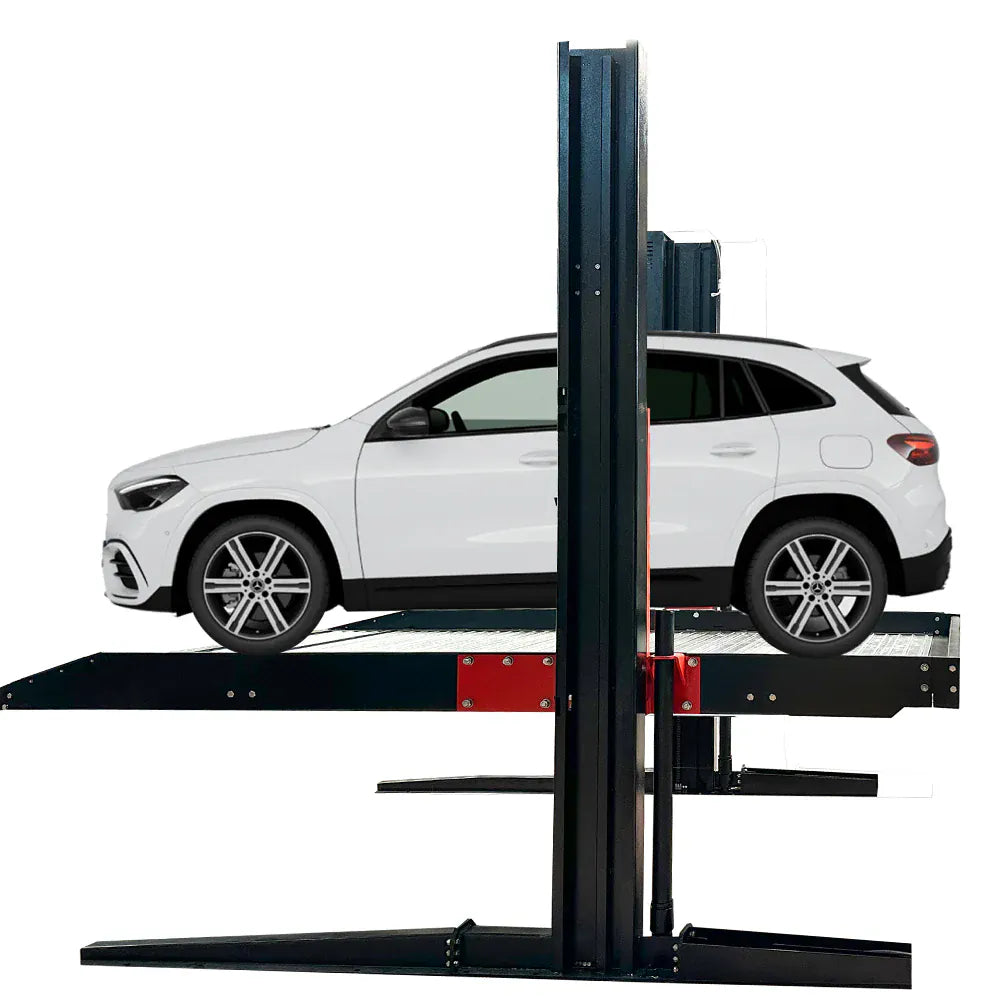

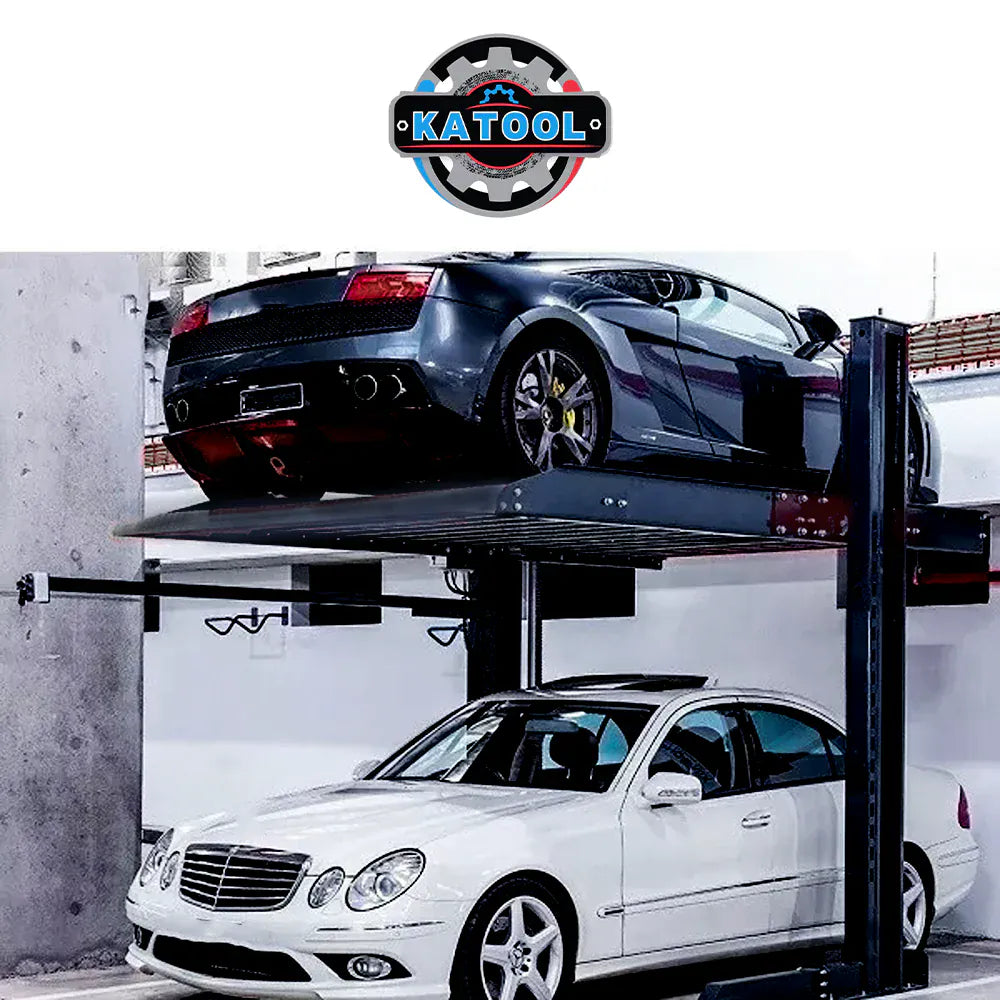

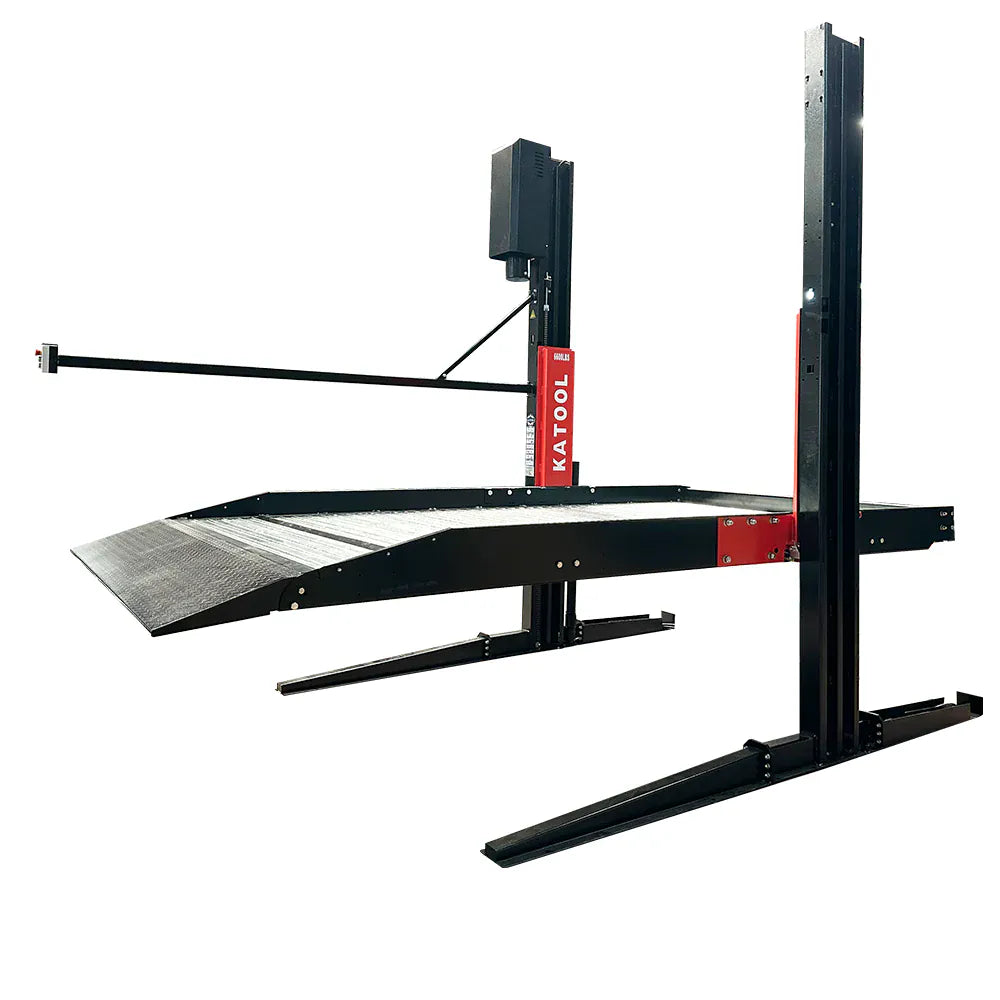

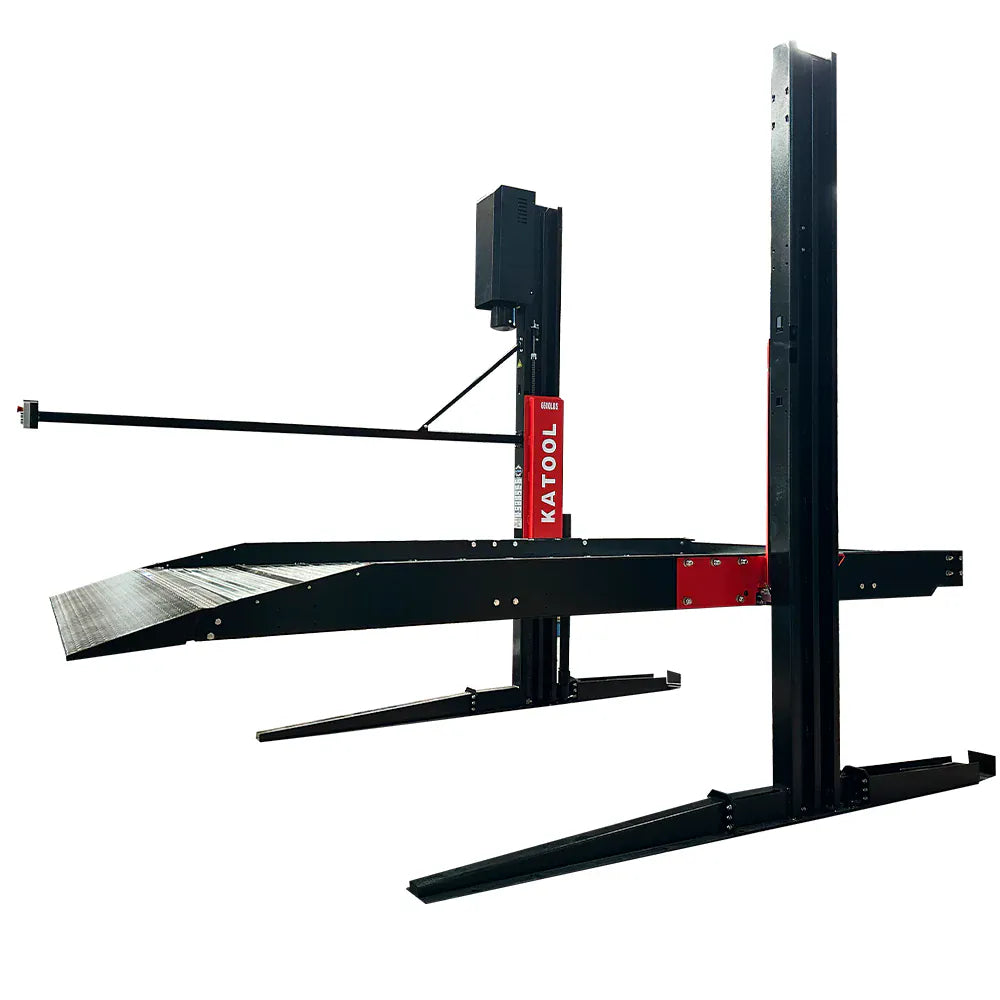

Katool KT-P2700 6,600 lb Two-Post Parking Lift

The Katool KT-P2700 is a hydraulic two-post parking lift rated to 6,600 lb, designed to double garage and shop floor space by storing one vehicle above another. The platform raises to a maximum height of 82.68 in (2,100 mm), lowers to a clearance of just 3.94 in, and is sized for sedans, sport coupes, and most light SUVs and pickups.

It runs on either 110V or 220V single-phase service at 50/60 Hz, so the same lift fits a residential garage circuit or a commercial bay without a power-unit swap. A full lift cycle takes 60–80 seconds; lowering takes 40–60 seconds.

• 6,600 lb lifting capacity for sedans, light SUVs, and most half-ton pickups
• Two-post hydraulic design with a single drive cylinder and equalizing chain
• 110V / 220V dual-voltage motor (50/60 Hz) — fits residential or commercial single-phase service
• Mechanical multi-grade locking bar for parked-vehicle holding
• 24V low-voltage push-button control with key-switch and emergency stop
• Photo-sensor on the platform for obstruction detection during descent
• Angle-adjusted drive-on ramp for low approach angle
• Minimum height of 3.94 in (100 mm) for low-clearance loading
• Maximum lifted height of 82.68 in (2,100 mm) — clears most overhead garage doors
• Multi-unit linkage option — stations can be lined up side-by-side for valet, dealership, and storage rows

Multi-unit configurations

A single KT-P2700 station occupies 2,657 mm (about 8 ft 8 in) across. Stations can be linked end-to-end without independent end columns, so adding a second station only adds 2,492 mm of width — useful for car dealerships, valet operations, and high-density residential storage.

Power unit and controls

The motor and hydraulic power unit sit at the top of the drive column. The operator works from a separate 24V control box mounted on the column with up, down, and emergency-stop buttons plus a key switch.

• KT-P2700 Operations Manual
