Description

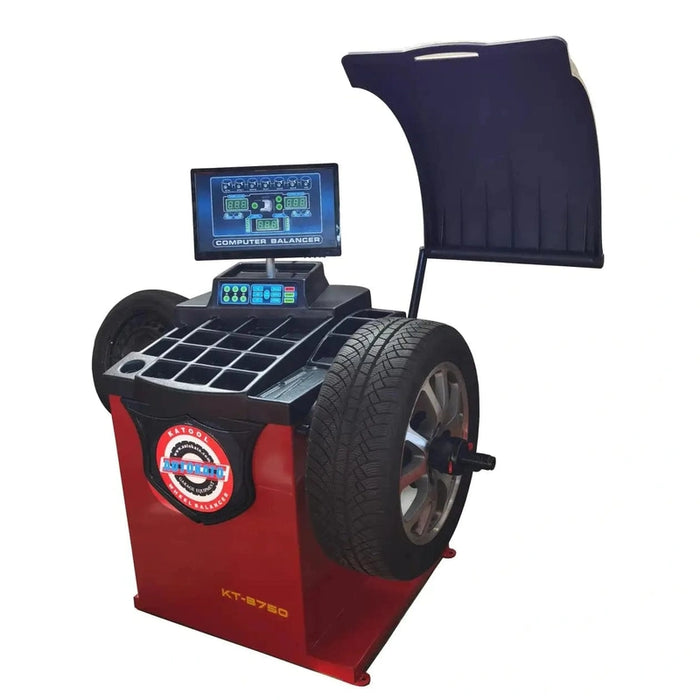

-The Katool KT-B750 Wheel Balancer is a precision-driven solution for efficient wheel balancing. Crafted with a sturdy 3mm-thick high-strength steel body and solid welding, it minimizes vibrations for a stable working environment. The all-in-one pressure sensor support design, featuring 8mm thick bottom and side boards, ensures reliable and precise sensor performance. Equipped with a top-level motor and pure copper winding, this wheel balancer delivers enhanced power, fast heat dissipation, and an extended usage life. The advanced welding technology applied to the computer board makes it moisture-proof, dustproof, and antistatic, contributing to a longer operational life. Offering various balance modes tailored to different rim types, the Katool KT-B750 ensures precise balancing effects. The built-in fault diagnosis and self-calibration program with double side calibration simplify operation for users.
Features
-- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life
- The ?36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Composite slash guard included
- Longer shaft for more width wheels
Specifications
-
Rim Diameter:
|
<30"
|
Wheel Width:
|
15"
|
Wheel Diameter:
|
<880mm
|
Balancing Speed:
|
180rpm
|
Power Supply:
|
120V 1PH
|
Motor Power:
|
0.25KW
|
Rim Center Hole Dia.:
|
<135mm
|
Wheel Weight:
|
<65KG
|
Balancing Accuracy:
|
1g
|
Measuring Time:
|
7S
|
Warranty
-Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
