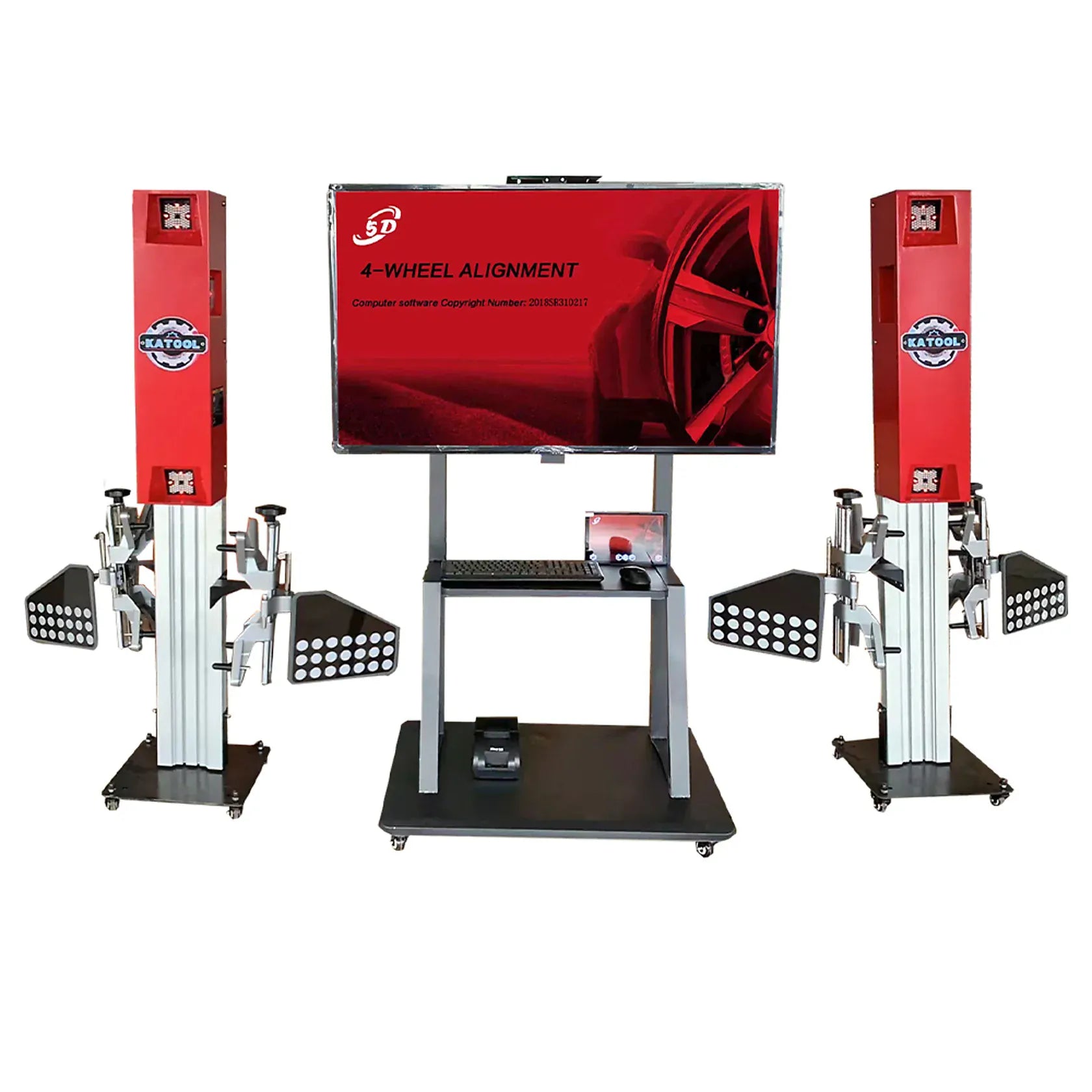

Katool KT-5DA 3D / 5D wheel alignment machine, full system with twin camera columns and monitor cart

Katool KT-5DA 3D / 5D Wheel Alignment Machine with Real-Time Camera Imaging

Name: Katool KT-5DA 3D / 5D Wheel Alignment Machine with Real-Time Camera Imaging
Brand: Katool
SKU: KT-5DA
Price: 6899.0 USD
Availability: InStock

SKU KT-5DA

In Stock

$6,899.00 - $6,899.00

$6,899.00

$6,899.00 - $6,899.00

$6,899.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

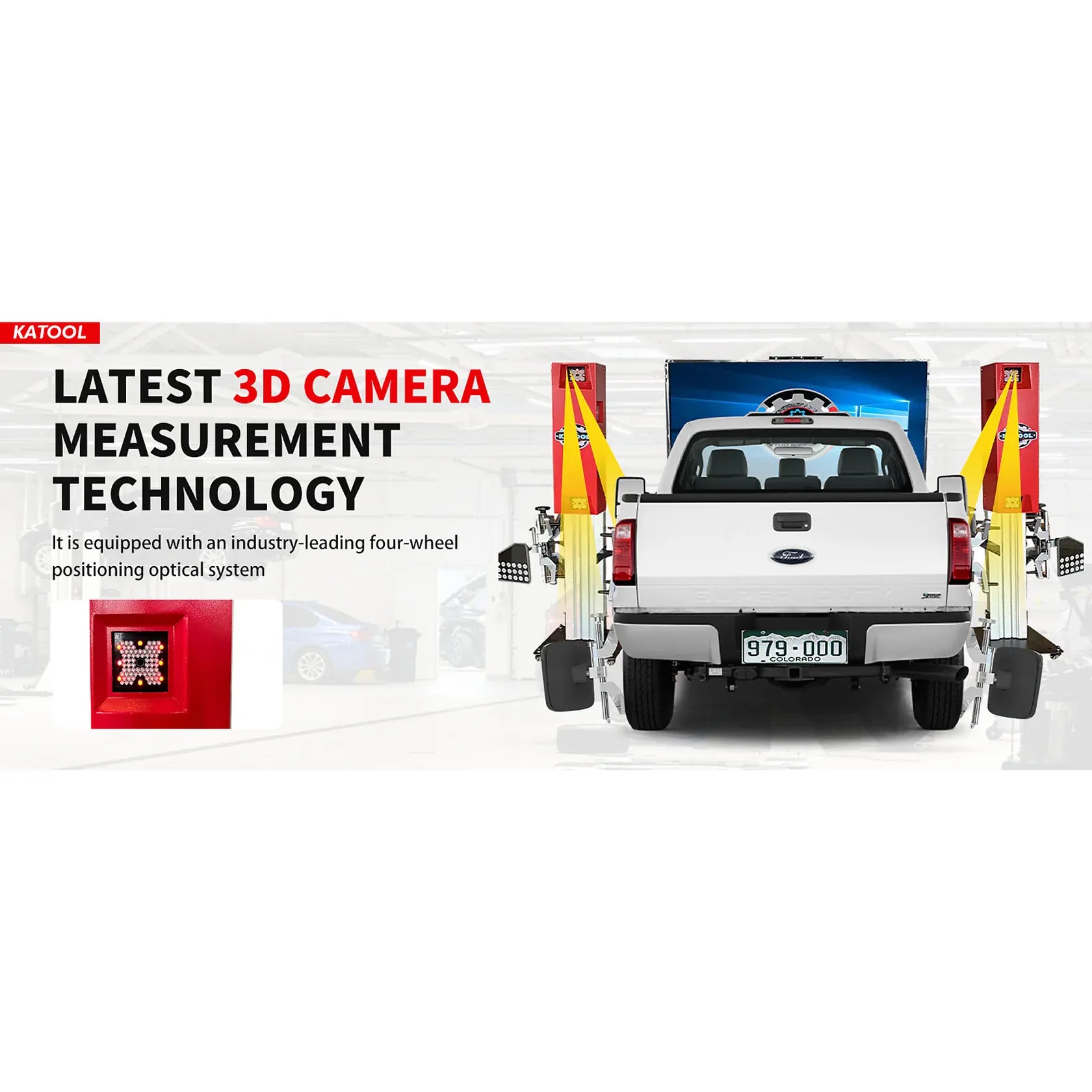

The Katool KT-5DA 3D / 5D wheel alignment machine uses dual industrial cameras and reflective targets to read four-wheel geometry in real time. From a single setup, the system captures toe, camber, caster, thrust angle, steering axis inclination, and track-width and wheelbase differential, then renders the readings on a shop monitor while the technician makes corrections.

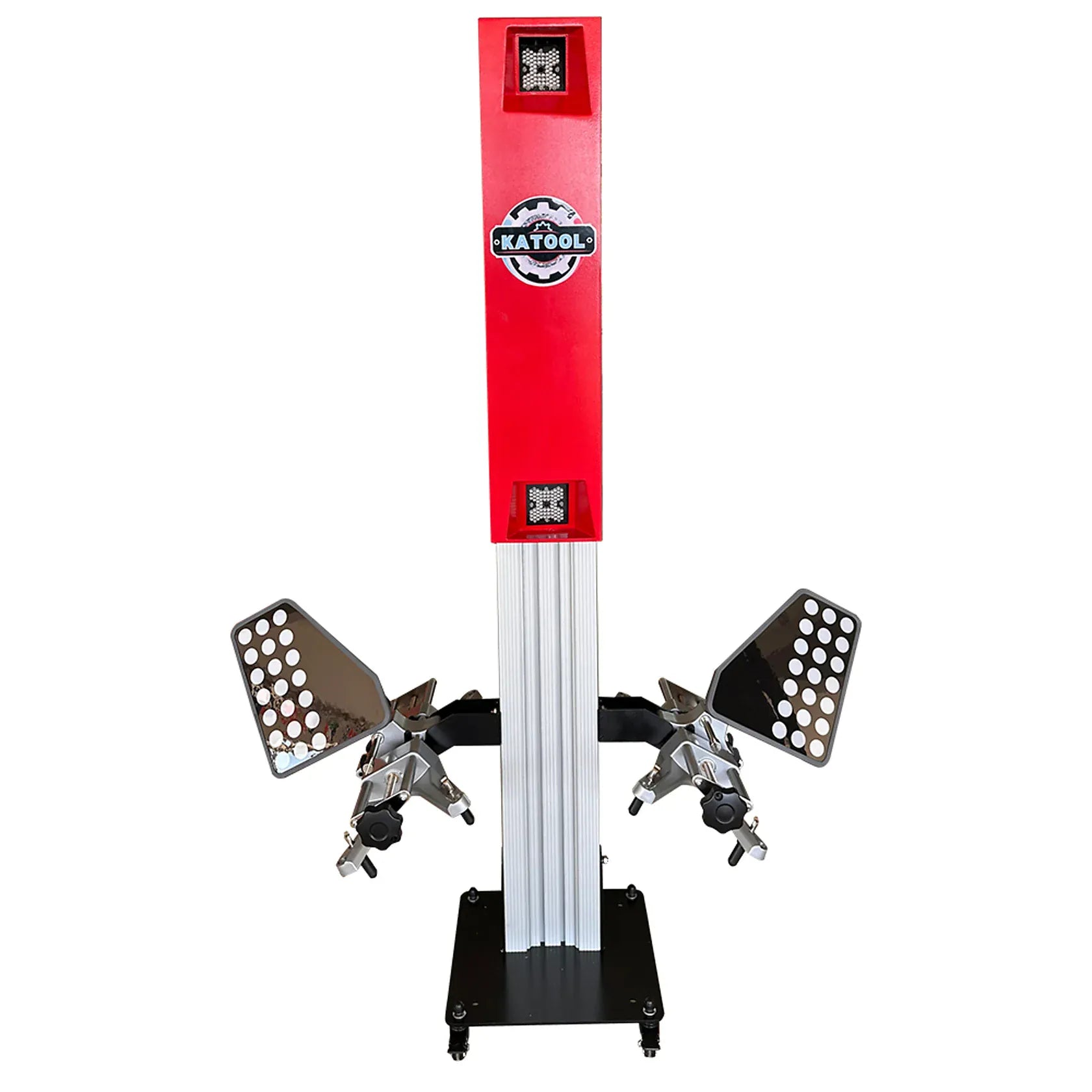

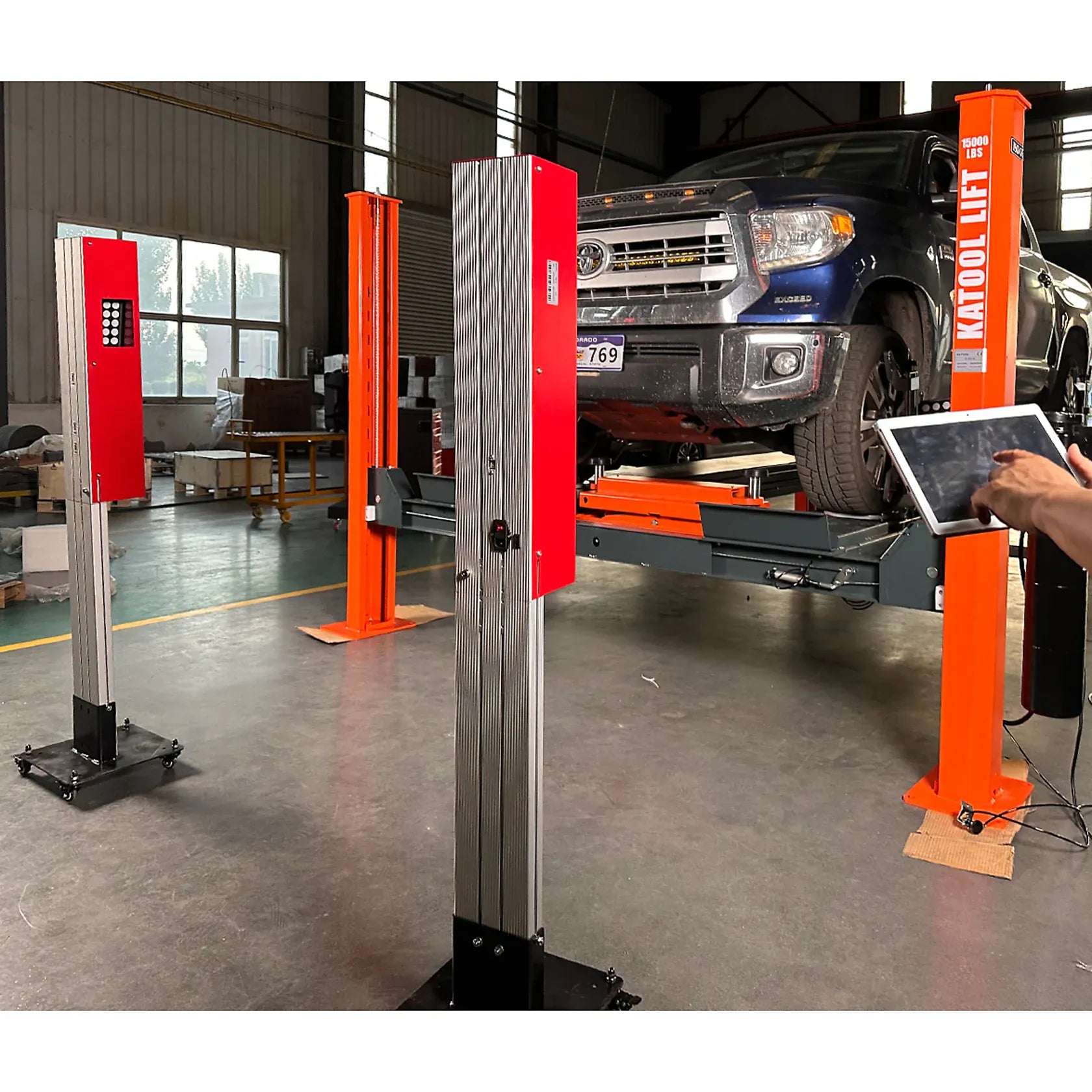

The KT-5DA is a wheeled, two-column rig with an alloy-steel frame finished in red, an integrated keyboard tray, a tablet shelf, and a thermal printer for printing alignment reports. Removable wheel clamps adjust to a wide range of rim sizes and attach without marring the wheel surface. Each camera column rolls on locking casters so the rig can be repositioned between bays.

The software is computer-controlled, runs on a high-definition shop monitor, and supports remote operation via cloud sync — database updates and remote support reach the unit without a service visit. The vehicle database covers most current car and light-truck makes and models, and technicians can save self-added profiles for fleet vehicles or older platforms.

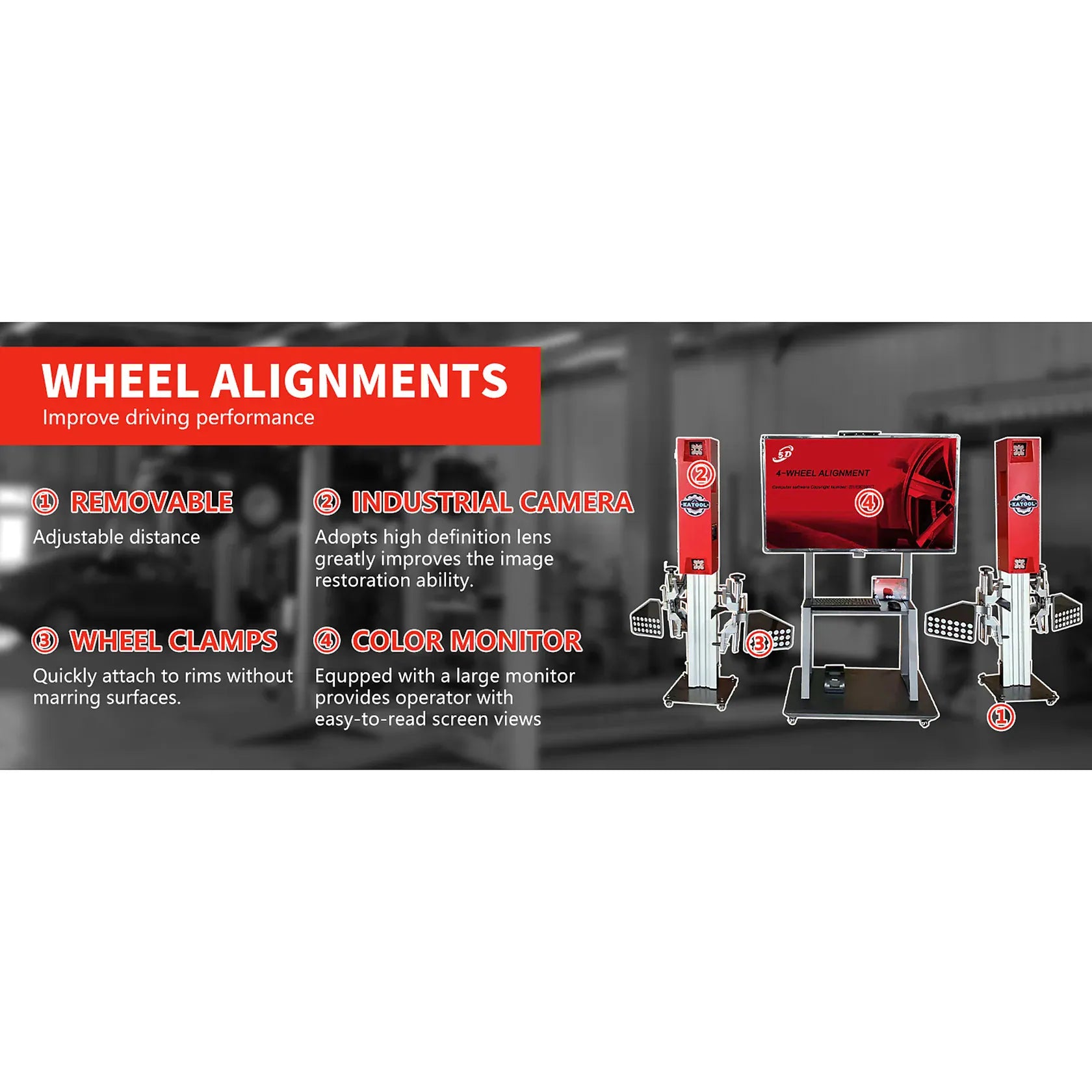

Features

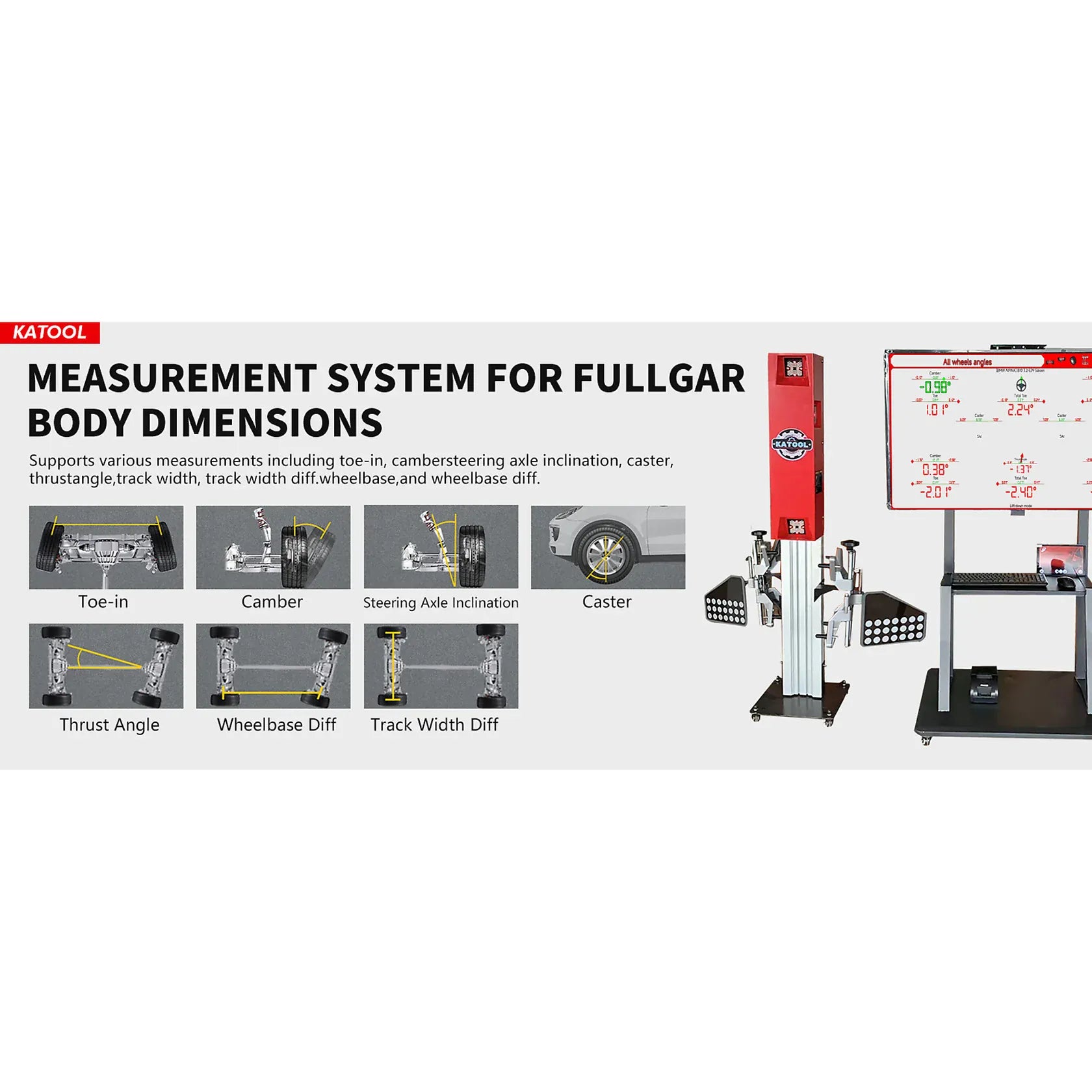

3D / 5D measurement system — captures toe, camber, caster, thrust angle, steering axis inclination, plus track-width and wheelbase differential from a single read.

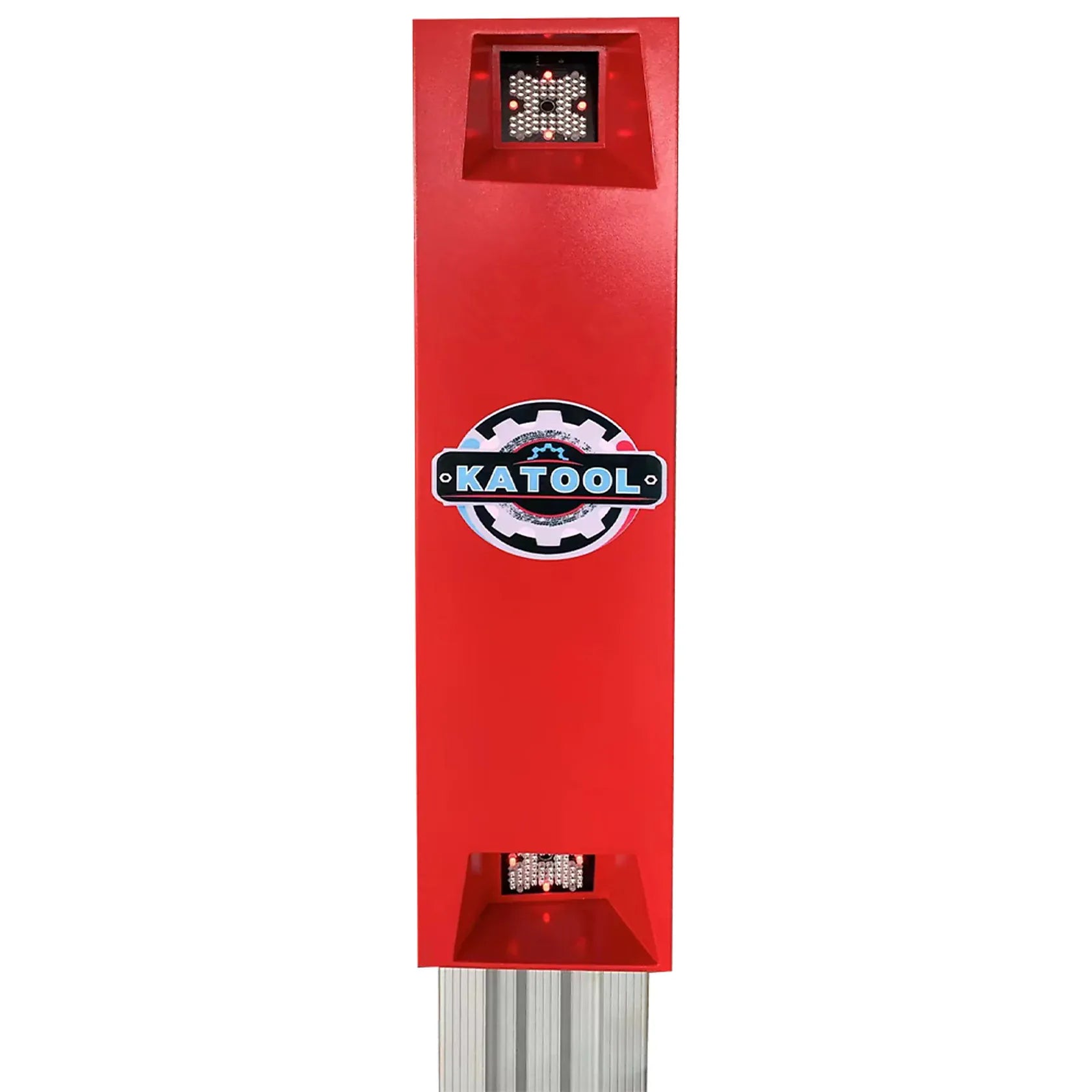

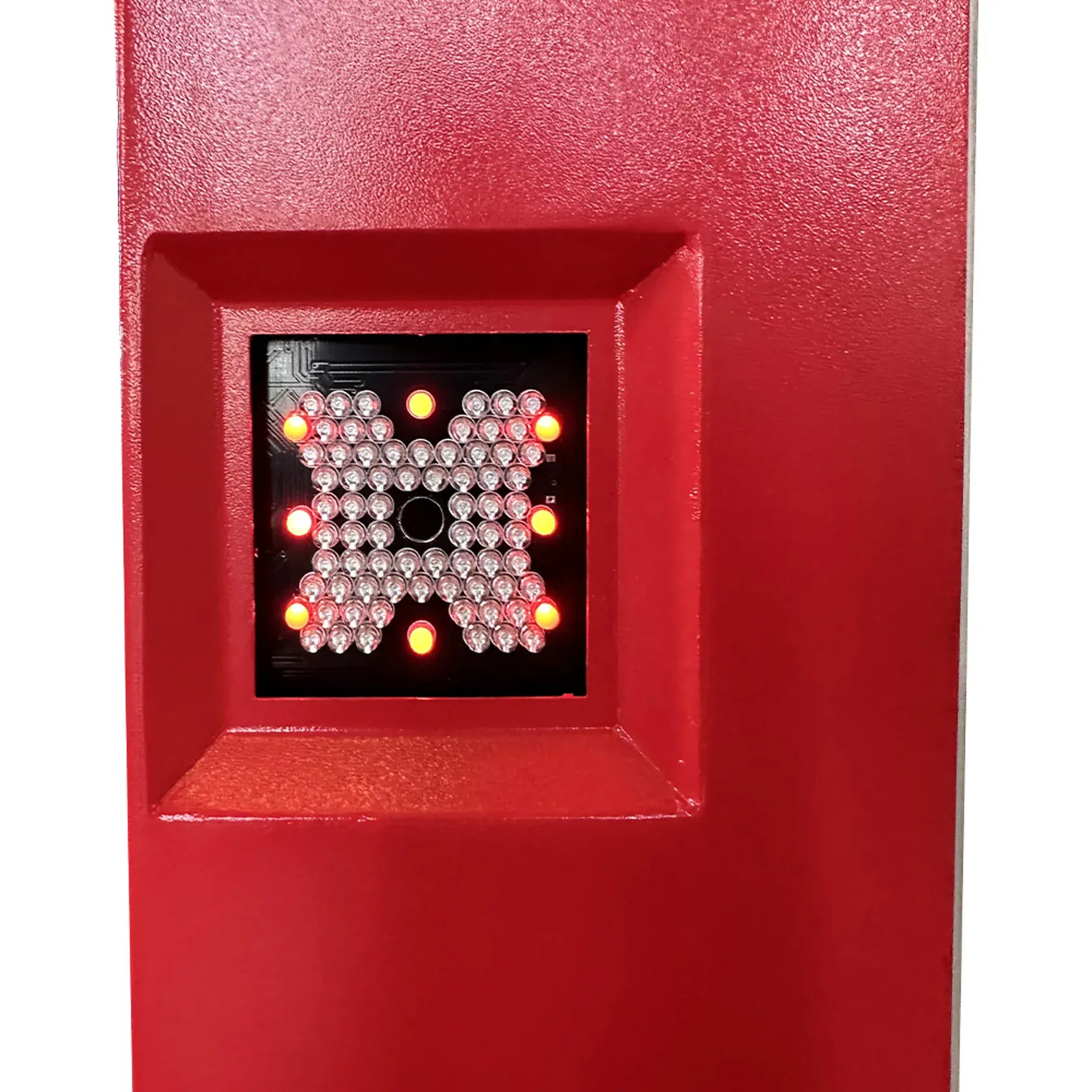

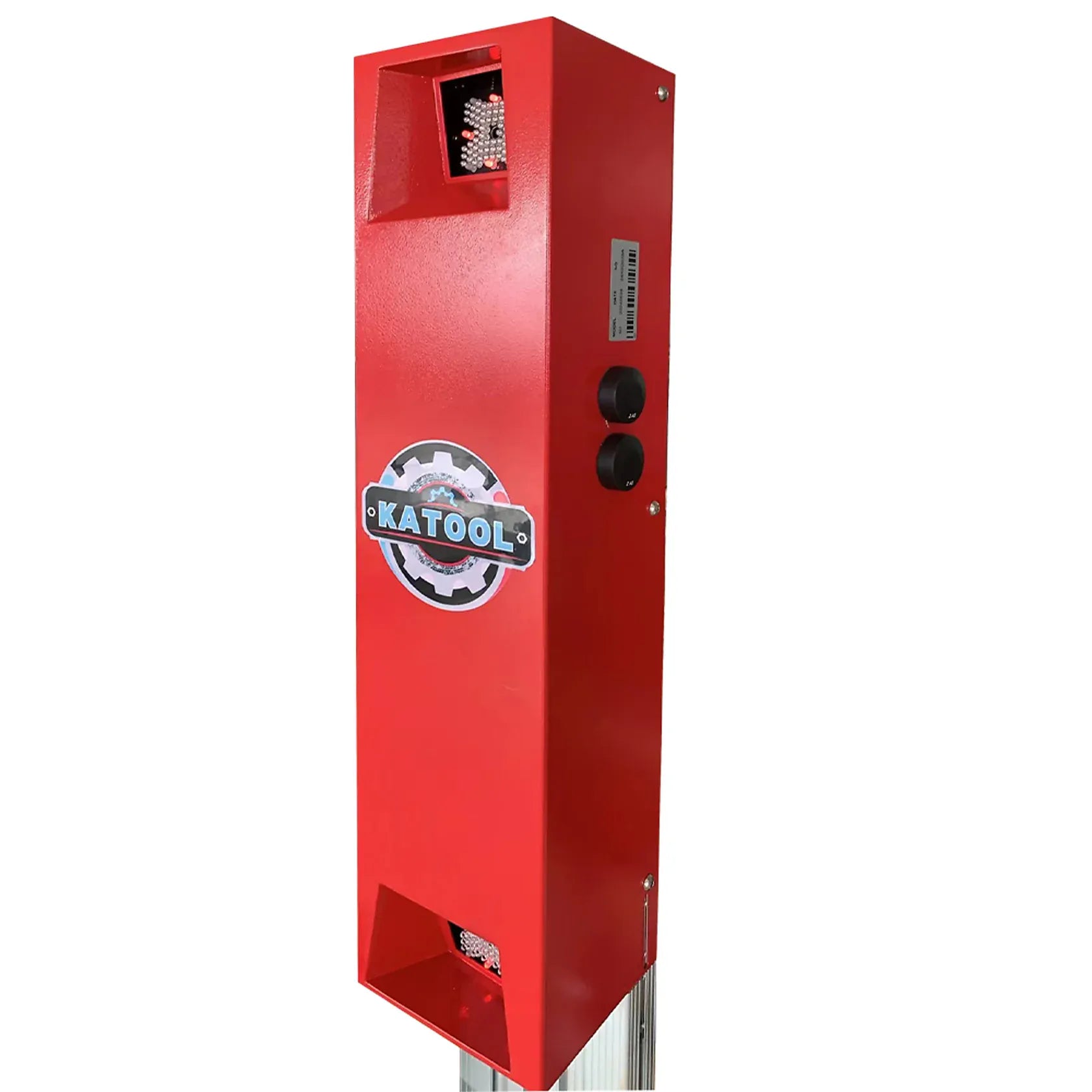

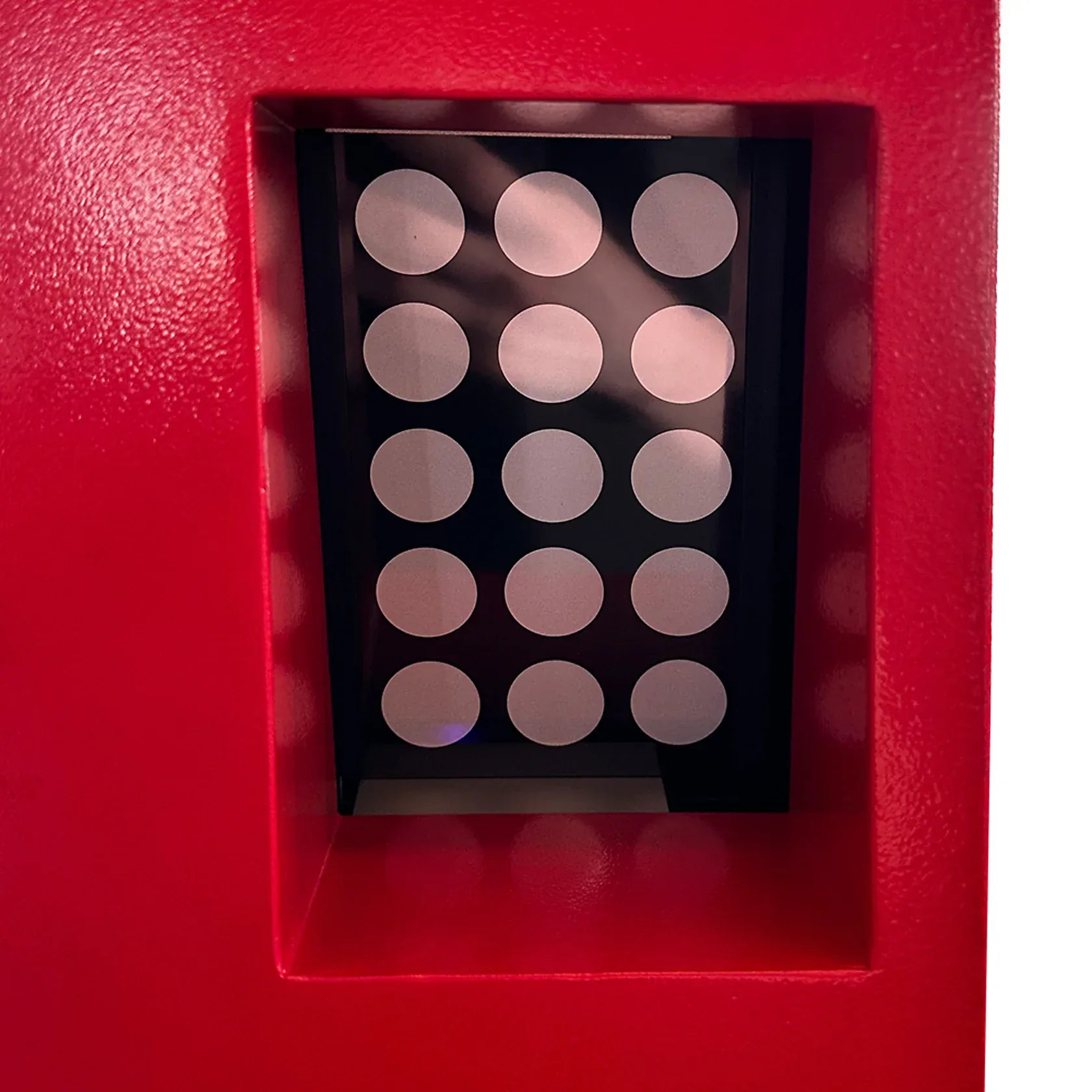

Real-time camera imaging — high-definition lenses on each column track the reflective targets continuously so adjustments show on screen as they happen.

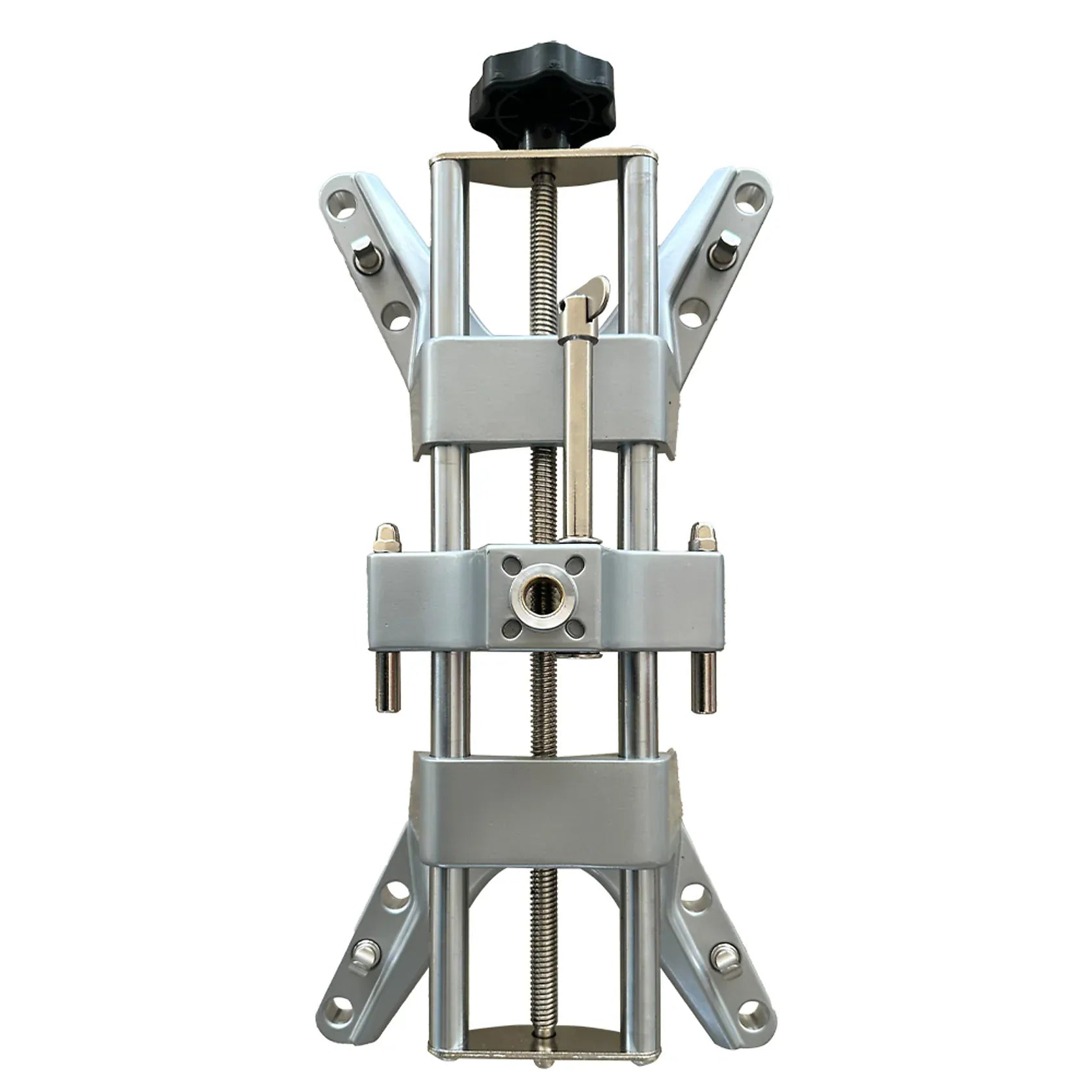

Removable wheel clamps — adjustable spread fits car-to-light-truck rim sizes; attaches without marring the wheel surface.

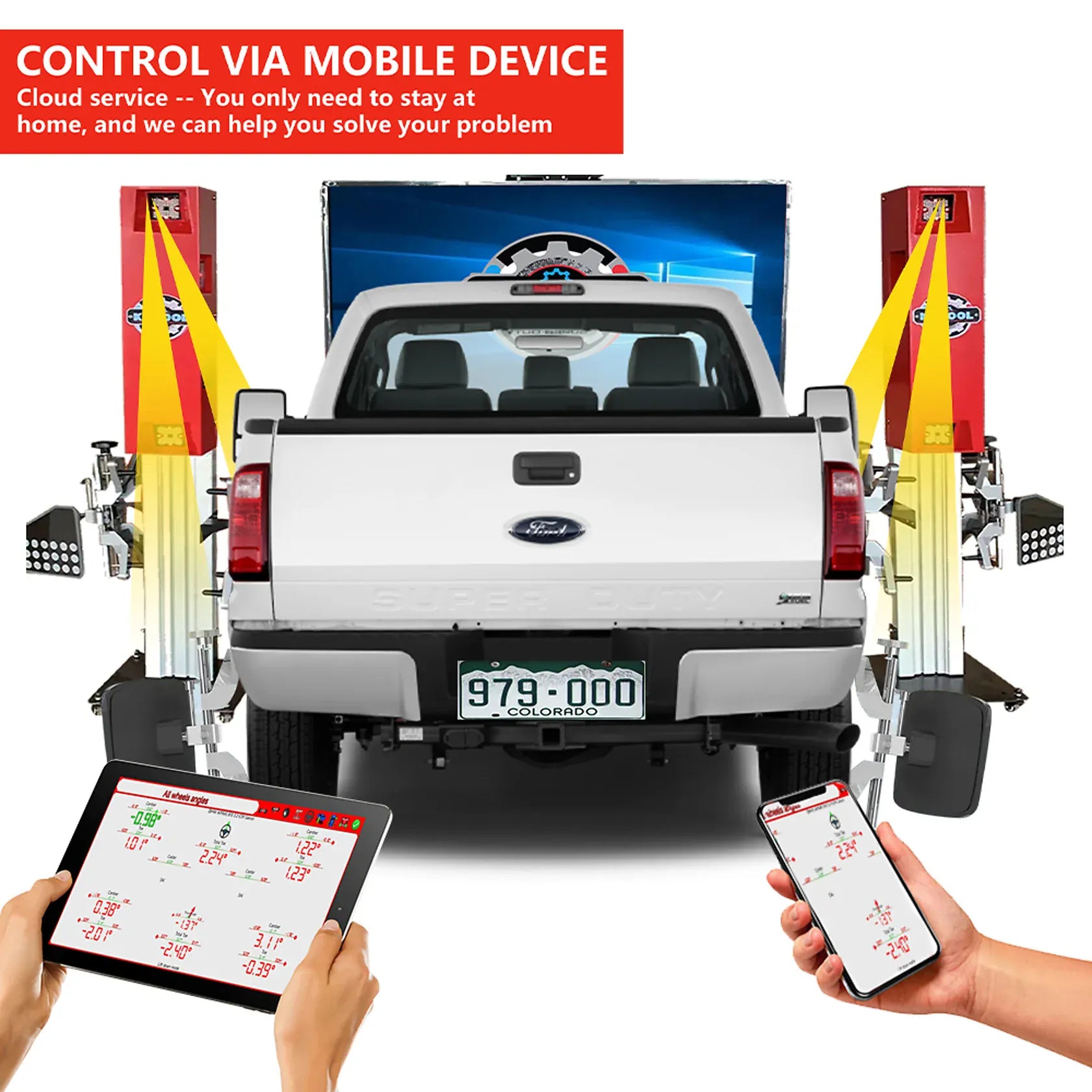

Cloud-connected software — remote support, online database updates, and tablet/phone status views from a paired mobile device.

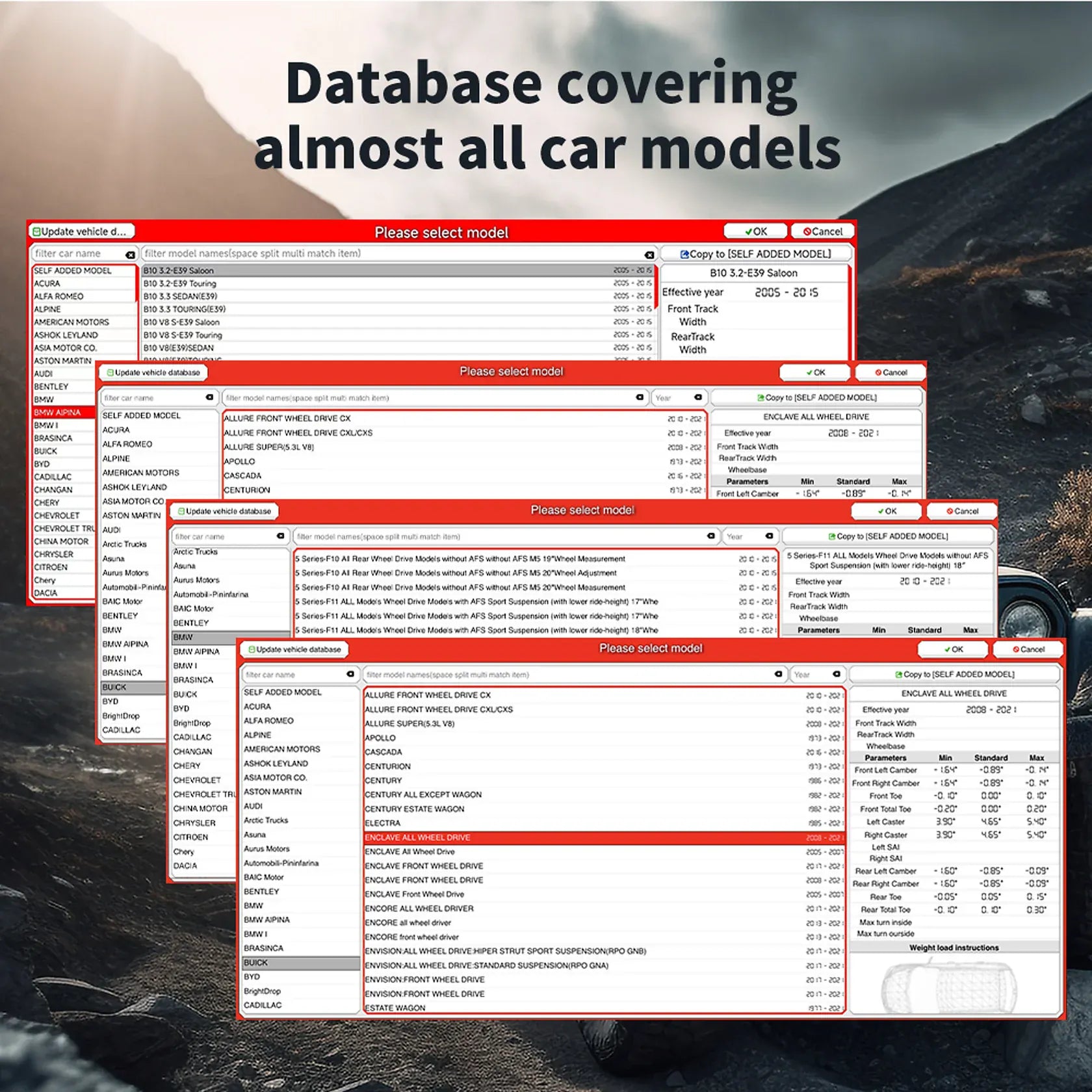

Wide vehicle database — covers current car and light-truck makes and models, with a self-added option for fleet or specialty vehicles.

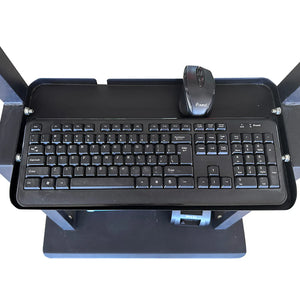

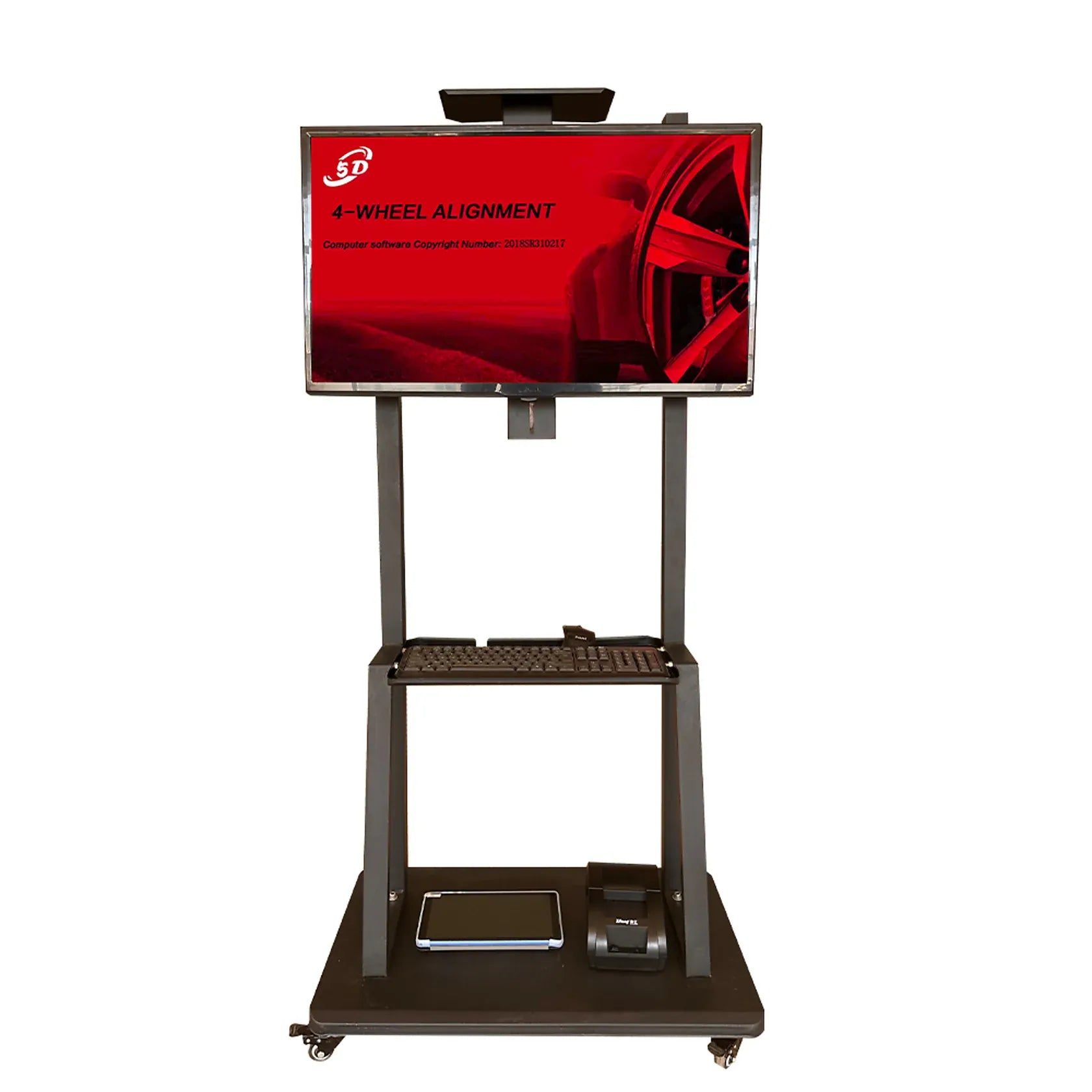

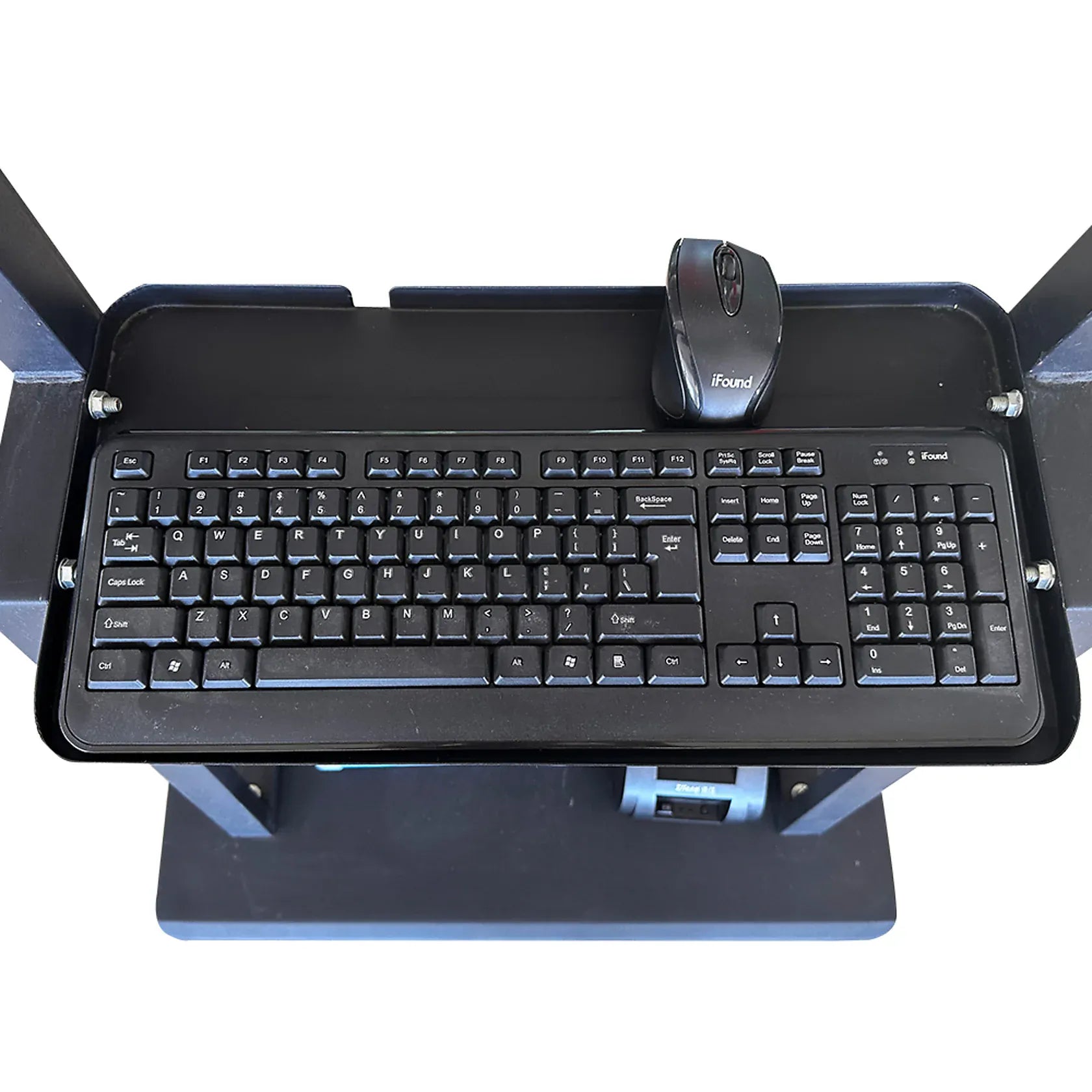

Integrated workstation — wheeled monitor cart with keyboard, tablet shelf, and thermal printer.
Alloy-steel construction — reinforced columns and bases hold calibration in busy shop environments.

Katool KT-5DA software screen showing four-wheel camber, caster, toe, thrust angle, and SAI readings — Live four-wheel readout: camber, caster, toe, thrust angle, SAI.

Specifications

Katool KT-5DA Specifications
Model	KT-5DA
Alignment type	3D / 5D measurement system
Imaging	Real-time camera imaging
Operation	Computer-controlled
Frame material	Alloy steel
Color	Red
Power	Standard shop power
Product dimensions	29" x 47" x 48" (W x D x H)
Product weight	229 lbs
Shipping weight	441 lbs

Logistics

The KT-5DA ships via freight.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
