Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift with 7,000 lb Rolling Jack

The Katool KT-4M110PA is a four-post alignment lift built for shops and home garages that raise cars, trucks, and SUVs and keep them steady for real work underneath. It carries an 11,000-lb lifting capacity on reinforced heavy-duty steel runways and reaches a maximum height of 84.5 inches, giving most technicians full stand-up clearance for inspections, alignments, maintenance, and detailing.

It arrives as a working package rather than a bare lift. A 7,000-lb rolling bridge jack rides between the runways so you can lift wheels off the platform for brake, tire, and suspension service, and lightweight aluminum approach ramps make drive-on loading straightforward. The lift reaches full height in about 50 seconds, so there is less waiting between jobs. It runs on standard 110V or 220V single-phase power, so it fits a home garage or a professional shop without a special circuit.

The KT-4M110PA ships by freight. Arrange unloading before it arrives — a forklift on site is required, or you can pick the shipment up at your local freight terminal. Inspect everything at delivery: if any part arrives damaged, photograph it, note the damage on the delivery receipt, and contact MGS at sales@mygaragesupplies.com or 307-381-1810 so we can make it right.

• 11,000-lb lifting capacity — reinforced heavy-duty steel runways hold cars, trucks, and SUVs with stable, even support.
• 84.5-inch maximum lift height — generous stand-up clearance for inspections, alignments, repairs, and detailing.
• Included 7,000-lb rolling jack — raise wheels off the runways for brake, tire, and suspension work without leaving the platform.
• Pneumatic lock release — air-actuated unlocking replaces manual lock release for smoother, quicker lowering.
• 110V or 220V power — the single-phase power unit sets up for either supply, fitting a home garage or a professional shop.
• About 50 seconds to full height — a rapid rise that keeps jobs moving.
• Lightweight aluminum approach ramps — easy drive-on loading and simple to reposition.

• Katool KT-4M110PA four-post alignment lift
• 7,000-lb rolling bridge jack
• 3 drip trays
• 1 lift tray
• Aluminum approach ramps

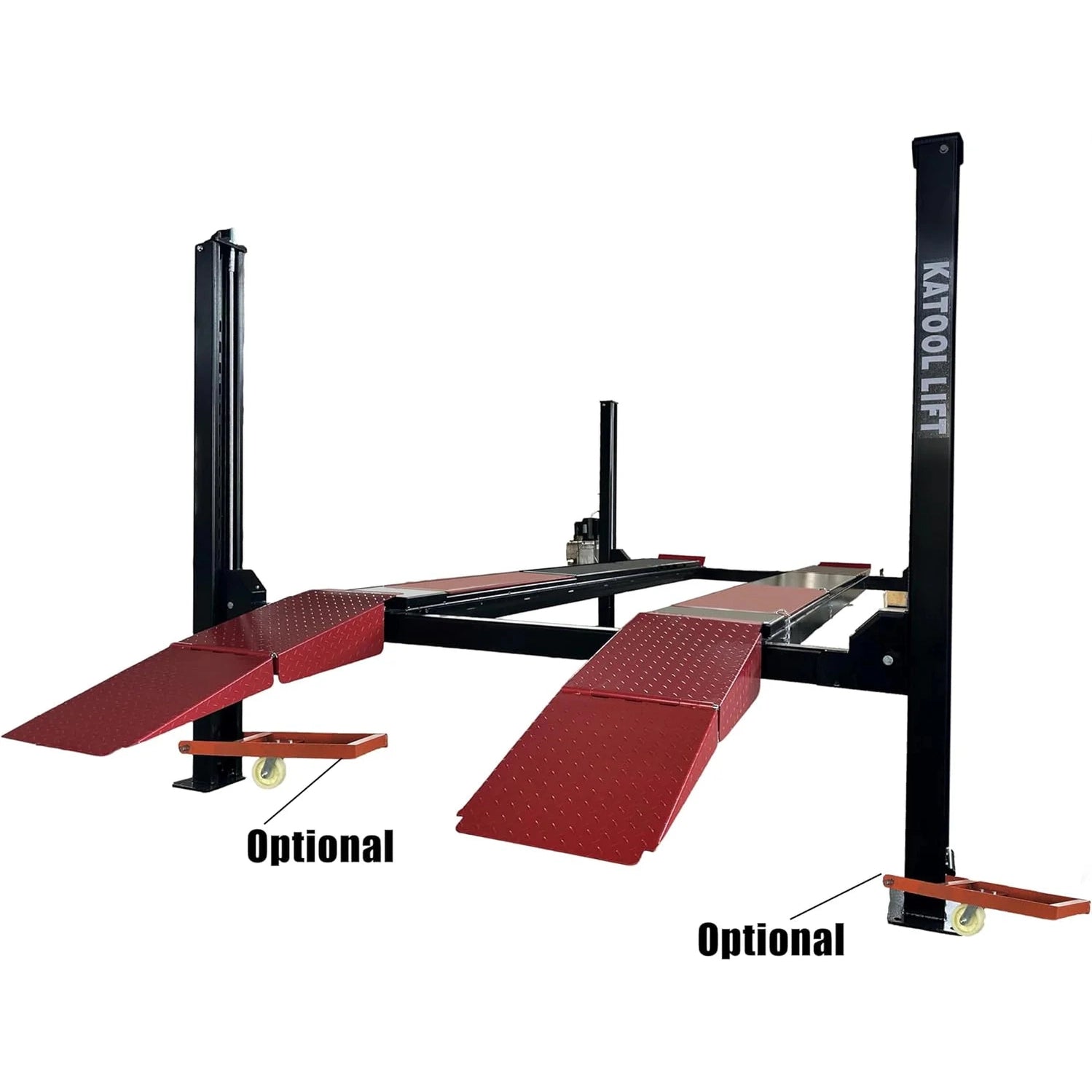

A rolling caster kit for repositioning the lift is available separately and is not part of the standard package.

What vehicles can it lift?

The KT-4M110PA is rated for 11,000 lbs and is built for cars, trucks, and SUVs. Confirm your heaviest vehicle stays within the rated capacity before lifting.

How much clearance do I get underneath?

Maximum lift height is 84.5 inches, enough room for most technicians to work standing.

Does it come with a rolling jack?

Yes. A 7,000-lb rolling bridge jack is included, along with three drip trays, one lift tray, and aluminum approach ramps.

What power does it need?

The single-phase power unit can be set up for either 110V or 220V, so it works in a home garage or a professional shop without a special circuit.

How fast does it raise a vehicle?

It reaches full lifting height in about 50 seconds.

Manual and technical documents available on request.
