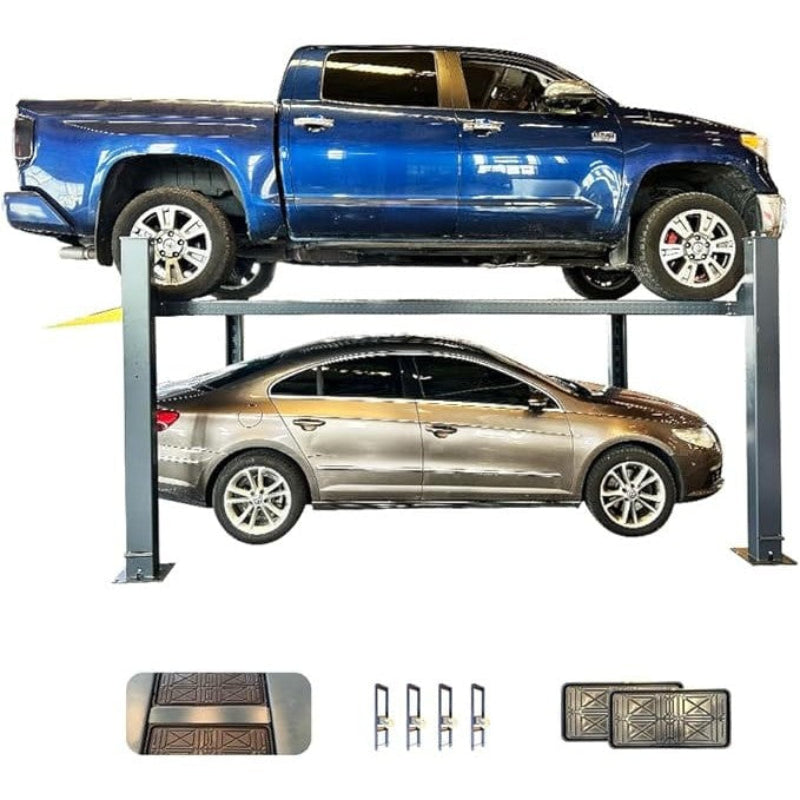

Katool KT-4H850 8,500 lb 4-Post Car Lift with Caster Kit

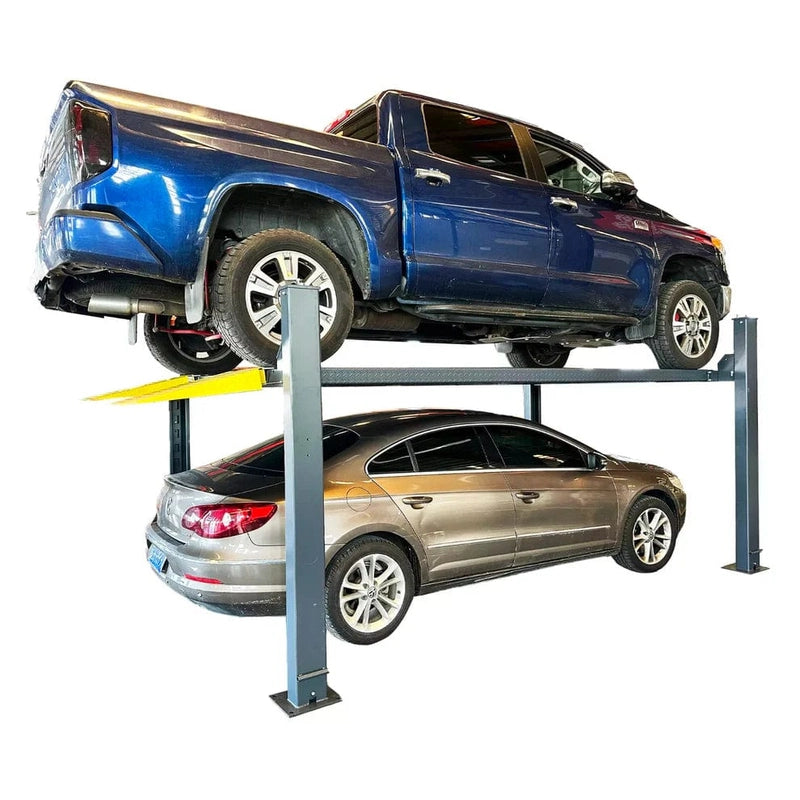

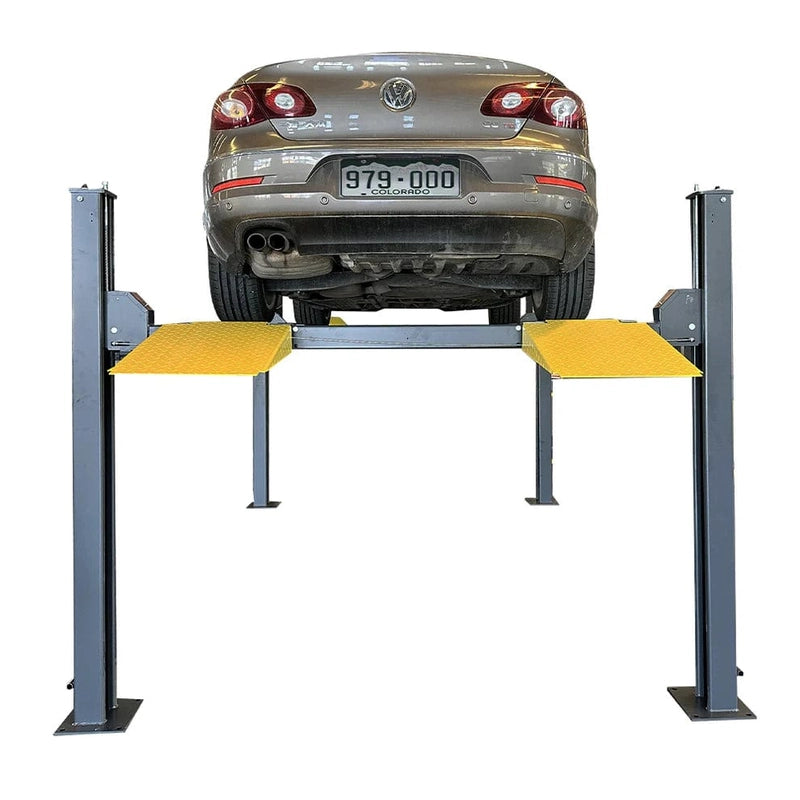

The Katool KT-4H850 is an 8,500 lb capacity four-post lift for parking one vehicle over another and for drive-on service work on cars, SUVs and light-duty trucks. It is CE Approved and Certified, built to the 115% dynamic loading standard and tested at 150% static load. A caster kit, drip trays and a jack tray come with the lift.

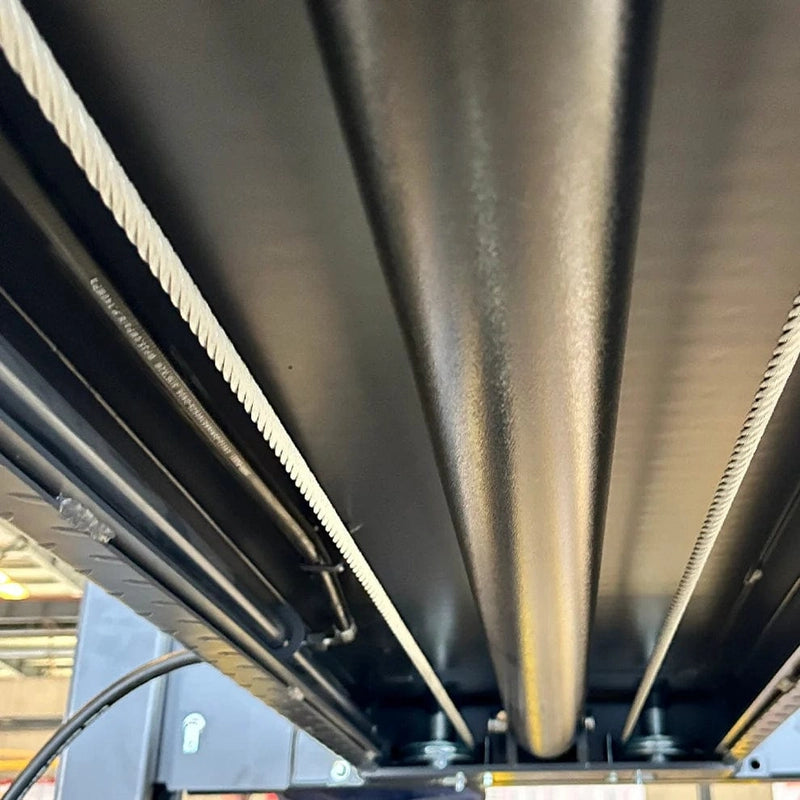

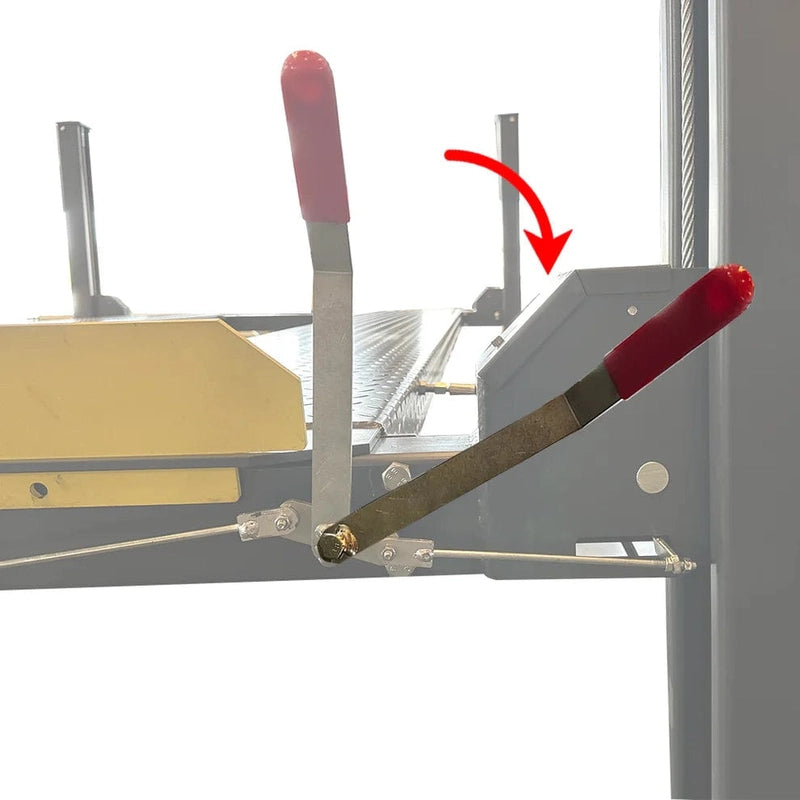

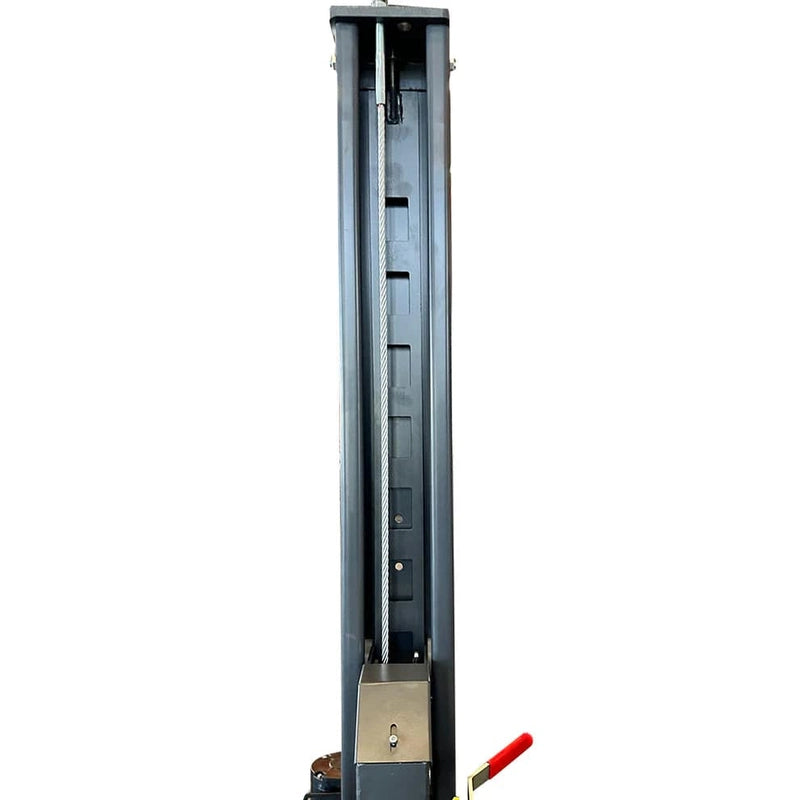

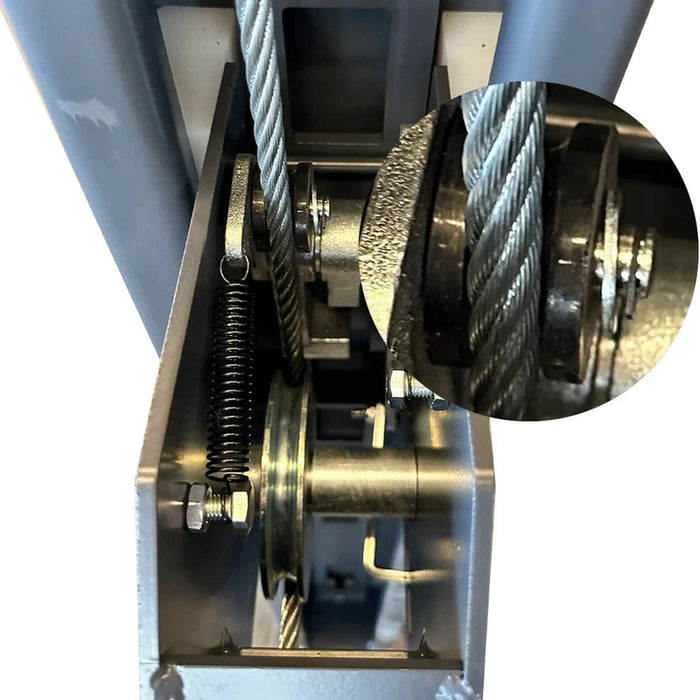

The locking system is layered. Four mechanical locking devices, each with primary and secondary safety locks, engage adjustable safety lock ladders in the columns at 12 lock positions spaced 4.7" apart. The secondary lock system acts as a slack-cable device, engaging in the unlikely event of cable failure. Four steel cables tie the two crossbeams together so both ends rise and lower in step, and a single-point manual safety release frees the locks from one handle, so there is no walking column to column to lower the lift.

The runways are non-skid diamond plate, and the structure is built from Q235 and Q245 steel. The power-side column can be installed at either side, front or rear, so the power unit goes on whichever corner suits your bay.

Power comes from a 2.2 kW (3 HP) hydraulic power unit that runs on 110V/60Hz single-phase as standard, with a 220V/60Hz single-phase configuration available as an option. Katool's manual specifies a 30-amp requirement and a dedicated power line installed by a certified electrician, so check your panel before the lift arrives. Lifting takes about 75 seconds; lowering about 40.

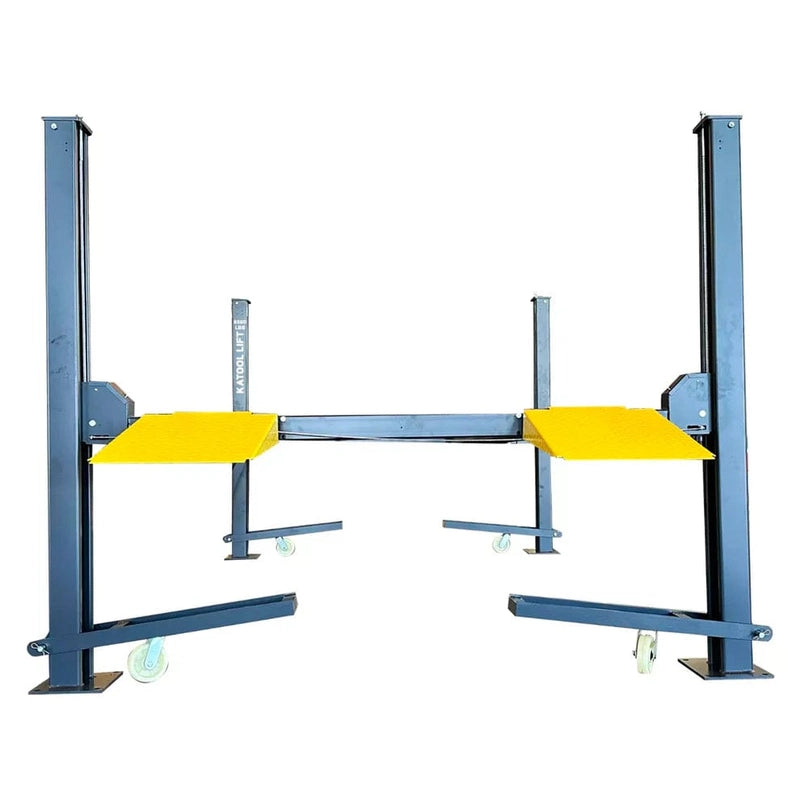

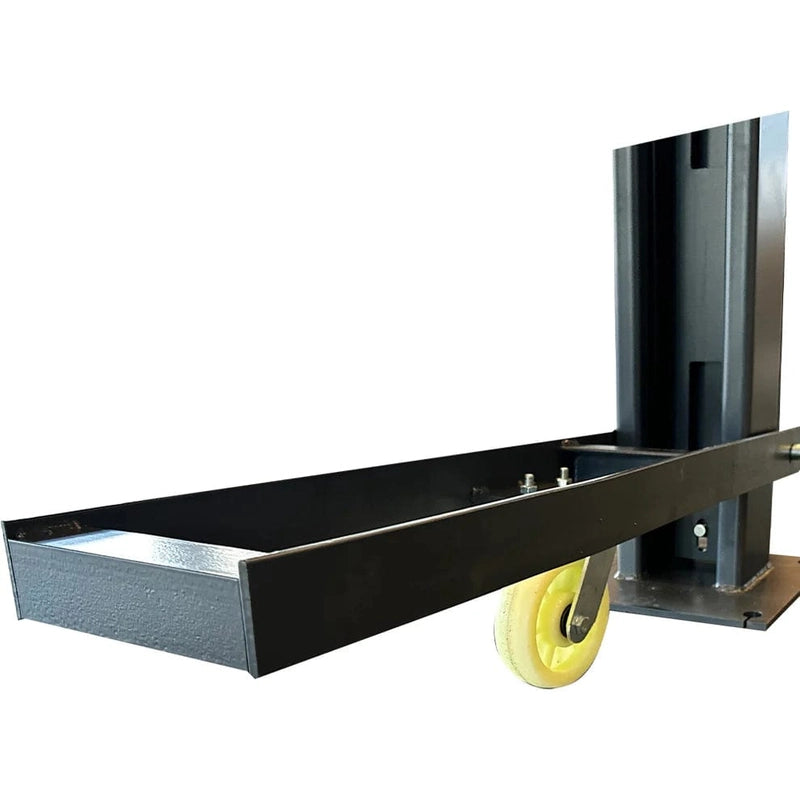

The included caster kit lets you move the lift around the shop, and the drip trays sit between the runways under the vehicle on top.

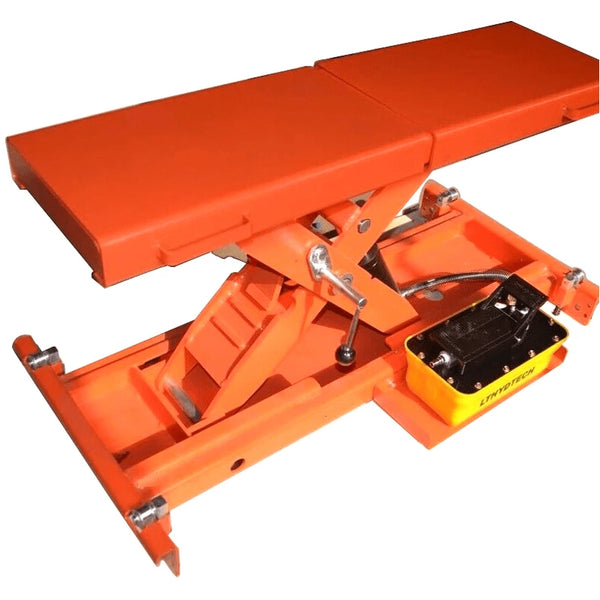

For wheels-free work, Katool pairs this lift with two rolling jacks, sold separately: the Katool KT-RJ50 5,000 lb rolling jack and the KT-RJ70 7,000 lb rolling jack.

Concrete requirement: Katool's specifications list a minimum of 3.93" (100 mm) of 3,000 PSI concrete, but the installation section of Katool's 2025 manual is stricter: a level slab at least 5.9" (150 mm) thick, 3,000 PSI or more, reinforced with steel bar and aged at least 7 days, without cracks or seams. Plan for the stricter installation requirement. Failure to install on proper concrete could result in serious injury or death, and verifying concrete thickness and strength before purchase and installation is the customer's responsibility.

Katool's installation video for the KT-4H850:

Choose Warehouse Pickup or Ship to My Address at checkout. Delivered lifts travel by freight within the lower 48 states, and liftgate service is not available for four-post lifts, so plan on a forklift to unload the crate or ask about terminal pickup instead. Contact sales@mygaragesupplies.com or call 307-381-1810 to confirm stock at your preferred pickup warehouse or to order the 220V configuration.

• 8,500 lb lifting capacity for cars, SUVs and light-duty trucks.
• CE Approved and Certified — 115% dynamic loading standard, 150% static load tested.
• Four mechanical locking devices, each with primary and secondary safety locks.
• Secondary slack-cable lock engages in the unlikely event of cable failure.
• 12 lock positions spaced 4.7" apart on adjustable safety lock ladders.
• Single-point manual safety lock release.
• Four cables keep both crossbeams moving together.
• Power-side column installs at either side, front or rear.
• Non-skid diamond-plate runways.
• Caster kit, three drip trays and a jack tray included.
• 110V/60Hz/1PH standard; 220V/60Hz/1PH optional.
• Q235 and Q245 steel construction.

• Four columns with top caps and adjustable safety lock ladders
• Power-side and offside runways with front and rear crossbeams
• Hydraulic power unit with mounting bracket, hydraulic cylinder and hoses
• Two drive-on ramps and two wheel stop plates
• Safety release handle and lock linkage rods
• Caster kit (four caster assemblies)
• Three drip trays and a jack tray
• 16 expansion anchor bolts

Katool covers the KT-4H850 with a 1-year (12-month) limited warranty on parts and product defects — including cylinders, power units, motors and electronics — plus a 3-year (36-month) warranty on structural components. A 2-year extended warranty is available for purchase.

• Approved replacement parts are provided at no cost, with free shipping.
• Labor for installation, removal or repair is not covered.
• Coverage is non-transferable and applies to the original purchaser; the order number is required for a claim.
• Photos or videos of the defect are required, and equipment must not be disassembled before the claim is approved.
• Not covered: misuse, improper installation, overloading beyond rated capacity, and maintenance items such as lubricants and oil.

Will it run on a regular garage outlet?

It runs on 110V/60Hz single-phase power, but Katool's manual lists a 30-amp requirement and a dedicated line installed by a certified electrician, so plan for a dedicated circuit rather than a shared outlet. A 220V single-phase configuration is optional.

How much ceiling height do I need to park a car on top?

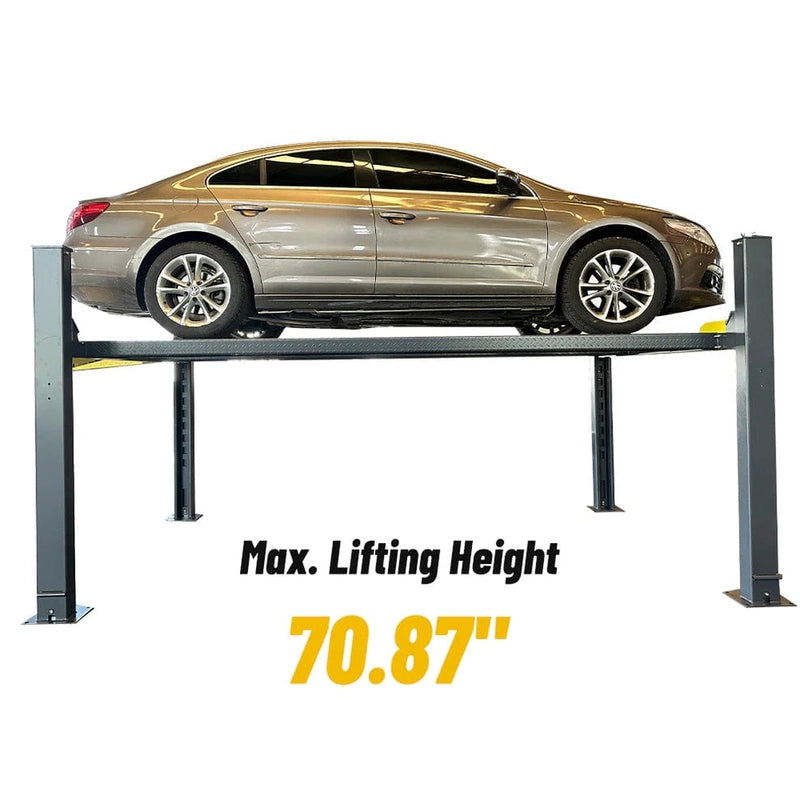

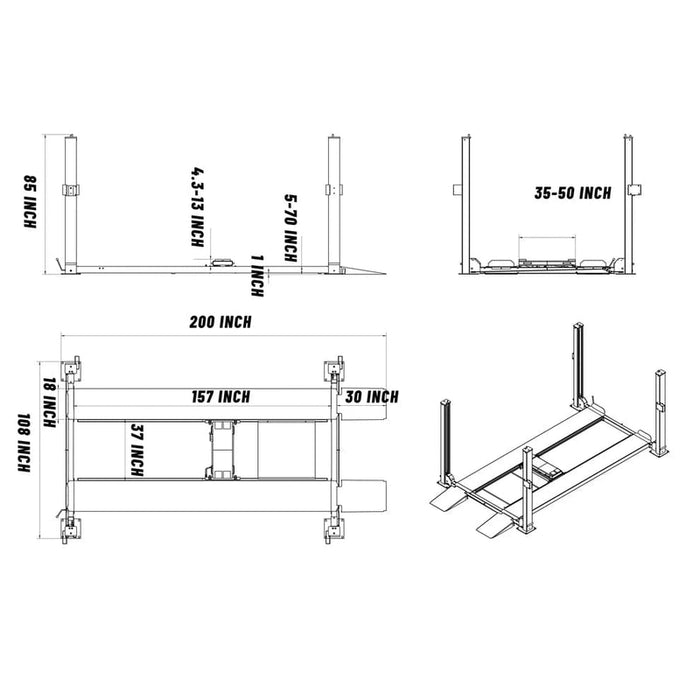

The posts stand 83.66" tall and the runways rise to a maximum of 70.87". For storage, add the height of the vehicle going on top to 70.87", then leave headroom above it.

Will my vehicle fit?

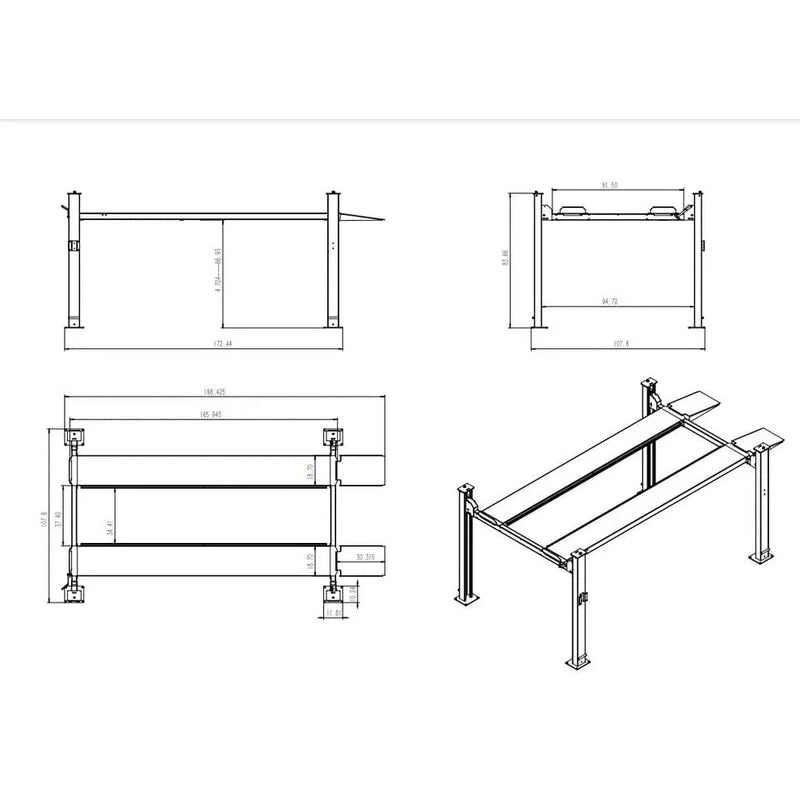

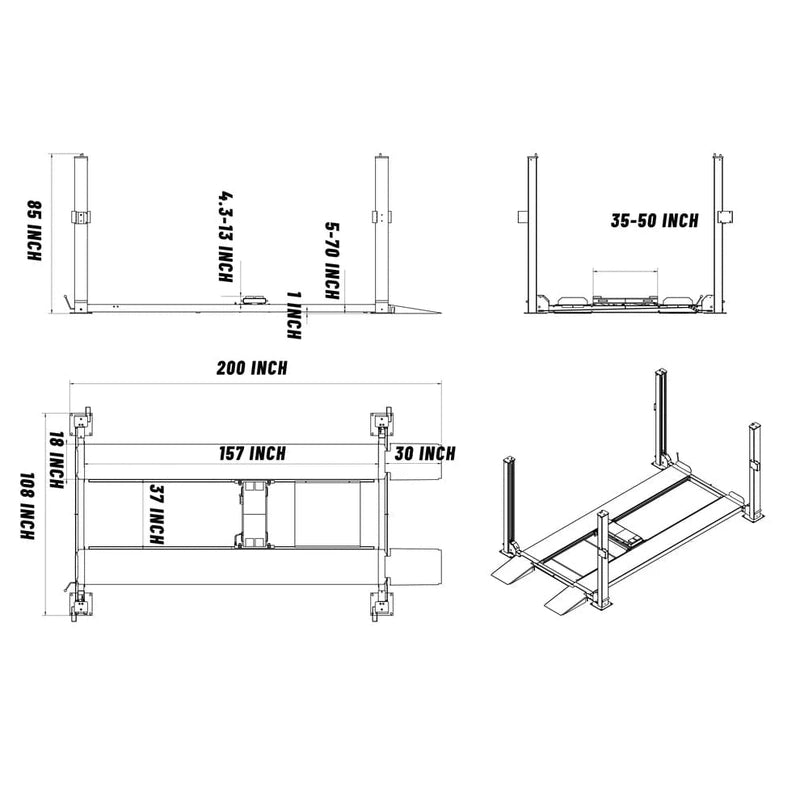

The lift is rated for vehicles up to 8,500 lb. Compare your vehicle against the 94.72" clear width between columns and the 37.4" gap between the runways.

Does it come with a rolling jack?

No. Rolling jacks are sold separately; Katool offers the KT-RJ50 (5,000 lb) and KT-RJ70 (7,000 lb) for this lift.

What concrete do I need?

Katool's specifications list 3.93" (100 mm) of 3,000 PSI concrete as the minimum, but the installation section of its 2025 manual calls for a level slab at least 5.9" (150 mm) thick, 3,000 PSI or more, reinforced with steel bar and aged at least 7 days. Plan for the 5.9" requirement and verify your slab before purchase and installation; this is a safety requirement.
