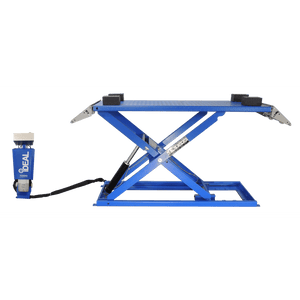

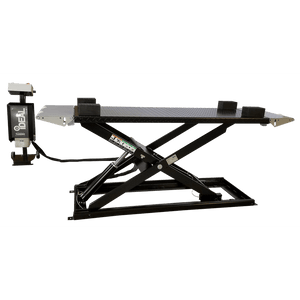

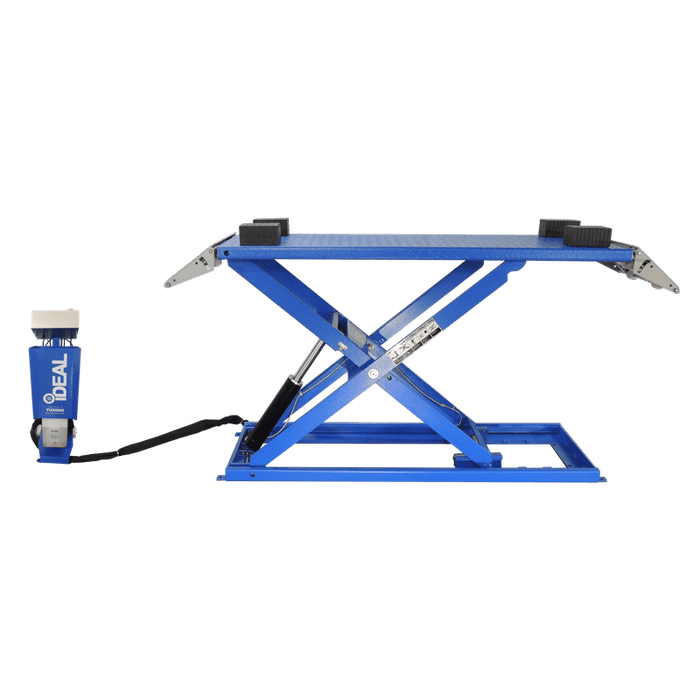

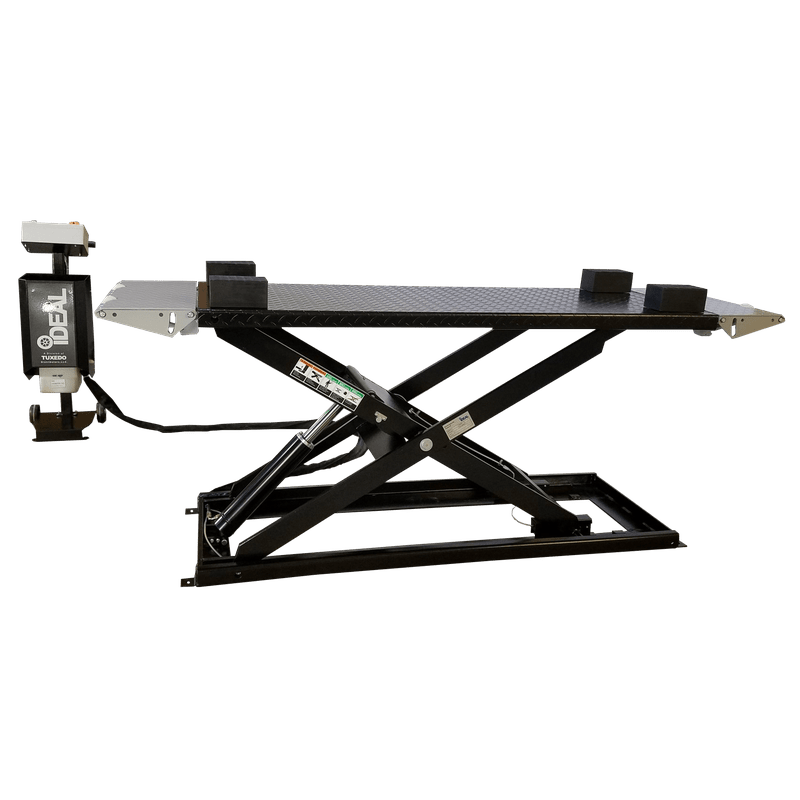

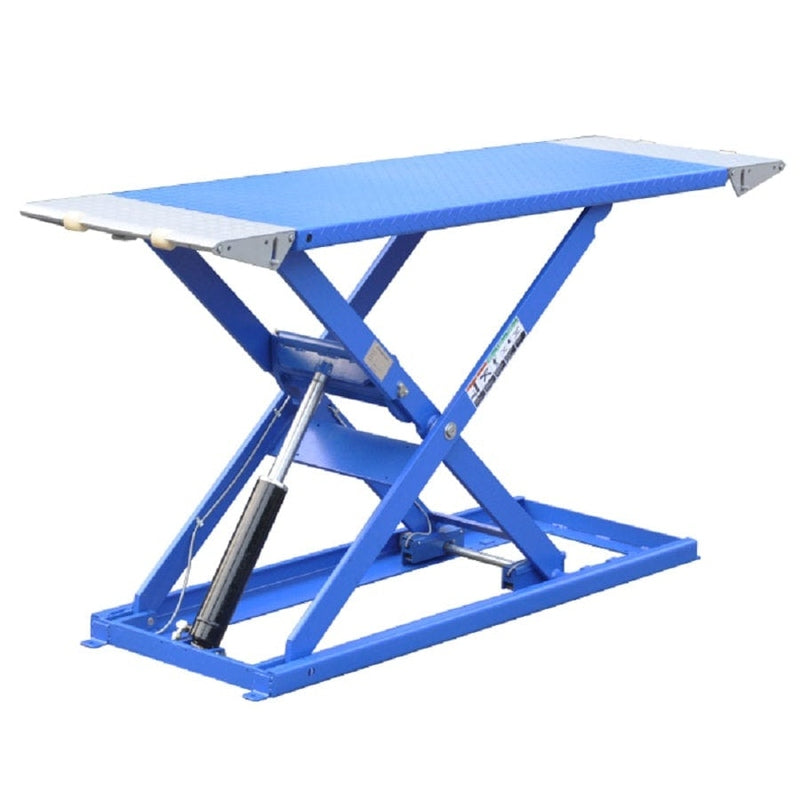

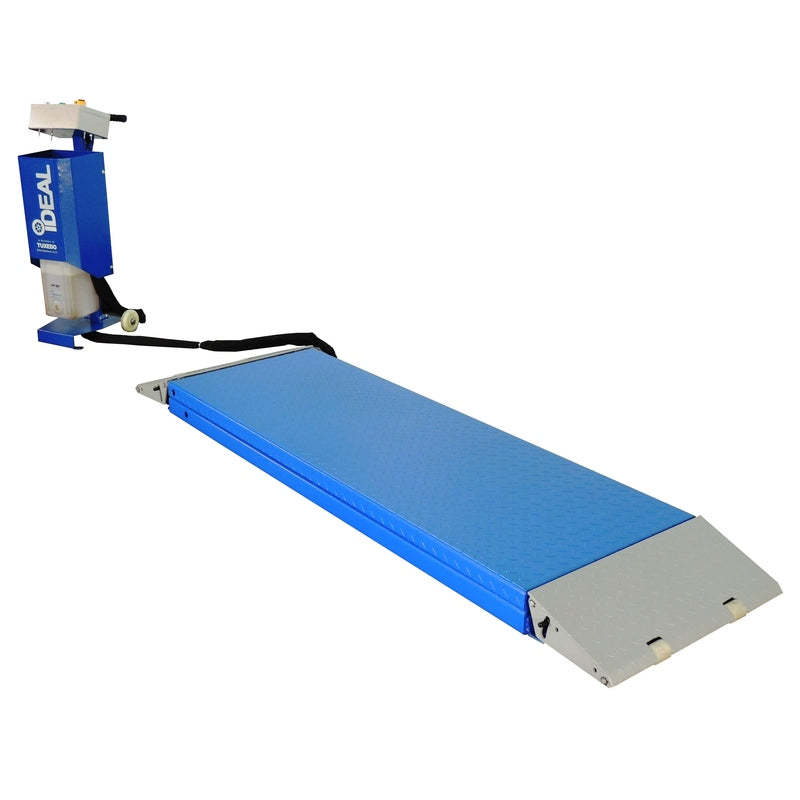

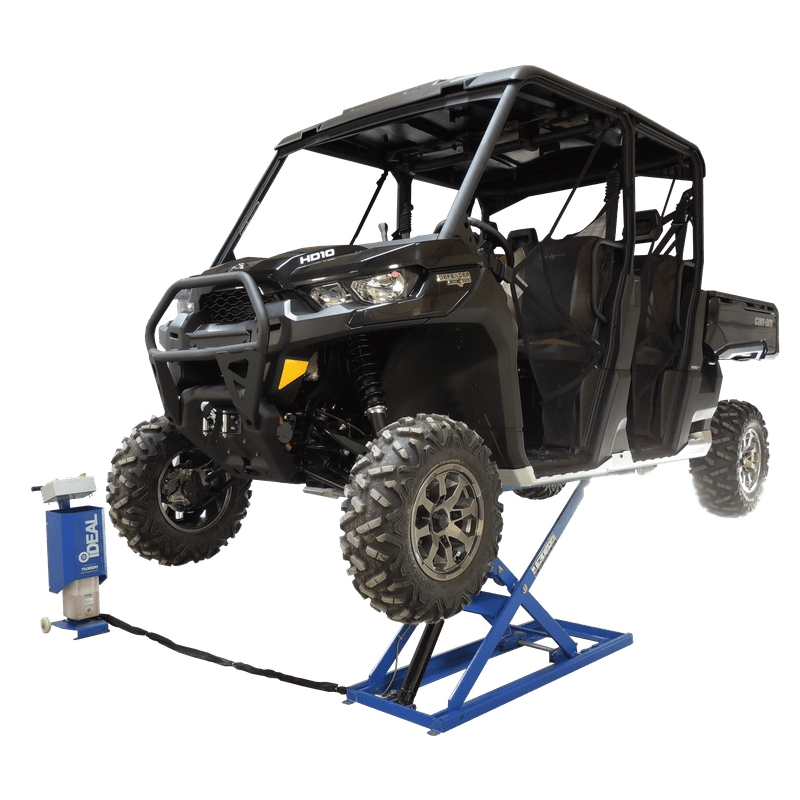

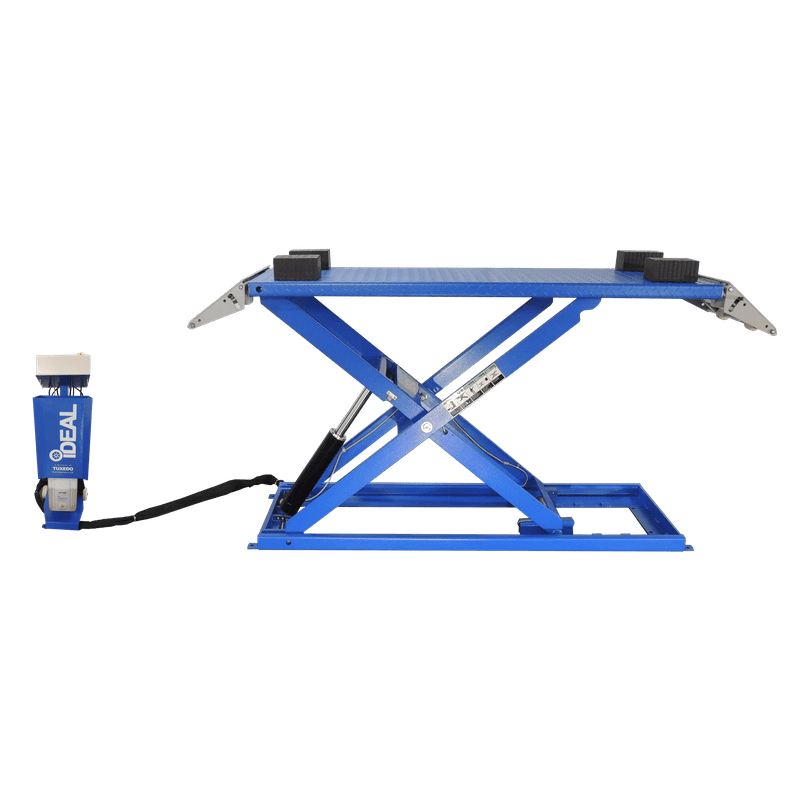

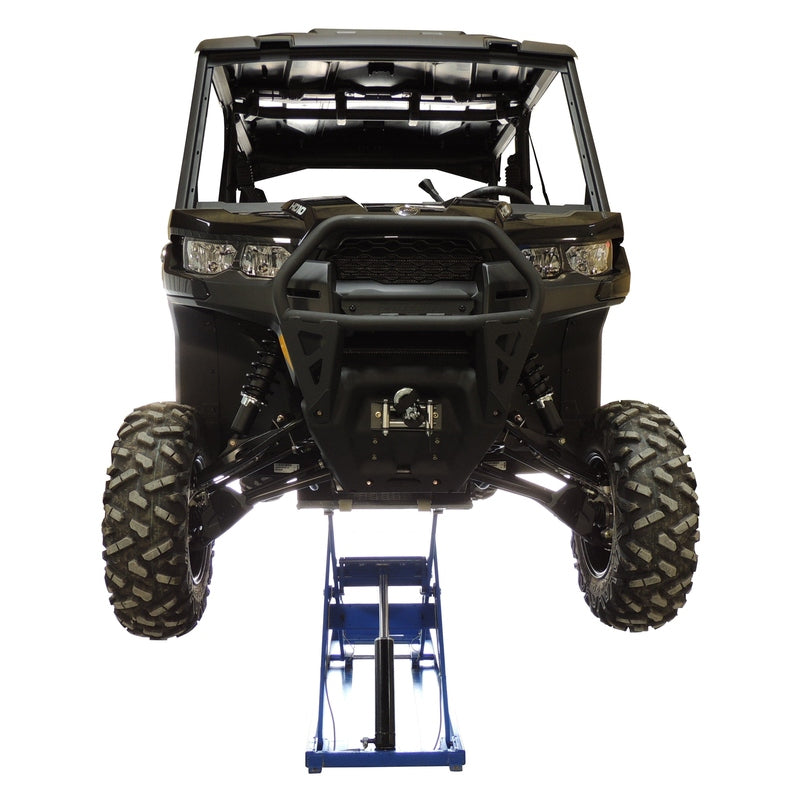

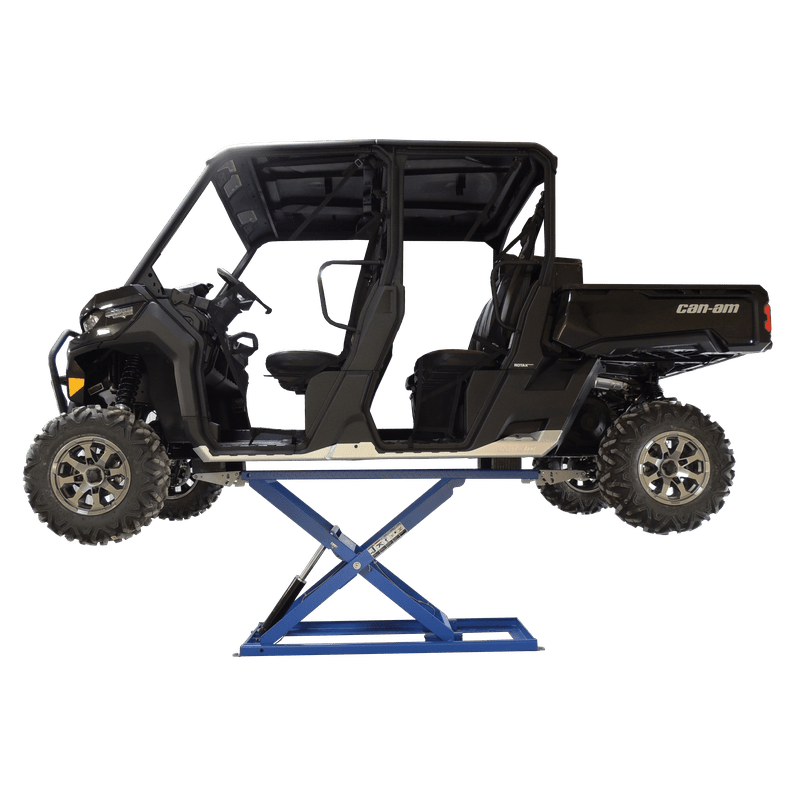

iDEAL UTV Frame Lift

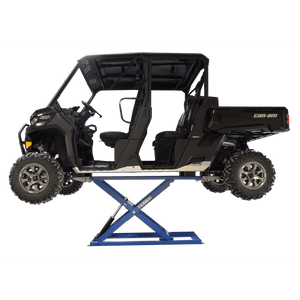

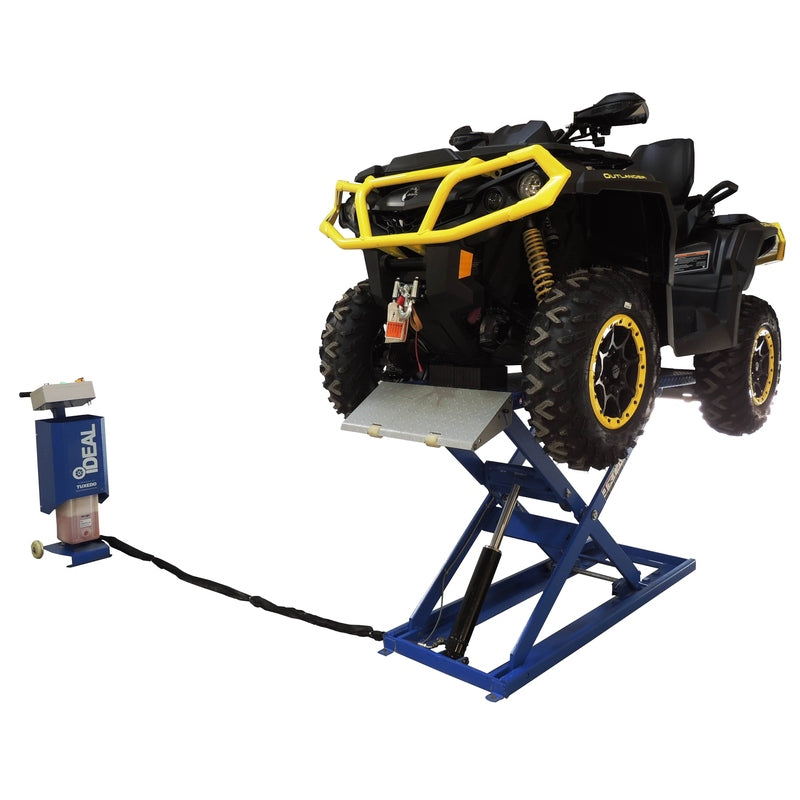

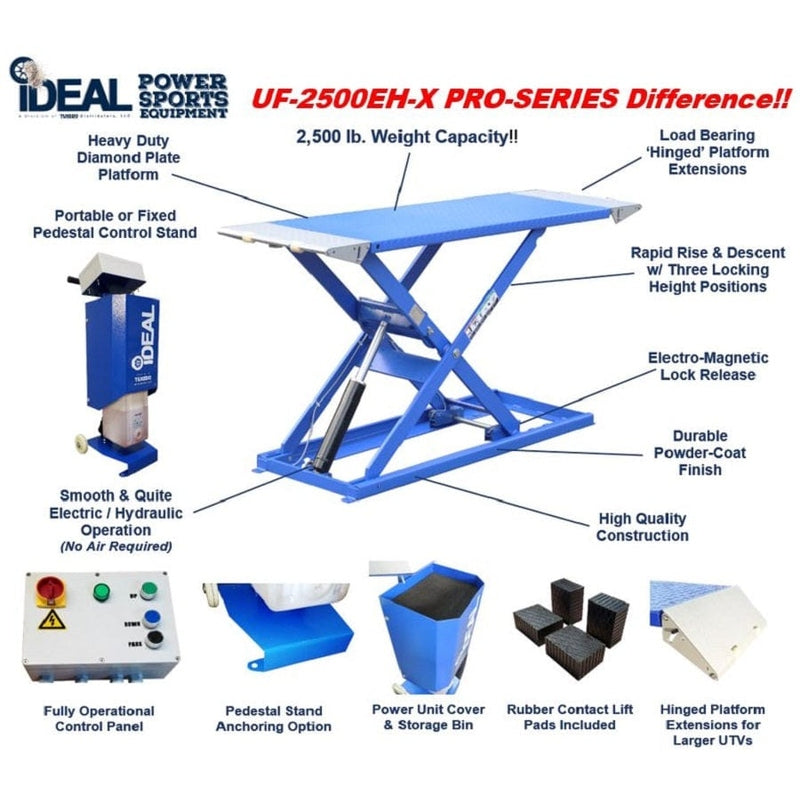

-- Exclusive wheels free design for the largest UTVs to smallest ATVs.
- Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
- 2,500 lbs capacity
- 43" RISE HEIGHT (49 w/ rubber lift pads)
- 24"W X 88.9"L PLATFORM SIZE
- 4.75 MIN. HEIGHT
- smooth & rapid 110V Electric / Hydraulic operation

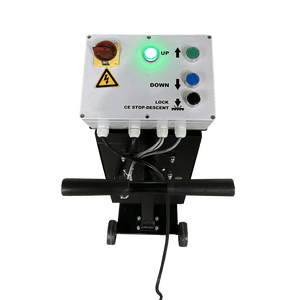

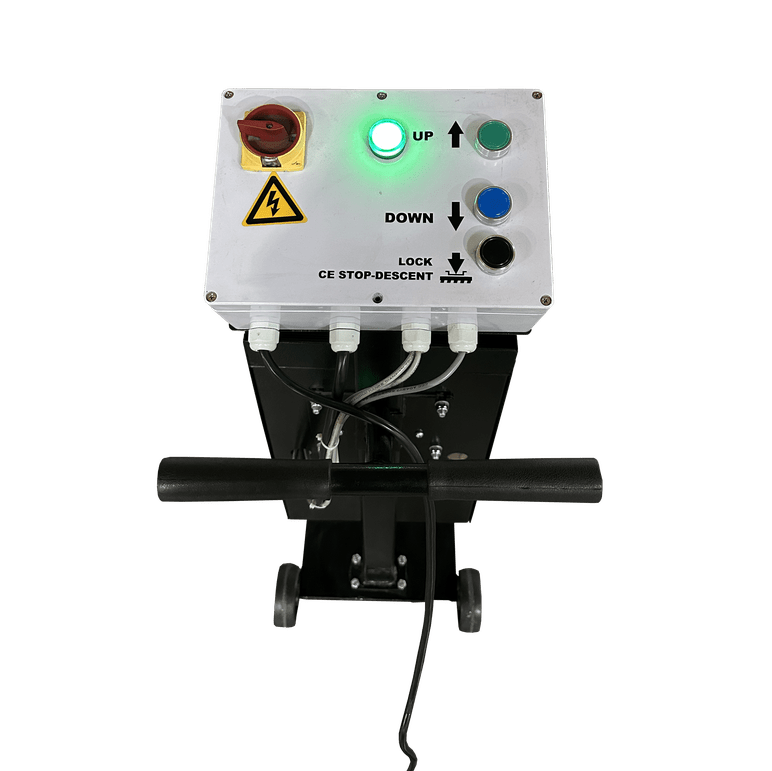

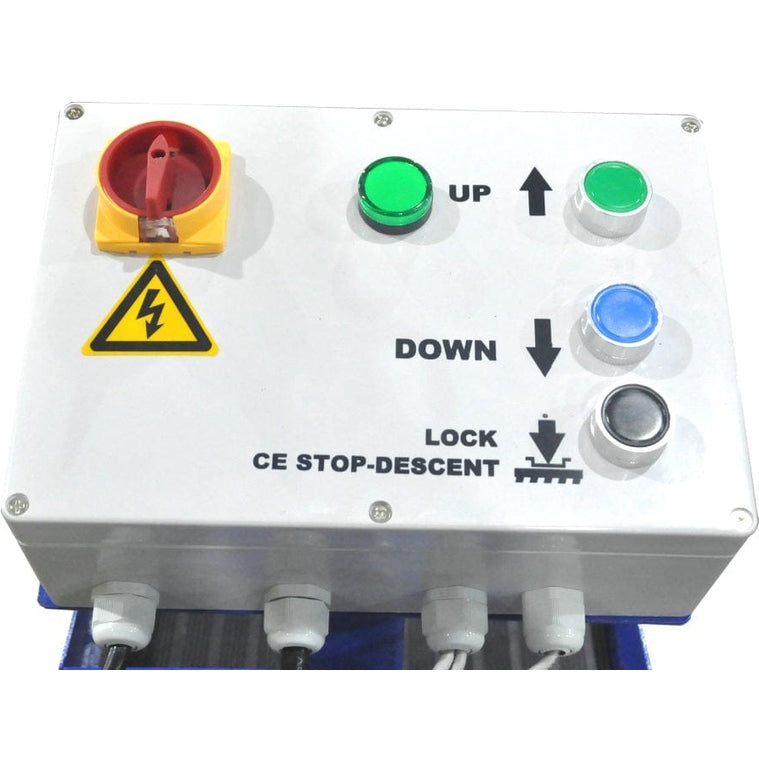

- fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
- three locking positions

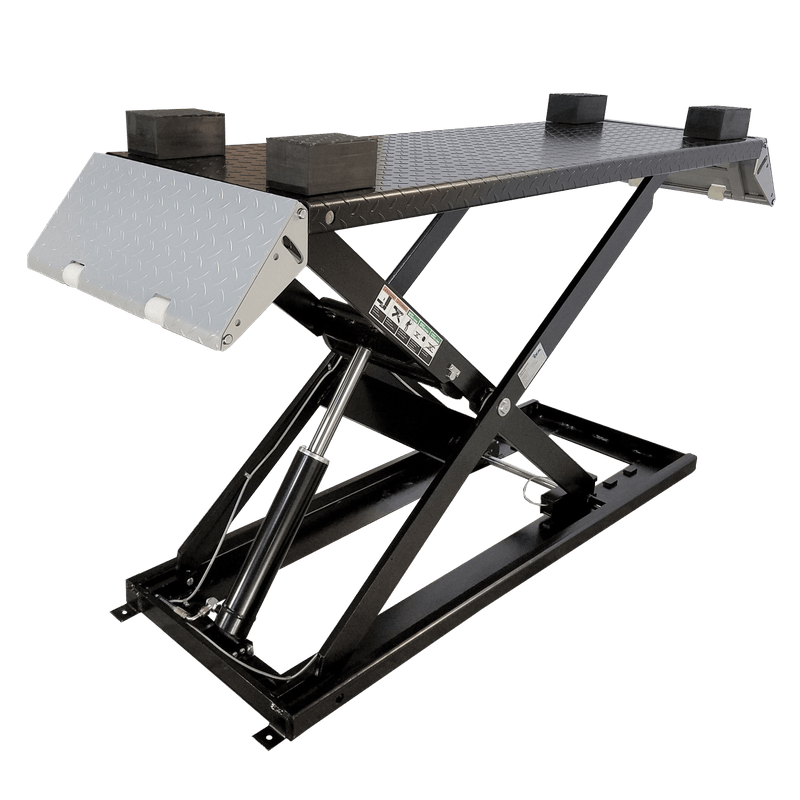

- Heavy-Duty Diamond Plate Platform & extension Construction

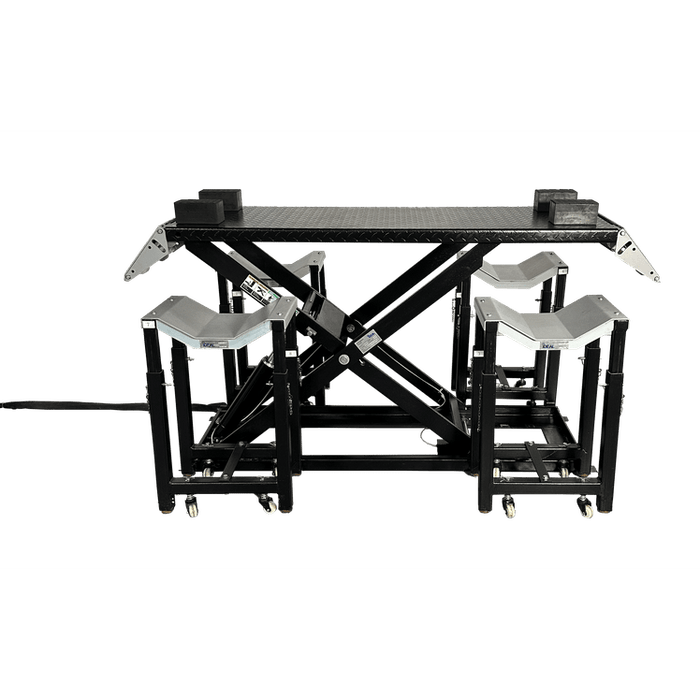

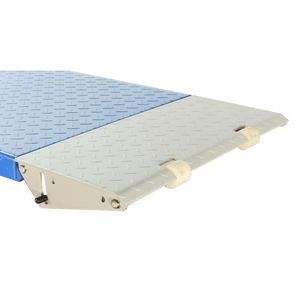

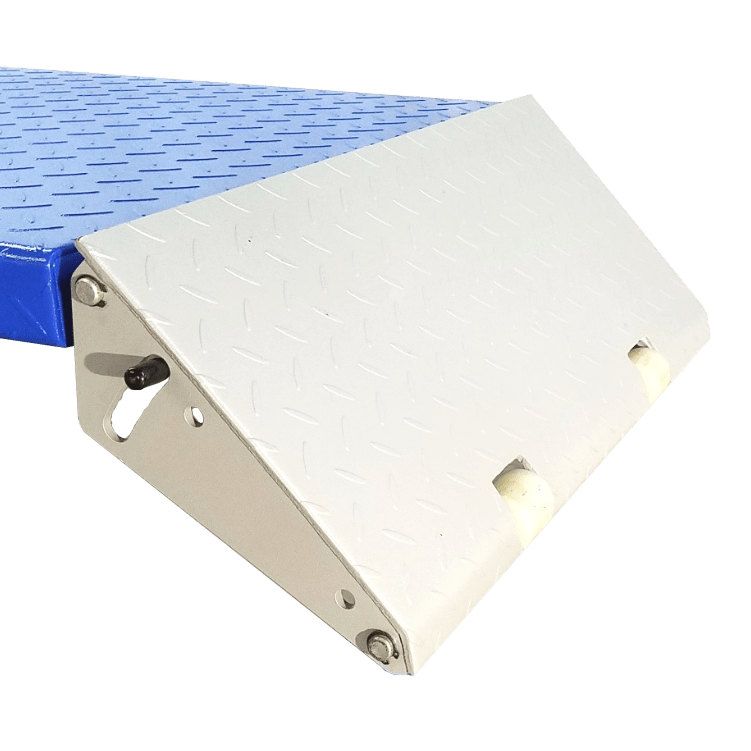

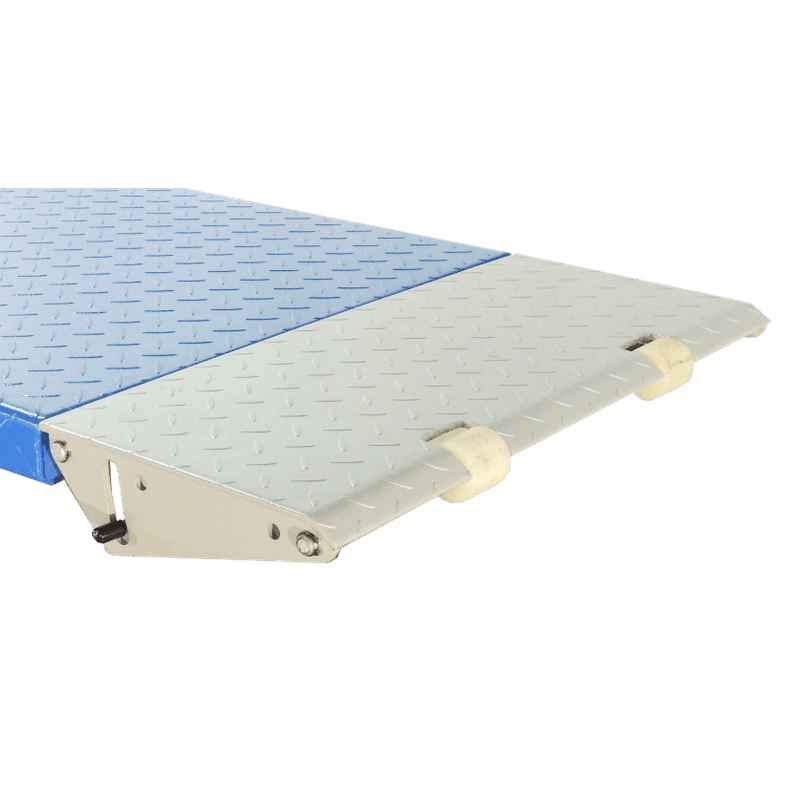

- LOAD BEARING HINGED PLATFORM EXTENSIONS

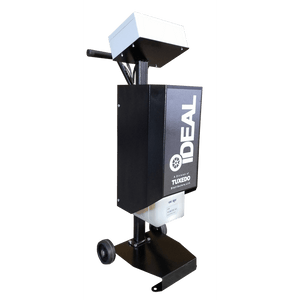

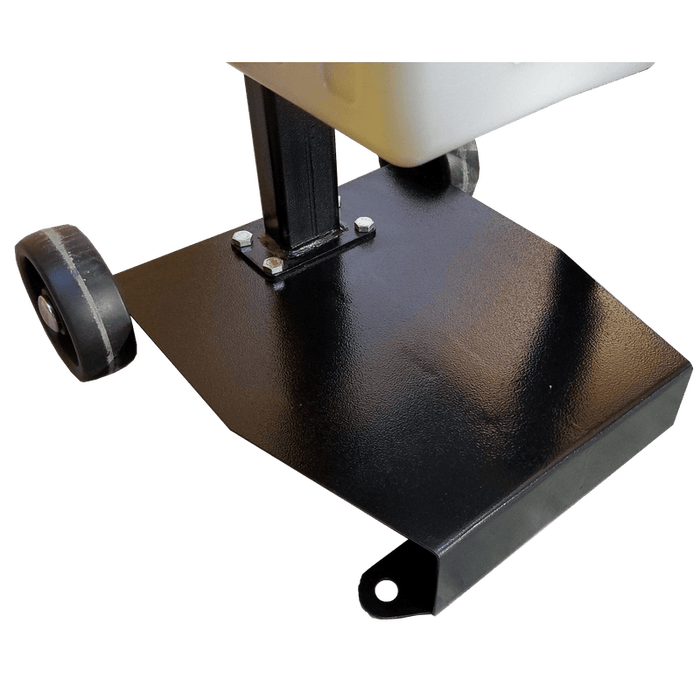

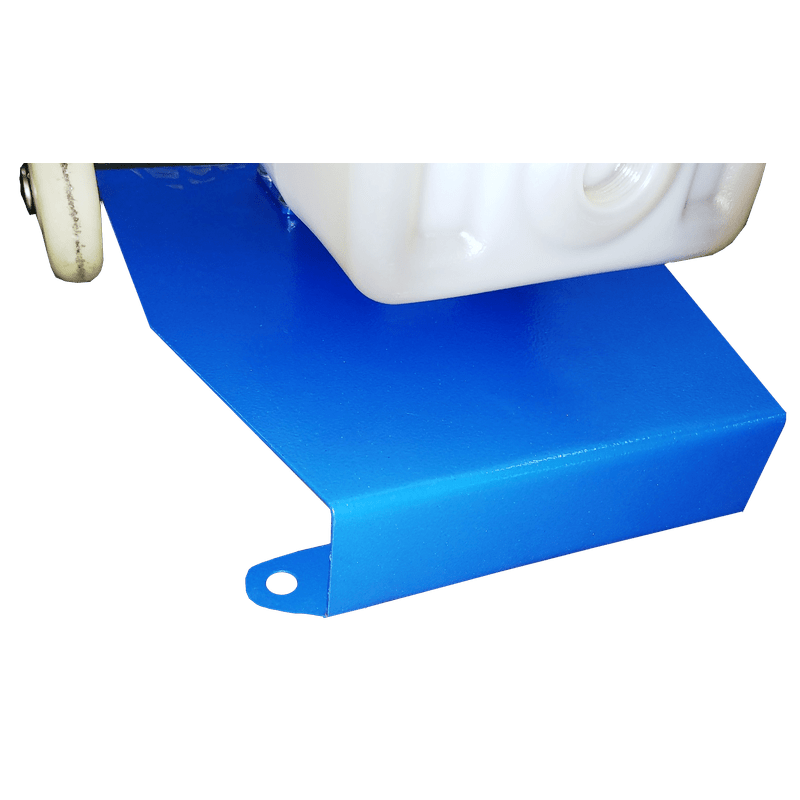

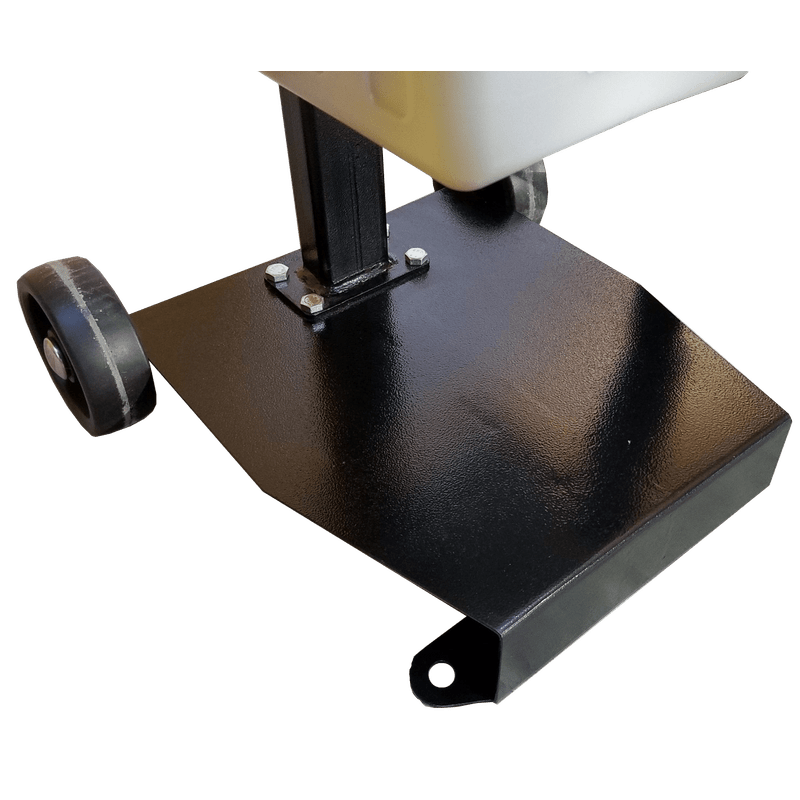

- PORTABLE OR MOUNTED PEDESTAL stand

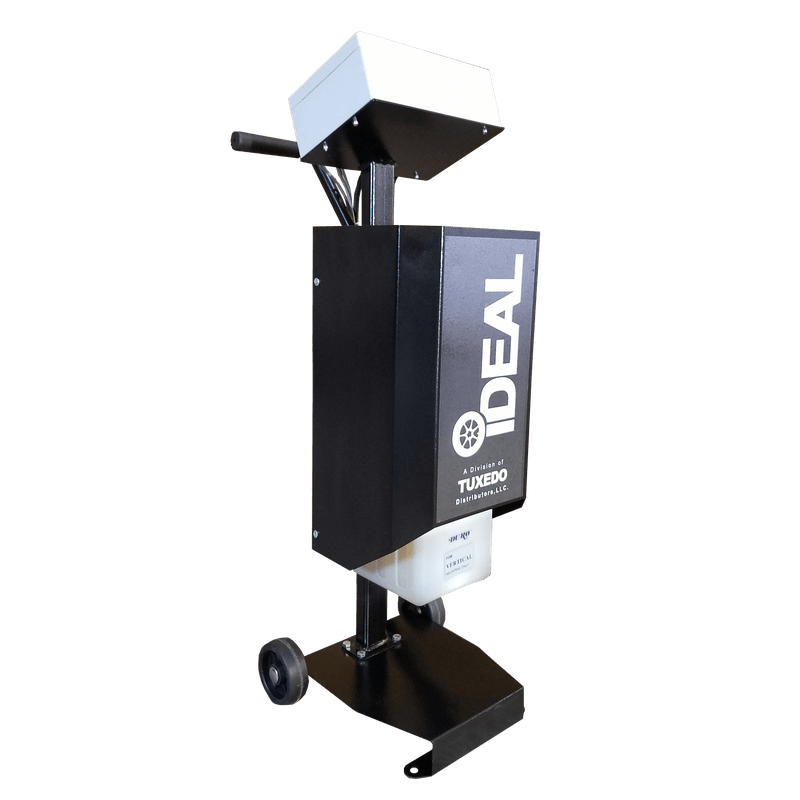

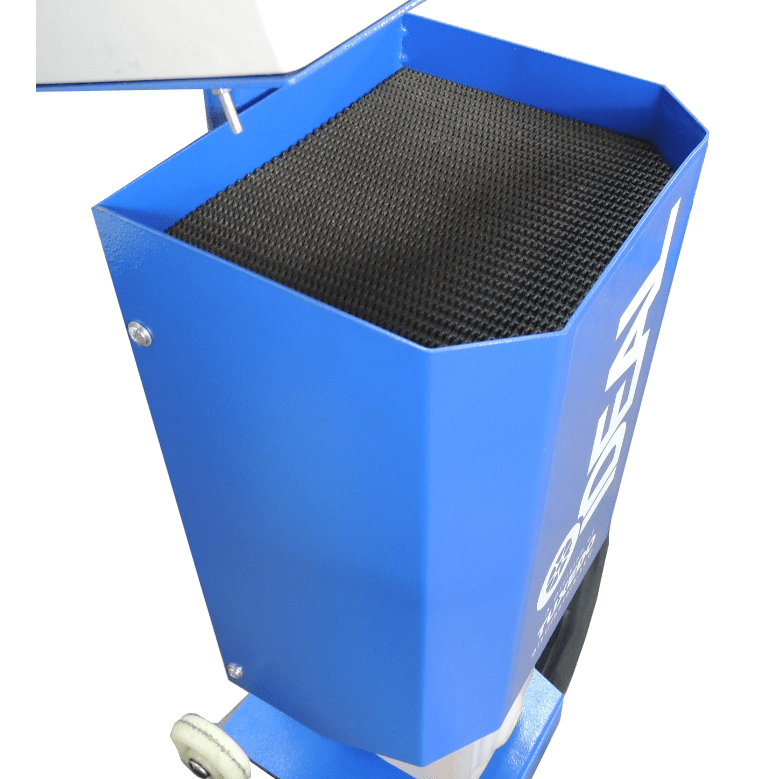

- Power unit cover w/ storage bin

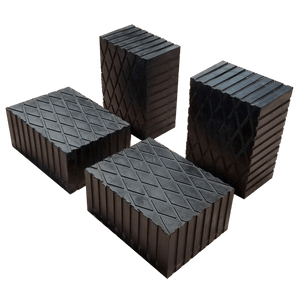

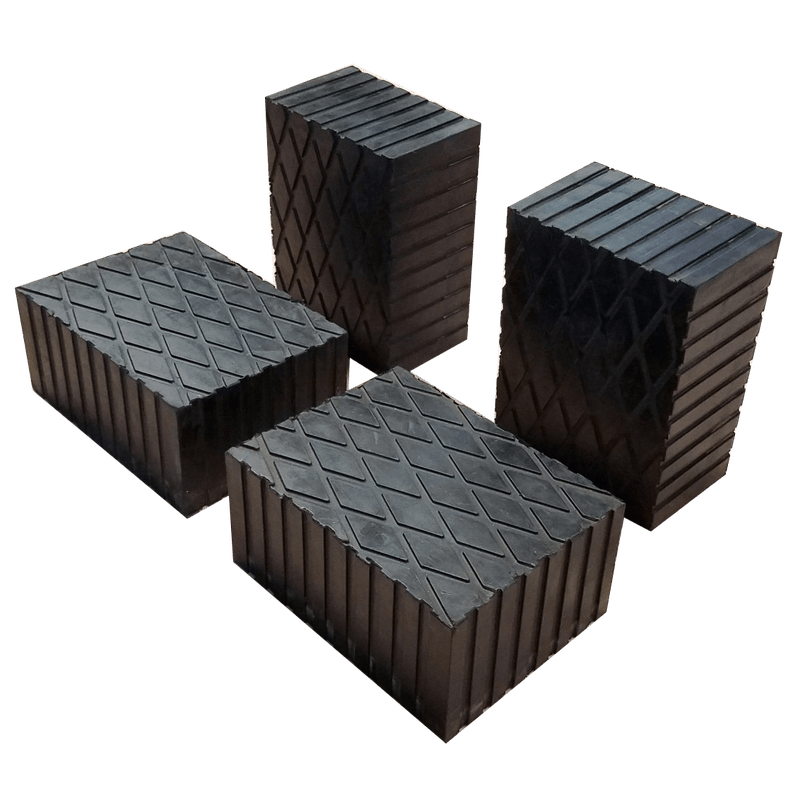

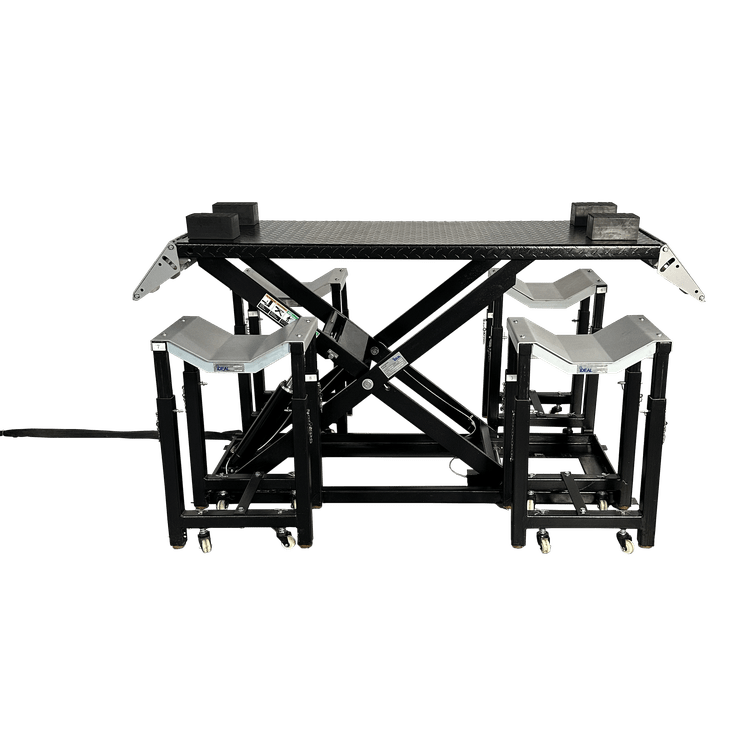

- RUBBER CONTACT LIFT PADS 4.75 X 6.5 (4EA)

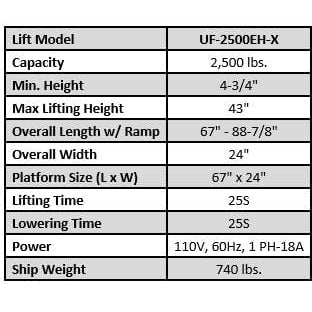

Specifications
-Lift Model | UF-2500EH-X |
Capacity | 2,500 lbs |
Min. Height | 4-3/4" |
Max Lifting Height | 43" |
Overall Length w/ Ramp | 67" 88-7/8" |
Overall Width | 24" |
Platform Size (L x W) | 67" x 24" |
Lifting Time | 25S |
Lowering Time | 25S |
Power | 110V, 60Hz, 1 PH-18A |
Ship Weight | 740 lbs |
