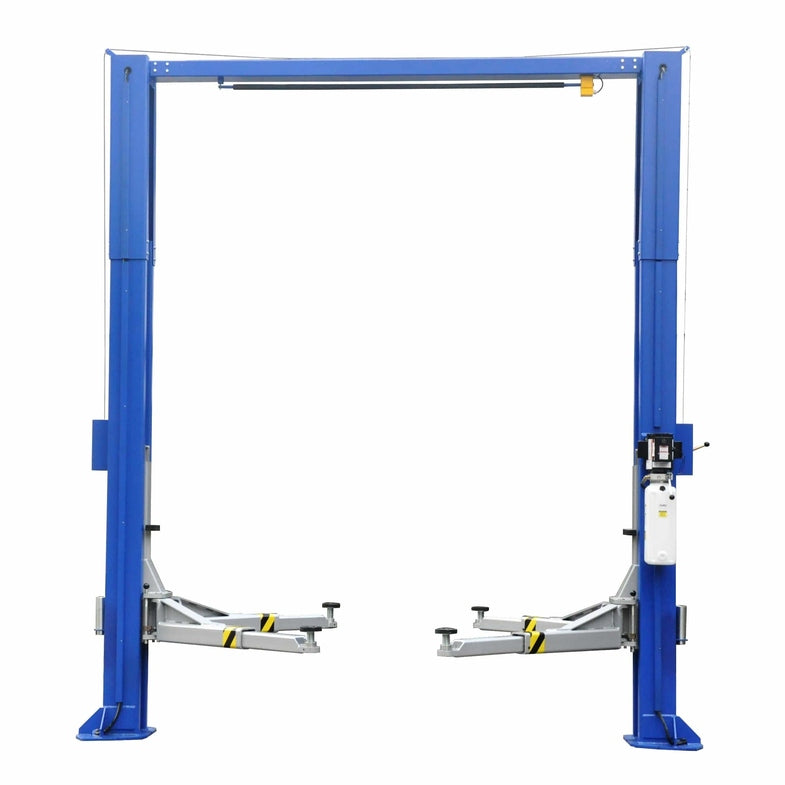

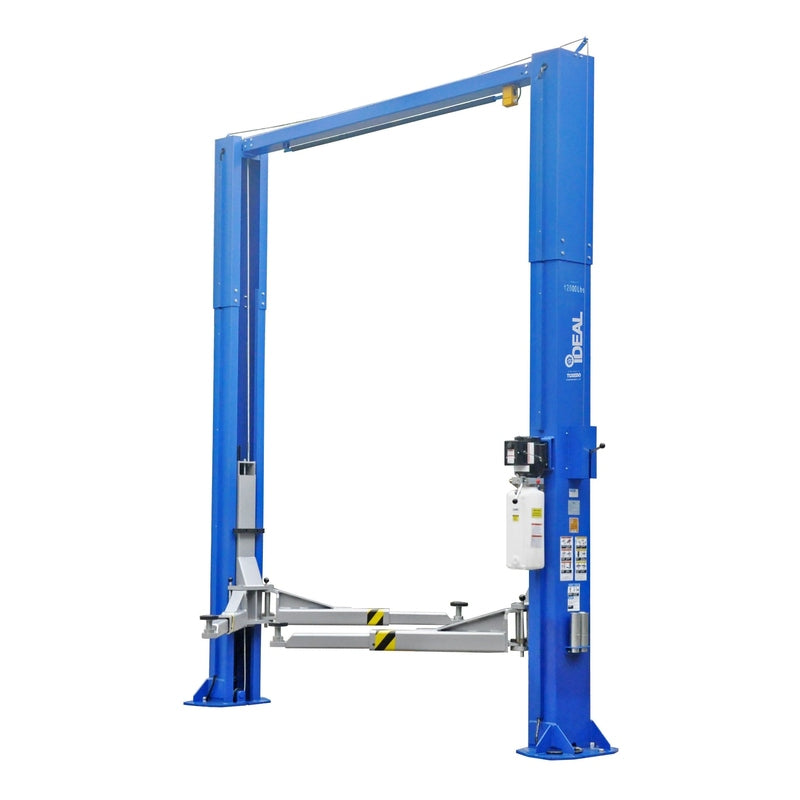

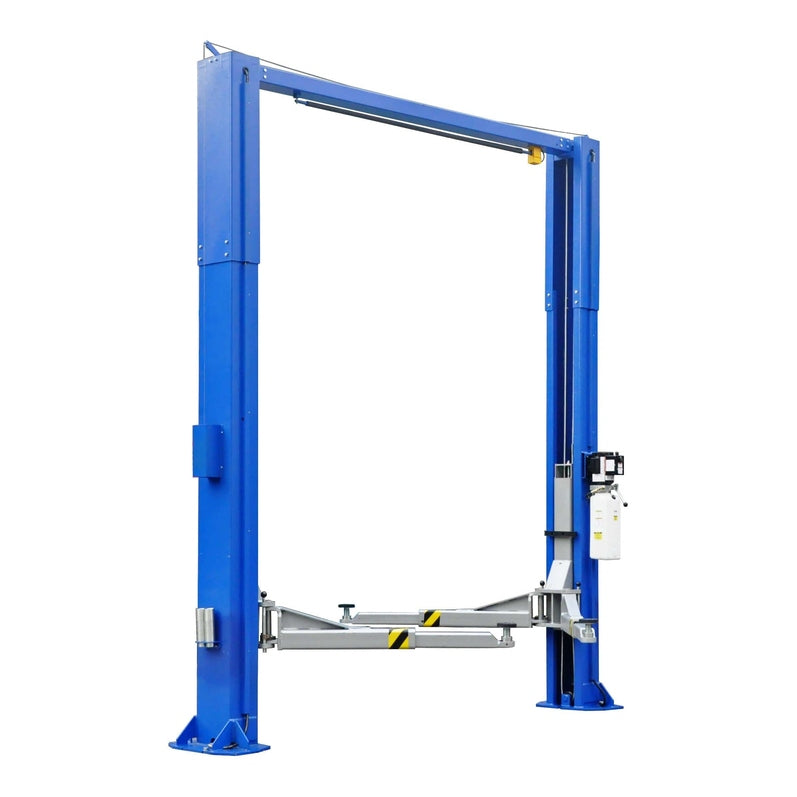

iDEAL TP12KSC-DX Heavy Duty 2 Post Clear Floor Lift
-The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a
premium symmetric design clear floor vehicle lift with the latest design features, now
including low-profile swing arms, adjustable swivel pads & single point cable lock
release.
The symmetric arm configuration provides stable lifting, making it perfect for
super duty & light duty trucks along with most passenger cars. The direct push drive
cylinders, hose & door guards, and automatic arm restraints complete the package for apremium, high-quality lift, all at a great value!
Features

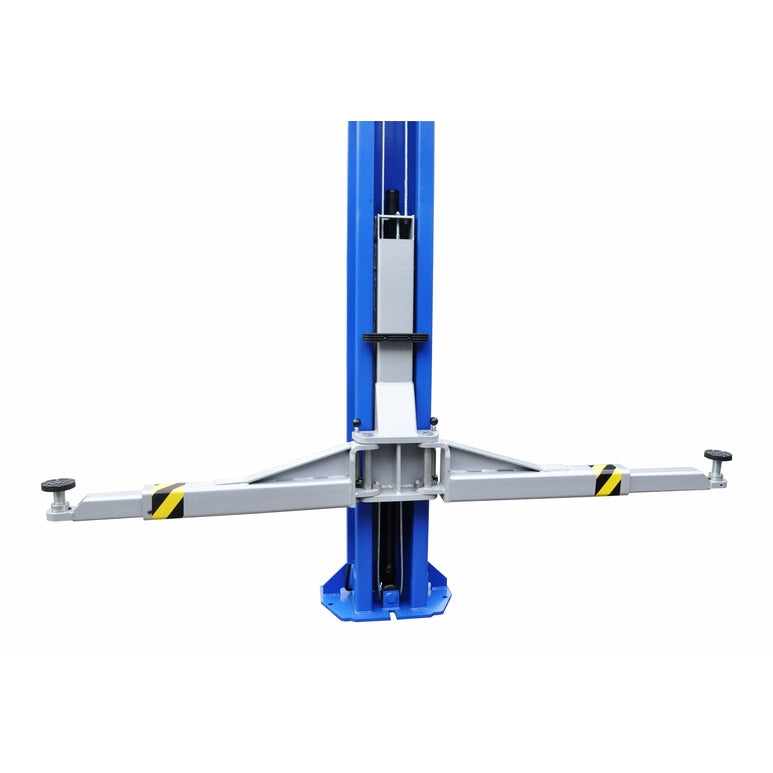

-- New Low Profile Swing Arm Design

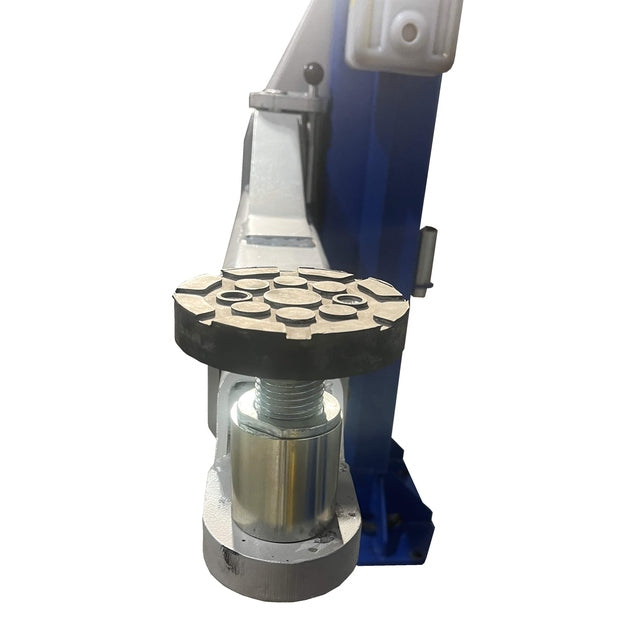

- New Adjustable Height Swivel Pads

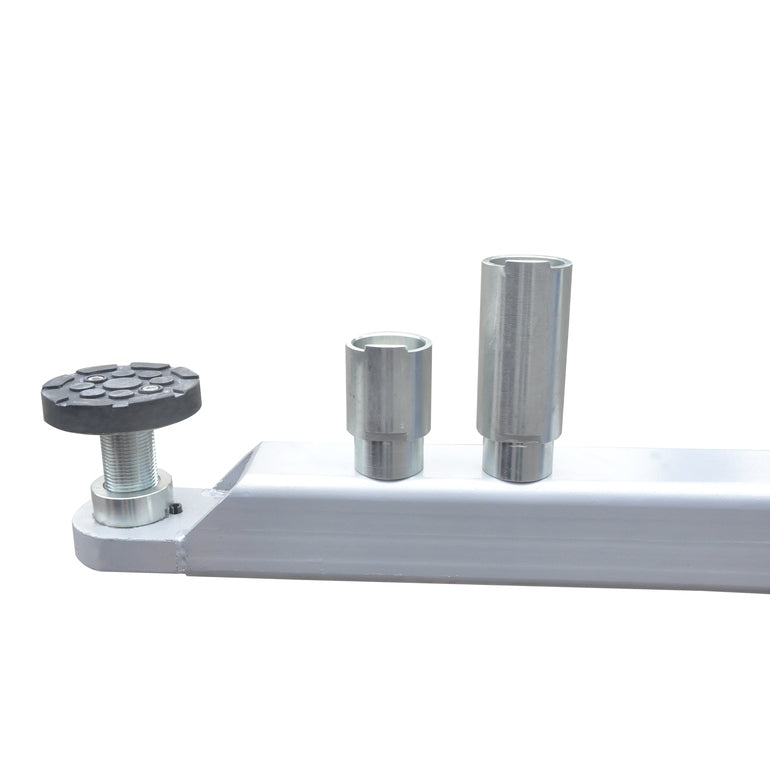

- New 2.6" & 5" Stackable Height Adaptors

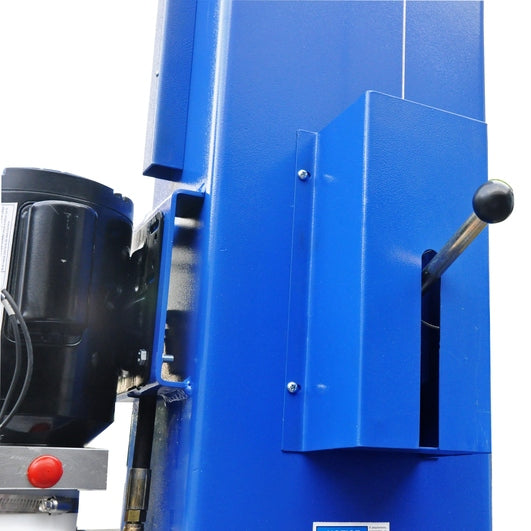

- New Single Point Cable Lock Release

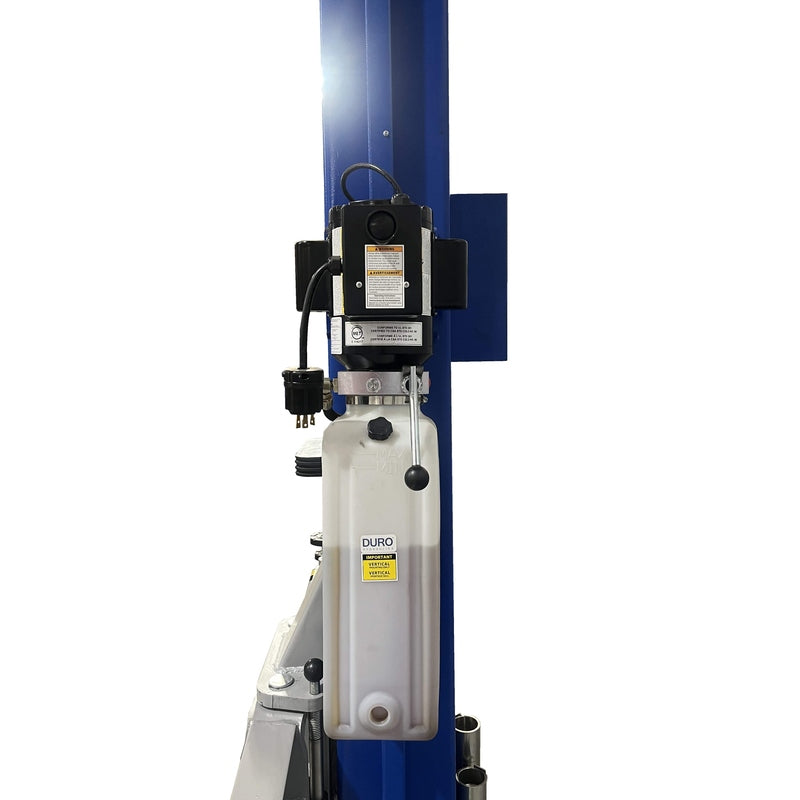

- New Met UL/CSA Certified Duro Power Unit

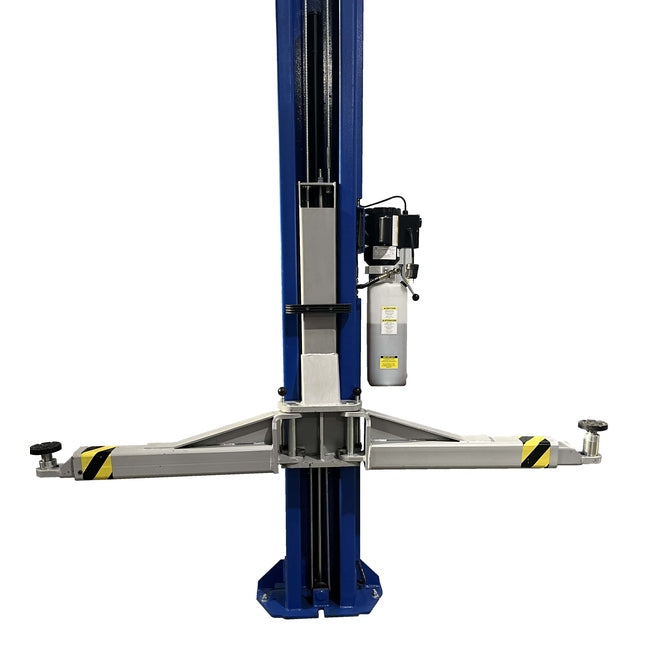

- Symmetric Lift Arms
- Automatic Arm Restraints

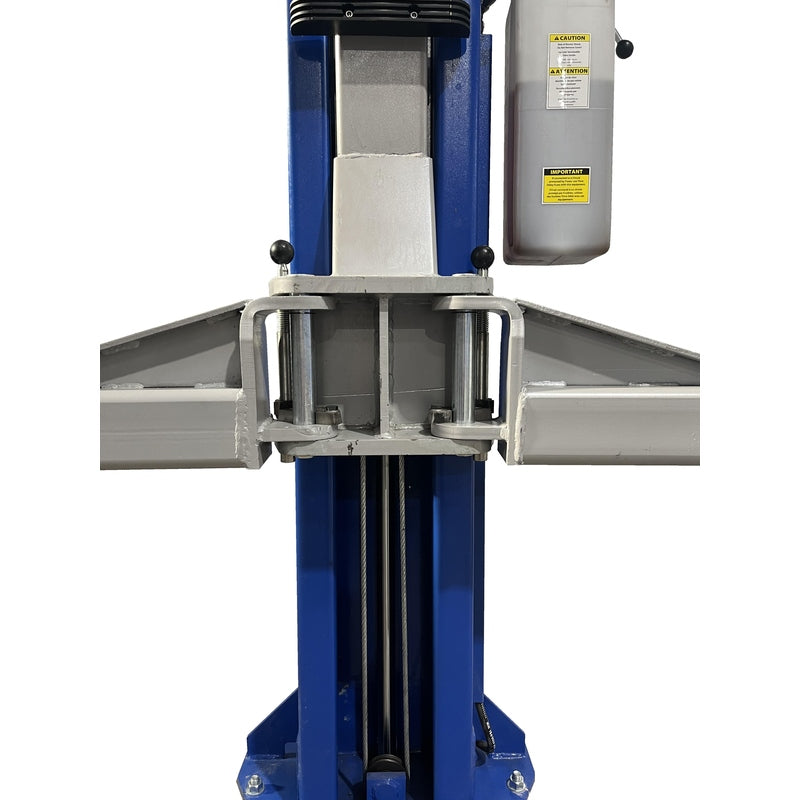

- Direct Push Drive Cylinders

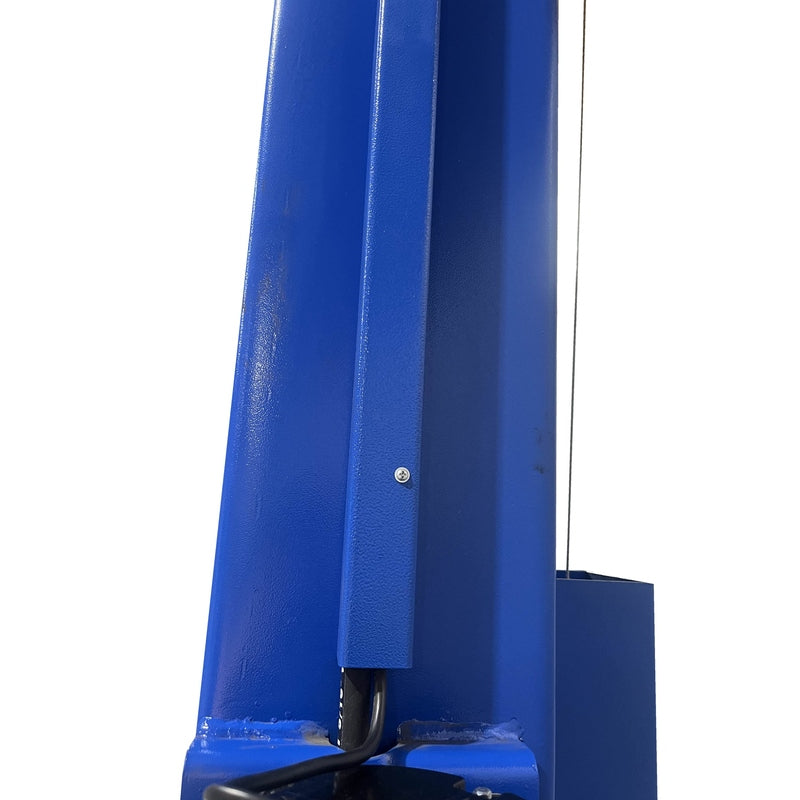

- External Hose Guards
- Rubber Door Guards
- Durable Powder-Coat Finish
- Ali Certifed
- Limited Warranty Policy (5 Yr Structural / 1 Yr Parts)

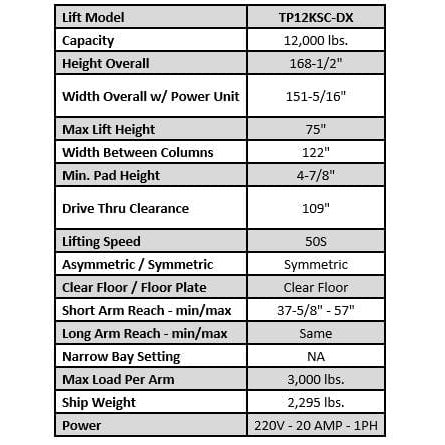

Specifications

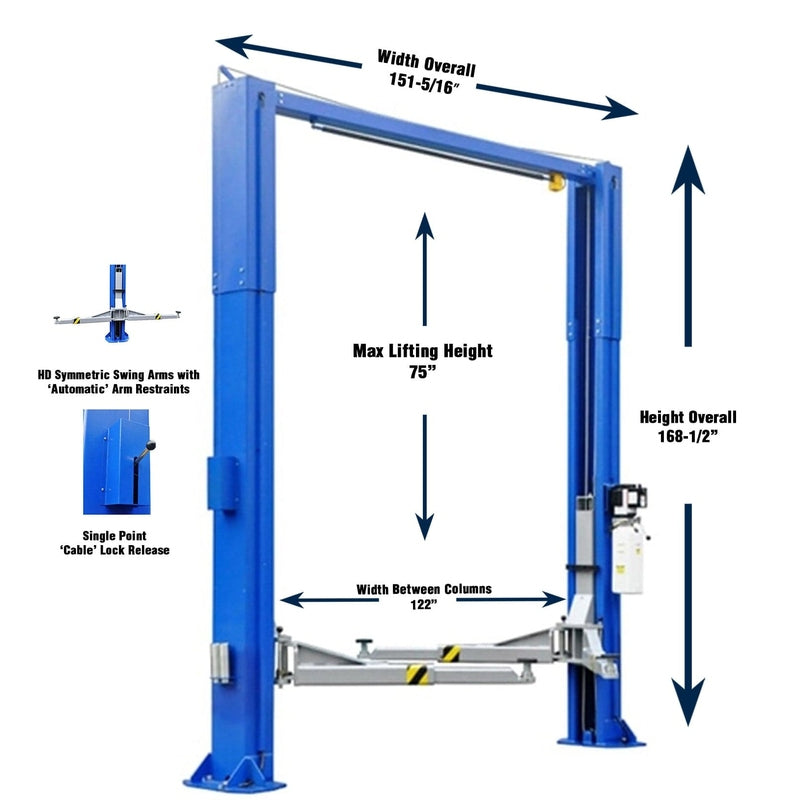

-Lift Model | TP12KSC-DX |
Capacity | 12,000 lbs |
Height Overall | 168-1/2" |
Width Overall w/ Power Unit | 151-6" |
Max Lift Height | 75" |
Width Between Columns | 12" |
Min. Pad Height | 4-7/8" |
Drive Thru Clearance | 109" |
Lifting Speed | 50S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Clear Floor |
Short Arm Reach - min/max | 37-5/8"-57" |
Long Arm Reach - min/max | Same |
Narrow Bay Setting | NA |
Max Load Per Arm | 3,000 lbs |
Ceiling Height Required | 170" |
Ship Weight | 2,295 lbs |
Power |
220V - 20 AMP - 1 PH
|
Manual
-iDEAL TP12KSC-DX Heavy Duty 2 Post Clear Floor Lift Manual
