iDEAL - PSB-SEMIDD26B-AK SEMI DOWN DRAFT PAINT SPRAY BOOTH

The iDEAL PSB-SEMIDD26B-AK Semi Down Draft Paint Spray Booth is the booth you step up to when you want faster cycle times, cleaner panels, and lighting that makes finish quality easier to control—especially on larger jobs. It combines premium, commercial-grade construction with an efficient semi-downdraft airflow pattern that helps pull overspray away from the work surface while keeping the booth environment stable and predictable.

From automotive refinishing to industrial and wood finishing, this booth is designed to deliver a safer, controlled, ventilated work area—without the headaches that come from uneven airflow, dull lighting, or flimsy panel systems. And because it typically ships within 48 hours, you can move from “planning” to “spraying” fast.

• High-Performance Airflow: A strong 12,200 CFM @ 0.5" static pressure keeps overspray moving where it belongs—into filtration and out of the work zone.
• Semi-Downdraft Efficiency: Filtered air enters from the front ceiling intake area and flows downward toward the rear exhaust chamber for consistent capture.
• Commercial ‘Hip Panel’ Lighting Design: Built to improve coverage and reduce shadowing on sides, contours, and lower panels.
• Room for Real Work: Generous interior size handles cars, trucks, and larger industrial parts with breathing room.
• Premium Build Quality: Heavy-duty 18-gauge precision punched panels with straightforward bolt-together assembly.
• Compliance-Ready: Built to meet NFPA 33 standards for spray applications.

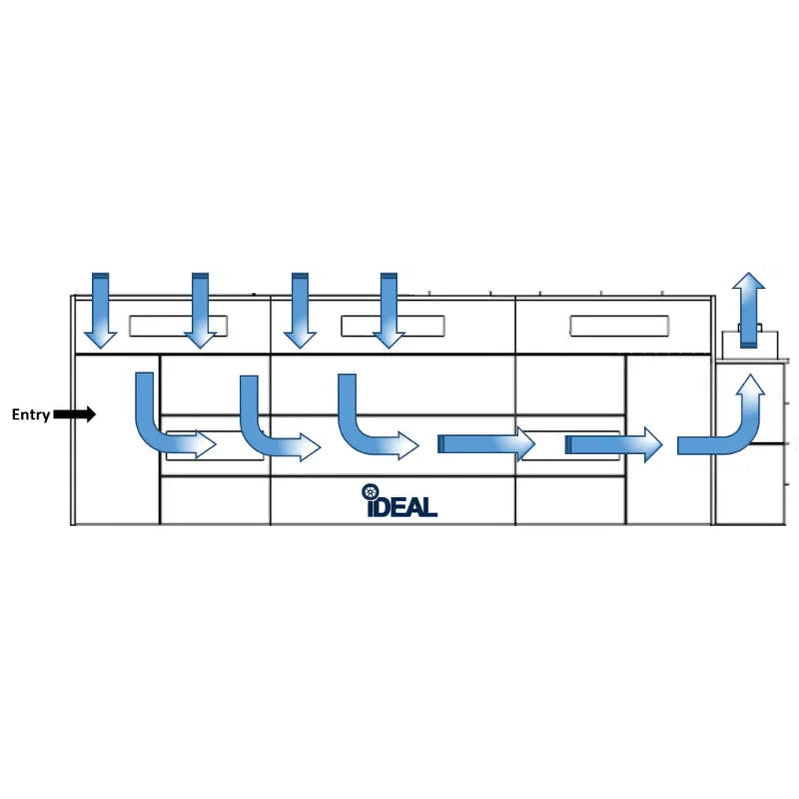

The PSB-SEMIDD26B-AK is built around a controlled airflow path designed for finish quality. The exhaust fan draws filtered air through the front ceiling intake filters, then directs airflow down and toward the rear of the booth where overspray is captured in a filtered exhaust chamber. From there, air is discharged upward through the exhaust fan and ducting—helping keep the spray zone cleaner and the finish more consistent.

• Airflow: 12,200 CFM @ 0.5" static pressure
• Fan: UL Listed Dayton 30" tube-axial exhaust fan with spark-resistant blades
• Filters: Premium AFC intake & exhaust filters
• Included: Manometer, solenoid valve, hardware & sealant

If you’ve ever chased dry spots, missed texture, or struggled to judge metallic laydown under weak light, you already know why this matters. This booth ships with a robust vertical lighting package and a commercial hip-panel design that helps distribute light across the work area—so you can spray with confidence, then inspect the finish without stepping outside the booth.

• (10) LDPI Industrial T-8 vertical light fixtures (4-lamp each)
• (40) GE T8 fluorescent lamps — 32W, 5000K, 4' length
• True daylight color (5000K) for better color match and surface inspection

This booth is built to operate like professional equipment—clean controls, thoughtful access points, and safety-focused switching where it counts. Tri-fold entry doors provide wide access for vehicles and equipment, while viewing windows help reduce unnecessary door cycling once you’re in process.

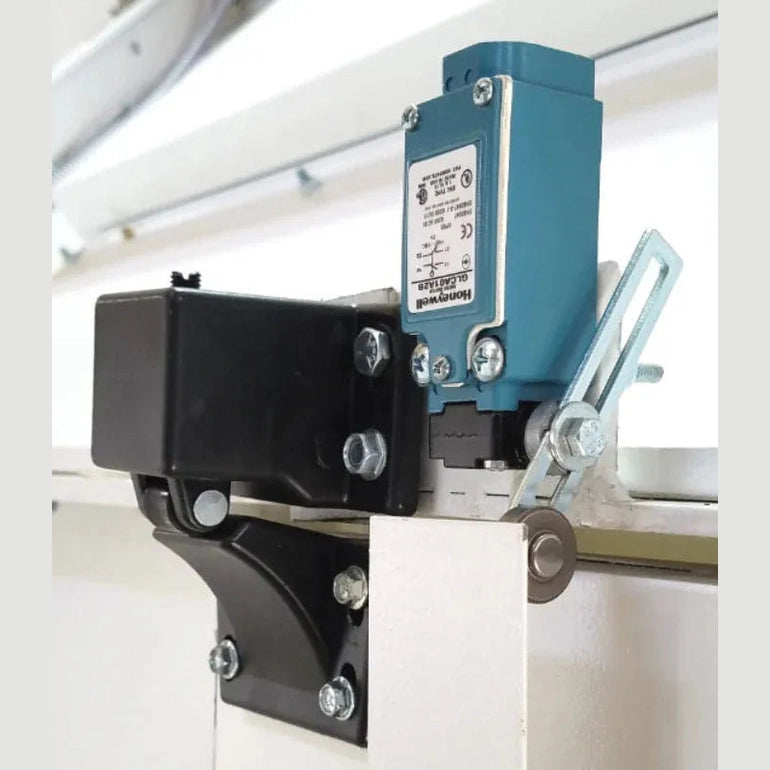

• Tri-fold entry doors with viewing windows & shutoff switch
• Personnel door with viewing window & shutoff switch

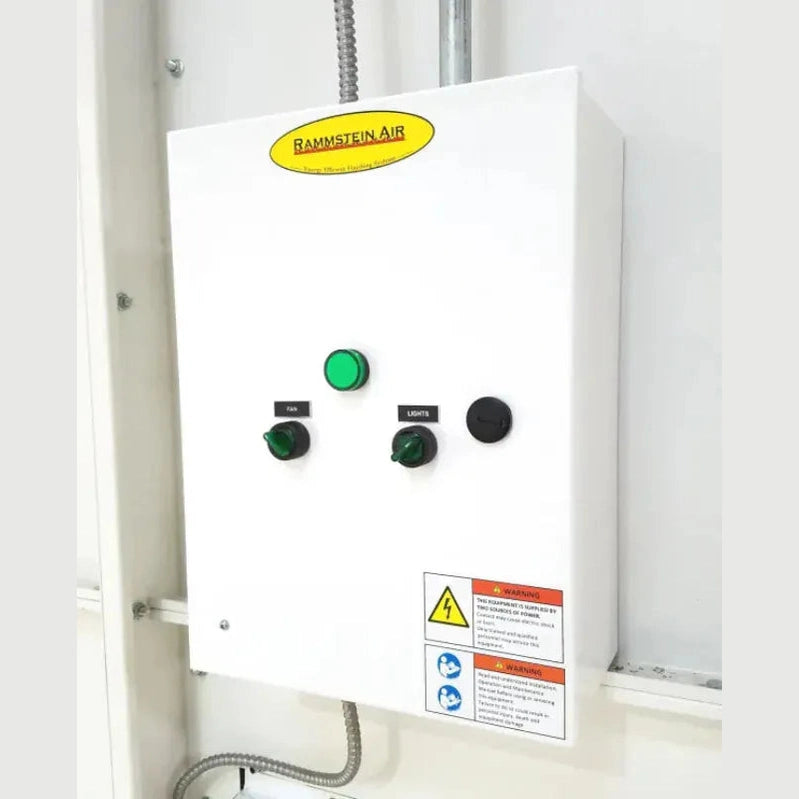

• Deluxe control panel included
• Meets NFPA 33 standards

• 18-gauge precision punched panels for strength, alignment, and durability
• Convenient 5/16" bolt & nut assembly for straightforward installation
• White powder coat finish (inside & outside) for a brighter booth and a cleaner, more professional look

• Inside Dimensions: 26' L × 14' W × 9'–3" H
• Outside Dimensions: 29'–4" L × 14'–4" W × 9'–7" H

• Motor: NEMA rated 3HP
• Standard Power: 3 Phase, 230/460VAC, 60Hz
• Fan Type: 30" tube-axial
• Optional: Single phase (1PH) electrical configuration

• Single Phase Electrical Configuration (1PH)
• Canopy / Plenum (required for booth heater)
• 9' Exhaust Extension Kit — 3 pieces (25" diameter)
• Side Personnel Door Kit
• 48" Solid Extension Kit
• Gas Fired Booth Heater (3 Phase) (Plenum required)
• Gas Fired Booth Heater (1 Phase) (Plenum required)
• Electric Booth Heater (3 Phase)
• Electric Booth Heater (1 Phase)

• Model: PSB-SEMIDD26B-AK
• Booth Type: Semi Down Draft Paint Spray Booth
• CFM: 12,200 @ 0.5" static pressure
• Inside Dimensions: 26' L × 14' W × 9'–3" H
• Outside Dimensions: 29'–4" L × 14'–4" W × 9'–7" H
• Fan / Motor: 30" Tube Axial / 3HP / 3PH 230/460VAC 60Hz / Non-spark, NEMA rated
• Lighting: (10) vertical T-8 fixtures (4 lamps each), (40) 32W 5000K lamps included
• Standards: Meets NFPA 33

The iDEAL PSB-SEMIDD26B-AK is the kind of booth that makes your best work easier to repeat. Strong semi-downdraft airflow, serious lighting coverage, and premium commercial construction come together in one clean package—built to spray better, run smoother, and help you turn out high-quality finishes with confidence.
