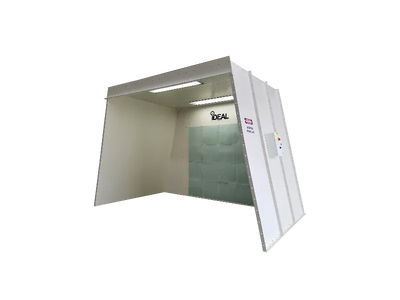

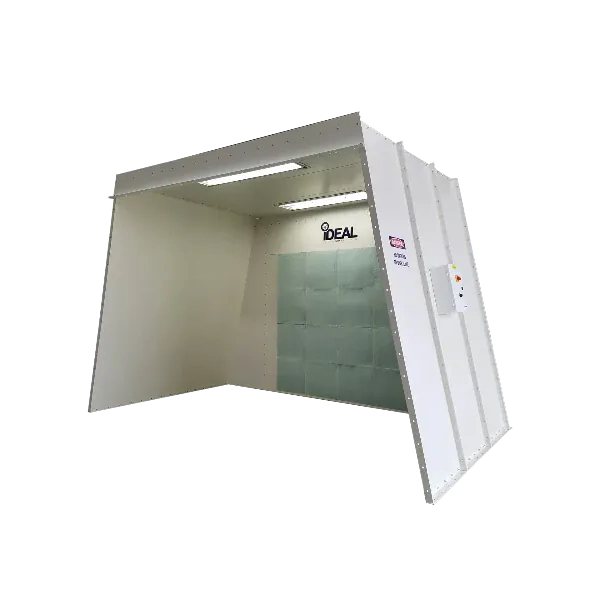

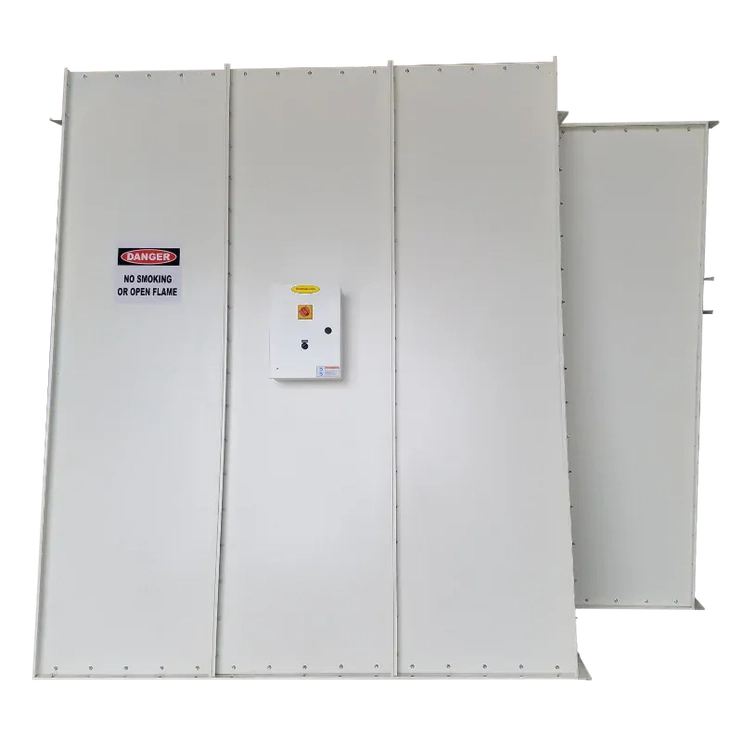

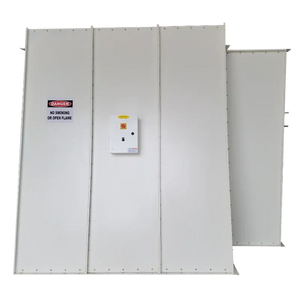

iDEAL PSB-AFOFB1388-AK OPEN FRONT PAINT BOOTH

The iDEAL PSB-AFOFB1388-AK Open Front Paint Booth is built for production-minded shops that need clean airflow, bright visibility, and a wide-open working face that keeps parts moving. It’s an economic, commercial-grade solution for industrial batch finishing and automated production-type spray systems—the kind of booth that fits into a real workflow, not just a spec sheet.

Air enters through the open front, travels smoothly through the work zone, and is pulled into a rear filtered exhaust chamber before discharging upward through a UL Listed Dayton 24" tube-axial exhaust fan. The result is a controlled, ventilated spray area designed to help you produce consistent finishes while meeting the regulations that matter on the floor.

• Open-Face Access: Ideal for continuous part flow—great for racks, carts, conveyors, and repeatable production work.
• Commercial-Grade Airflow: Delivers 7,983 CFM @ 0.5" static pressure for dependable overspray and fume capture.
• Bright, True Daylight Color: GE 5000K T8 lamps help reduce color mismatch and improve finish inspection.
• Built to Last: Precision punched 18-gauge panels with a rugged bolt-together design for long-term reliability.
• Safer by Design: Spark-resistant fan blades, manometer included, and compliance-focused construction that meets or exceeds applicable standards.
• Fast Turnaround: Typically ships within 48 hours so your production schedule doesn’t sit on hold.

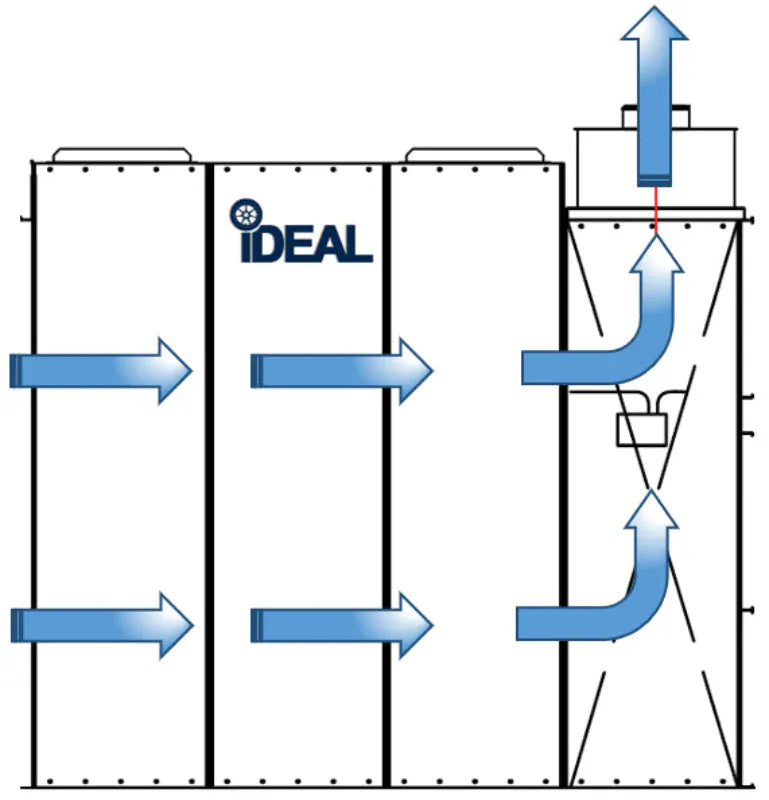

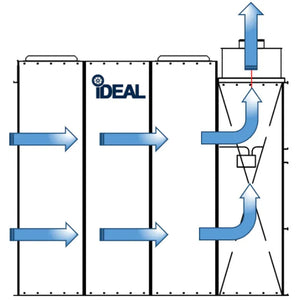

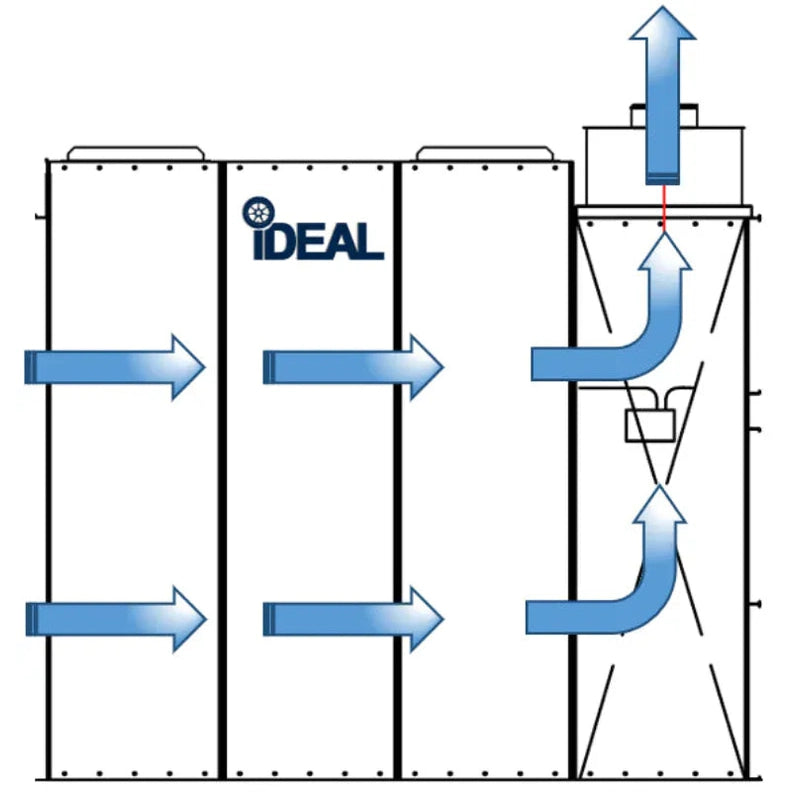

This booth is designed to keep air moving in the right direction—through the open front, across the work area, and into the filtered exhaust chamber—so overspray doesn’t hang around the parts you just sprayed. Exhaust air is filtered, pulled through the plenum, then discharged upward through the fan and ducting.

• Airflow: 7,983 CFM @ 0.5" static pressure

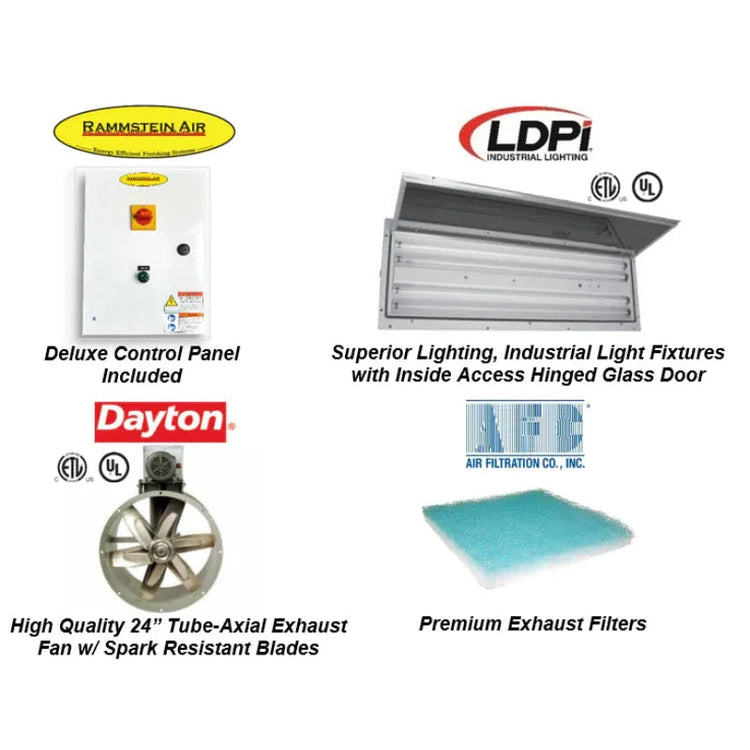

• Fan: UL Listed Dayton 24" tube-axial exhaust fan (spark resistant blades)
• Motor: NEMA rated 2HP, 3 Phase, 230/460VAC, 60Hz (standard)
• Filters: Premium AFC exhaust filters
• Included: Manometer, sealant, and all assembly hardware

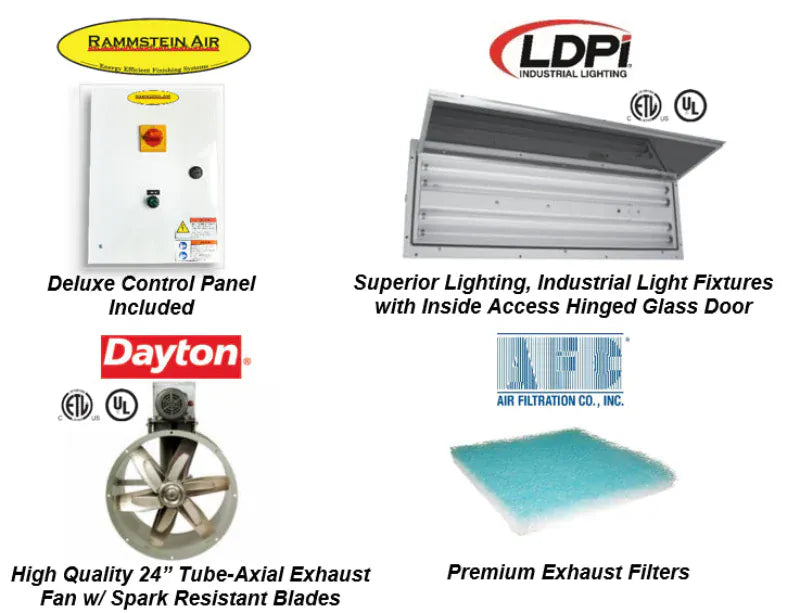

Finishing work demands light you can trust. The PSB-AFOFB1388-AK comes equipped with industrial fixtures designed for serviceability and visibility, including hinged glass access doors for easier maintenance and inspection.

• (2) LDPI Industrial light fixtures with inside-access hinged glass door
• (2) CLS1 / DIV 2 fixtures — UL & ETL listed (Groups A, B, C & D)
• GE T8 fluorescent lamps: 48", 32W, 5000K, ~2900 lumens each
• Lamp quantity: (8) T8 lamps included (32W, 5000K, 48" length)

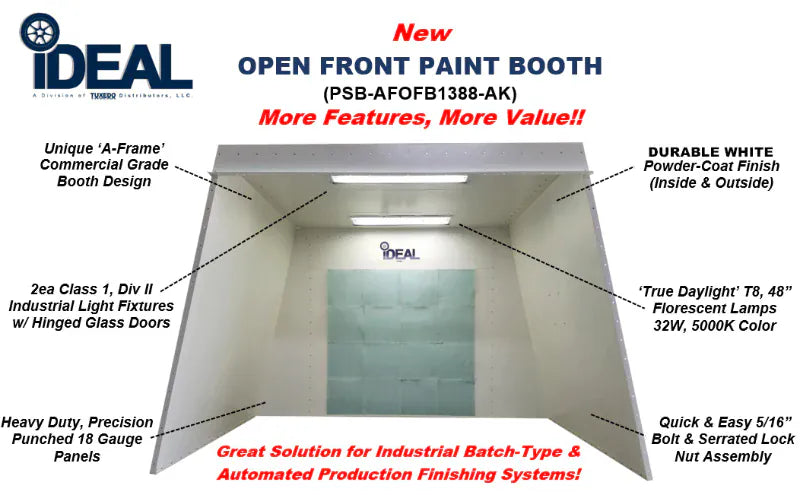

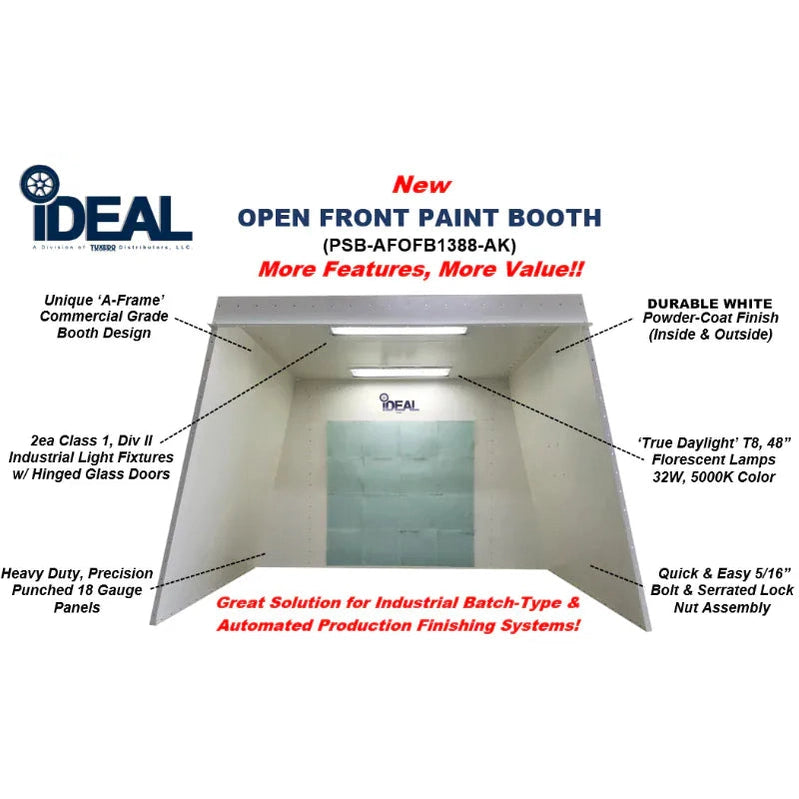

From the panel construction to the finish, this booth is built to feel like equipment—not a kit. Heavy-duty, precision punched panels line up cleanly for quicker assembly, and the bright white powder coat finish (inside and out) helps keep the interior visually crisp and easier to work in day after day.

• 18-gauge precision punched panels for commercial-grade strength
• 5/16" bolt & serrated lock nut assembly for straightforward installation
• White powder coat finish (inside & outside)

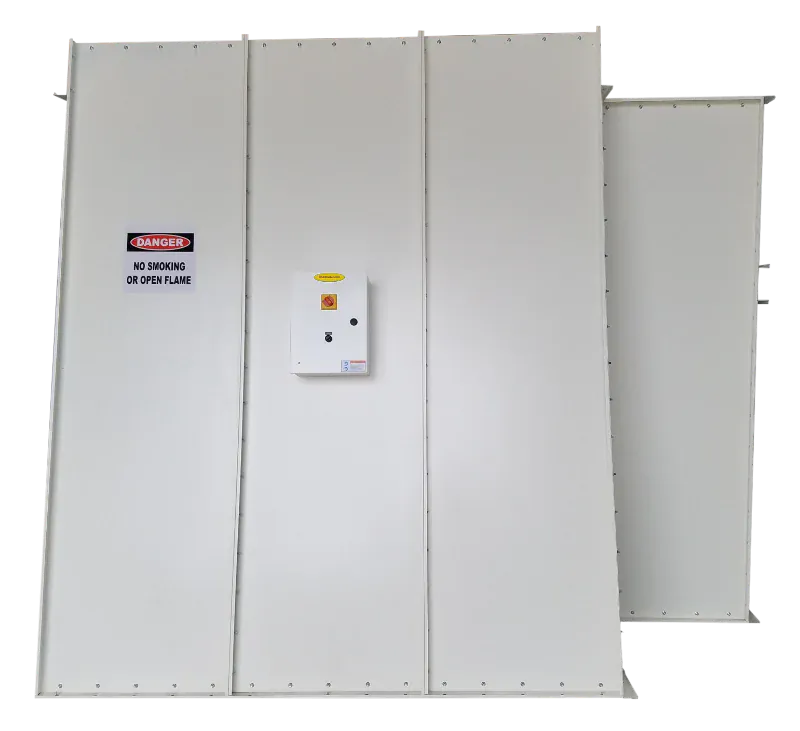

• Deluxe control panel included
• Easy to install, operate & maintain

• Meets and/or exceeds applicable OSHA and NFPA 33 regulations
• Non-spark, NEMA rated fan/motor configuration
• Manometer included to monitor filter loading and airflow performance

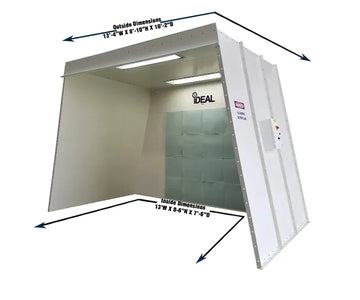

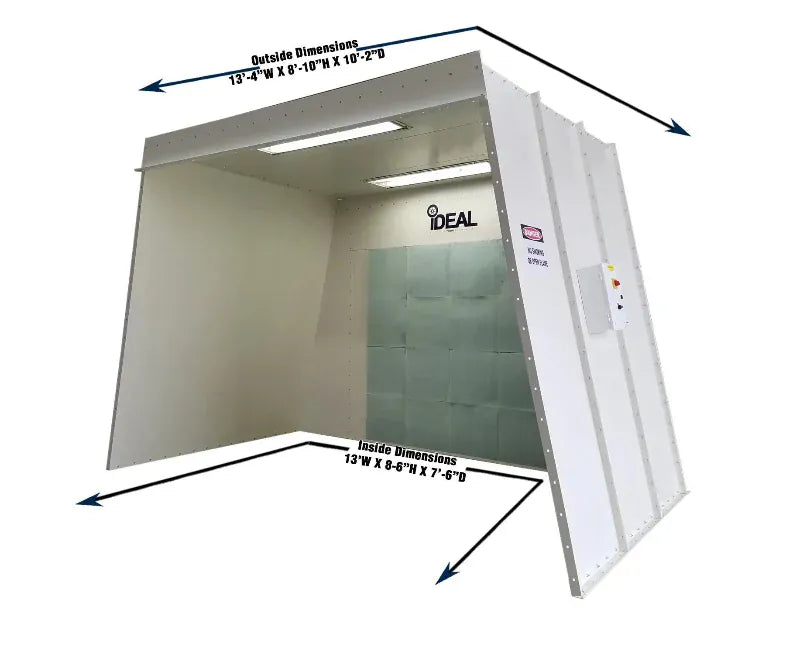

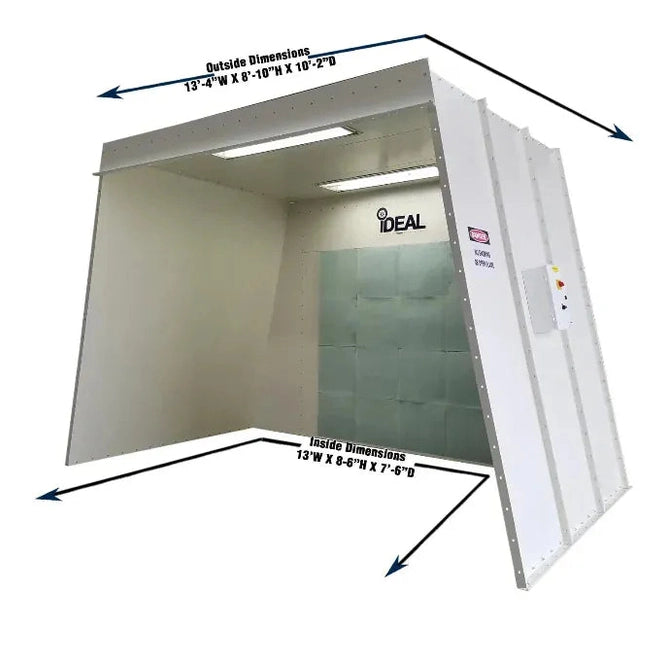

• Inside Dimensions: 13' W × 8'–6" H × 7'–6" D
• Outside Dimensions: 13'–4" W × 8'–10" H × 10'–2" D

• Model: PSB-AFOFB1388-AK
• Booth Type: A-Frame Open Front (Open Face)
• CFM: 7,983 @ 0.5" static pressure
• Fan / Motor: (1) 24" Tube Axial / 2HP / 3PH 230/460VAC 60Hz
• Filters: Premium AFC exhaust filters
• Lighting: (2) 48" T8 fixtures (4 bulbs each), CLS1/DIV2 rated; (8) 32W 5000K lamps included

• 1 Phase Electrical Configuration (1PH)

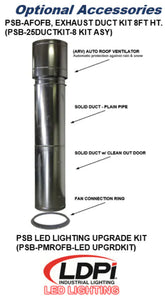

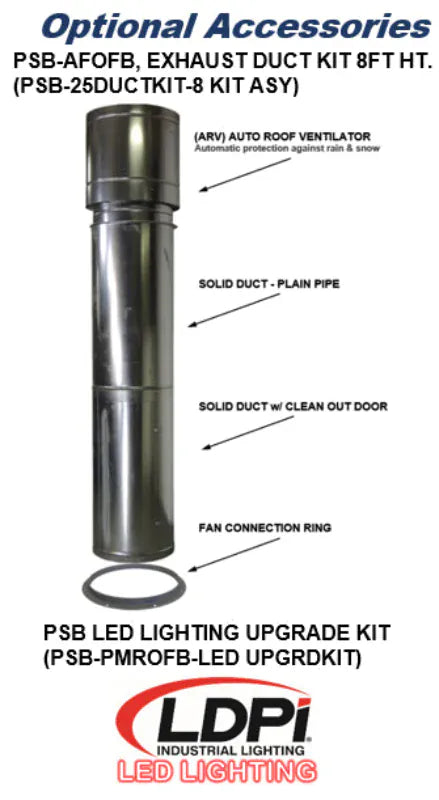

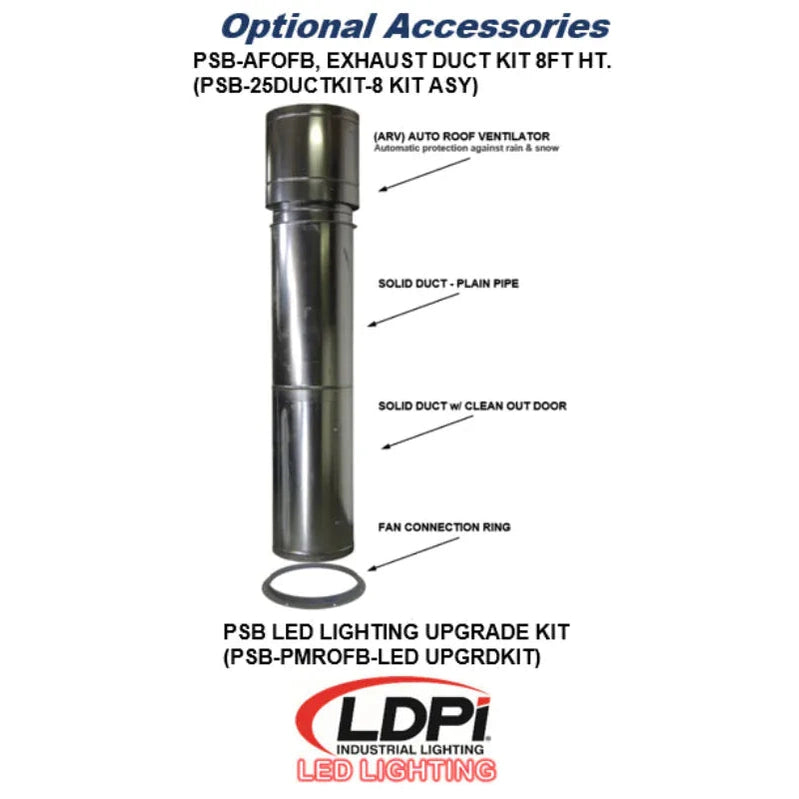

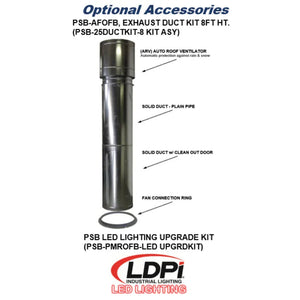

• 8' Exhaust Duct Kit (24" diameter) — PSB-25DUCTKIT-8 kit asy
• LED Lighting Upgrade Kit

The iDEAL PSB-AFOFB1388-AK is for the shop that needs open access, serious airflow, and lighting you can actually judge paint under. It’s practical, compliant, and built for repeatable production finishing—so you can keep parts moving, keep overspray under control, and keep quality consistent from the first job to the last.
