Description

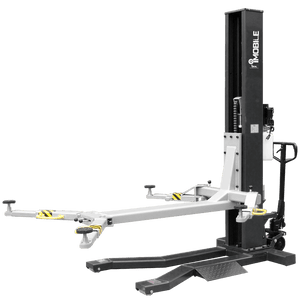

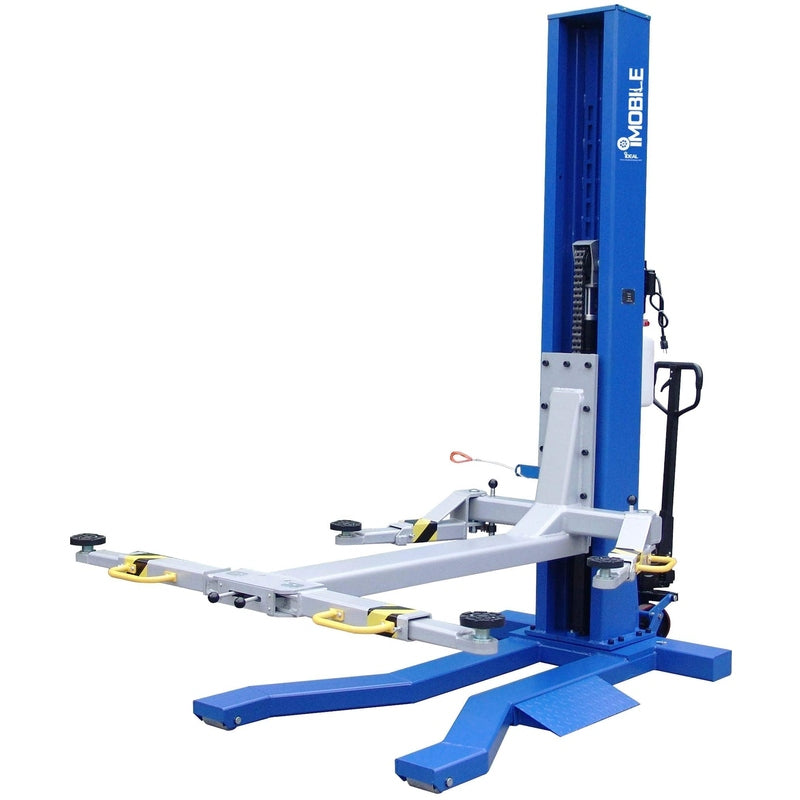

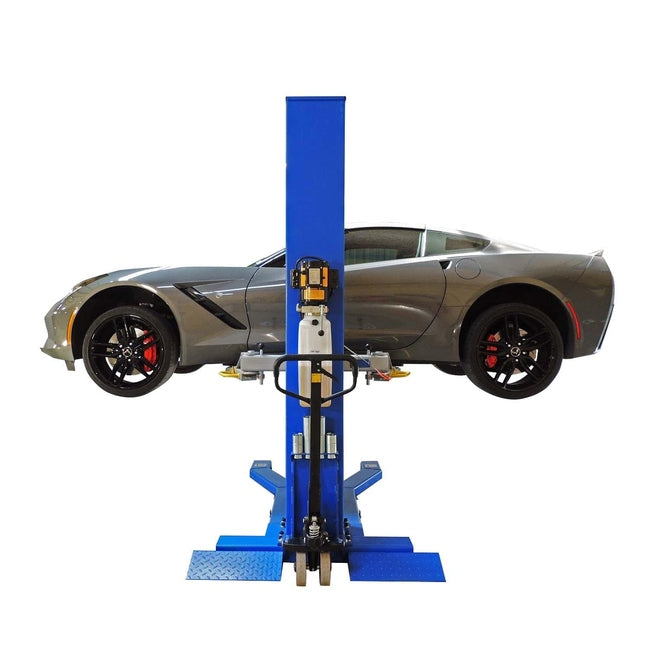

-This is the perfect lift for limited space and situations where lift portability is more important than a floor-mounted two-post lift. The low profile design and drive-over ramps make drive-over vehicle loading possible, while the pallet jack feature also allows the lift to be positioned under the vehicle for loading.

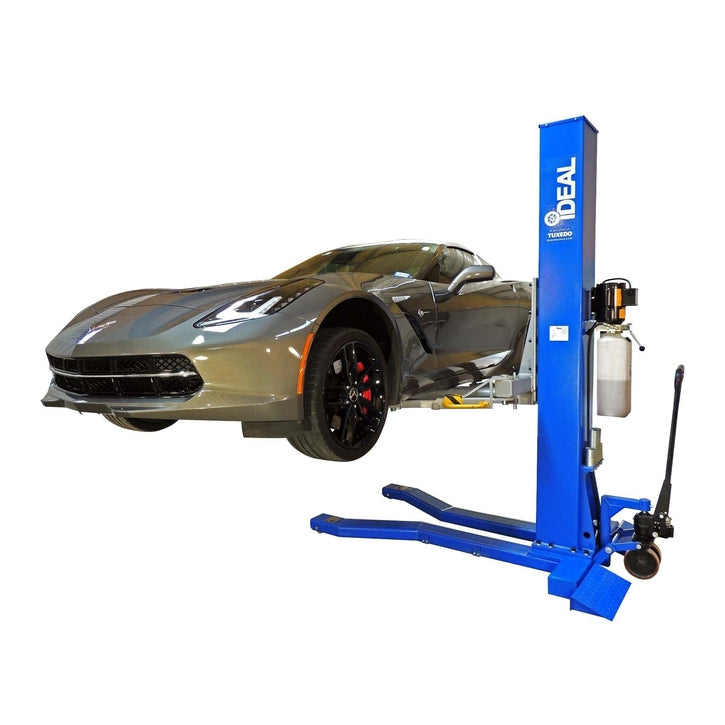

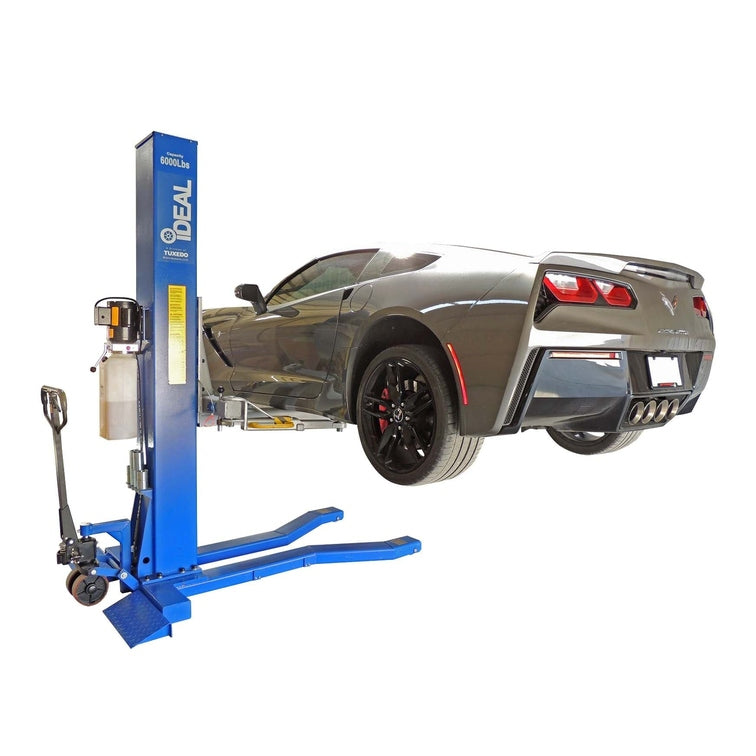

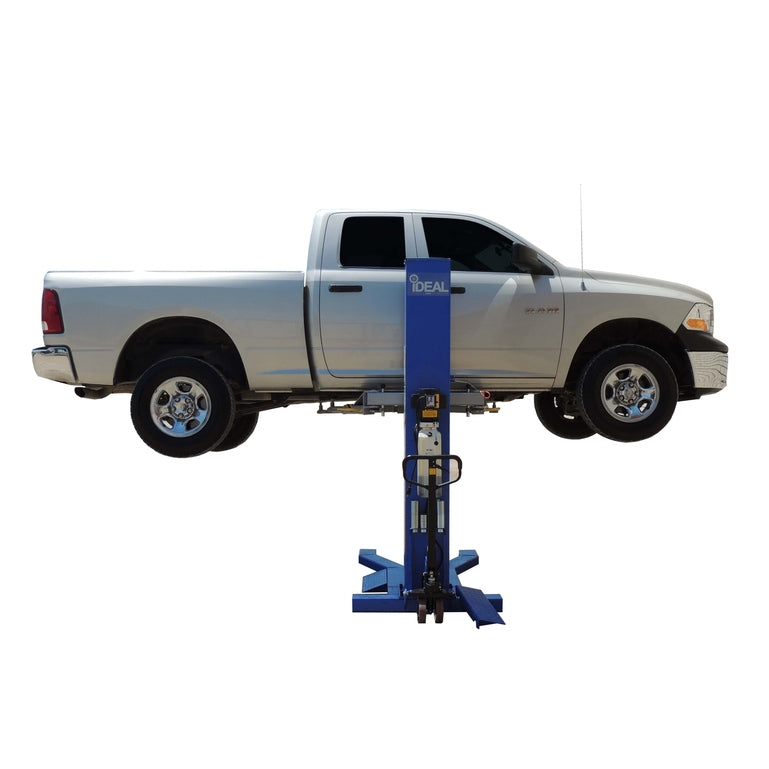

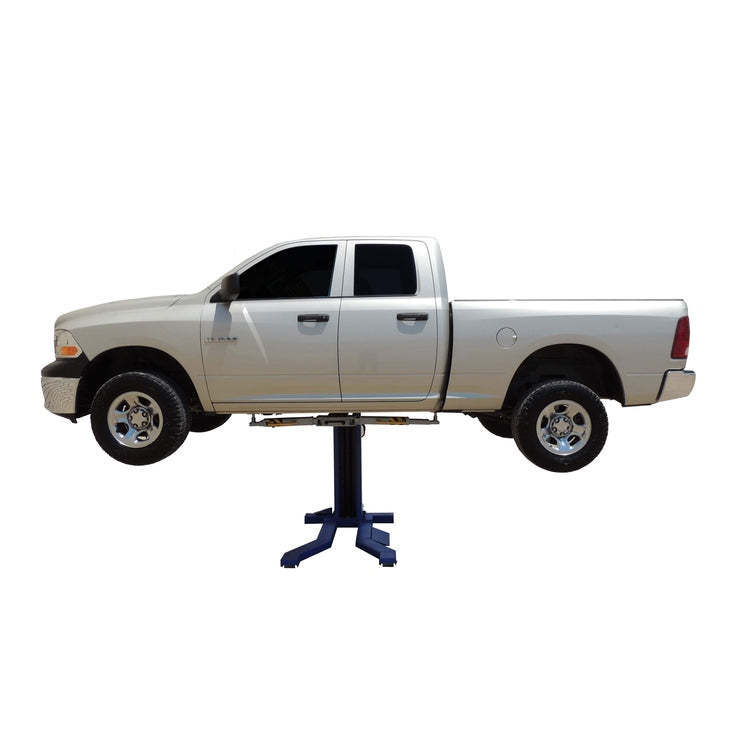

With a lifting height of 72 the iMOBILE MSC-6KLPs design allows access to the underside of most vehicles making it ideal for pre-service inspections or maintenance, while also providing outer vehicle access around most vehicles for wheel service repairs.
Due to the unique design and portability feature, the iMOBILE MSC-6KLP is the perfect solution for a homeowner with limited space or a shop looking to improve workflow or gain additional revenue from previously unusable space

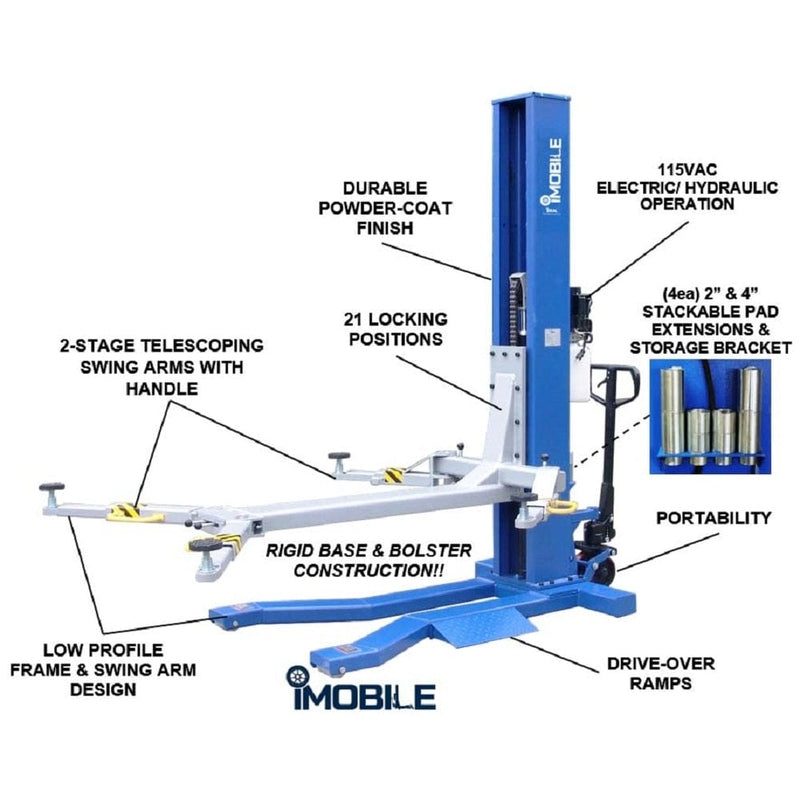

Features
-- 6,000 lbs Capacity
- Low Profile Design under 4

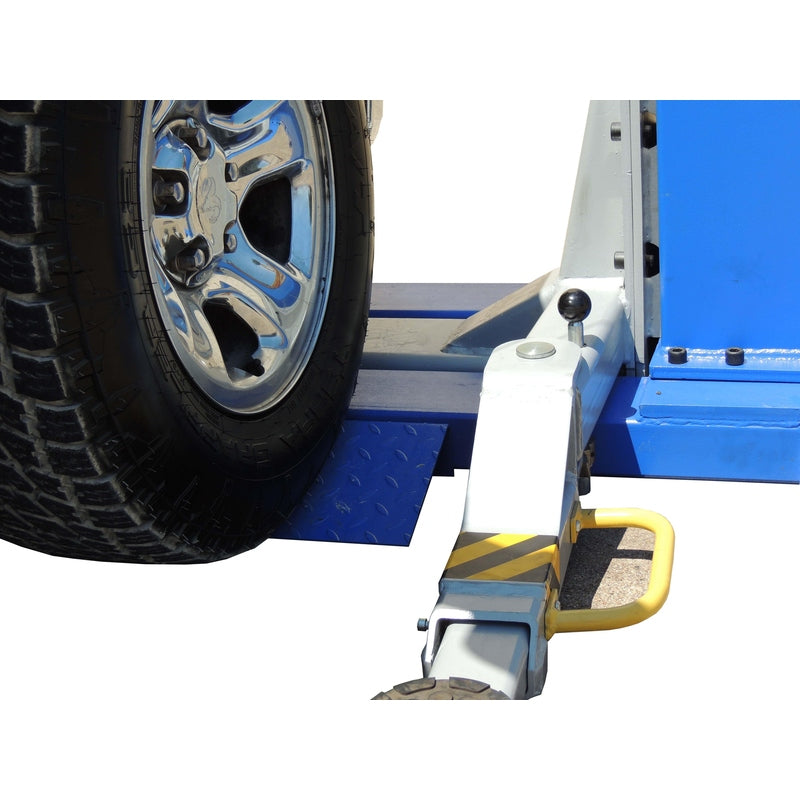

- Drive Over Ramps

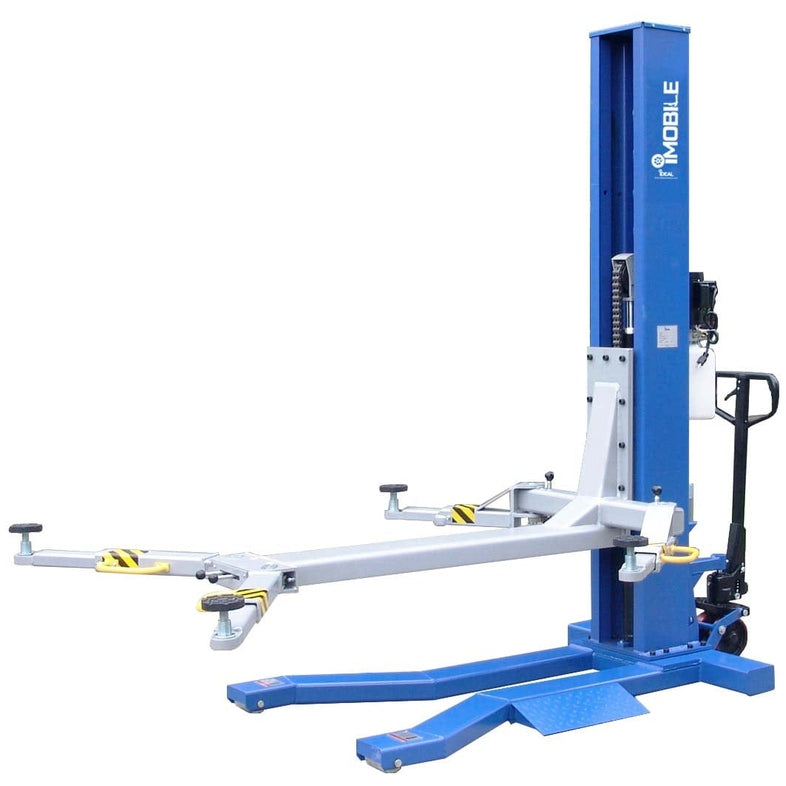

- Portability
- Rigid Base Construction
- Single Point Lock Release

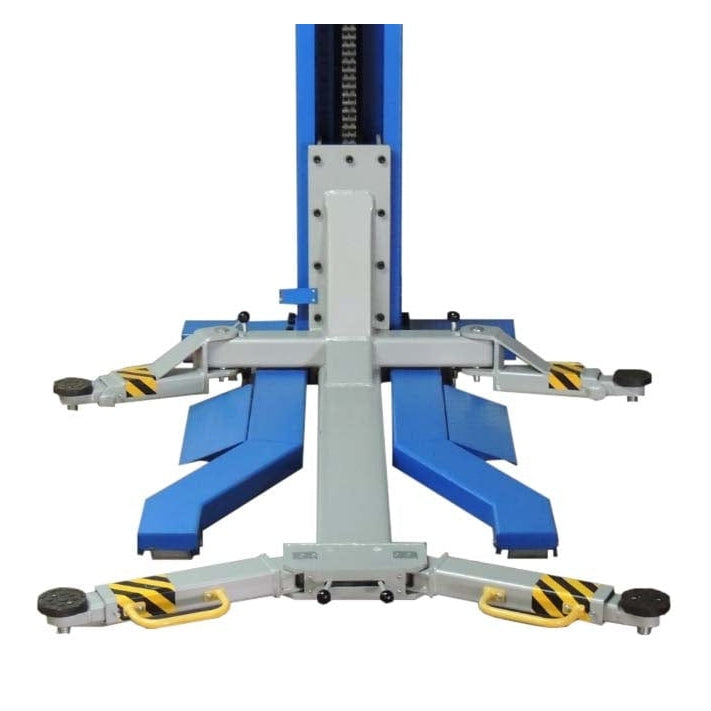

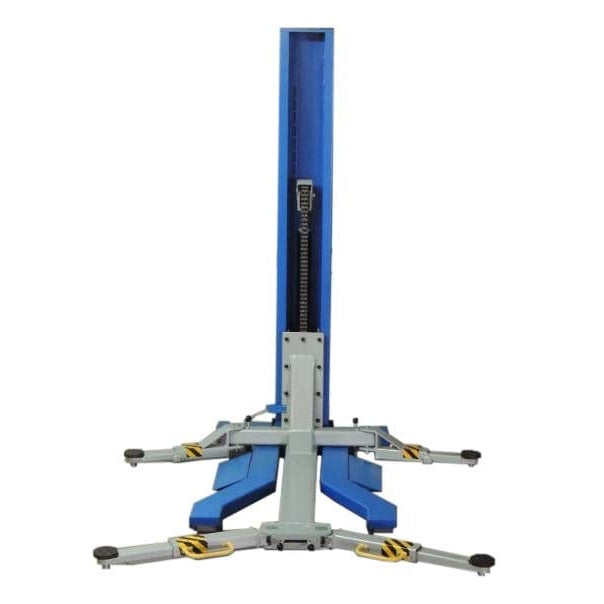

- Telescoping Two Stage Swing Arms

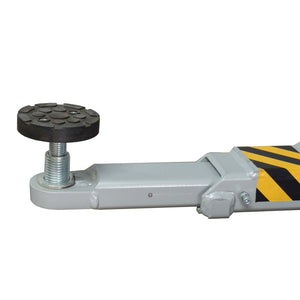

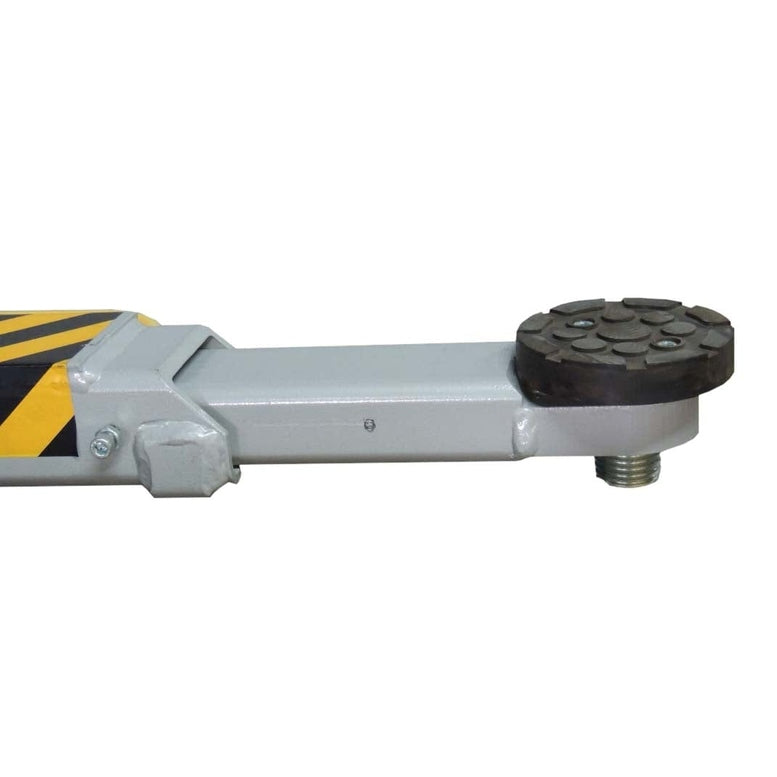

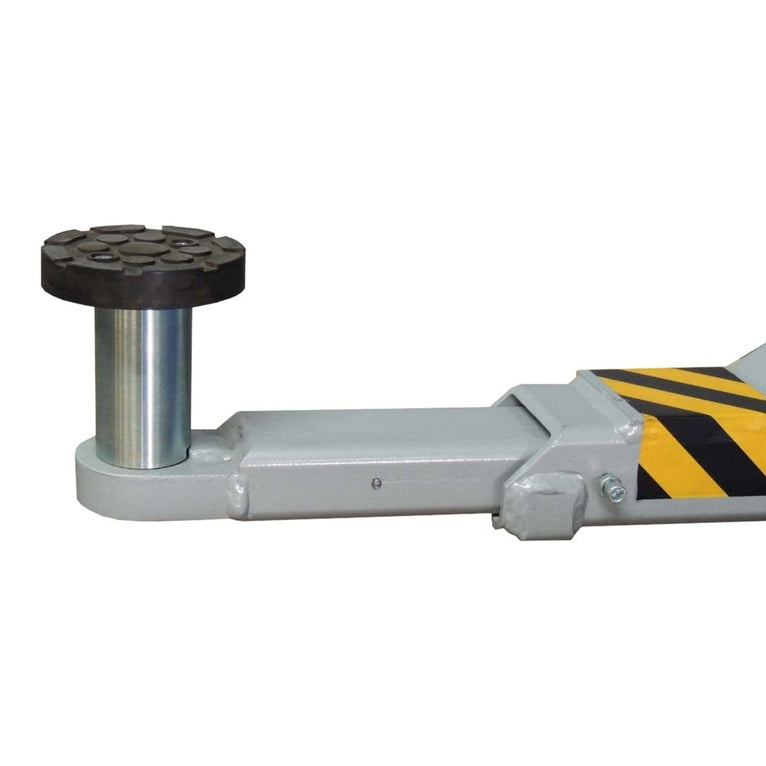

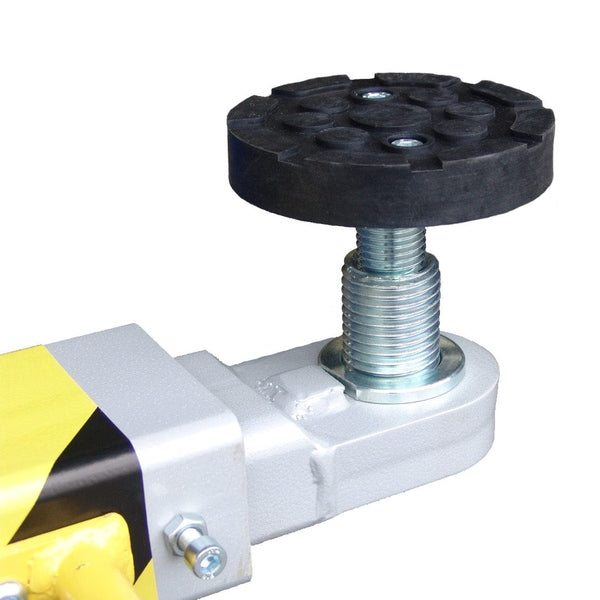

- Double Telescoping Screw Pads

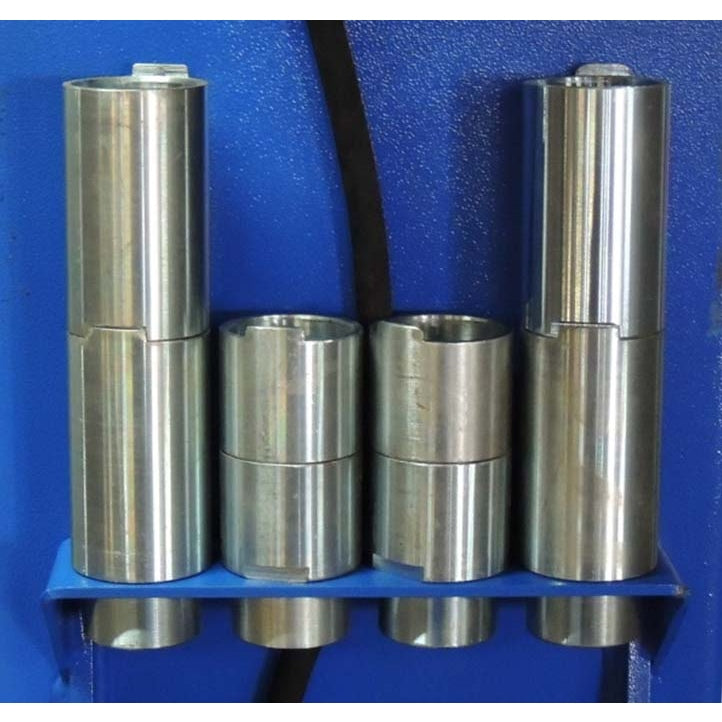

- Stackable pad height extensions (2 sets of 4ea @ 2 & 4)
- Heavy Duty Arm Restraints
- 21 Locking Positions
- Durable powder coat finish

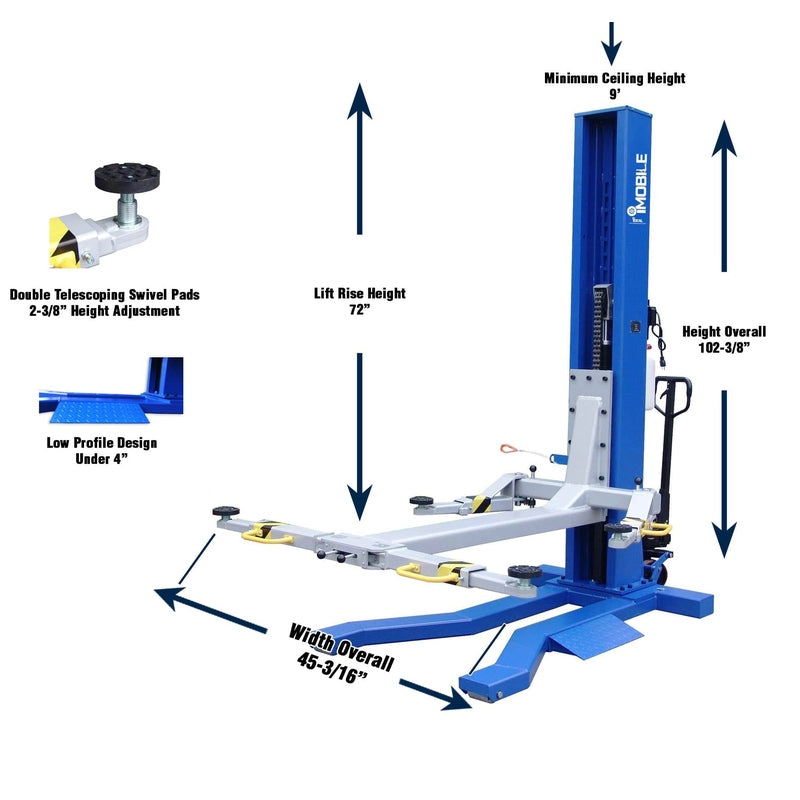

Specifications
-Lift Model | MSC-6KLP |
Capacity | 6,000 lbs |
Width Overall | 45-3/16" |
Height Overall | 102-3/8" |
Depth / Length Overall | 101-9/16" |
Lift Rise Height | 72" |
Minimum Ceiling Height | 9' |
Swivel Pad Height (Adj.) | 3-15/16" 6-5/16" |
Platform Min. Height | NA |
Main Side Arm Reach | 19-11/16" 26" |
Off Side Arm Reach | 24-5/8" 34" |
Drive Over Height | 3-15/16" |
Platform Frame | NA |
Platform Aluminum Deck | NA |
Platform Structure | NA |
Ship Weight | 1,850 lbs |
Power | 115V 15 Amp 1Ph |
Manual
-iDEAL MSC-6KLP 6,000 lb Mobile Single Column Lift - Low Profile Manual
