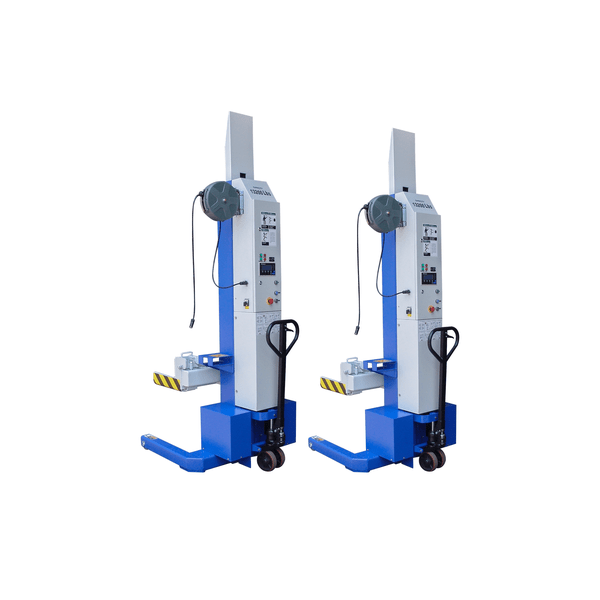

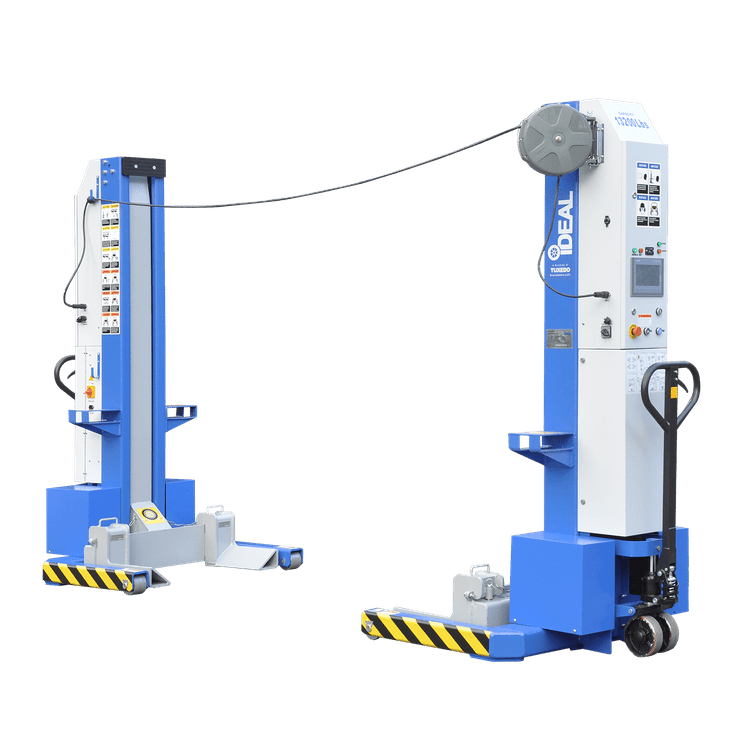

iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set
-The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.
Features
-- Heavy Duty
- Mobile Column Lift
- Up To 78,000 Lbs. Capacity
- Easy To Use Control Panel
- Operable From Any Column
- Adjustable Fork Accommodates Many Wheel Sizes
- Direct Drive Hydraulic Cylinder
- Independent Mechanical Locking System
- Battery Operated With Onboard Charging System Sold Separately
- Easily Moved For Use In Multiple Bays
- Small Footprint Allows For Out Of The Way Storage
- Available In Two, Four And Six Column Configuration
- Optional Accessories For Expanded Service Operations
Specifications
-Lift Model | MSC-13K-B-226 |
Column Configurations | 2 Column |
Capacity | 26,000 lbs. |
Ac Power (Input, Per Column) | 100-140VAC, 60Hz, 1PH |
DC Power (Output, Per Column) | 24VDC |
Lifting Height | Min. 88.6" / Max 155.5" |
Column Heights - Min/Max | 44.1" |
Fork Adjustable Range | 6.3" 22" |
Fork Length | 14" |
Fork to Column Clearance | 9.3" |
Rise Time | 75 Seconds |
Descent Time | 60 Seconds |
Maximum Distance between Columns | 32.8" |
Minimum Concrete Surface Strength | 3000PSI |
Noise Level | 70dB(A) |
Set - Up / Operation | Indoors |
Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery ( BCI Group 31, AH-105) |
Ship Weight | 1,210 lbs per Column |
