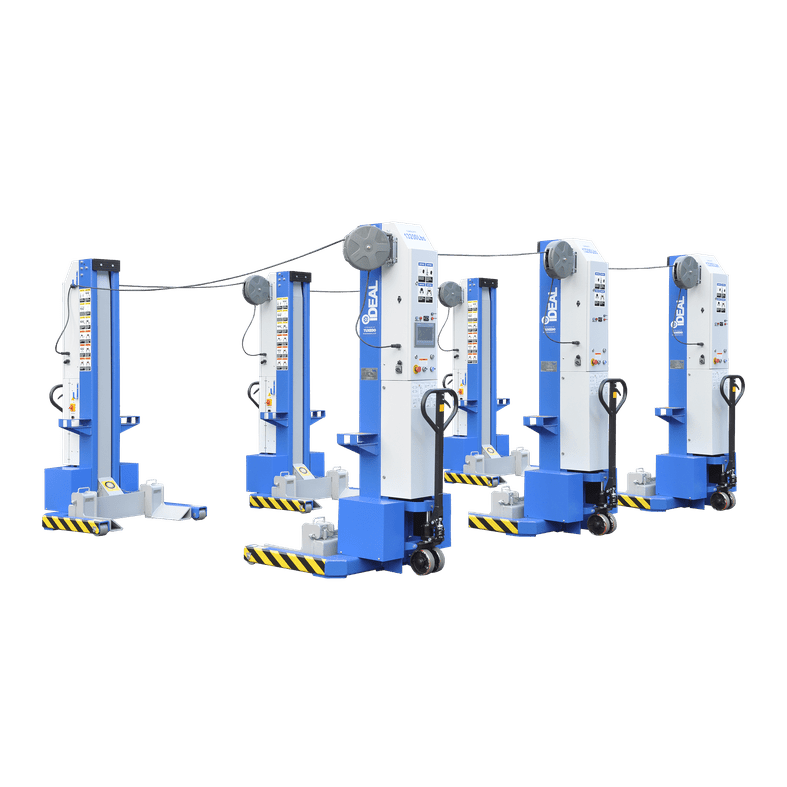

iDEAL MSC-13K-B-678 78,000 lbs Mobile Column Lift

-

The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.

Features

-
  • Easy to use master controller for individual or paired synchronized operation
  • Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
  • Adjustable lifting forks accommodate the widest range of wheels
  • Easily positioned with pallet jack-style wheel
  • Heavy-duty hydraulic system
  • Large carriage bearings provide durable, fast, and easy lifting
  • LCD screen with keyboard offers easy-to-read visuals of settings and lifting height
  • Independent mechanical locking system
  • Emergency switch on each column provide the highest safety assurance
  • Optional jack stands are available
  • Up To 78,000 Lbs. Capacity
  • Easy To Use Control Panel
  • Operable From Any Column
  • Adjustable Fork Accommodates Many Wheel Sizes
  • Direct Drive Hydraulic Cylinder
  • Independent Mechanical Locking System
  • Battery Operated With Onboard Charging System Easily Moved For Use In Multiple Bays
  • Small Footprint Allows For Out Of The Way Storage
  • Available In Two, Four And Six Column Configuration
  • Optional Accessories For Expanded Service Operations
  • Batteries not included

Specifications

-
Specifications
Lift Models MSC-13K-B-678
Column Configurations 6 Column
Capacity 78,000 lbs
AC Power (Input, Per Column) 100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column) 24VDC
Lifting Height 67.1"
Column Heights Min/Max Min. 88.6" / Max 155.5"
Overall Width 44.1"
Fork Adjustable Range 6.3" 22"
Fork Length 14"
Fork to Column Clearance 9.3"
Rise Time 75S
Descent Time 60S
Maximum Distance between Columns 32.8'
Minimum Concrete Surface Strength 3000 PSI
Noise Level 70 dB(A)
Set-Up / Operation Indoors
Battery Type (Not included) 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
Ship Weight 1,210 lbs per Column

Manual

-

iDEAL MSC-13K-B Mobile Column Lift, Six Column Set, 78,000 lbs. Manual
