iDEAL Elec-Hydra U-2200IEH-XR 2,200 lb UTV Lift

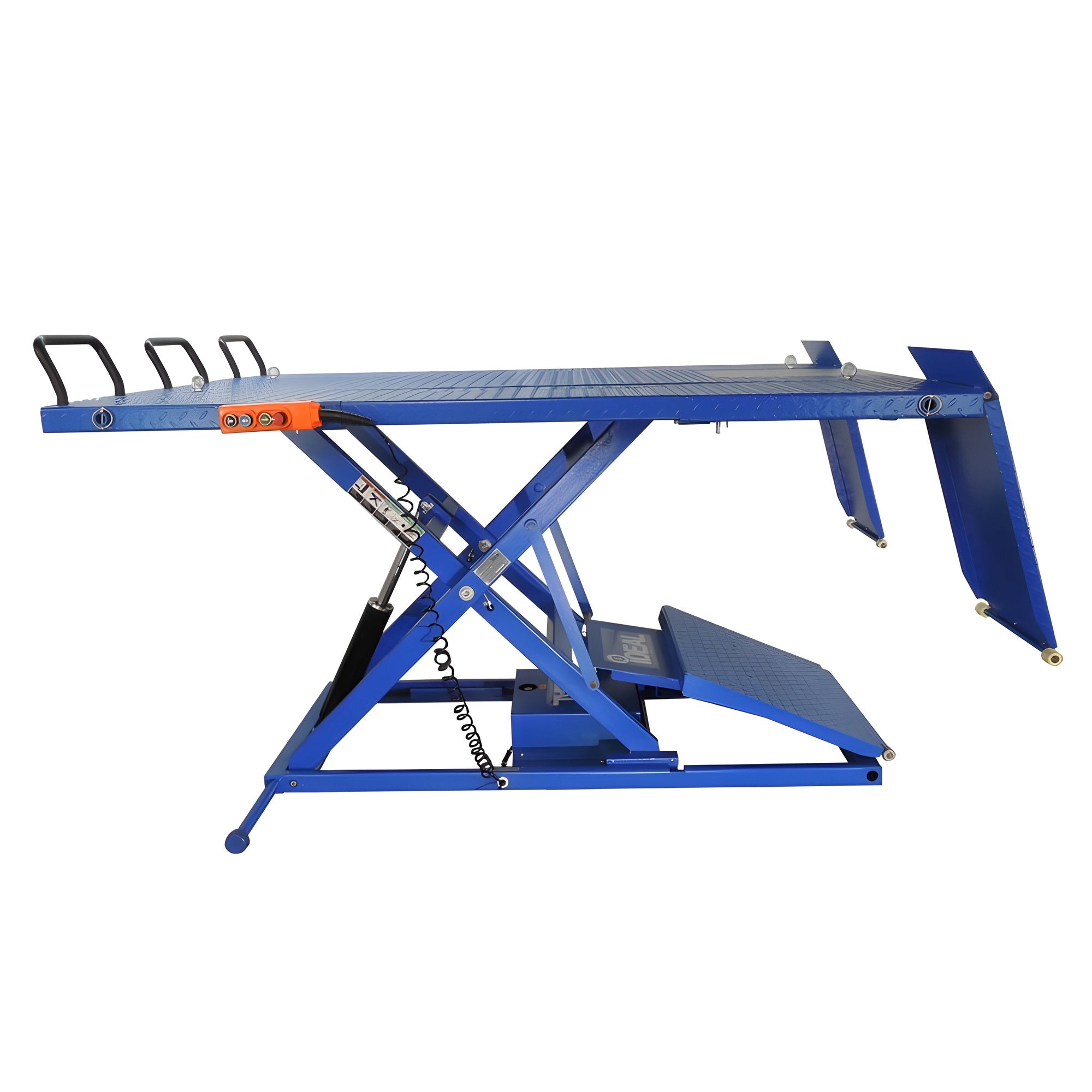

The iDEAL Elec-Hydra U-2200IEH-XR is a 2,200 lb capacity powersports lift that brings UTVs, ATVs, trikes, and golf cars up to working height at the push of a button. The 65" x 88.6" table takes machines a narrow bench never could, and the removable side extensions include an integrated fold-down access panel so you can reach the underside without unloading.

Lifting is electric over hydraulic — a 110V power unit built into the lift, run from a single hand-held pendant that raises, lowers onto the locks, and lowers fully. There are no safety latches to walk around and release by hand; the pendant sequence handles it, settling the table onto one of six locking positions via a magnetic lock release.

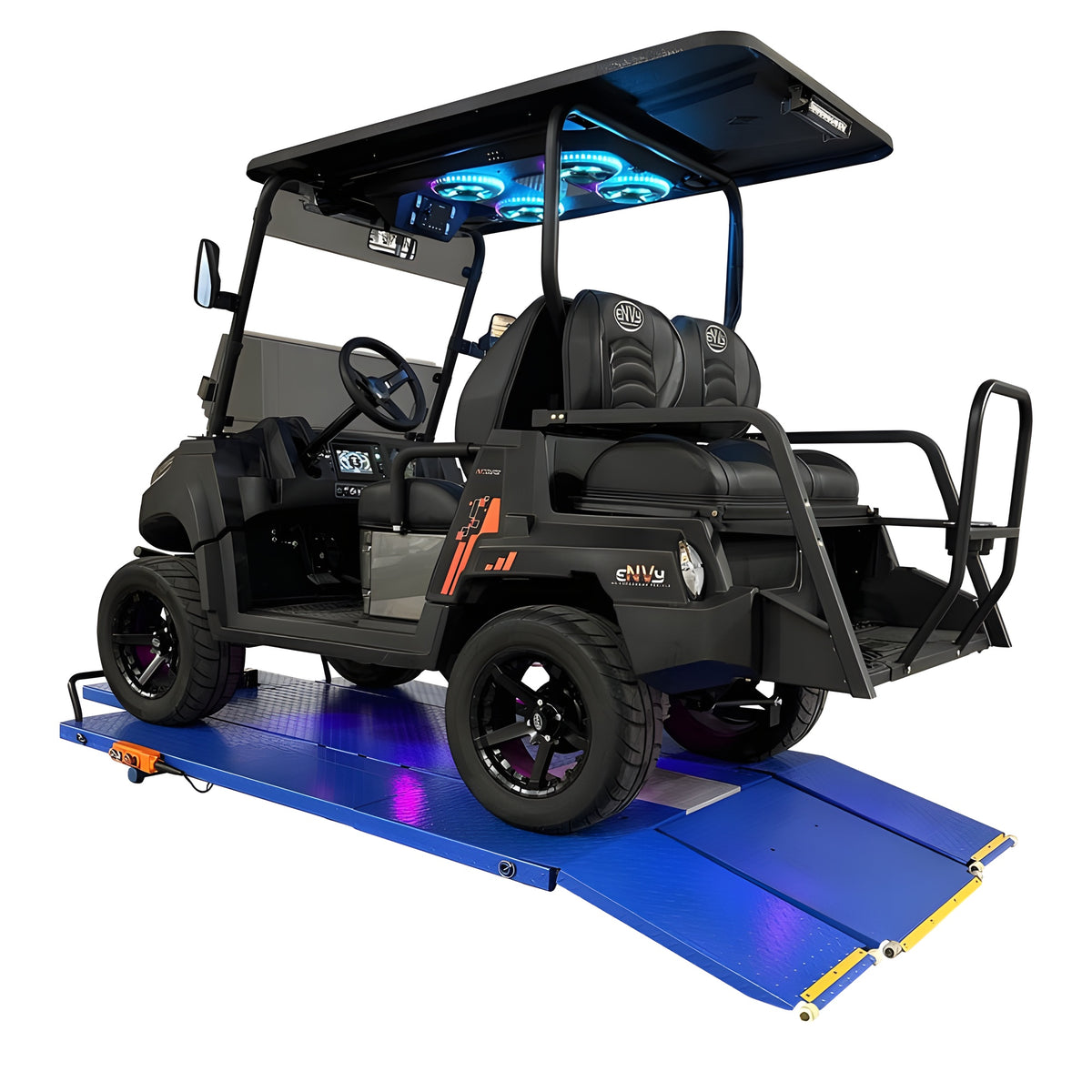

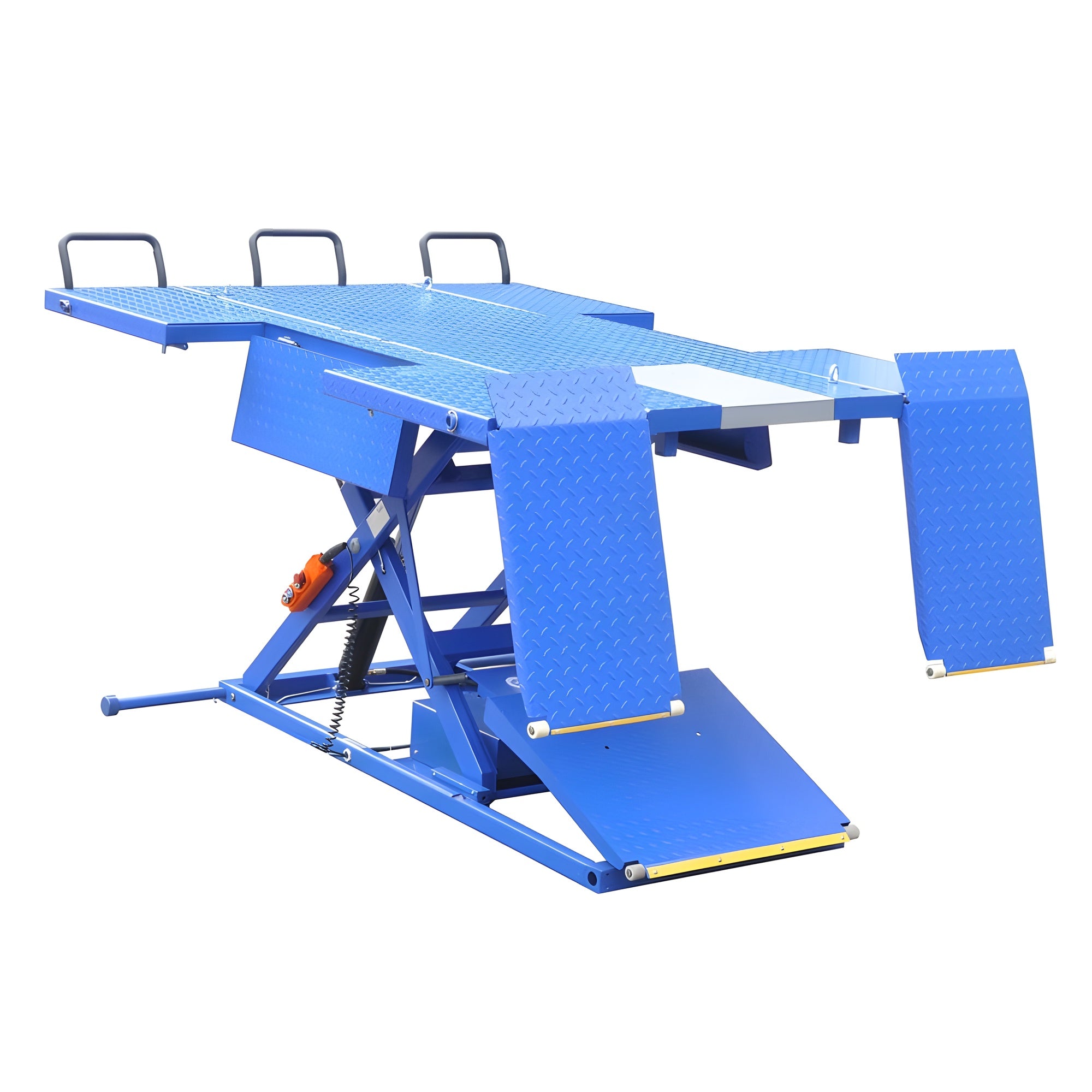

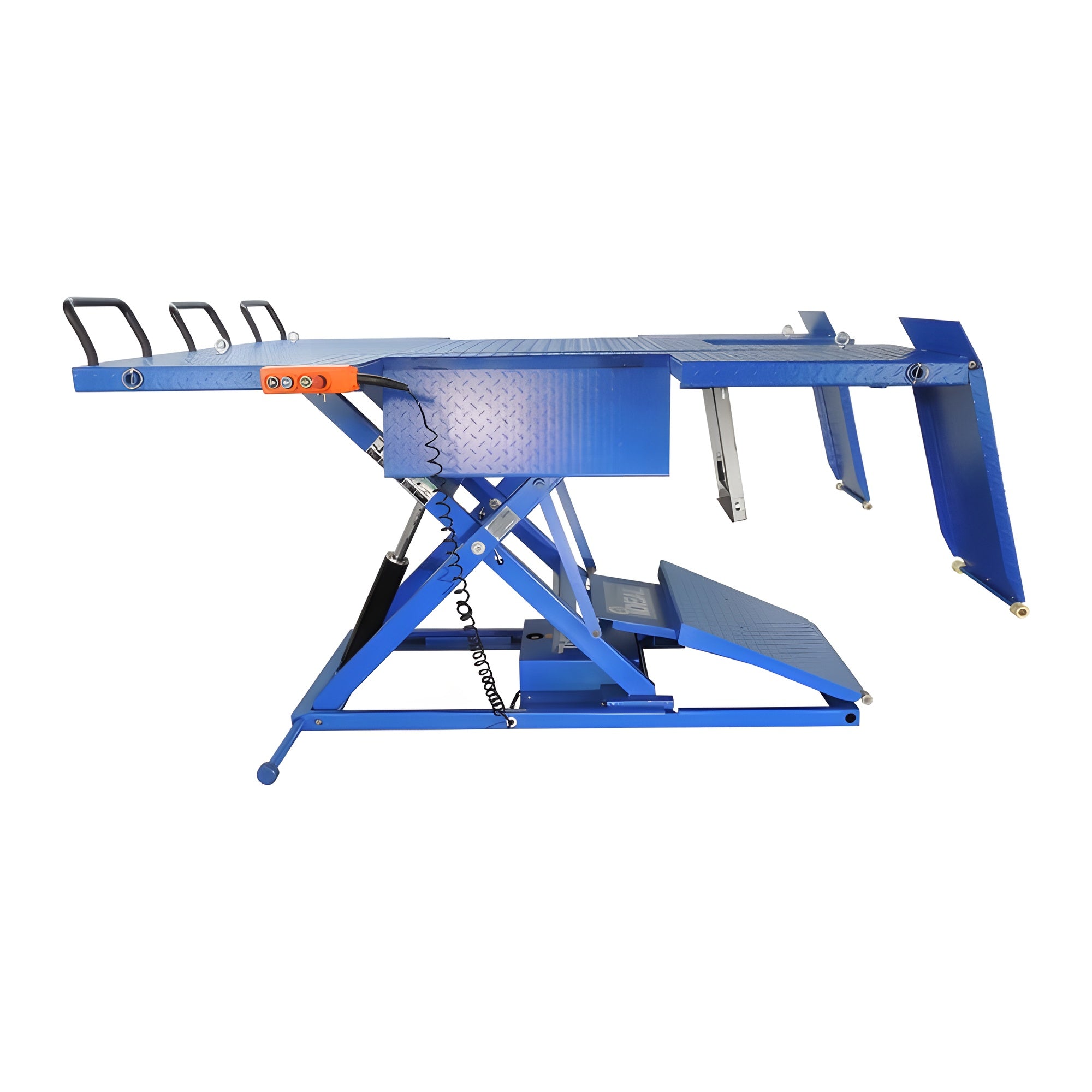

The retractable ramp system is the piece owners notice daily: the extended 27.5" full-width approach ramp loads low machines without scraping, then tucks away at height. Built-in wheel stops and deck tie-down points hold the vehicle; a rear drop-down service panel opens up access at the back of the table. A wheel chock and wheel vise are sold separately, and the platform comes pre-fitted to mount them.

Working on two wheels more than four? The same Elec-Hydra platform comes as a motorcycle lift bench and an ATV version — same integrated power unit and retractable ramp, sized to the machine.

• 2,200 lb lifting capacity on a 65" x 88.6" diamond-plate table.

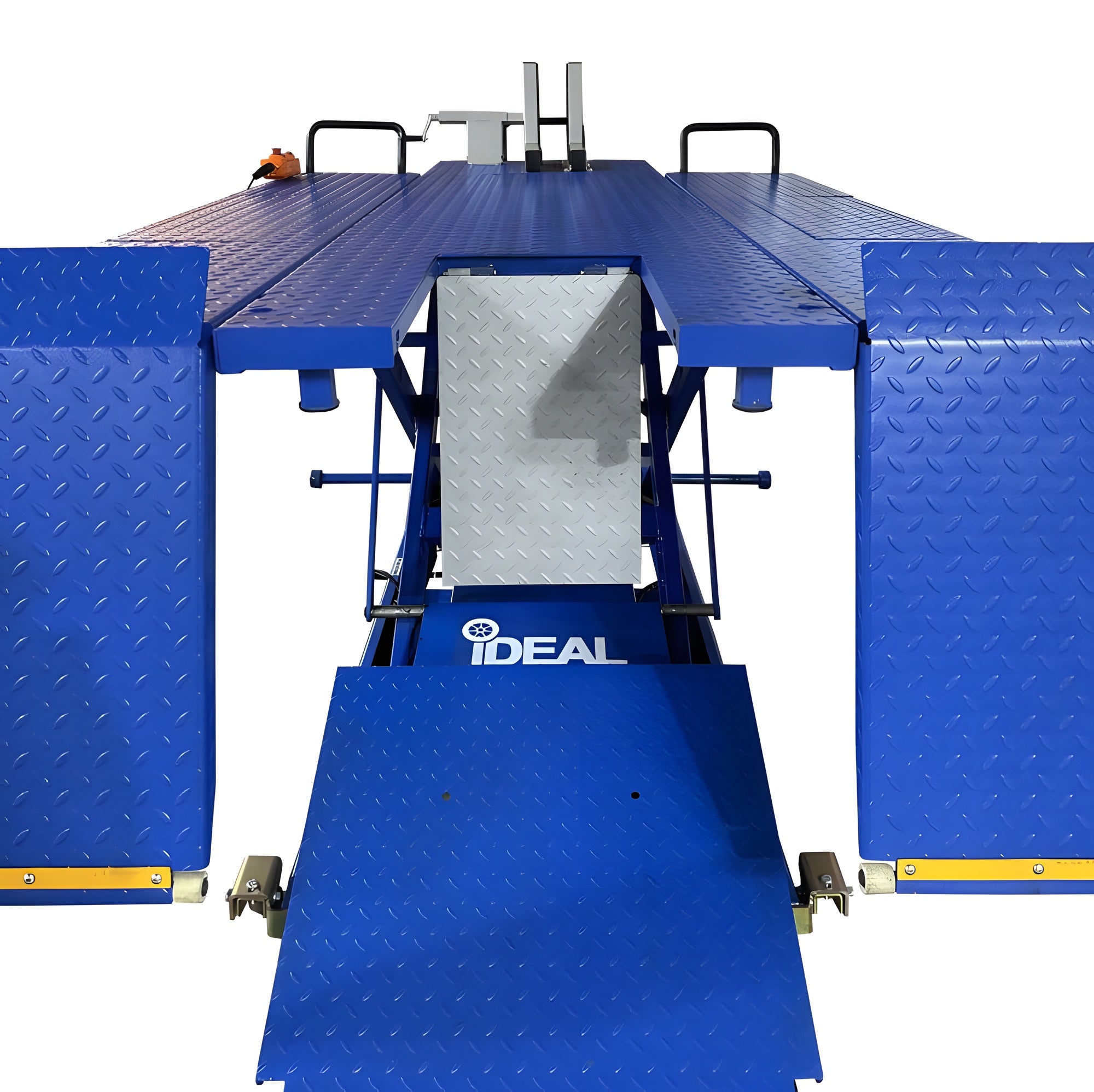

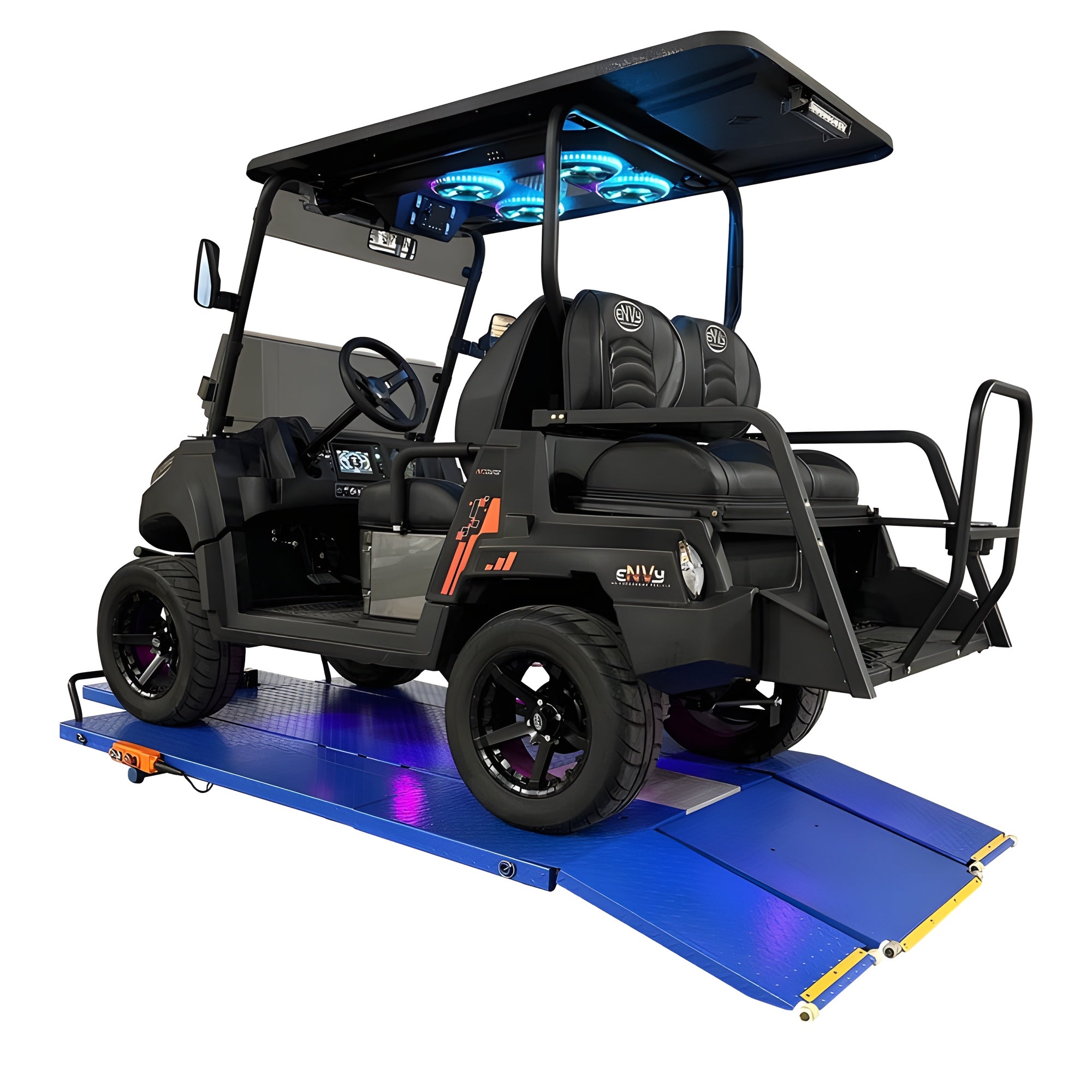

• Retractable ramp system with extended 27.5" full-width approach ramp.
• 110V integrated electric/hydraulic power unit — no external pump to mount or plumb.

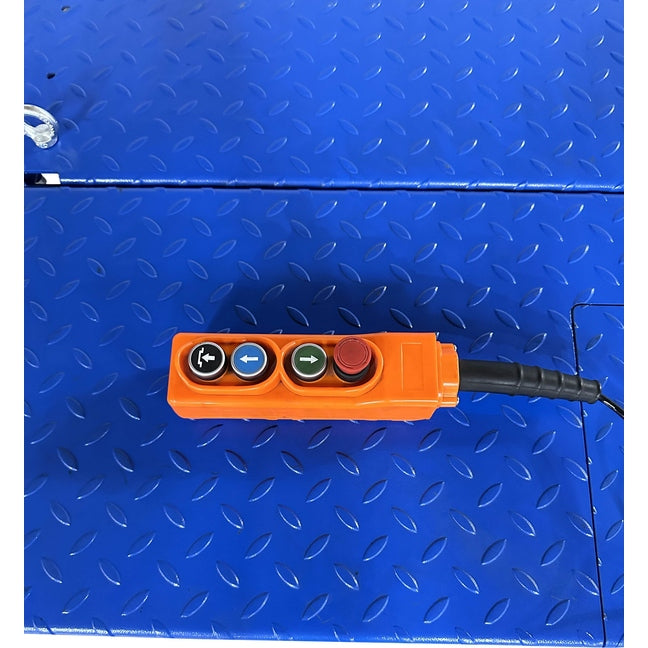

• Single-point hand-held pendant for raise, lock, and lower — no manual latch release.
• Six locking positions with magnetic lock release, between 7" and 47-1/4" of height.
• Removable UTV side extensions with integrated fold-down access panel.

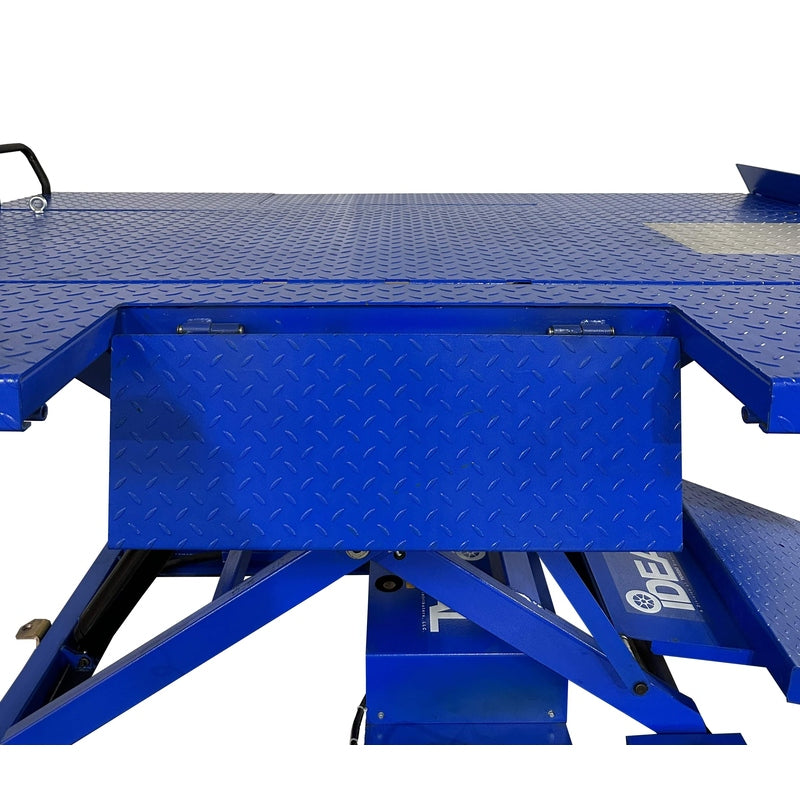

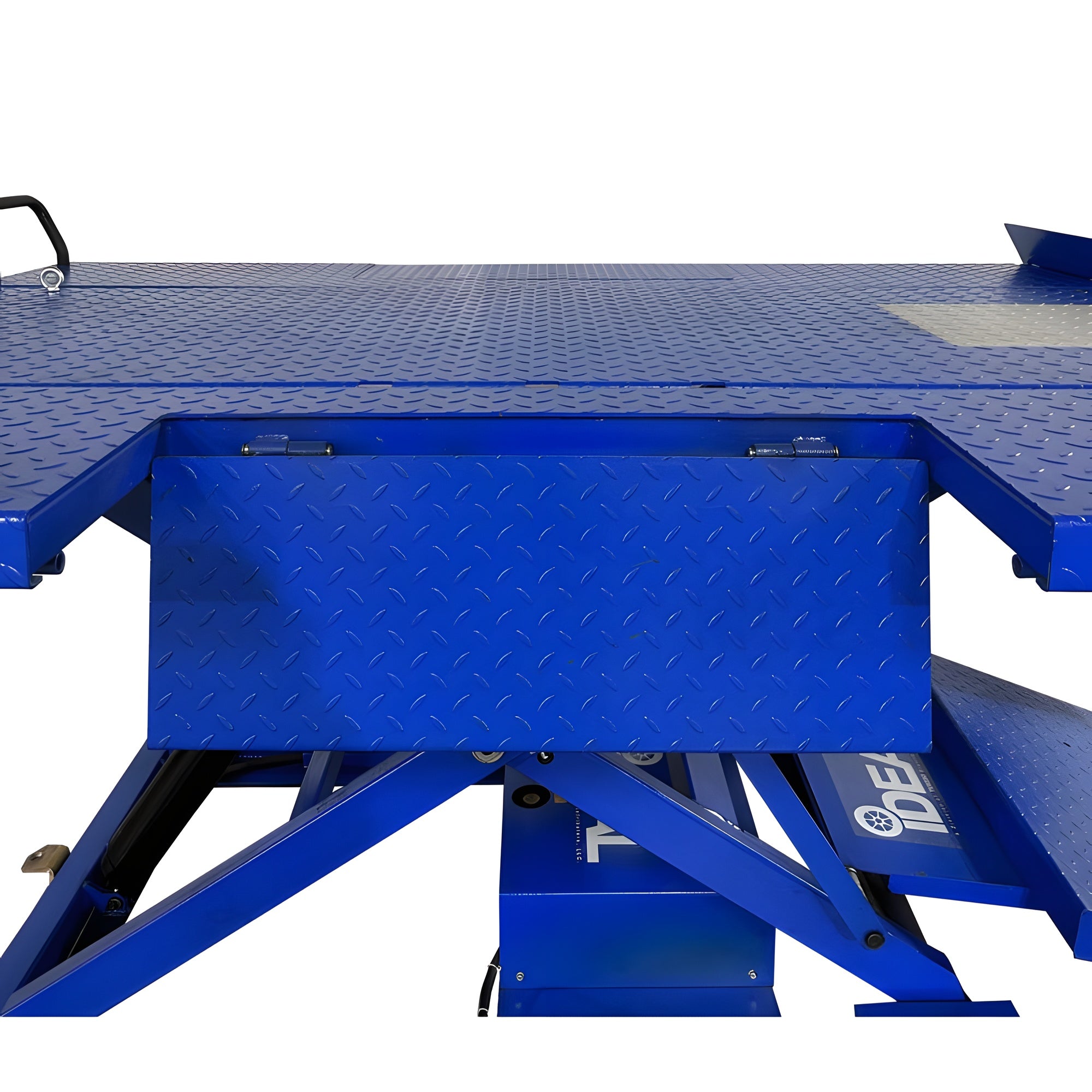

• Rear drop-down service panel and built-in wheel stops.

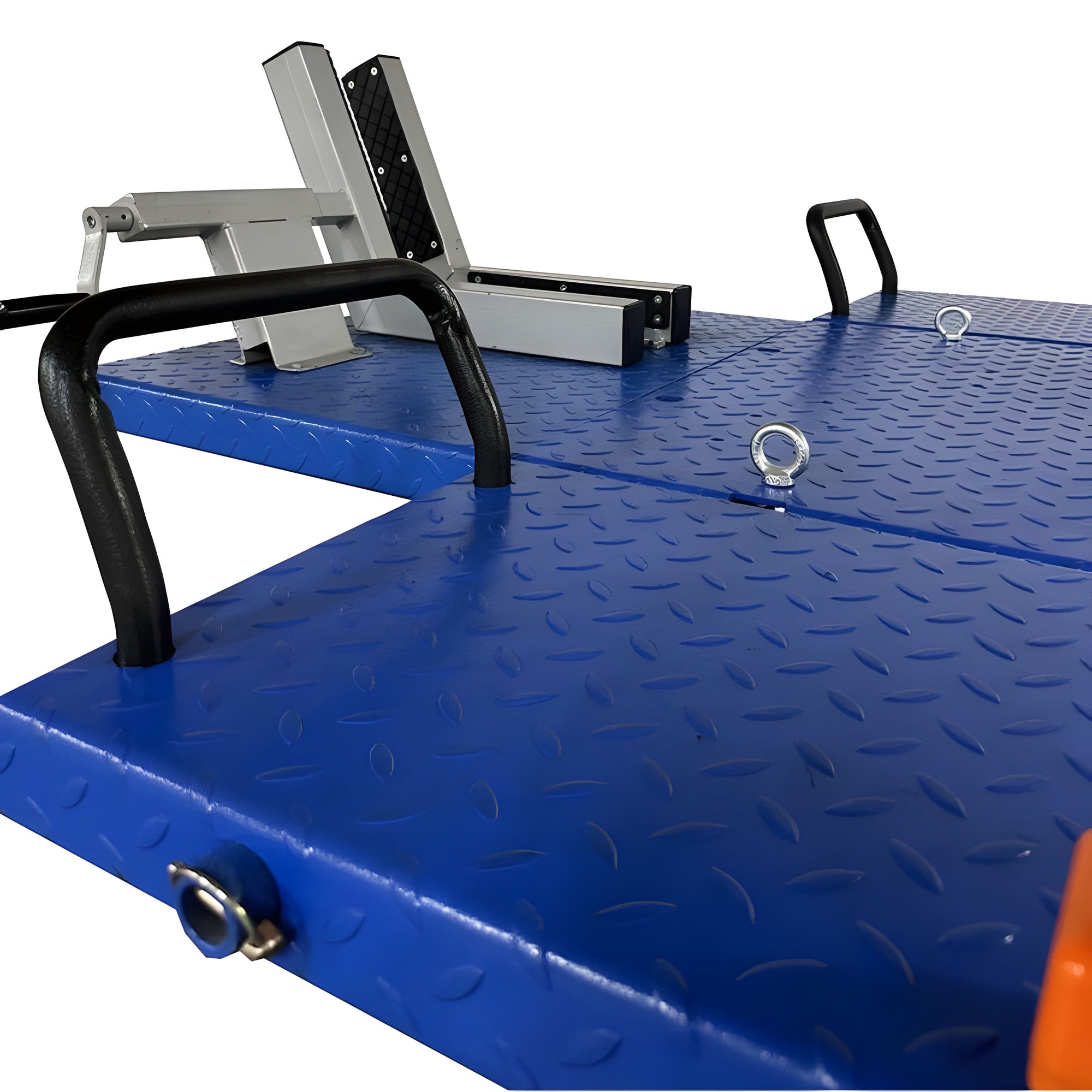

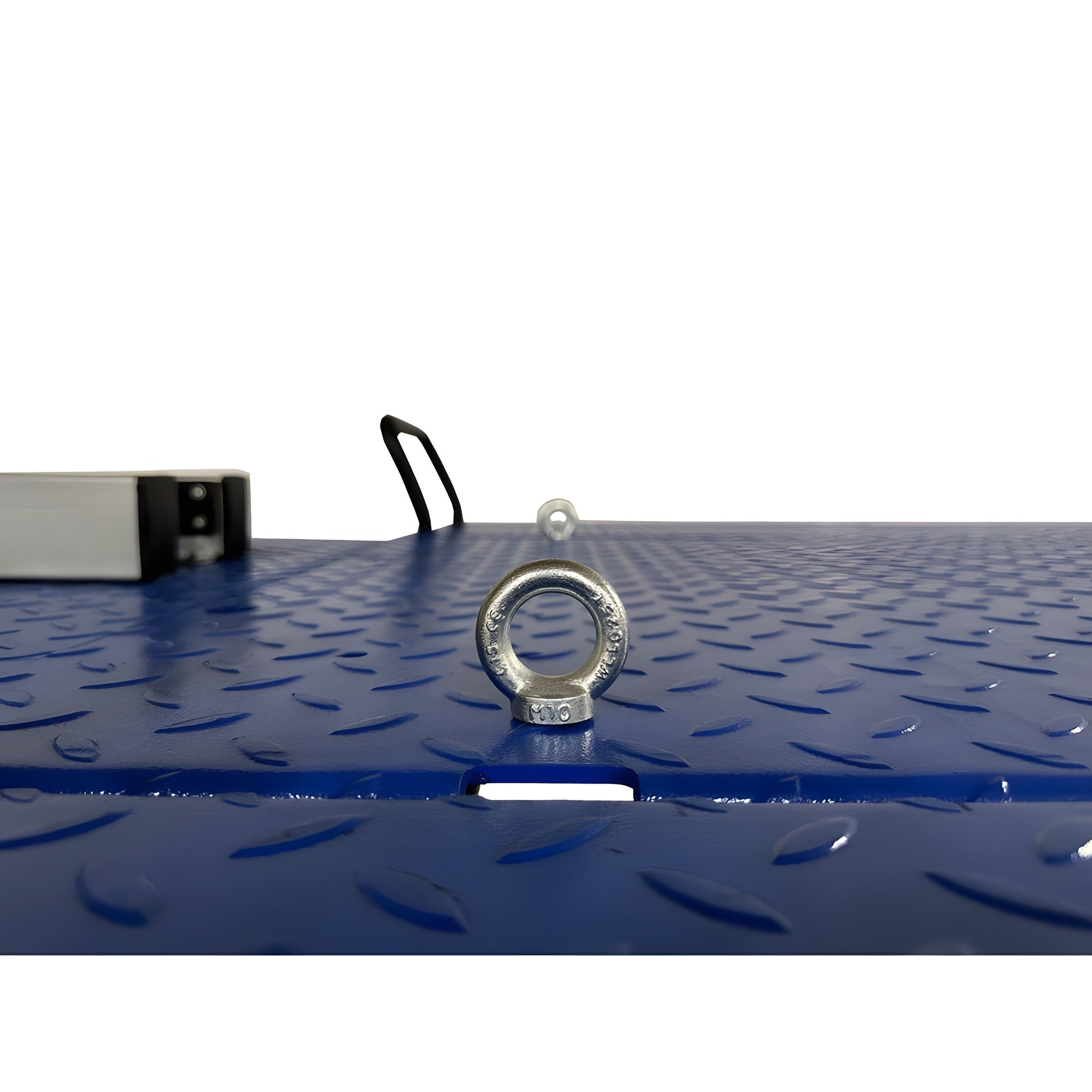

• Deck tie-down anchor points for strapping the machine.

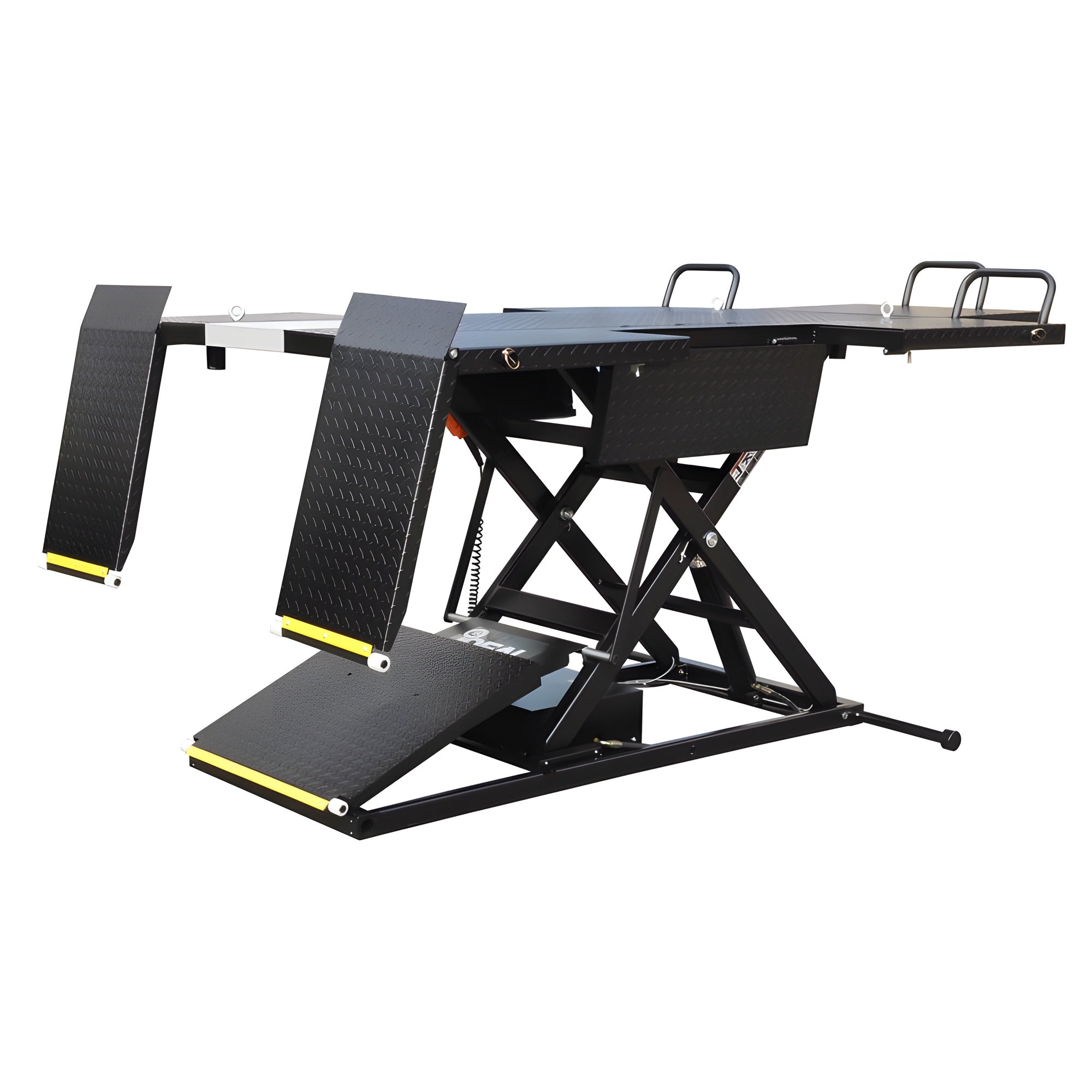

• Available in blue or black.

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.

What machines fit on it?

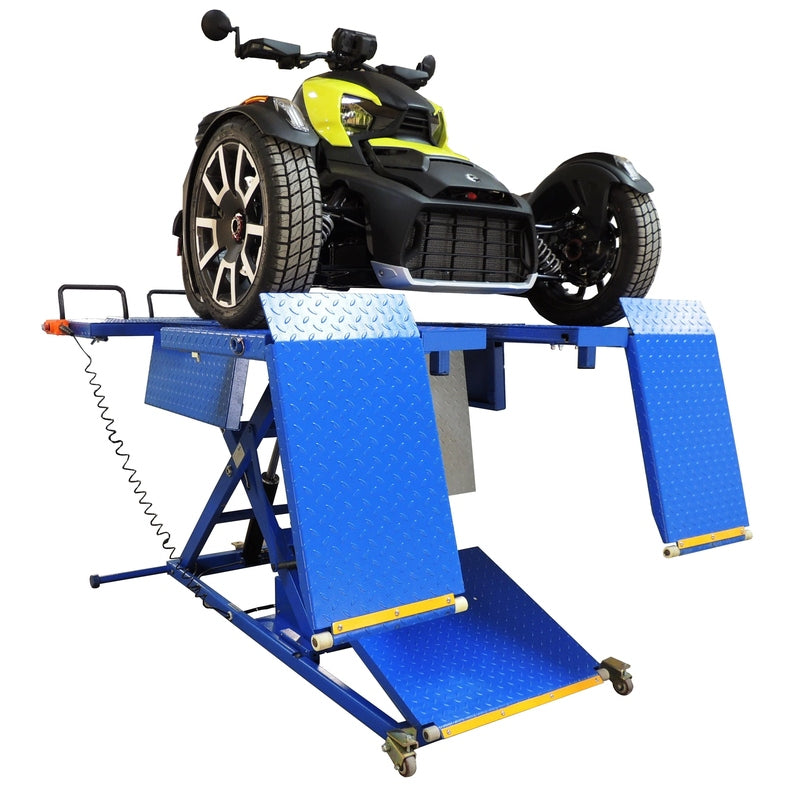

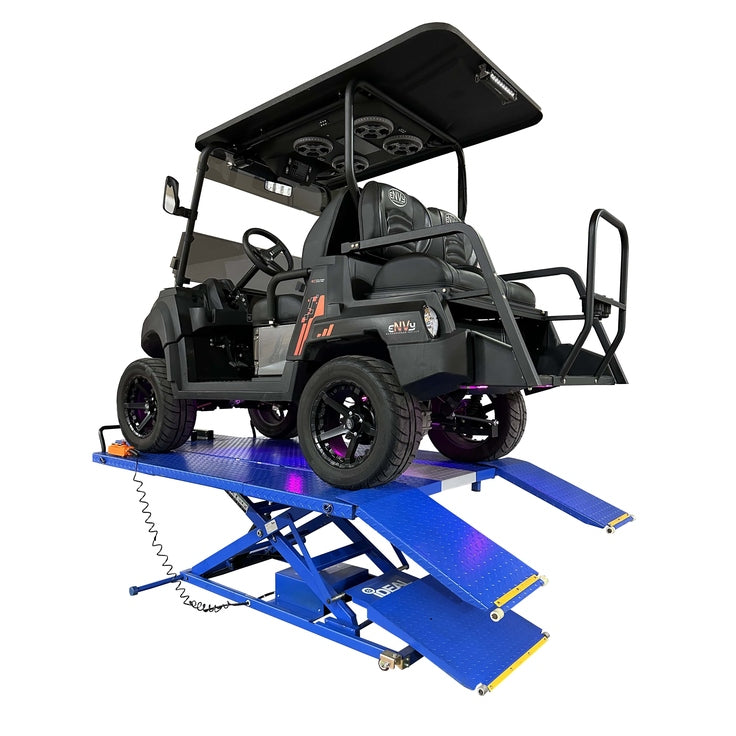

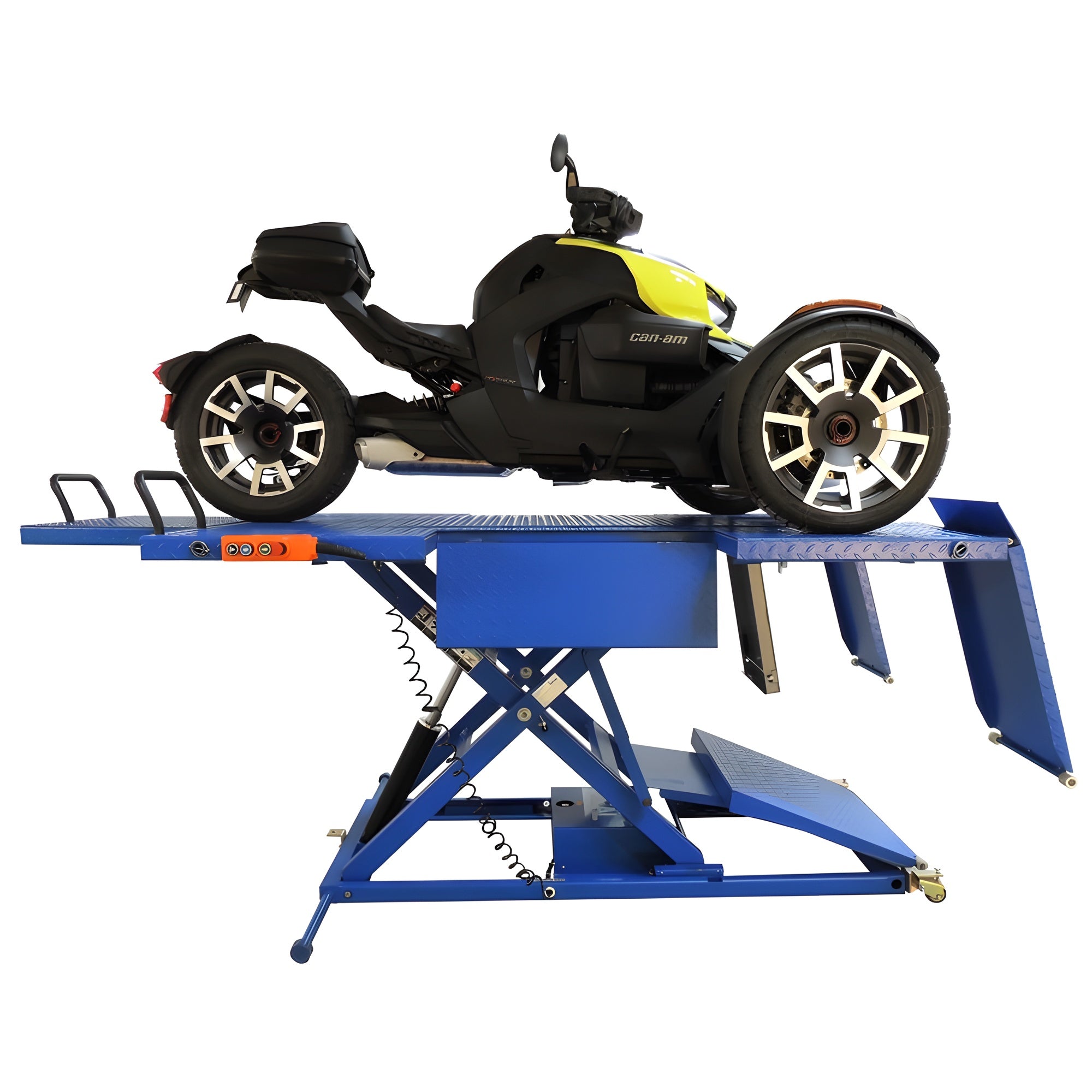

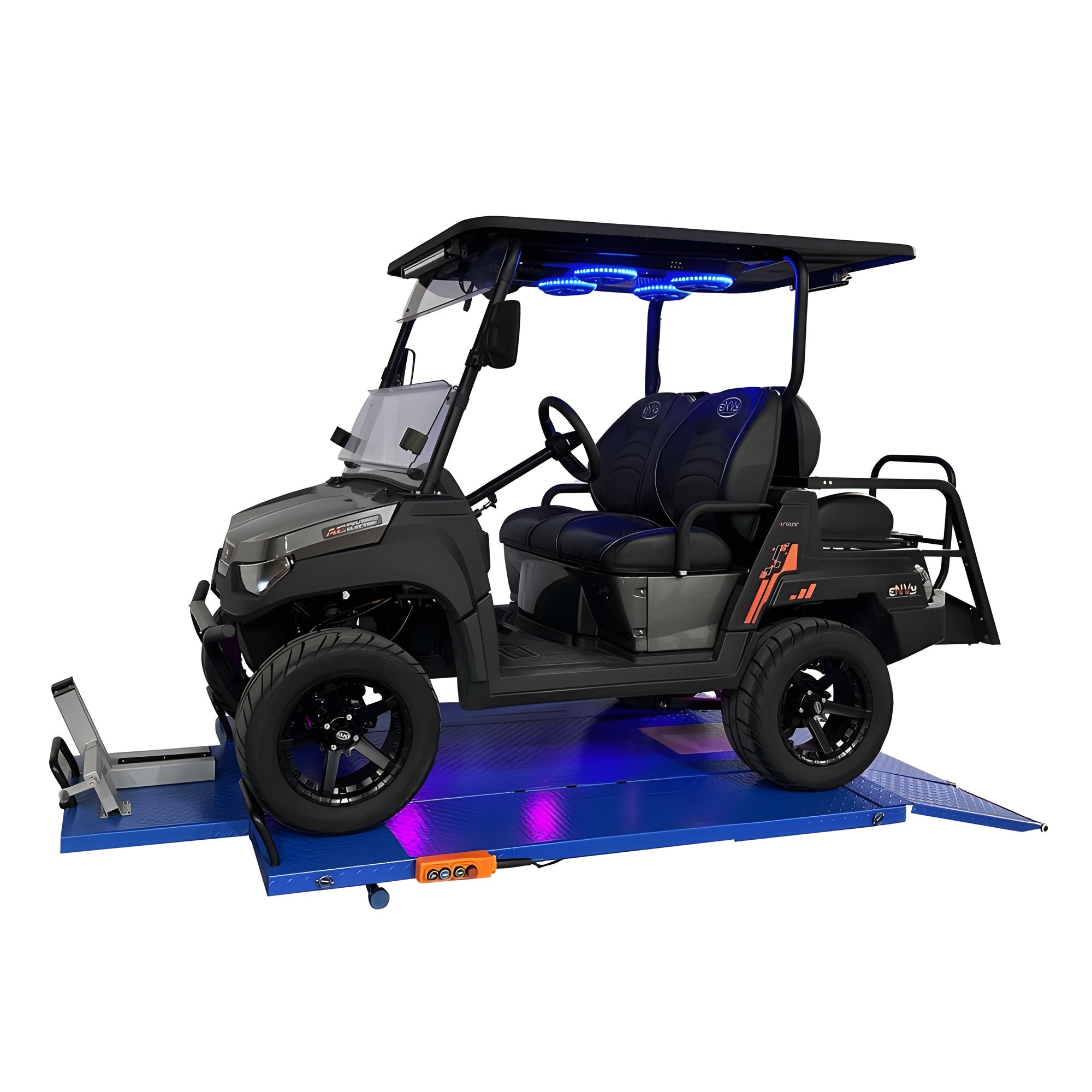

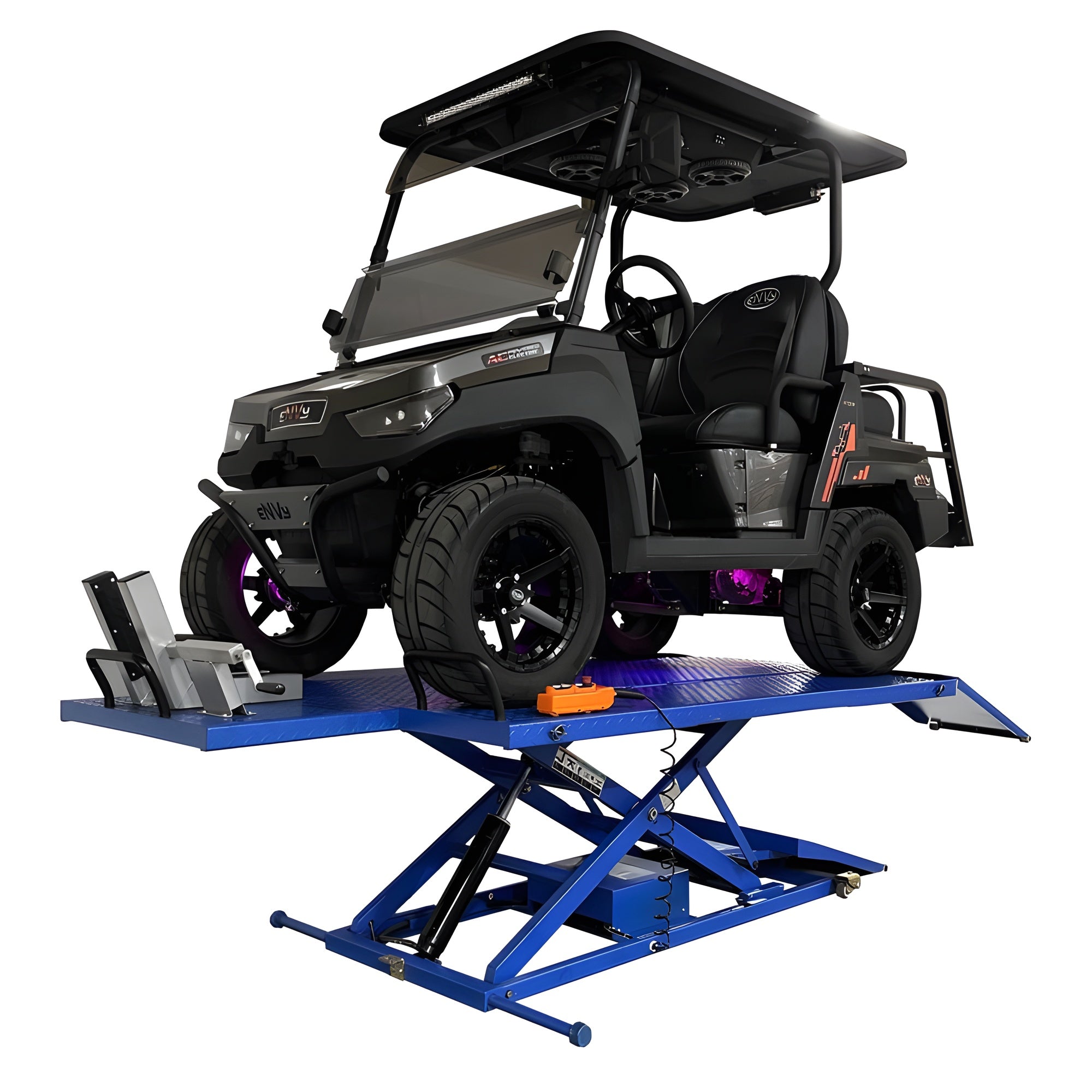

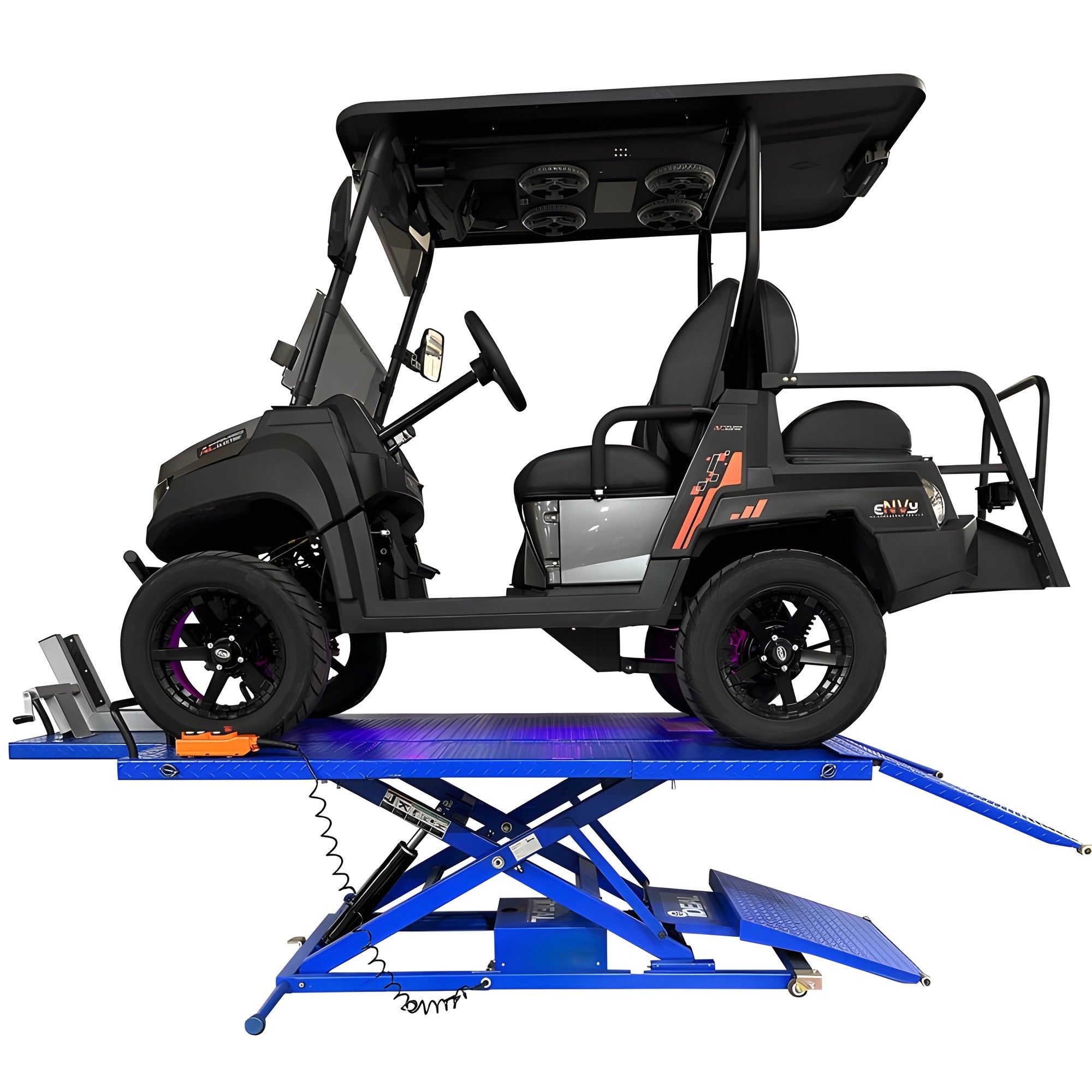

UTVs, ATVs, trikes, golf cars, and motorcycles up to 2,200 lbs on the 65" x 88.6" table. With the side extensions removed it narrows for smaller machines.

Do I need special power?

No — it runs on 110V single-phase shop power. It draws up to 18 amps under load, so give it its own circuit rather than sharing one with a compressor.

Is the wheel chock included?

No. The M-CHOCK wheel chock and M-VISE wheel vise are sold separately — the platform is pre-fitted to mount both. Call us and we will spec the right ones for your machine.

Blue or black?

Both — pick the colorway on this page. Same lift, same specs.

iDEAL U-2200IEH-XR Installation, Operation & Maintenance Manual (PDF)

Additional documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
