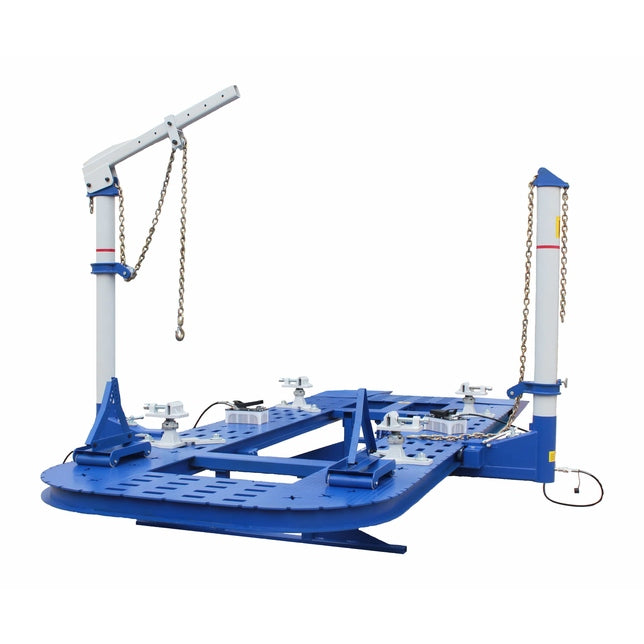

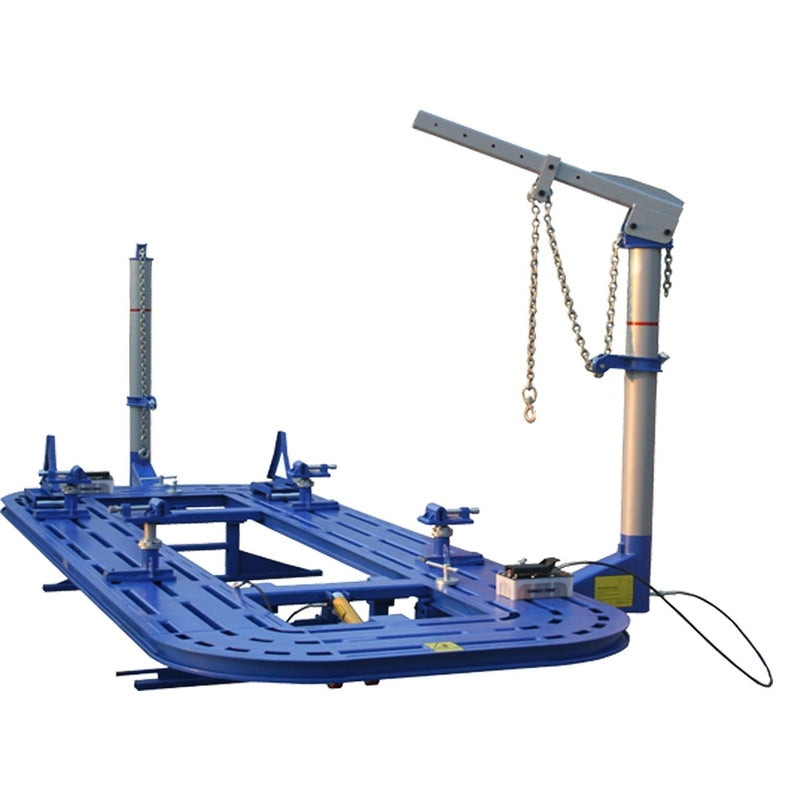

The iDEAL Fr-77T-18 18-inch Frame Rack
-The FR-77T 18 Tilt Deck/Tubular Platform, Frame Racks are high quality, economical, durable frame straightening machines designed to accommodate Full-frame or Uni-body type vehicles with 7,700lb. lifting capacity. The twin 10-Ton Towers incorporate clear-floor 360 degree pulling capability with multiple, Tie-Down Hole locations and Universal Anchoring System with adjust height and clamping assemblies. The FR-77T also comes standard with pull Chains & Hooks, OH Boom/Pull Tower Extension, Universal Wheel Stands & Vehicle Dollies.
Features
-- Durable, Heavy Duty Steel Deck Construction

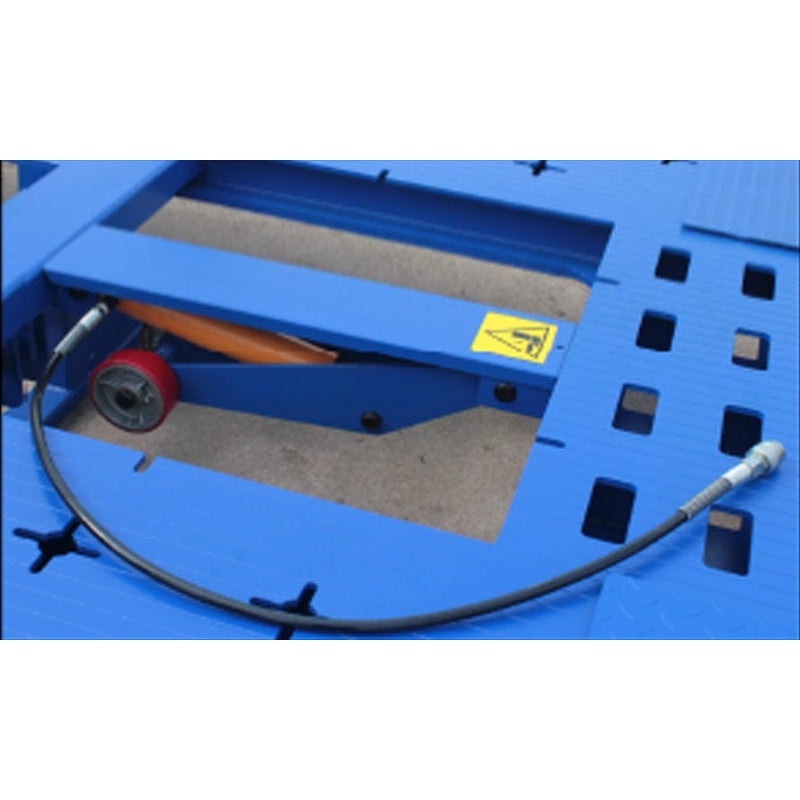

- Tilt Deck Operation With 7,700Lbs. Capacity With Drive On Ramps

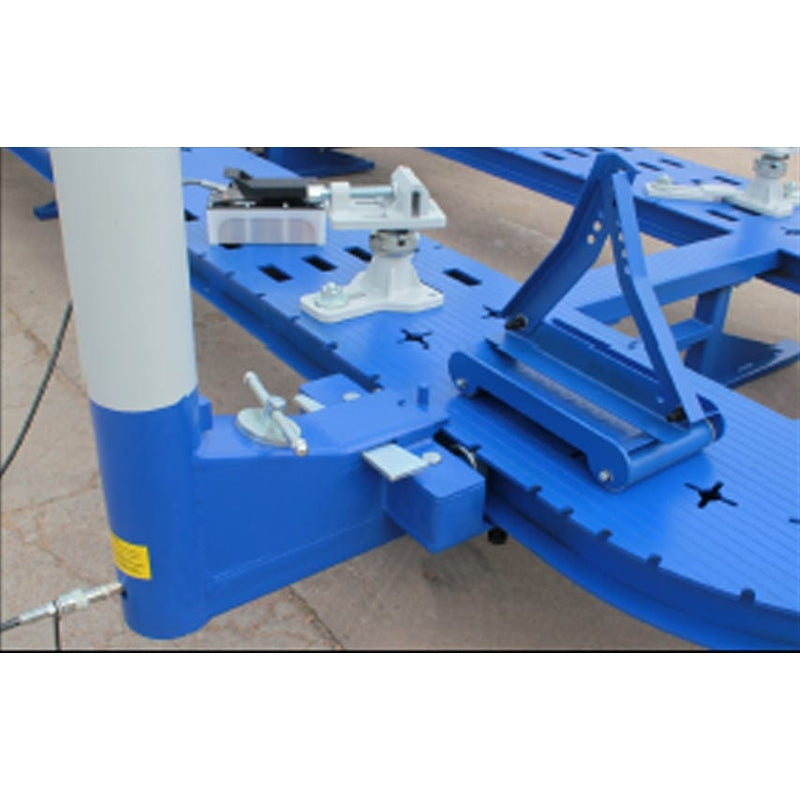

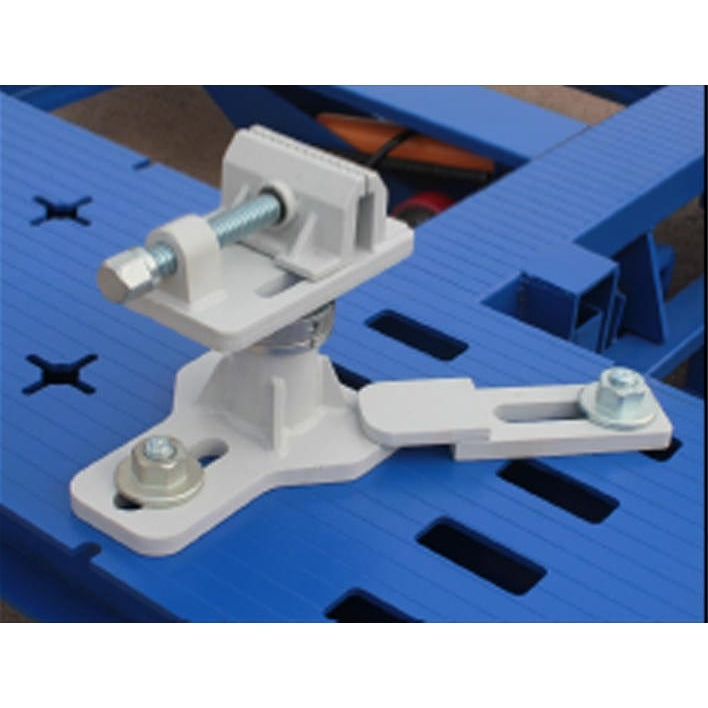

- Universal Anchoring System With Adjustable
- Height Pinch Weld Assemblies Two-10 ??? Pulling Towers With
- Telescoping Heads
- Adjustable Tower Collars

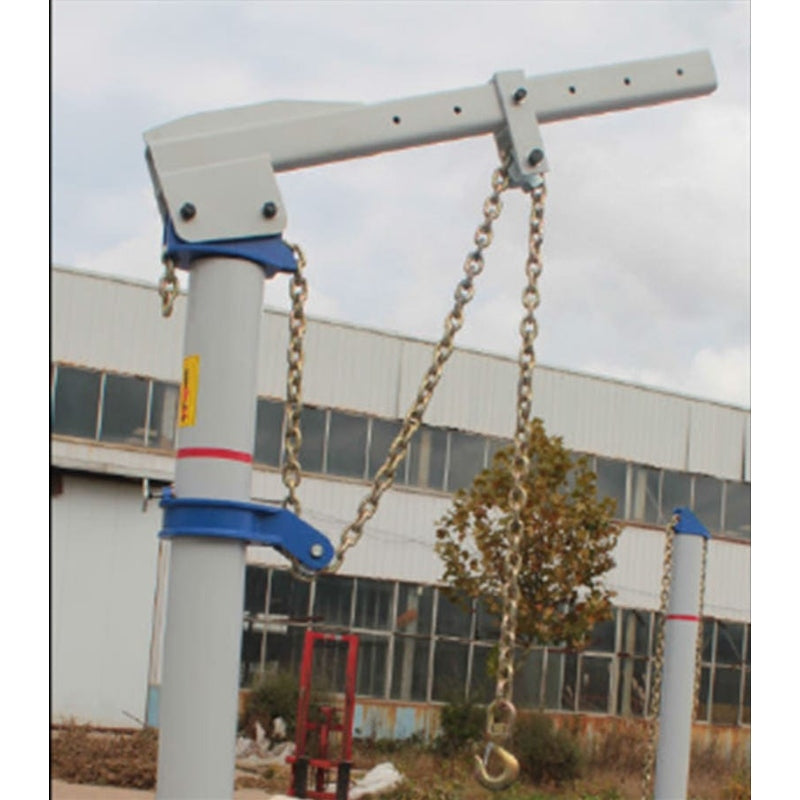

- Overhead Boom Pull Tower Extension
- Quick Disconnect Hydraulic Fittings

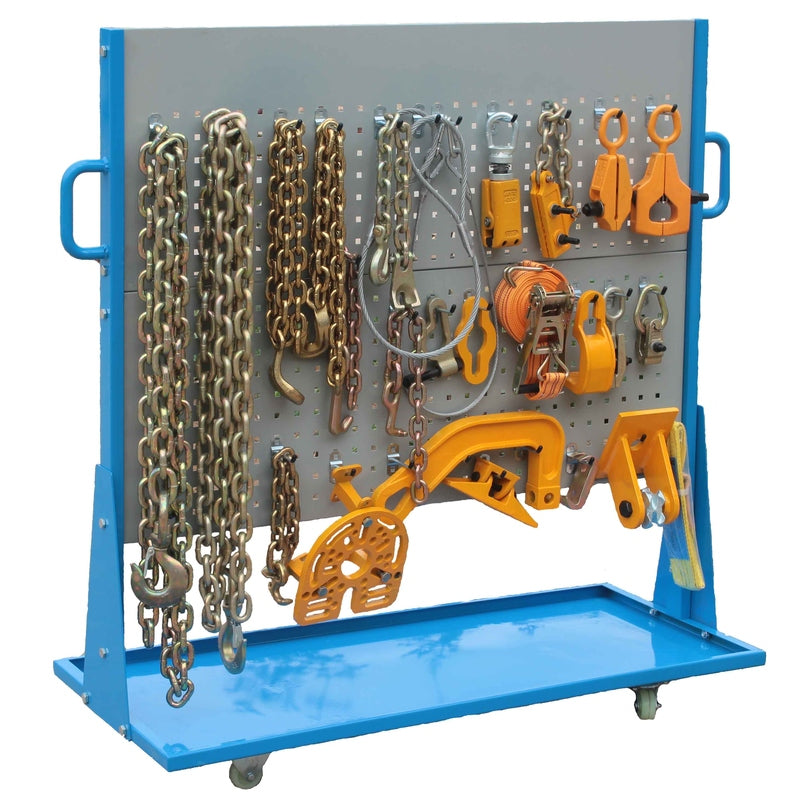

- Two-10' Pulling Chains With Hooks
- Two-High Quality Air/Hydraulic Pumps With Pressure Gauges

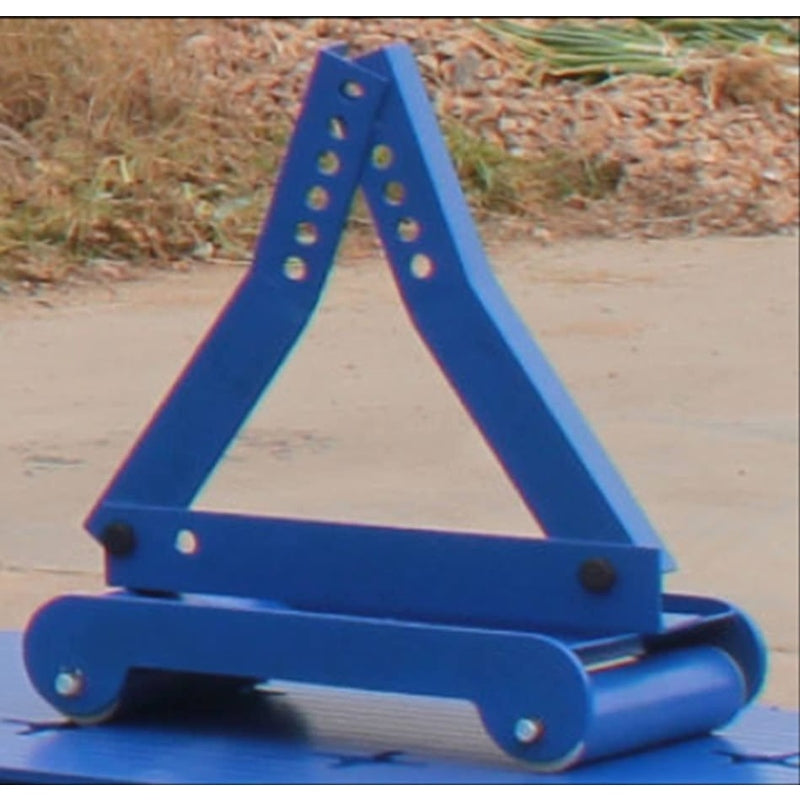

- Universal Wheel Stand And Dead Vehicle Dolly Powder Coat Finish

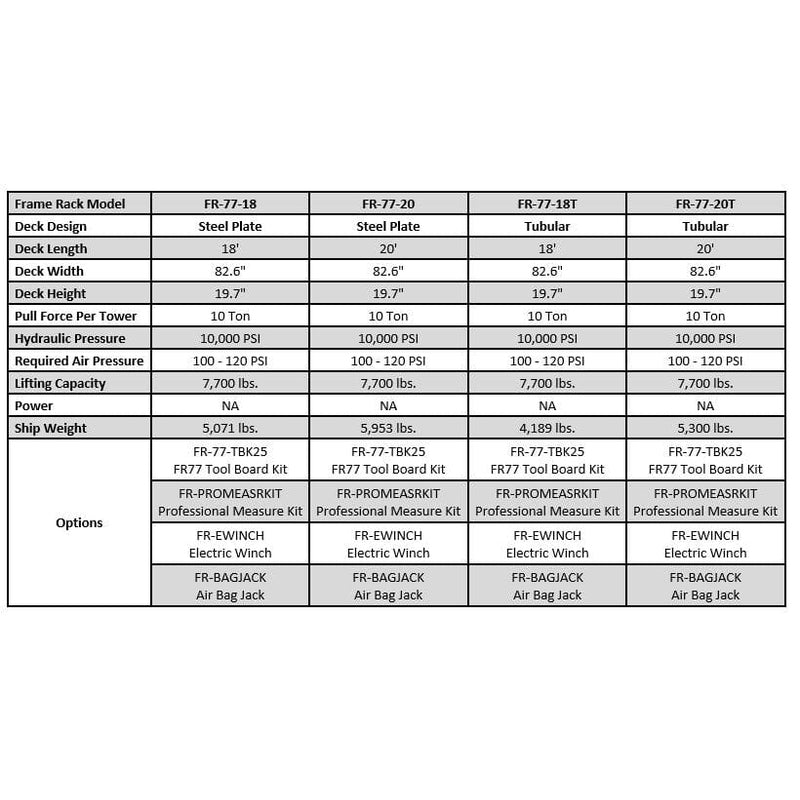

Specifications
-Frame Rack Model | FR-77-18T |
Deck Design | Tubular |
Deck Length | 18' |
Deck Width | 82.6" |
Deck Height | 19.7" |
Pull Force Per Tower | 10 Ton |
Hydraulic Pressure | 10,000 PSI |
Required Air Pressure | 100 120 PSI |
Lifting Capacity | 7,700 lbs |
Power | NA |
Ship Weight | 4,189 lbs |
Manual
-iDEAL Fr-77T-18 18-inch Frame Rack Manual
