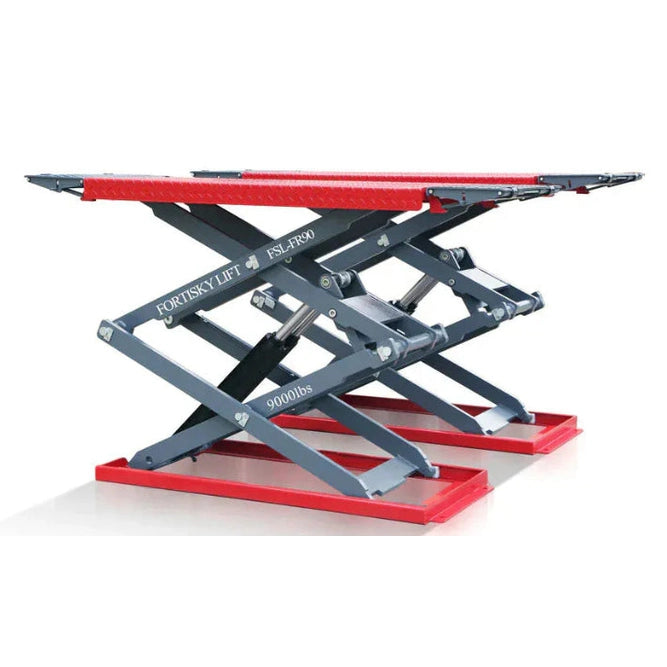

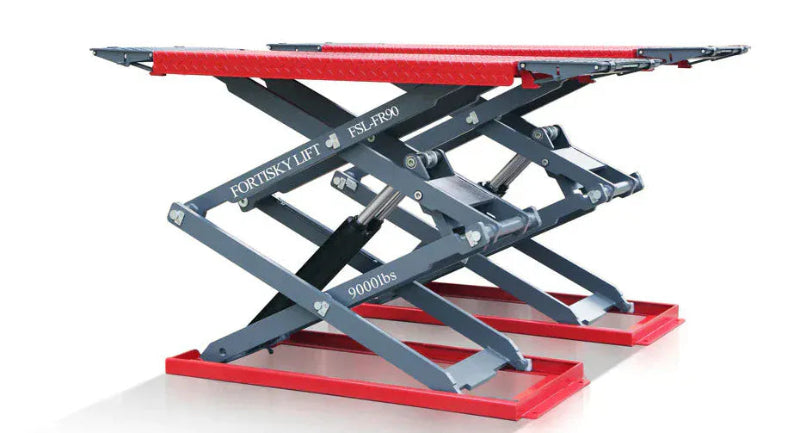

Fortisky FSL-FR90 Full-Rise Scissor Lift 9000lbs 72" Electric Lock Release

The Fortisky FSL-FR90 Full-Rise Scissor Lift is built for shops that don’t have time for guesswork. With a 9,000 lb lifting capacity and a full-rise 72" maximum height, it delivers the clearance you need for undercar service, inspections, and routine maintenance—without sacrificing stability.

A rugged four-cylinder lifting system keeps the platform steady through the entire travel range, while the electric lock release streamlines operation and reinforces safety at working height. From its anti-slip checkered deck to its durable powder-coated finish, the FSL-FR90 is designed for daily use in professional garages and service centers.

• 9,000 lb Capacity / 72" Full Rise: Handles most passenger vehicles and light-duty trucks with comfortable working clearance.

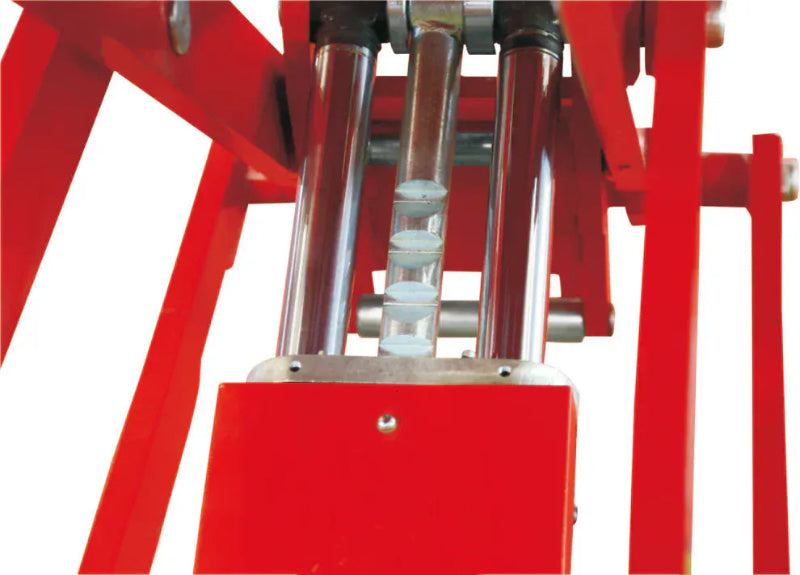

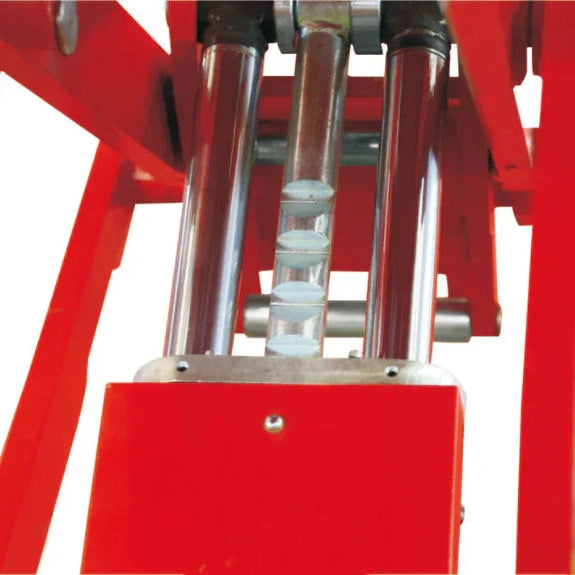

• Four-Cylinder Design: Promotes balanced, stable lifting for confident drive-on service.
• Electric Lock Release: Fast, convenient engagement/disengagement for safer raising and lowering.

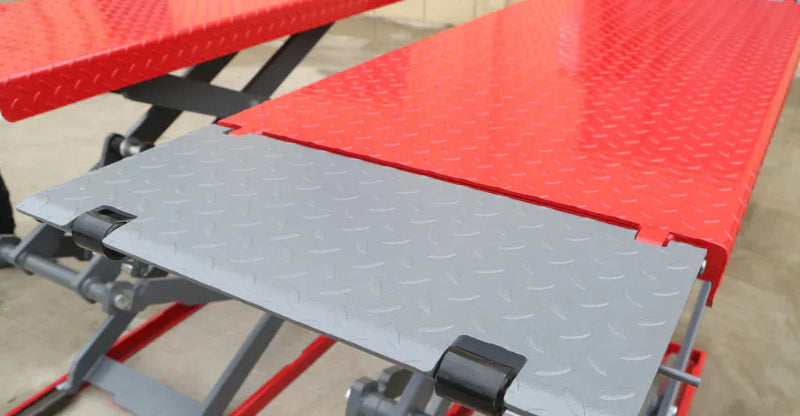

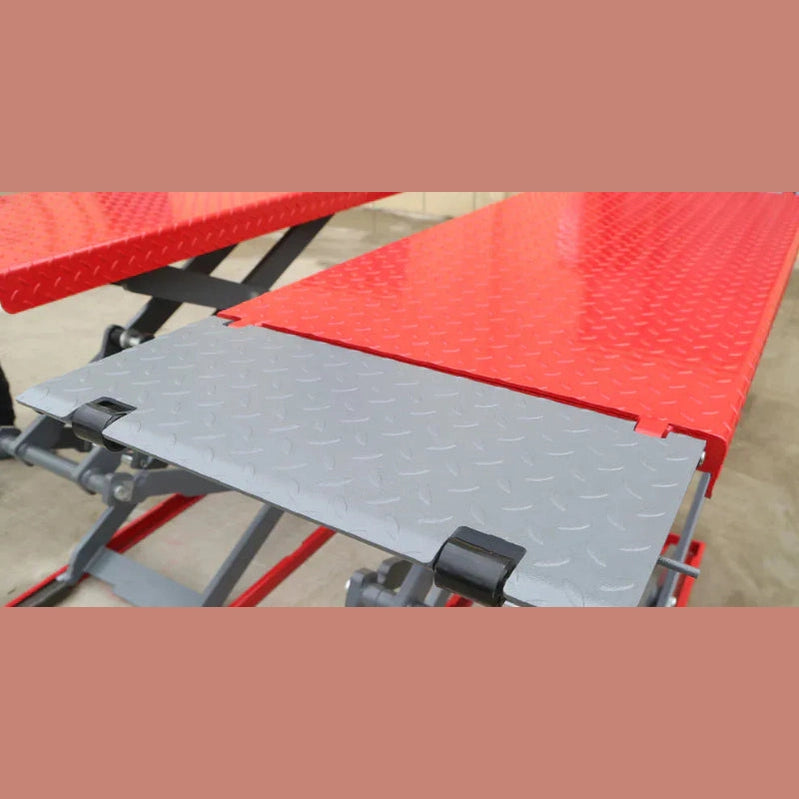

• Drive-On Ramps with Platform Extensions: Ramps lock into position to expand usability and improve approach.
• Low-Noise Operation: Smooth raising/lowering designed to keep the shop environment comfortable.

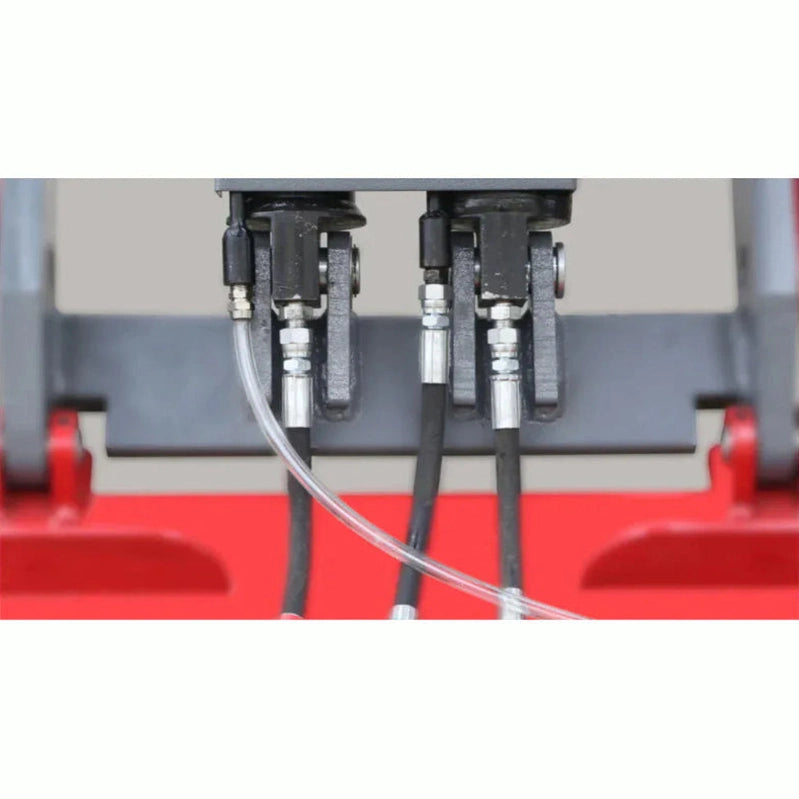

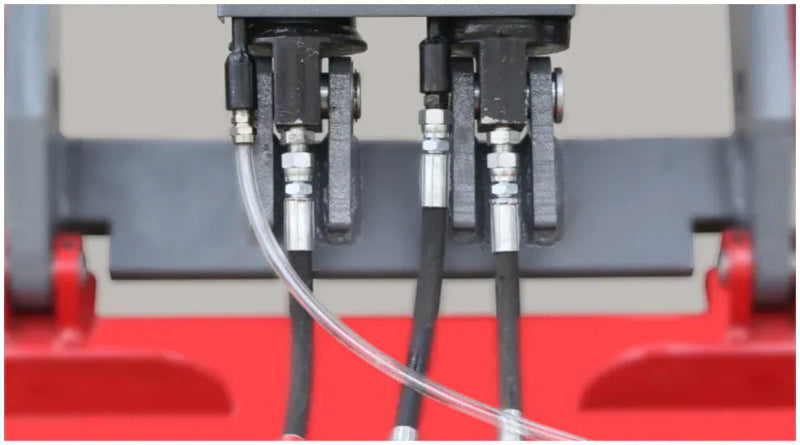

• Anti-Surge Cylinder Valves: Helps protect the hydraulic system and supports controlled motion.
• 24V Safe Control System: Includes a height limit switch for added operational protection.

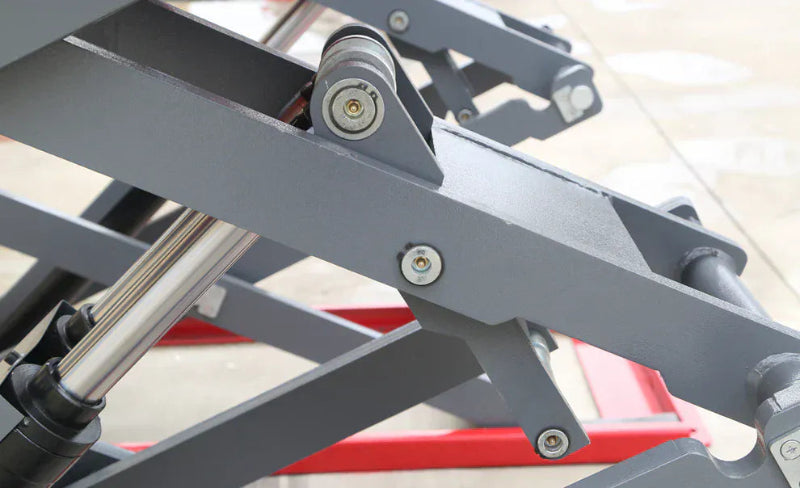

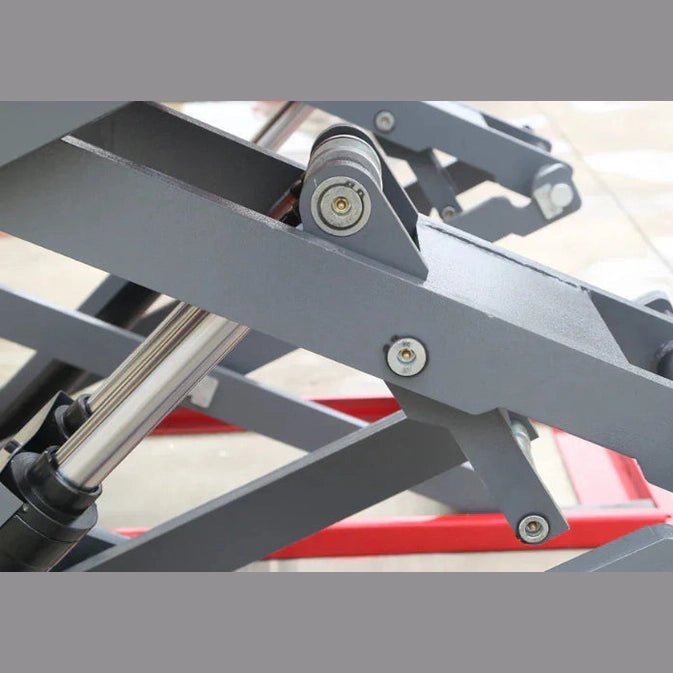

• Self-Lubricated Bushings & Bearings: Reduces friction for smoother movement and long-term reliability.

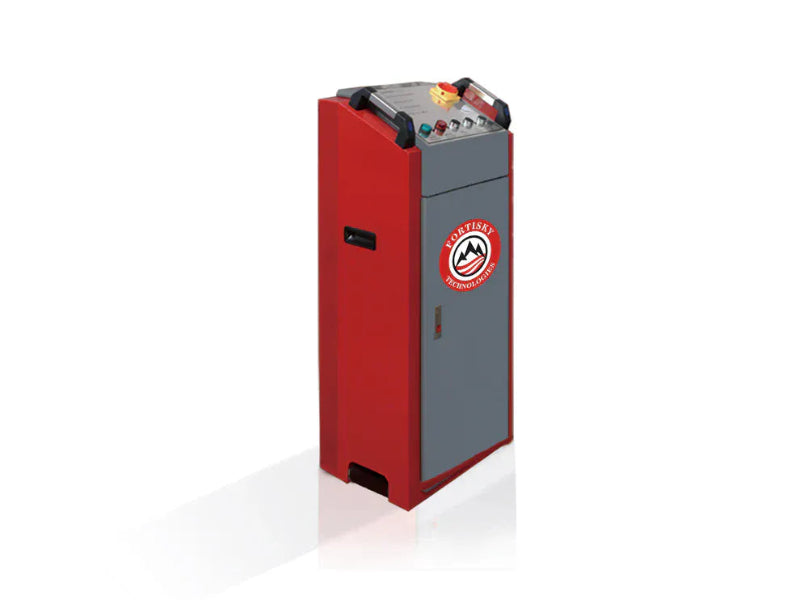

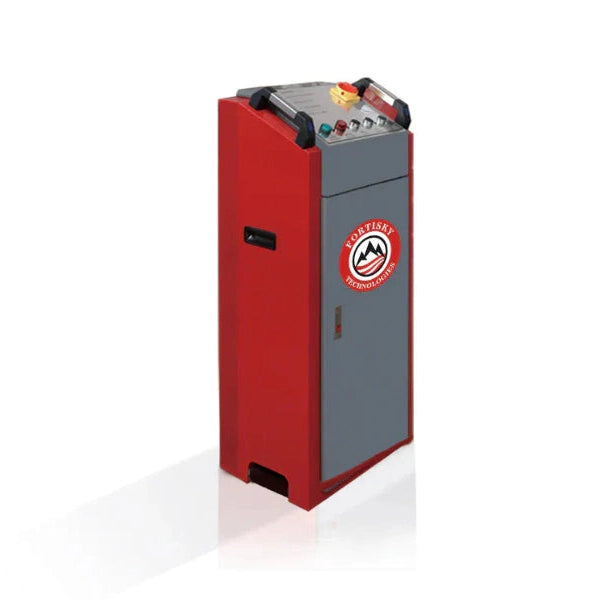

• Dual Control Boxes: Front and rear door control boxes provide convenient access during positioning and service.
• Heavy-Duty Steel Construction: High-strength Q355B manganese plate arms paired with a checkered upper cover for durability and anti-slip performance.
• Powder-Coated Finish: Corrosion-resistant coating built to hold up in indoor shop environments.

The FSL-FR90 is engineered to feel solid under load. The four-cylinder structure minimizes platform sway, and the checkered plate surface helps keep tires planted as you drive on and lift. Add the lock-in ramps and you get a platform that’s confident, predictable, and ready for repeat cycles—day after day.

It’s also designed to be easy on your workflow. The electric lock release reduces the “extra steps” that slow down bays, while the dual control boxes put operation where you need it. Fast lift times help keep vehicles moving through service, especially during busy rotations, inspections, and brake jobs.

Safety is built into the system from the ground up. The 24V control architecture supports safer operation, and the height limit switch helps protect the lift at maximum rise. Anti-surge valves and steady-motion hydraulics provide a controlled raise and descent, while the electric lock release ensures secure positioning at working height.

• Capacity: 9,000 lbs
• Maximum Lifting Height: 72"
• Minimum Height: 4.1"
• Platform Length: 59"
• Platform Width: 25.59"
• Lifting Time: ≤50 sec
• Lowering Time: ≤30 sec
• Overall Length: 81"
• Overall Width: 80"
• Weight: 1,968 lbs
• Power Supply: 220V, 50Hz, 1PH
• Power: 2.2 KW
• Noise Level: ≤70 dB
• Rated Oil Pressure: 24 MPa

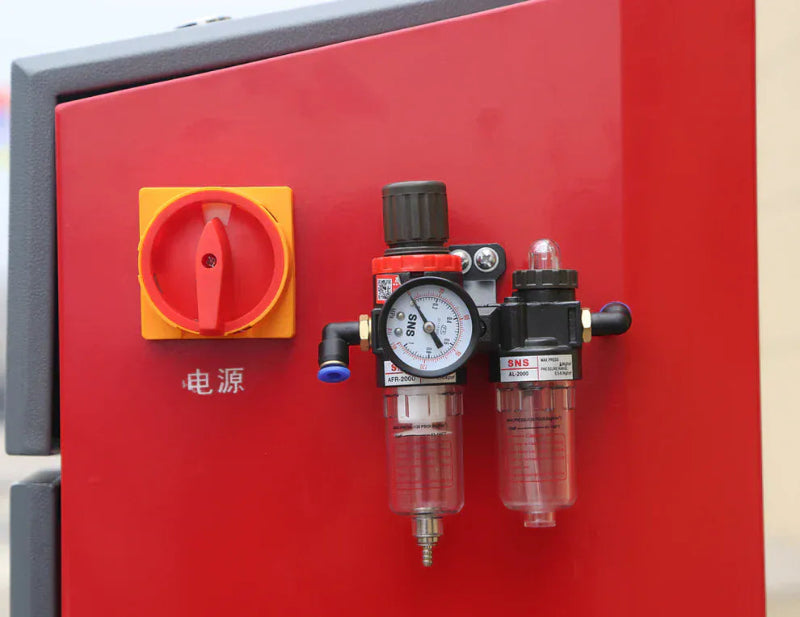

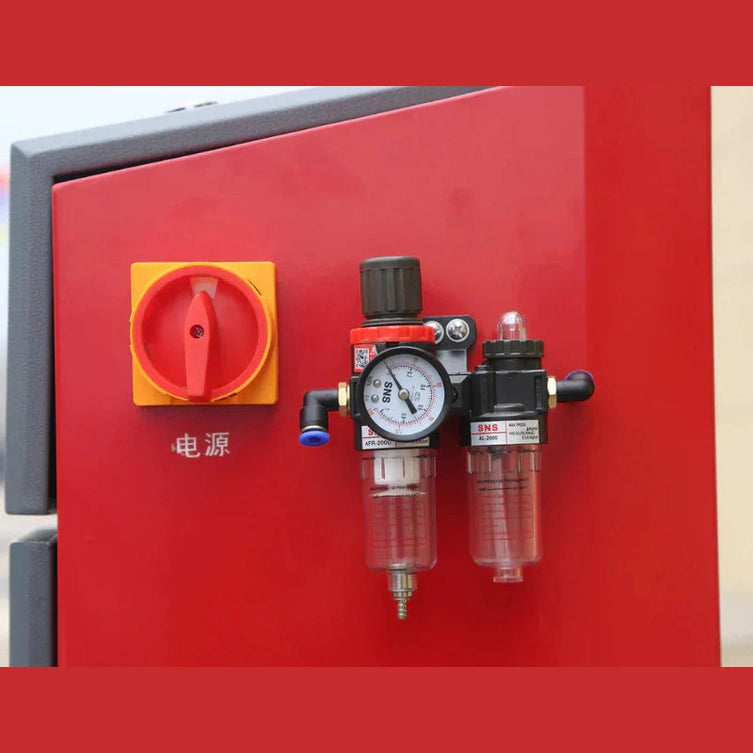

• Air Pressure: 0.6–0.8 MPa
• Installation Place: Indoors

• Automotive repair shops and professional service bays
• General maintenance, inspections, brakes, suspension, and undercar service
• Indoor shop environments requiring full-rise access with a drive-on platform
