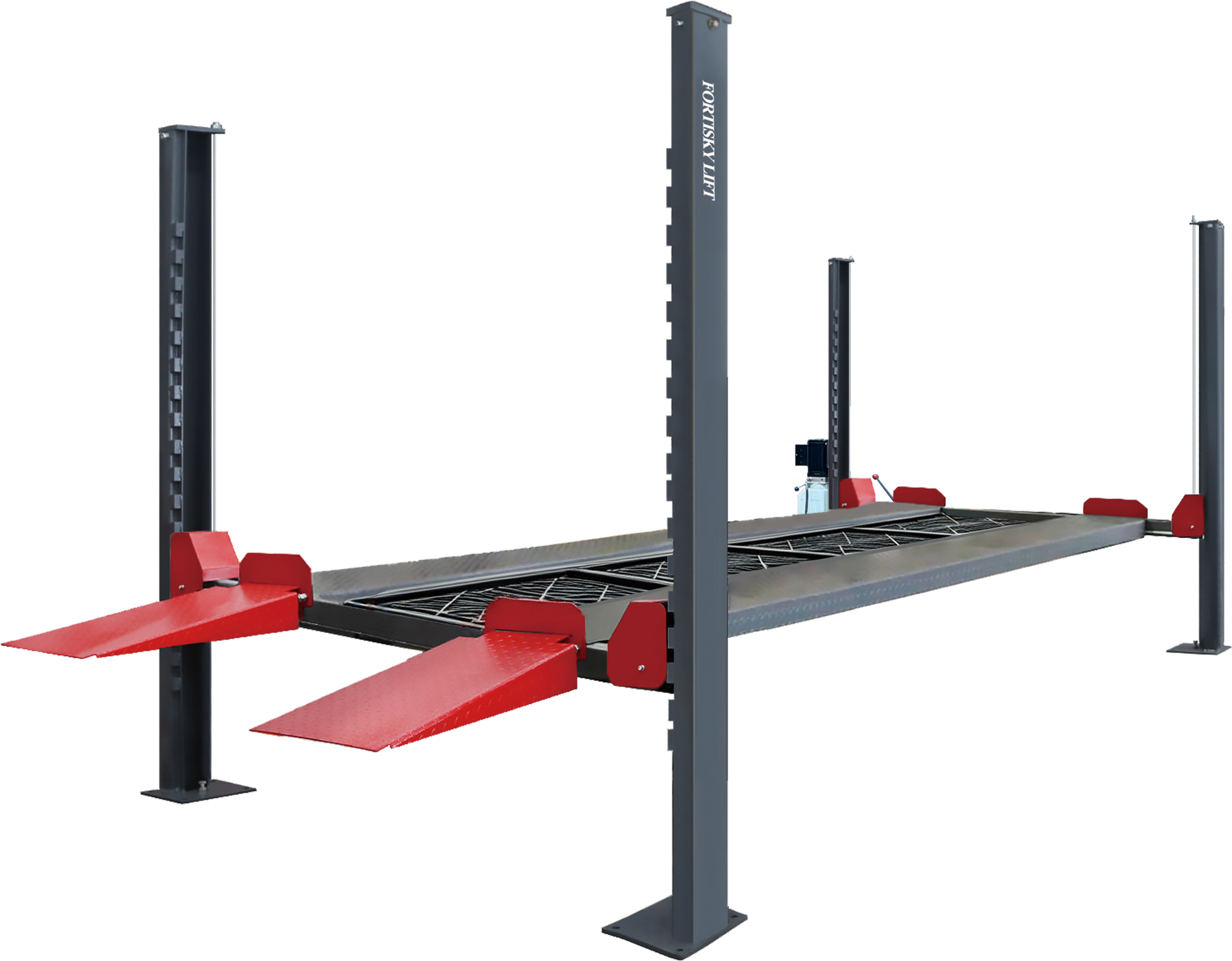

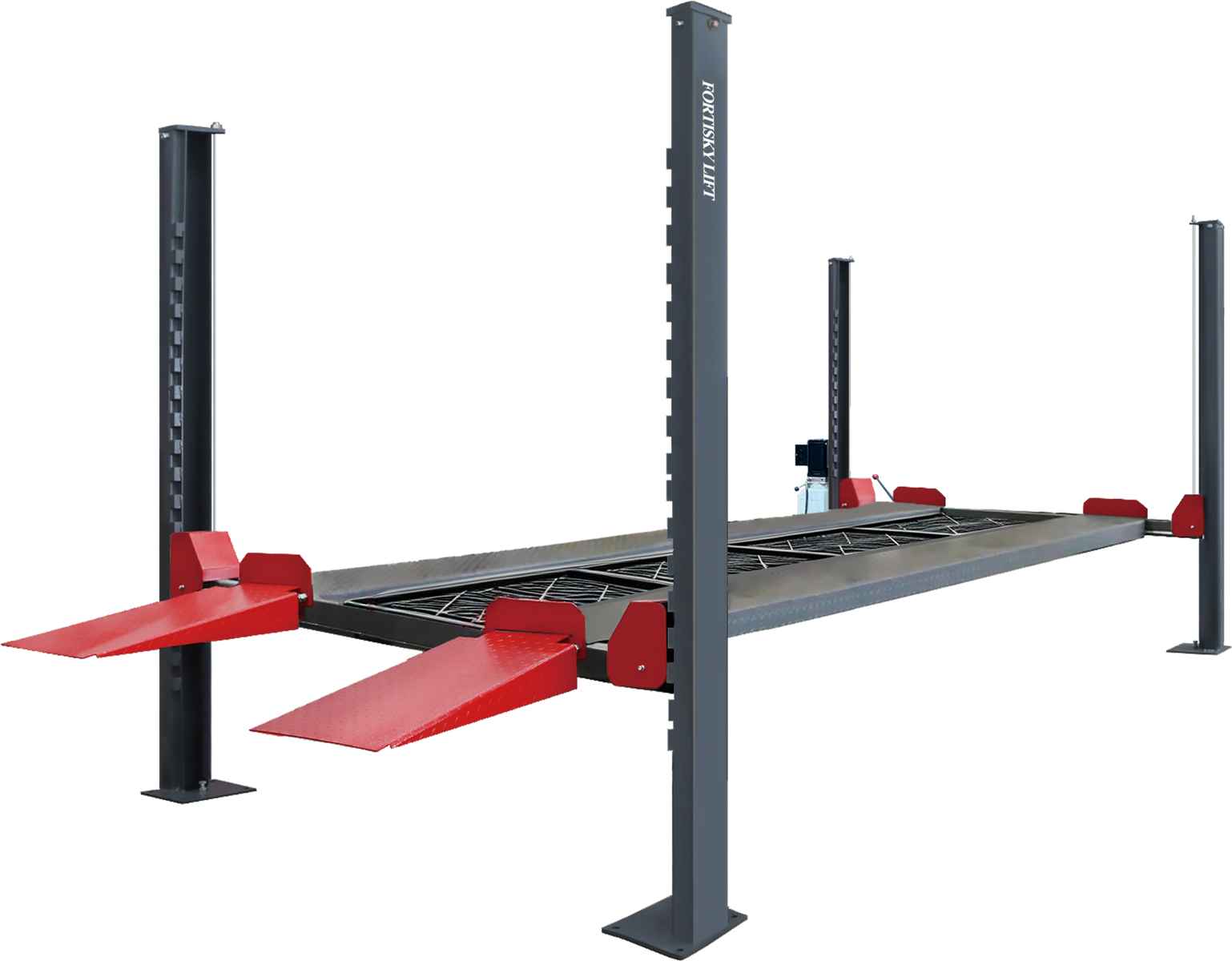

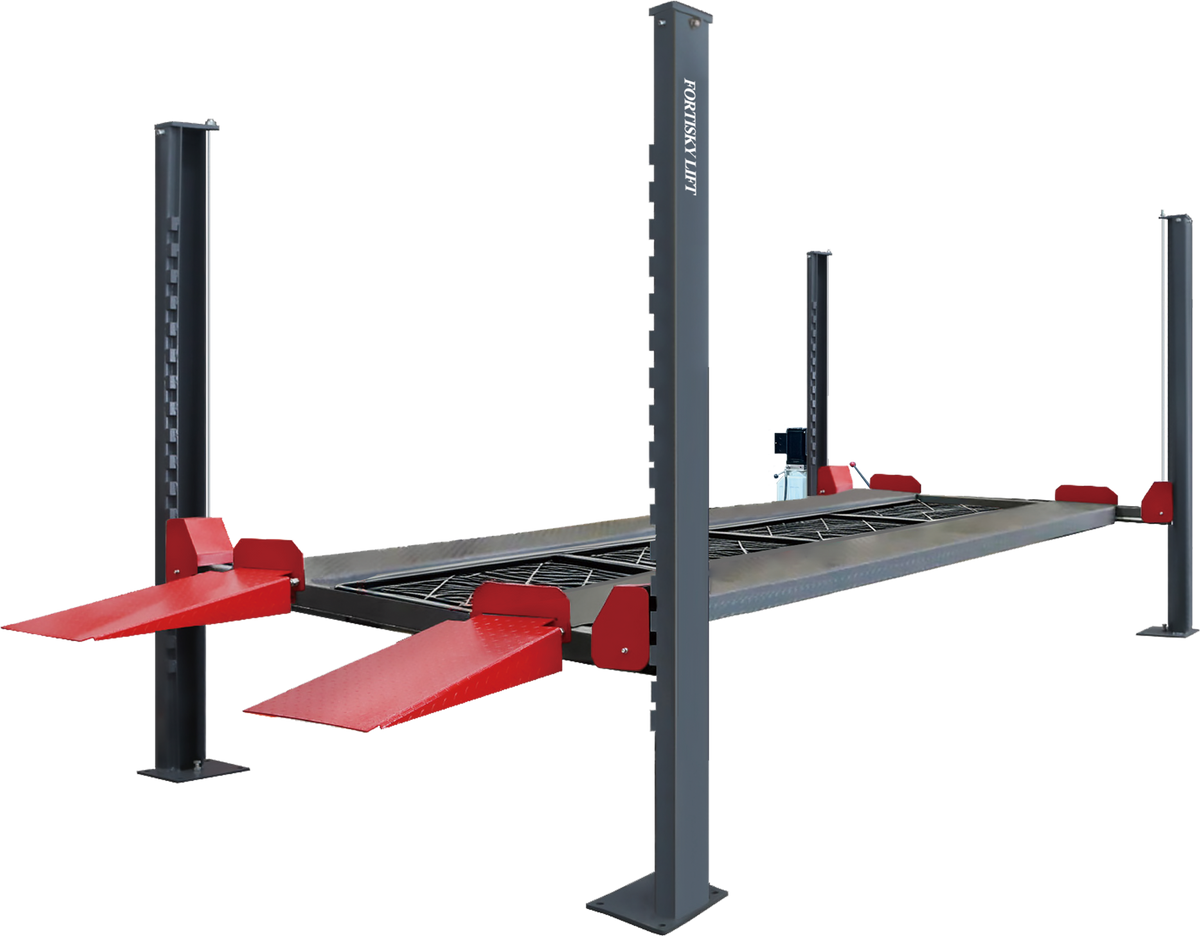

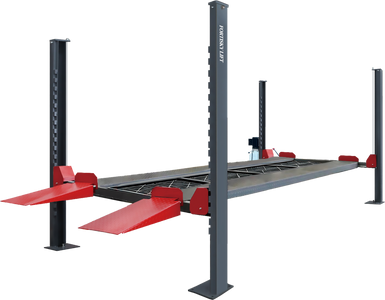

Fortisky FL-90PL 9,000 lb Four-Post Parking Lift

The Fortisky FL-90PL is a 9,000 lb four-post parking lift for cars, SUVs, light trucks, and performance vehicles. Drive on, set the locks, and park a second vehicle underneath: the double-deck design stores two vehicles in one bay. The runways rise to 78.74 inches in about 50 to 60 seconds on a 220-volt power unit and sit 5.12 inches off the floor at rest, with 34.25-inch approach ramps for low cars.

It is a 2-in-1 lift, so the same runways also serve as a service lift for oil changes, exhaust, and underbody work. A dual safety locking system gives primary and secondary mechanical protection at every lock point, all released from a single manual release. The lift stands 92.13 inches tall, needs 185.04 inches of length with the ramps down, and is CE-certified, tested to 115 percent of rated capacity under dynamic load and 150 percent under static load.

• 9,000 lb capacity. Cars, SUVs, light trucks, and performance vehicles.
• Four-post drive-on design. Stable platform with quick, easy vehicle positioning.
• Double-deck parking. Two vehicles in the space normally taken by one.
• 2-in-1 parking and service. Park on it or work under it.

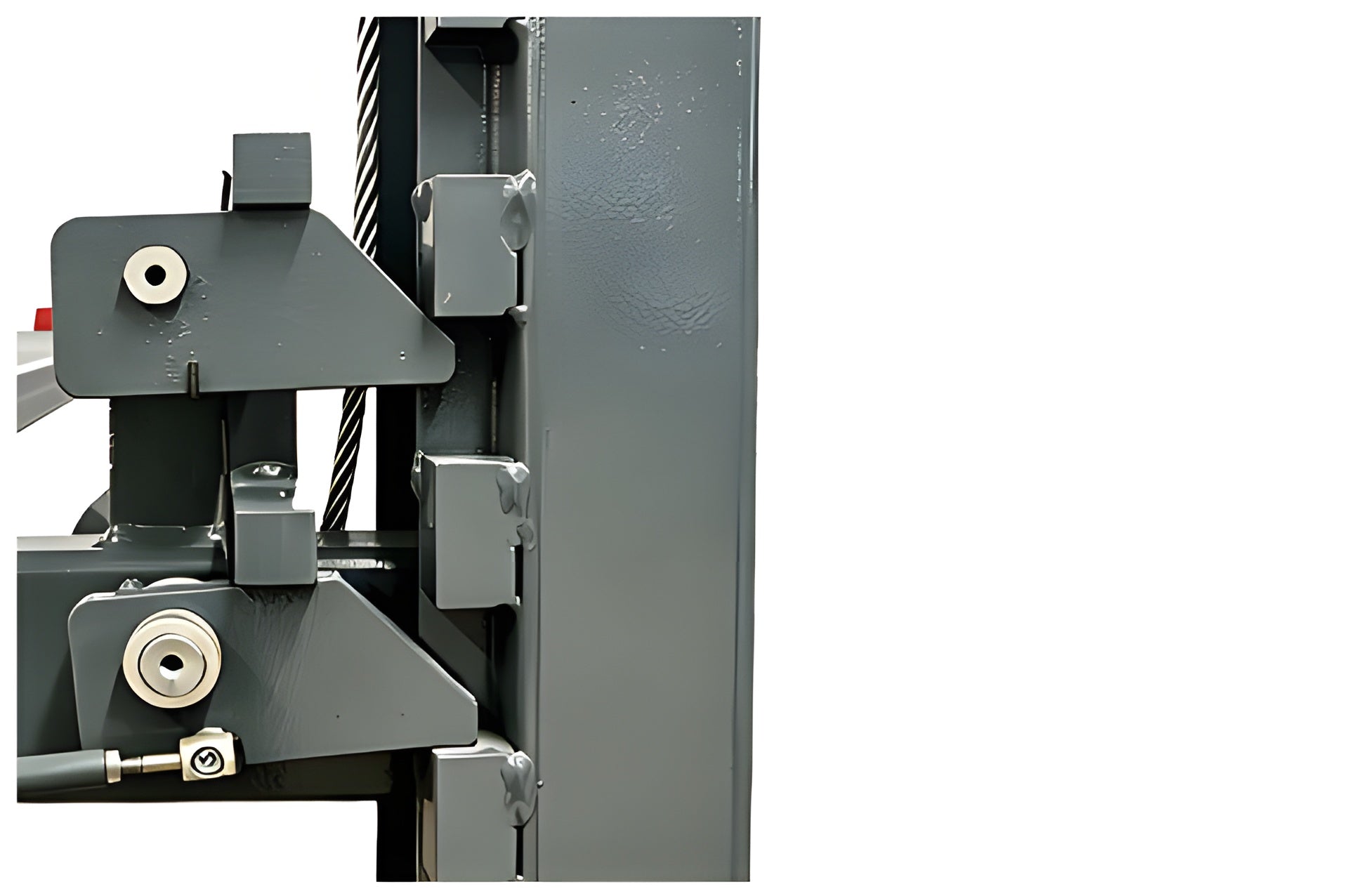

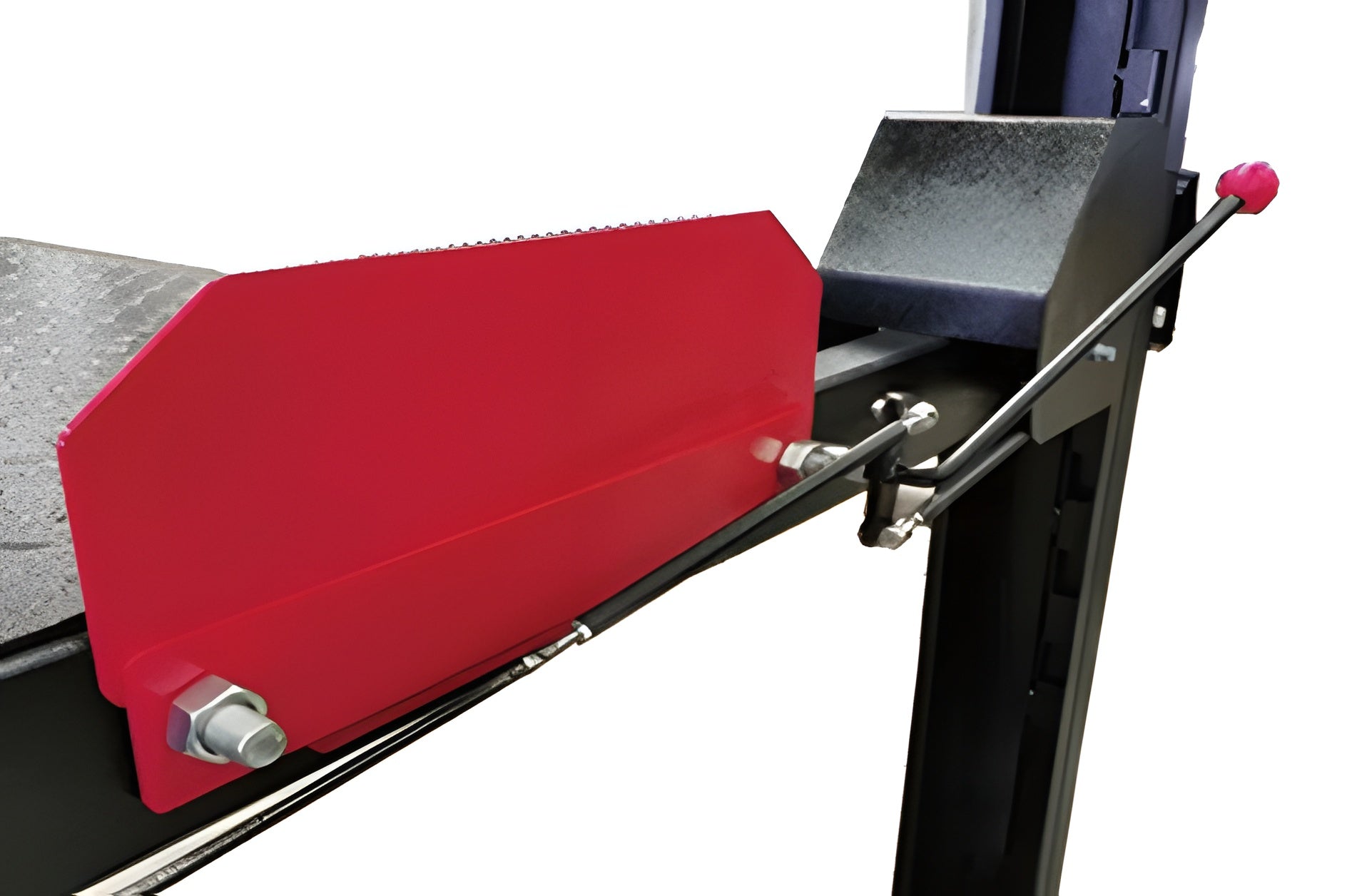

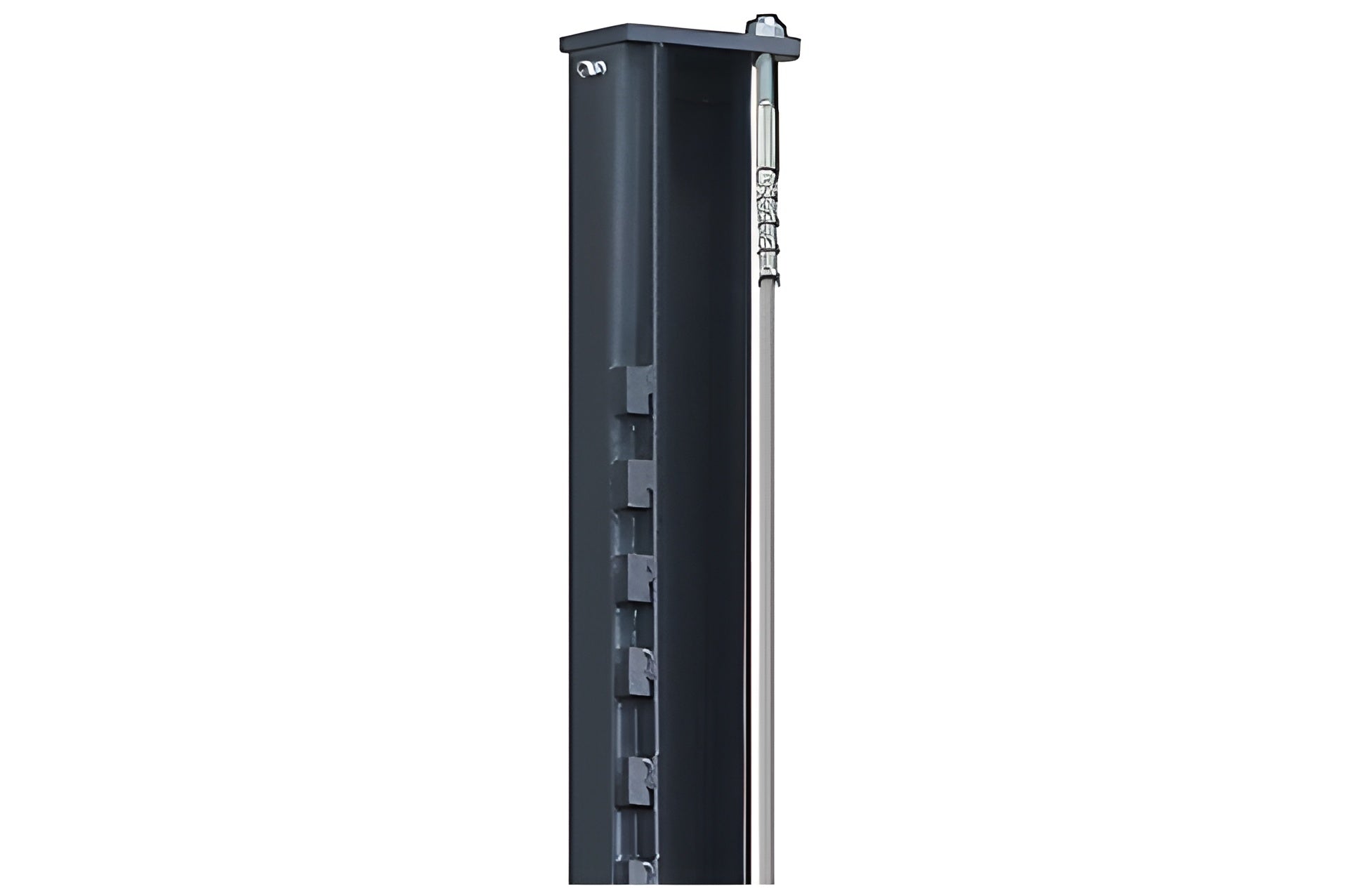

• Dual safety locking system. Primary and secondary mechanical protection at each lock point, one manual release.
• Heavy-duty hydraulic system. Smooth, reliable lifting for frequent garage use.
• Heavy-duty steel construction. Built for residential garages and professional shops.

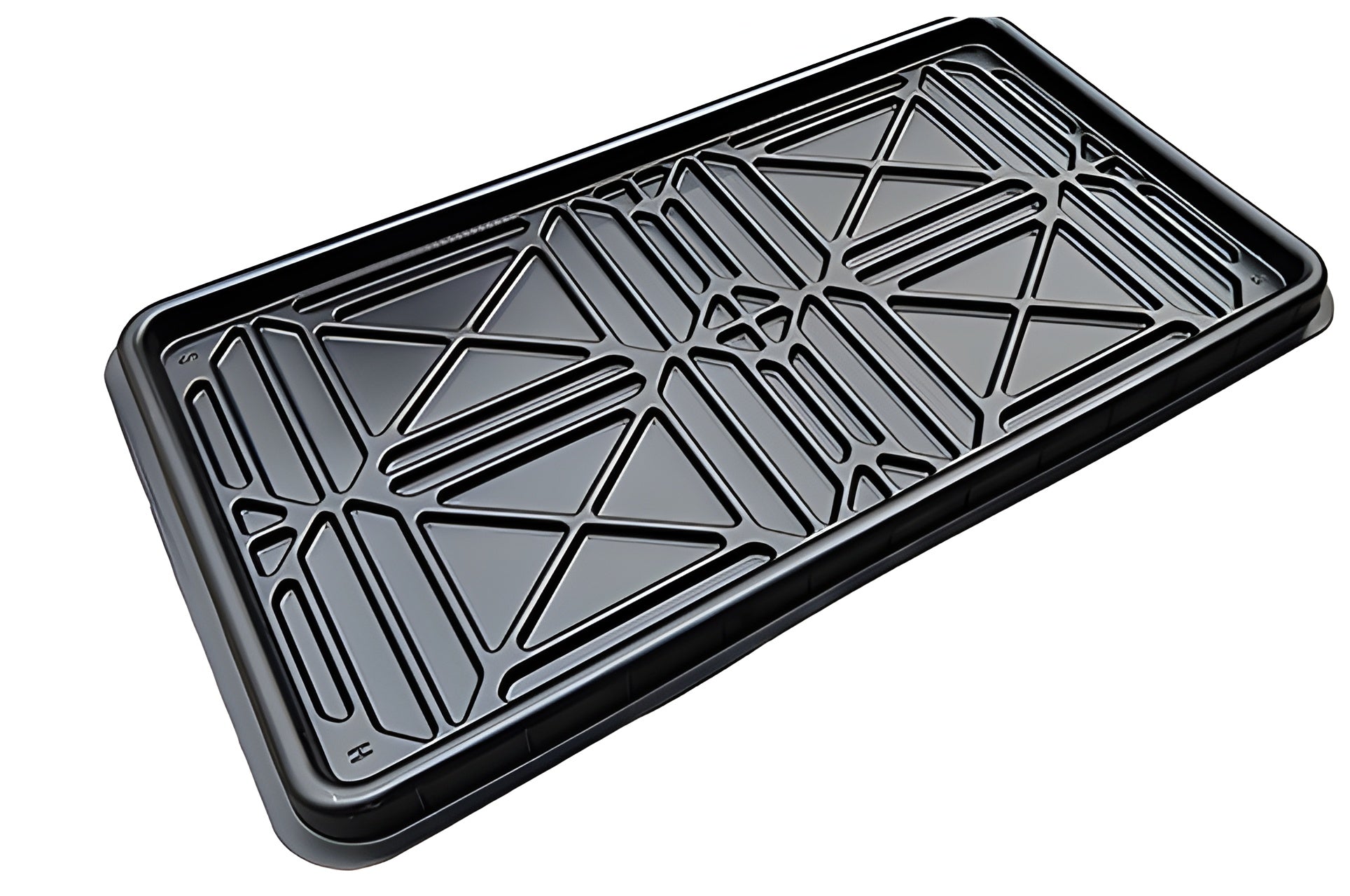

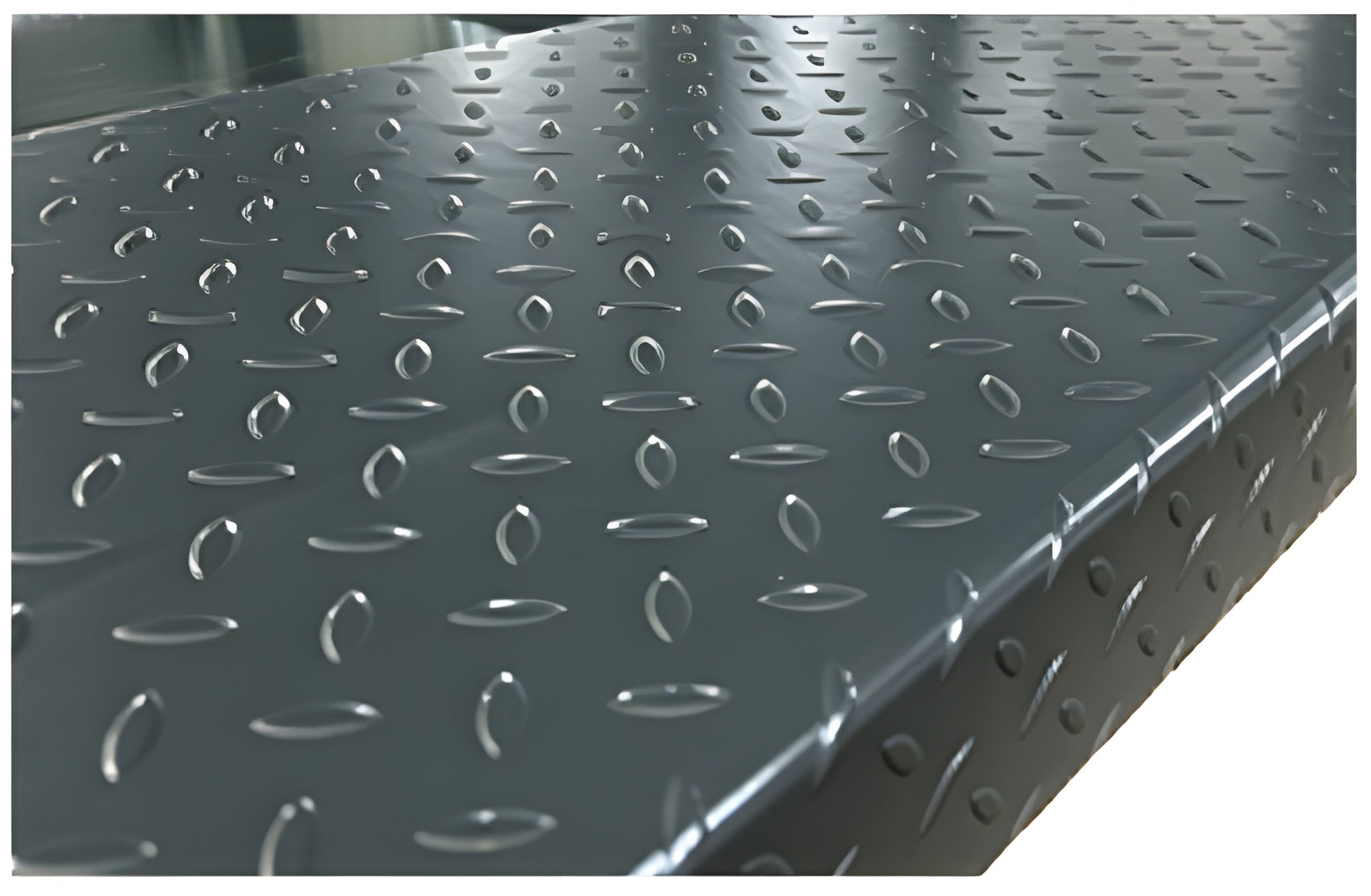

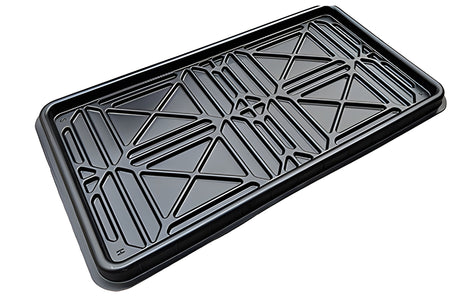

• Diamond-plate runways with drip trays. Non-slip runway surface; trays catch drips from the upper vehicle.

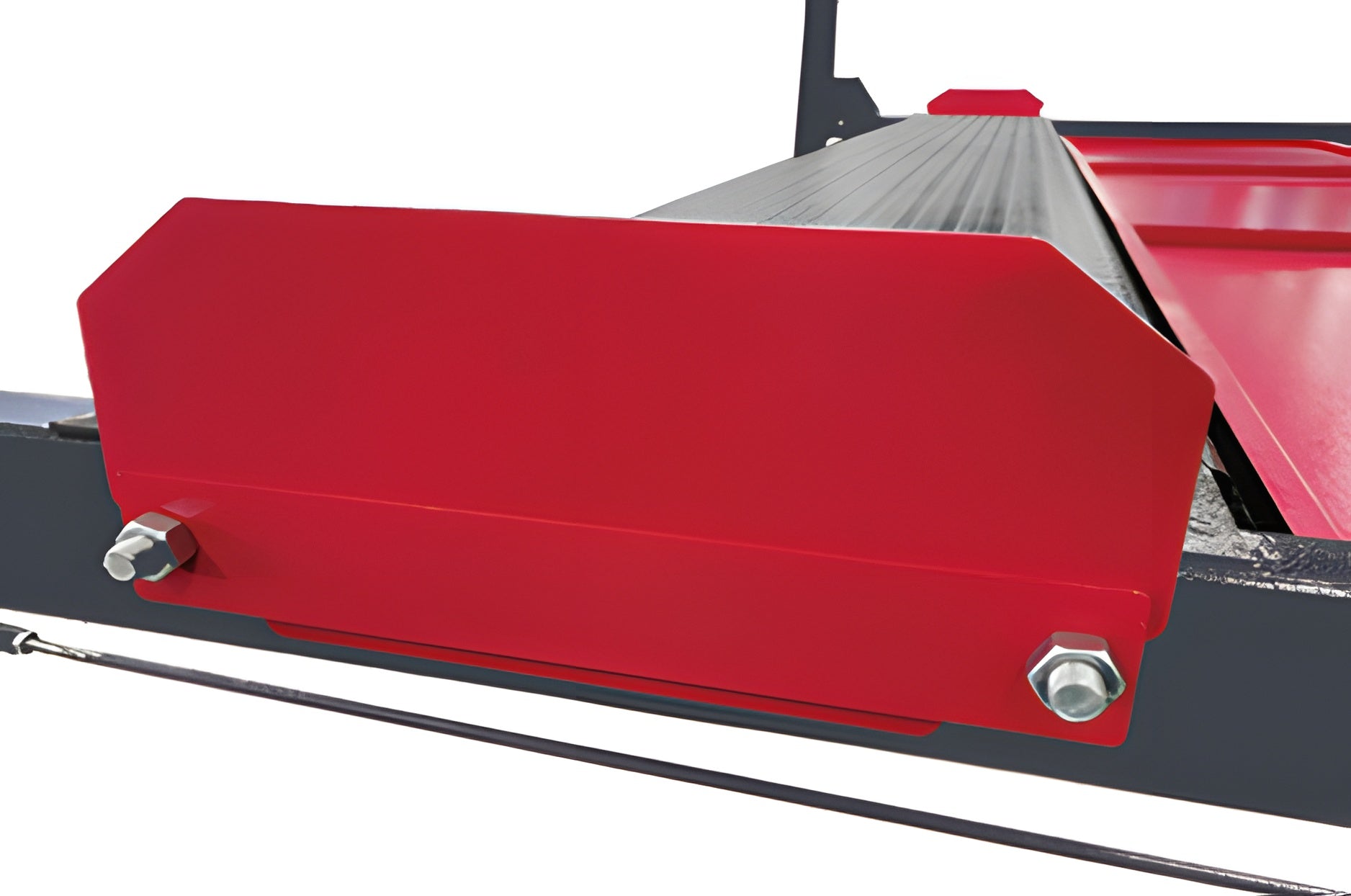

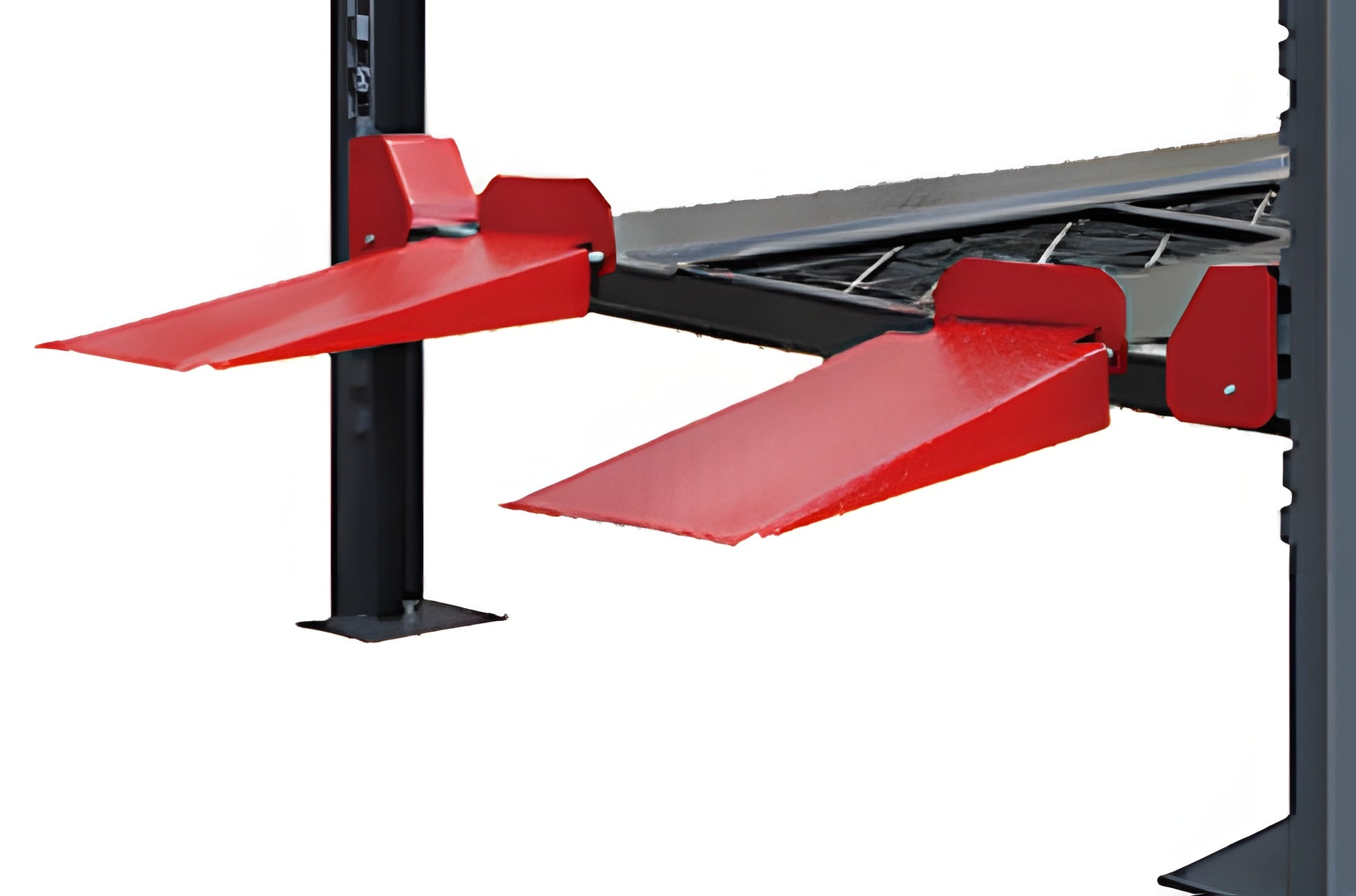

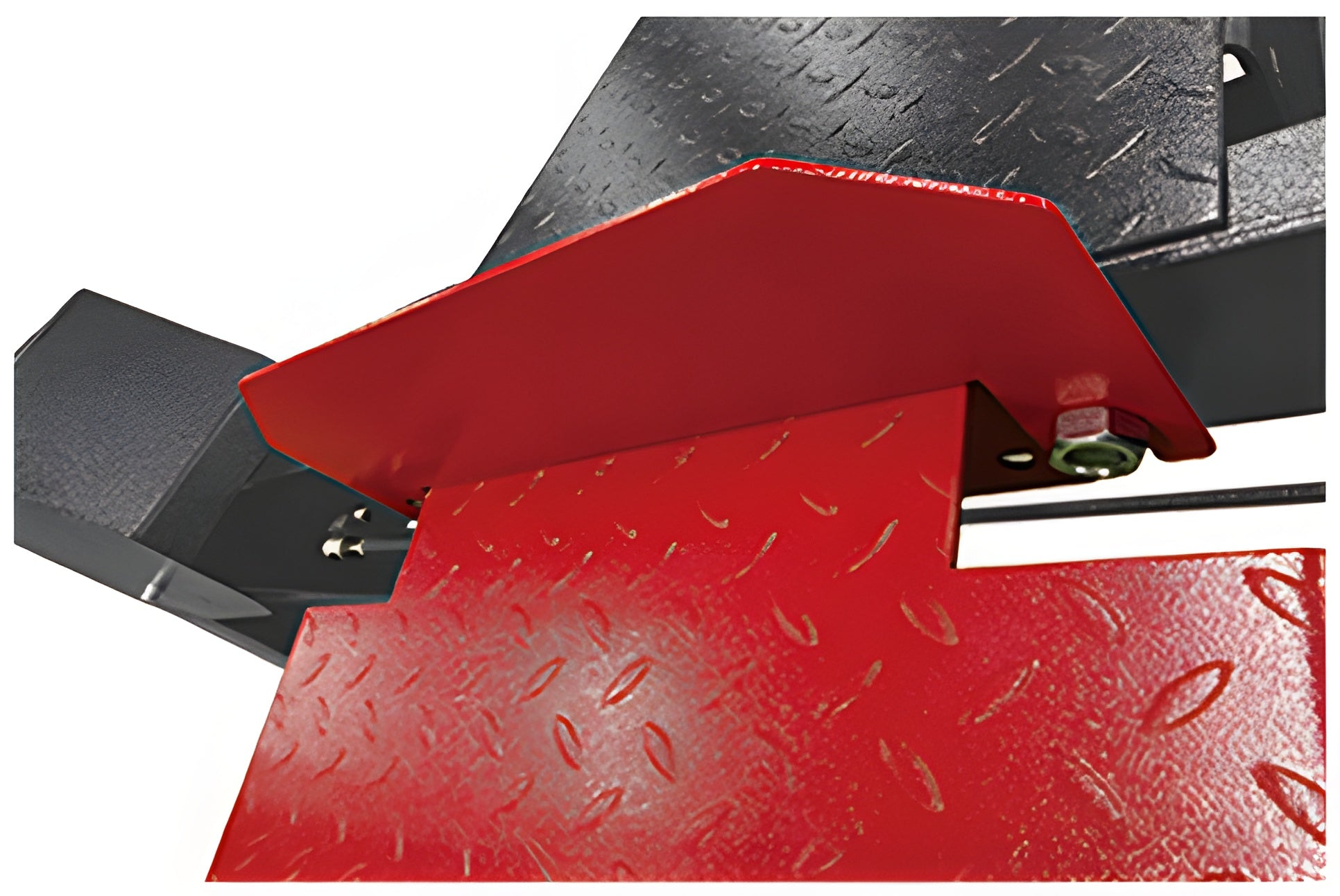

• Approach ramps and wheel stops. 34.25-inch ramps at the drive-on end, stop plates at the far end.

Fortisky lifts carry a 3-year structural warranty on the columns, carriages, legs, cross rails, tracks, top rail beam, swivel pins, and uprights, plus a 2-year limited parts warranty covering any part found defective in materials or workmanship under normal use. Defective parts are replaced at no charge; on-site labor is not covered.

Normal-maintenance items and wear parts (cables, slider blocks, chains, rubber pads, pulleys) are excluded. After the first 30 days, repairs are handled with a seal kit and installation instructions rather than lift replacement. Inspect the lift for freight damage before signing the delivery receipt (freight damage is a carrier claim, not a warranty claim), and report any missing parts to us within 72 hours of delivery. The warranty applies to the original purchaser and requires installation, operation, and maintenance per Fortisky's specifications.

How much ceiling height do I need to park two cars?

The posts stand 92.13 inches (7 feet 8 inches) tall and the runways rise to 78.74 inches. Add the height of the vehicle you park on top to the runway height you choose; the lift can lock at lower positions if the top vehicle is tall or the ceiling is low.

Does the lift need to be anchored?

Fortisky supplies the FL-90PL as a freestanding four-post lift with 185.04 inches of floor length including the ramps and 112.2 inches of width. Contact us for the installation manual and anchoring guidance for your floor.

Can I service a vehicle on it, not just park?

Yes. The 2-in-1 design is rated for service work: raise the vehicle on the runways, set the locks, and work underneath.

What power does it run on?

A 220-volt, 60 Hz power unit. A full lift takes about 50 to 60 seconds.

How is it delivered?

The FL-90PL ships via freight, or you can pick it up at the warehouse. Choose the delivery option above; we contact you to schedule freight delivery.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
