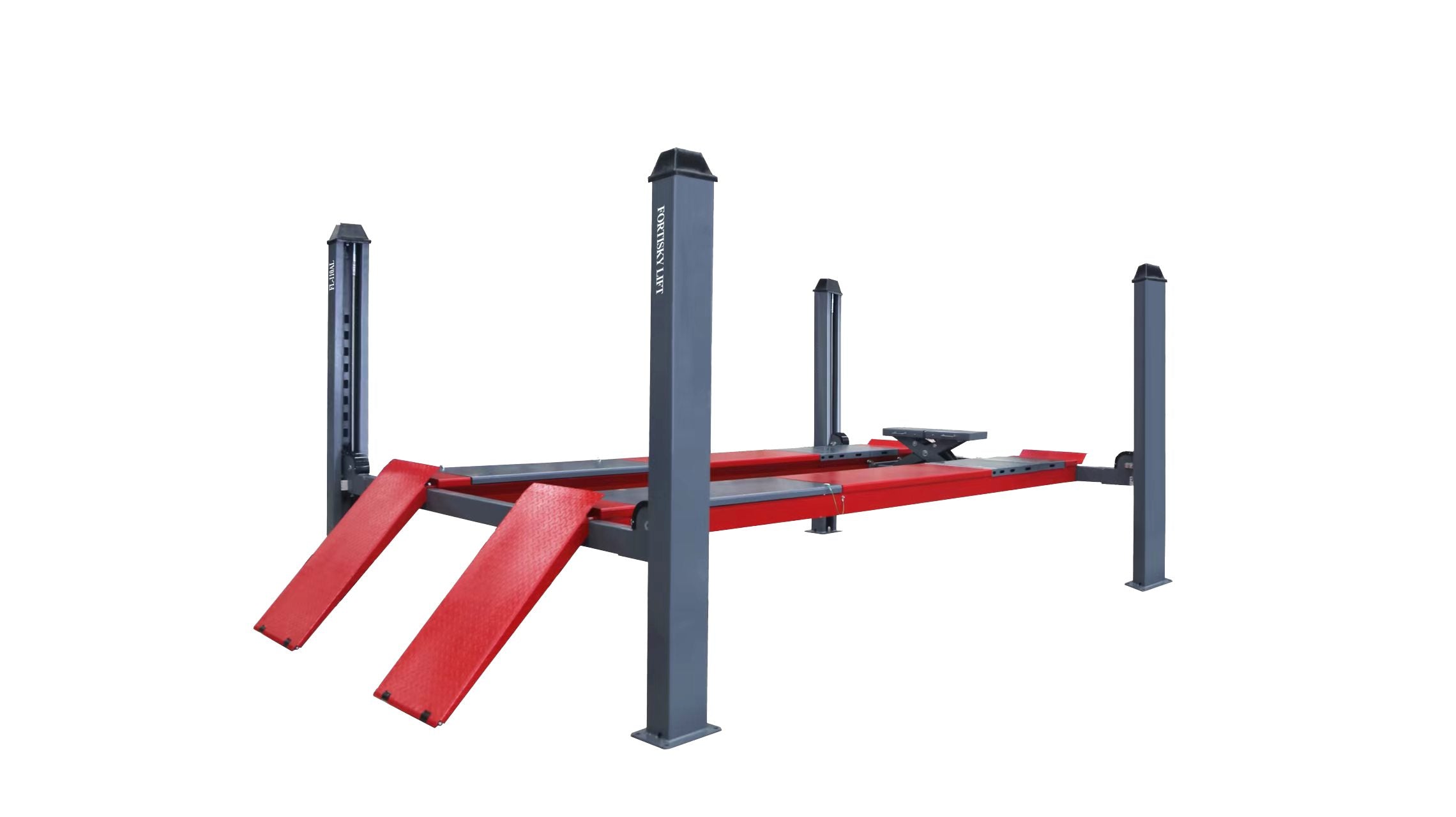

Fortisky FL-110AL 11,000 lb Four-Post Alignment Lift with 7,000 lb Rolling Jack

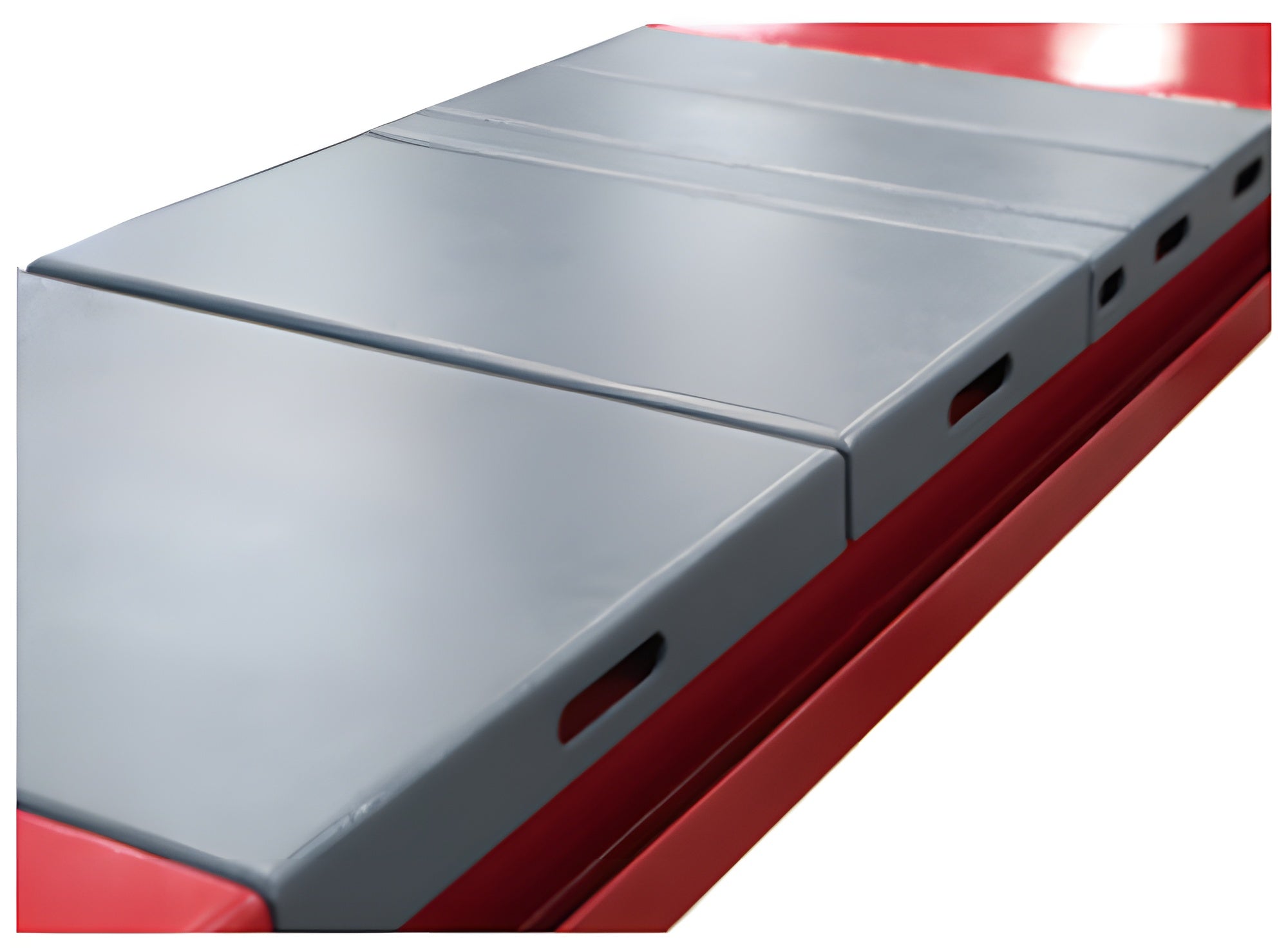

The Fortisky FL-110AL is an 11,000 lb four-post alignment lift that ships with a 7,000 lb rolling jack. It handles cars, SUVs, trucks, and light commercial vehicles, raising them to 70.87 inches in about 50 seconds on a 220-volt power unit. The reinforced runways are 177.17 inches long and 21.65 inches wide, with rear slip plates and front turn-plate pockets for alignment work, and the rolling jack adds another 13.78 inches of wheel-free lift for brake, suspension, and wheel service.

A multi-point mechanical safety system locks the runways at height, a heavy-duty hydraulic cylinder and steel cable system does the lifting, and an adjustable lowering-speed control brings the vehicle down smoothly. The lift stands 87.4 inches tall and needs roughly 192 inches of length at the posts plus 47.24-inch ramps at the drive-on end. Runways sit 7.87 inches off the floor at rest.

• 11,000 lb capacity. Cars, SUVs, trucks, and light commercial vehicles.
• 7,000 lb rolling jack included. Wheel-free lifting for wheel, brake, suspension, and undercarriage service.
• Alignment-ready runways. Reinforced runways with slip plates and turn-plate pockets.
• Multi-point mechanical safety system. Dependable locking support at height.

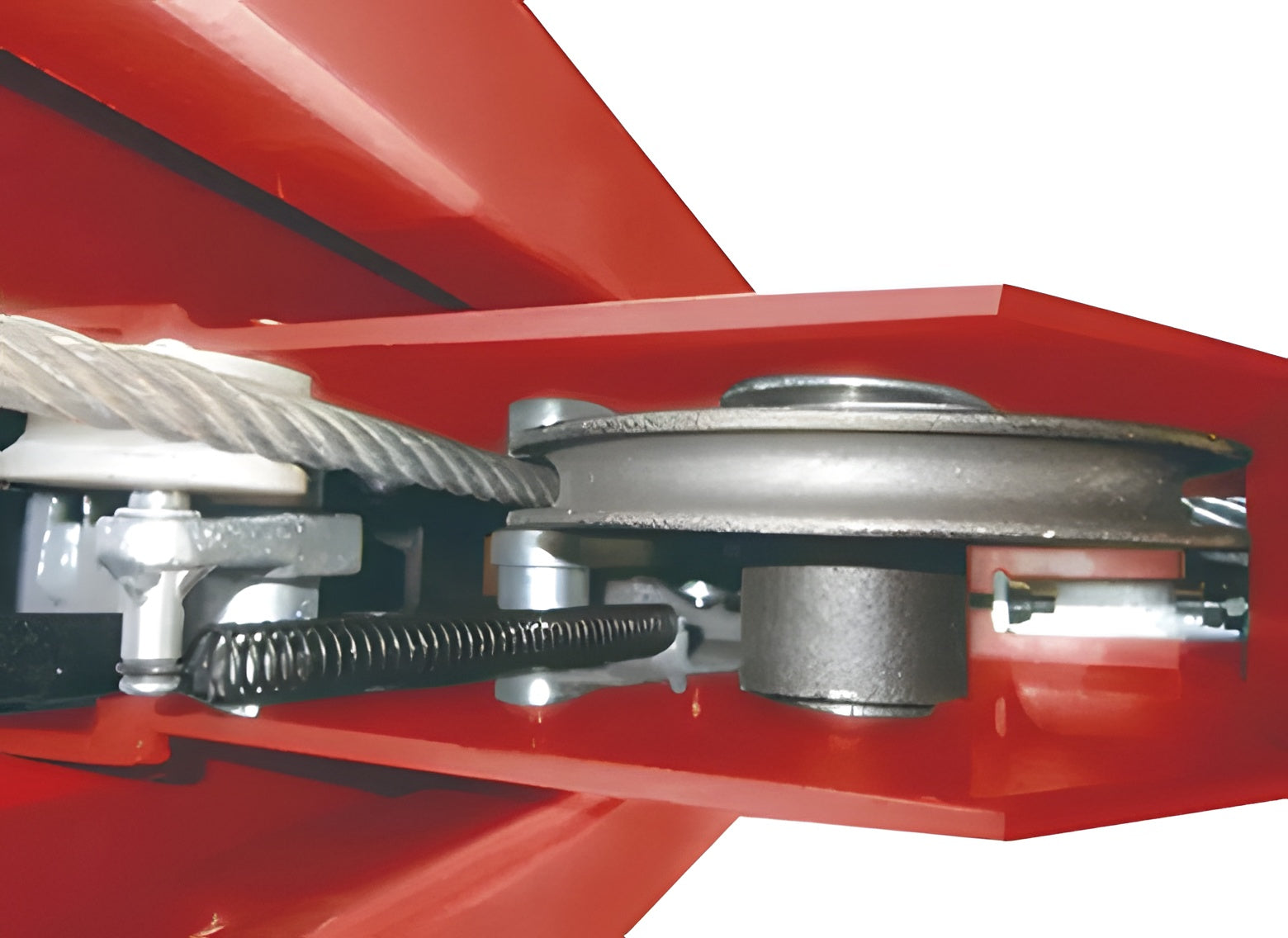

• Heavy-duty hydraulic cylinder and steel cable system. Strong, smooth, stable lifting.
• Adjustable lowering-speed control. Smoother, more controlled vehicle lowering.
• Full height in about 50 seconds. Efficient day-to-day shop operation.

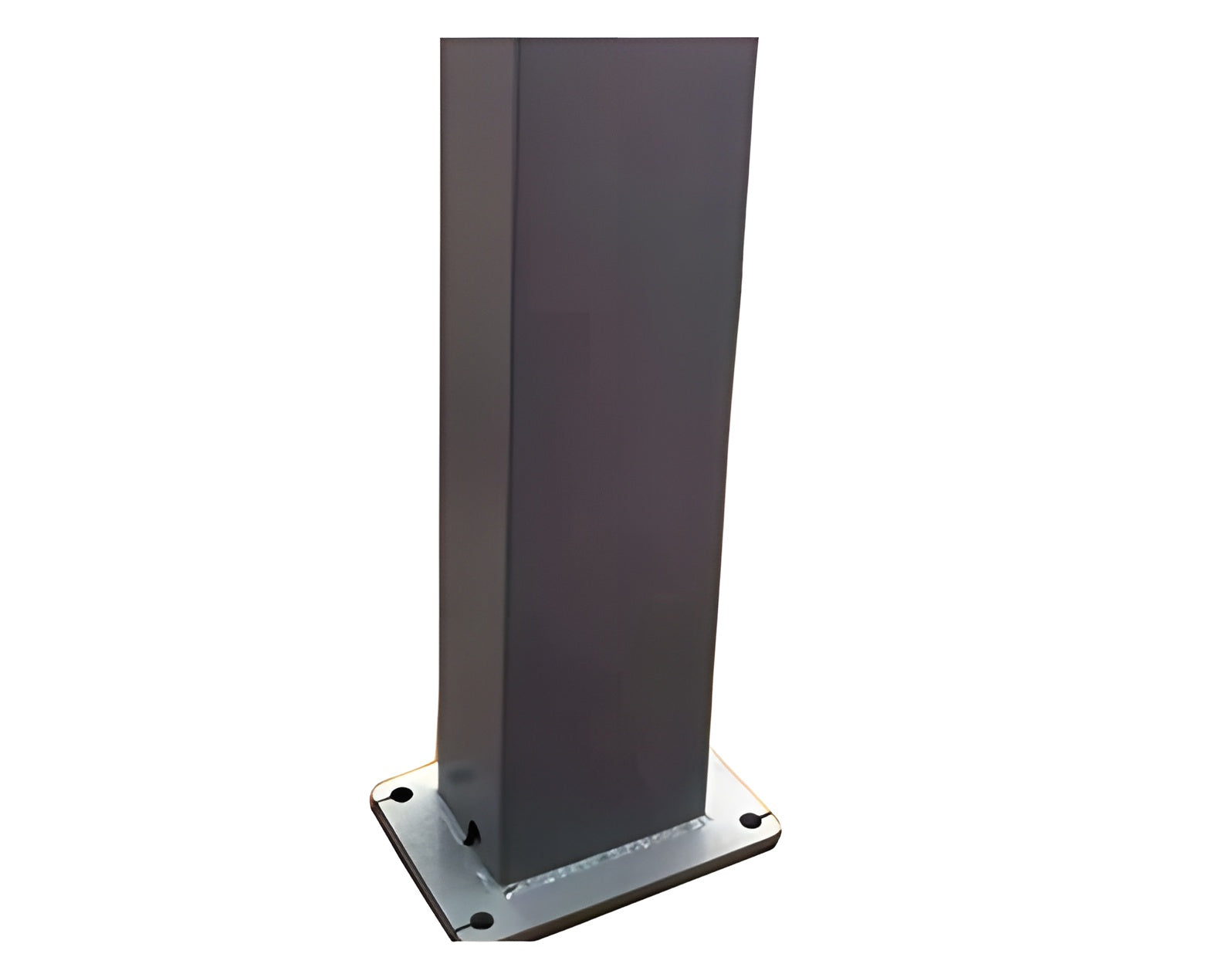

• Heavy-duty four-post construction. Strength and stability during lifting and service.

Fortisky lifts carry a 3-year structural warranty on the columns, carriages, legs, cross rails, tracks, top rail beam, swivel pins, and uprights, plus a 2-year limited parts warranty covering any part found defective in materials or workmanship under normal use. Defective parts are replaced at no charge; on-site labor is not covered.

Normal-maintenance items and wear parts (cables, slider blocks, chains, rubber pads, pulleys) are excluded. After the first 30 days, repairs are handled with a seal kit and installation instructions rather than lift replacement. Inspect the lift for freight damage before signing the delivery receipt (freight damage is a carrier claim, not a warranty claim), and report any missing parts to us within 72 hours of delivery. The warranty applies to the original purchaser and requires installation, operation, and maintenance per Fortisky's specifications.

Is the rolling jack included?

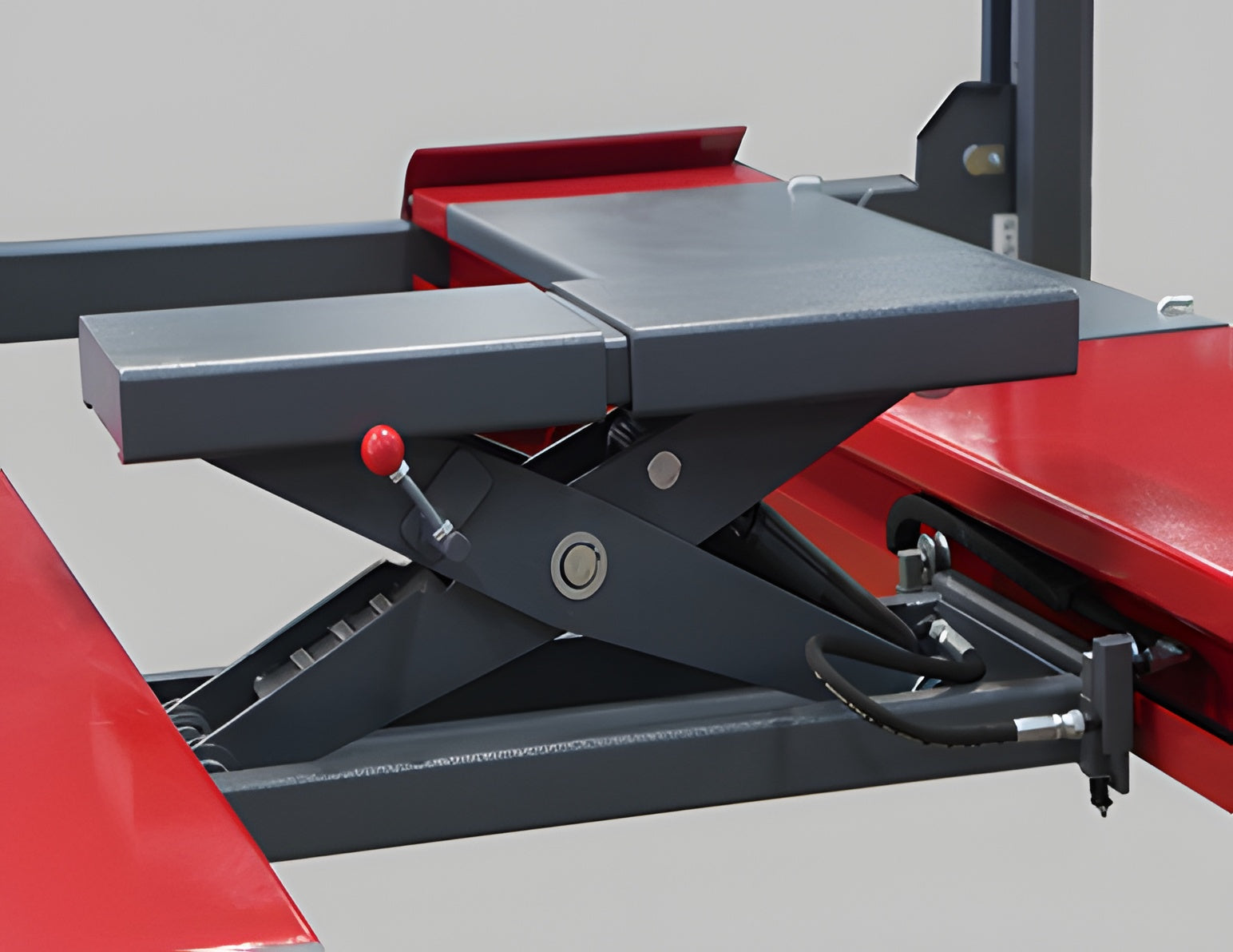

Yes. The FL-110AL ships with a 7,000 lb rolling jack that rides on the runways and lifts the vehicle a further 13.78 inches for wheel-free work.

What floor does it need?

Fortisky's foundation diagram calls for 23.62-inch square concrete pads 15.75 inches deep under each post on a 204.72 by 137.8 inch footprint. Check your slab before ordering; ask us for the installation manual.

How much space does it take?

About 192 inches long at the posts plus 47.24 inches of ramp at the drive-on end, 127.17 inches wide, and 87.4 inches tall. The runways rise to 70.87 inches, so add the vehicle height to that for the ceiling you need.

What power does it run on?

A 220-volt, 60 Hz power unit. A full lift takes about 50 seconds.

How is it delivered?

The FL-110AL ships via freight, or you can pick it up at the warehouse. Choose the delivery option above; we contact you to schedule freight delivery.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
