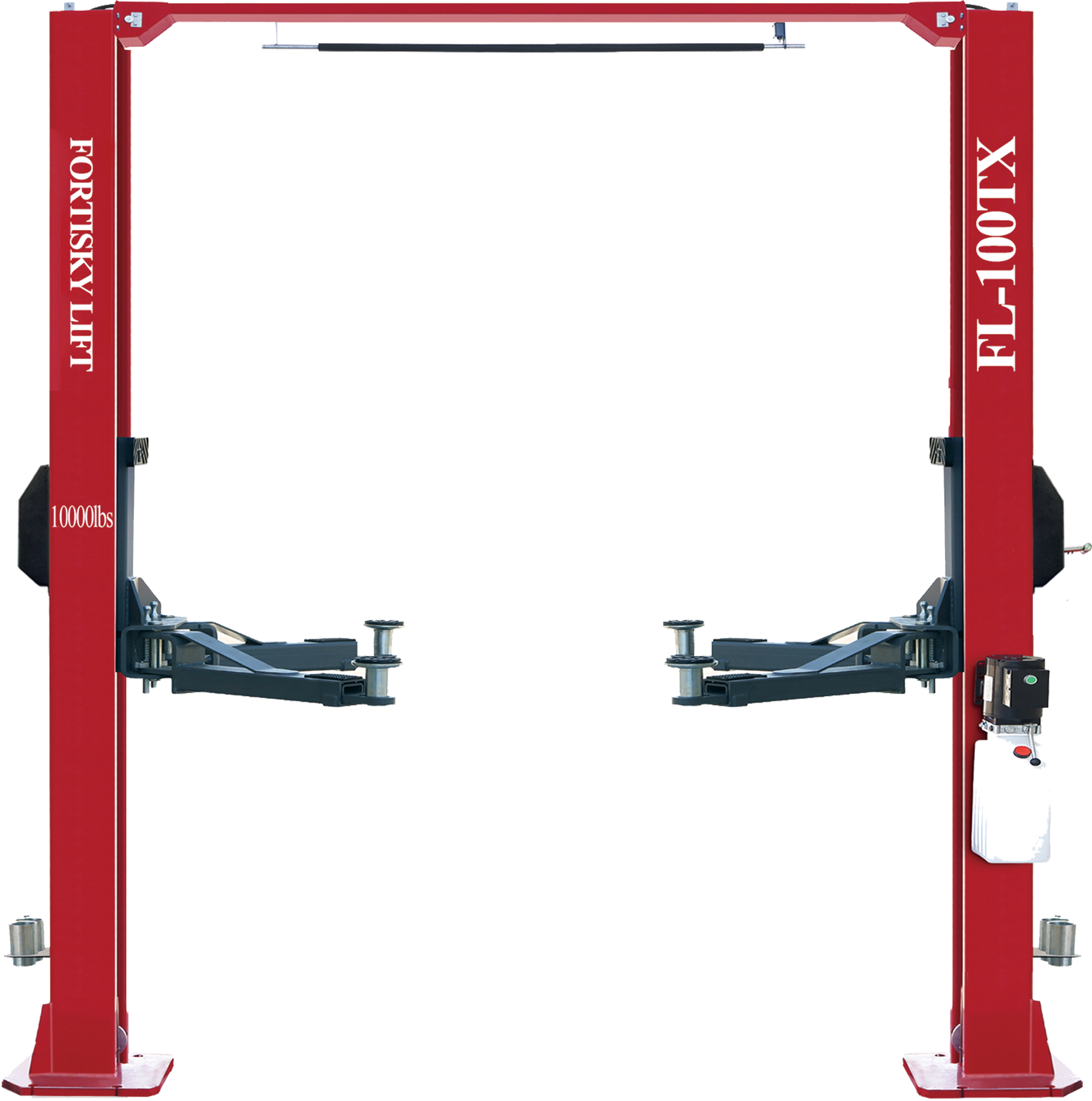

Fortisky FL-100TX 10,000 lb Overhead Two-Post Lift

The Fortisky FL-100TX is a 10,000 lb overhead two-post lift built for passenger cars, SUVs, and light trucks. It lifts to a 74.8-inch pad height in about 50 to 60 seconds on a 2.2 kW, 220-volt power unit, and the arms drop to a 4.3-inch minimum height for low-clearance vehicles. The columns are joined by an overhead beam rather than a floor plate, so the floor between the columns stays clear for jacks, drain pans, and transmission work; the lift stands 144.4 inches tall overall.

A single-point lock release drops both columns' locks together, and automatic arm restraints engage each symmetric arm as soon as it takes load. An overhead limit bar stops the lift at maximum height to protect the vehicle roof. The lift is CE-certified and tested to 115 percent of rated capacity under dynamic load and 150 percent under static load. Truck adapters ship with the lift for vehicles with higher lifting points.

• 10,000 lb capacity. Handles the range from passenger cars through SUVs and light trucks.
• Overhead beam, clear floor. No floor plate between the columns.

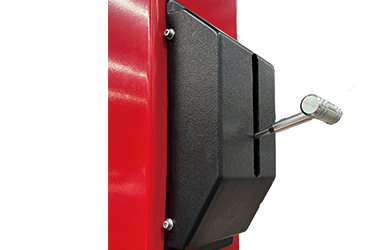

• Single-point lock release. One release lowers the locks on both columns.

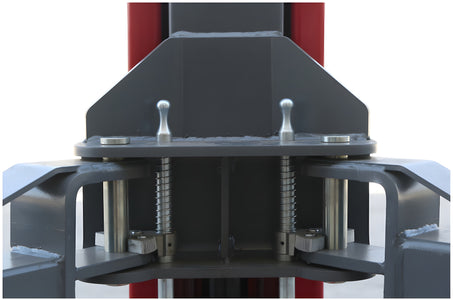

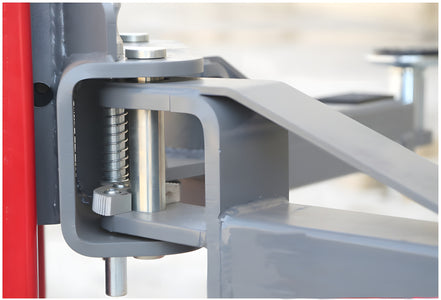

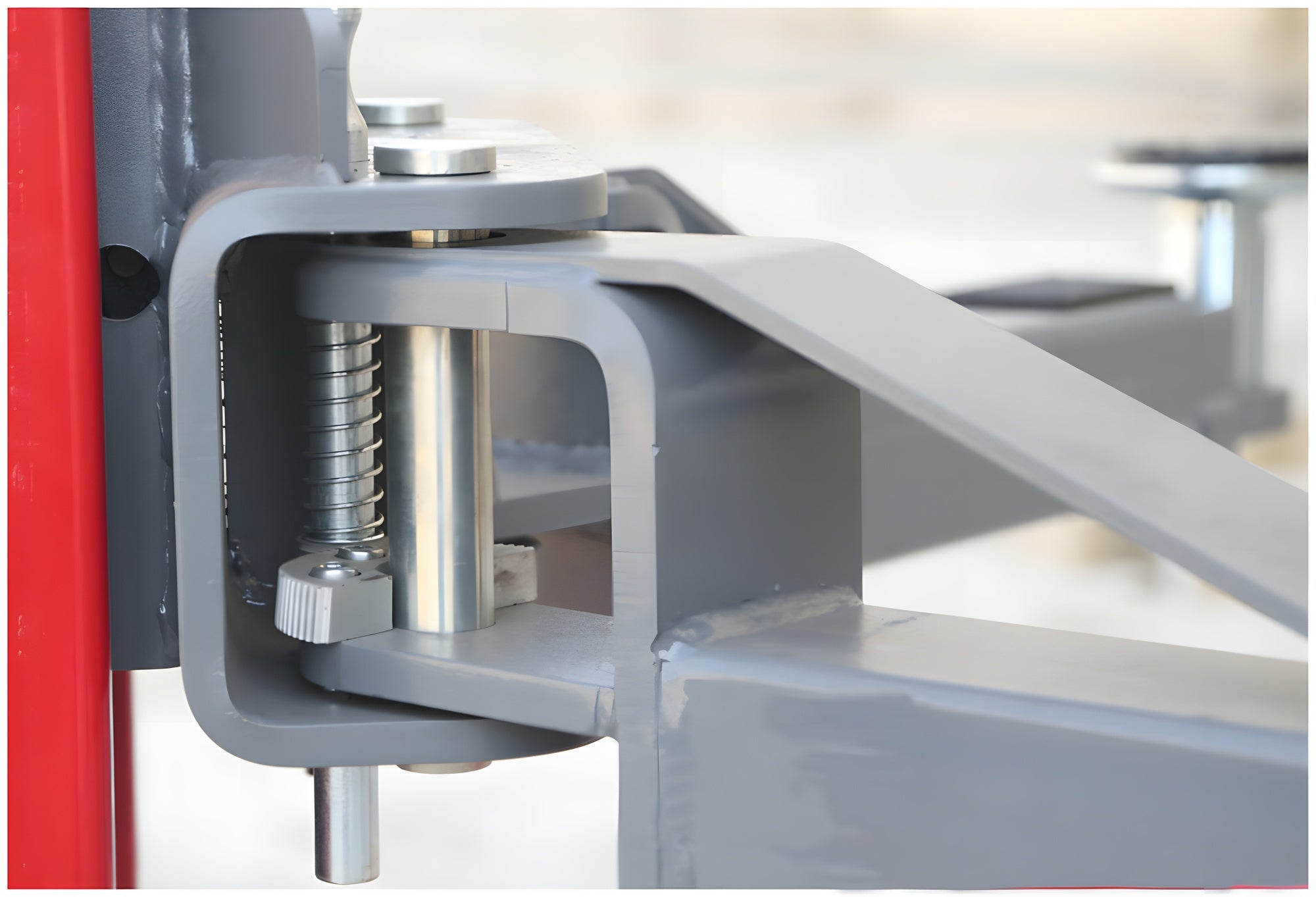

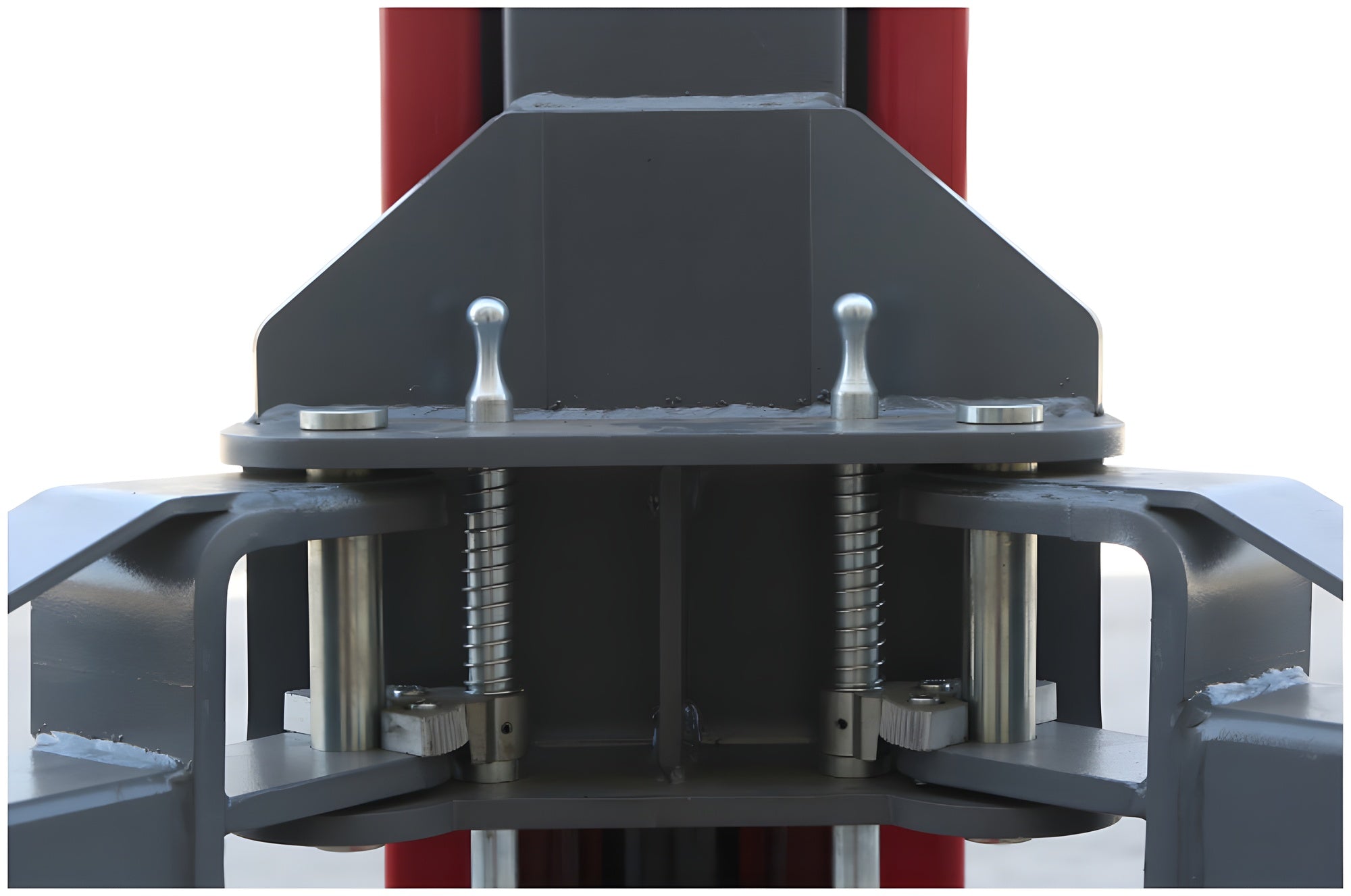

• Automatic arm restraints. Restraints engage the lifting arms during operation to hold arm position under load.
• Symmetric arm design. Balanced lifting geometry with flexible vehicle positioning.
• Overhead limit bar. Stops the lift at maximum height to prevent over-travel.
• Extra-large column base plates. 18.5 x 15.36 inch plates, 0.63 inch thick, for a stable anchored footprint.

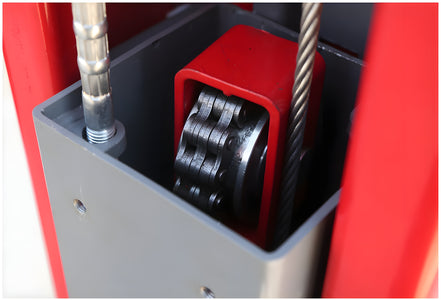

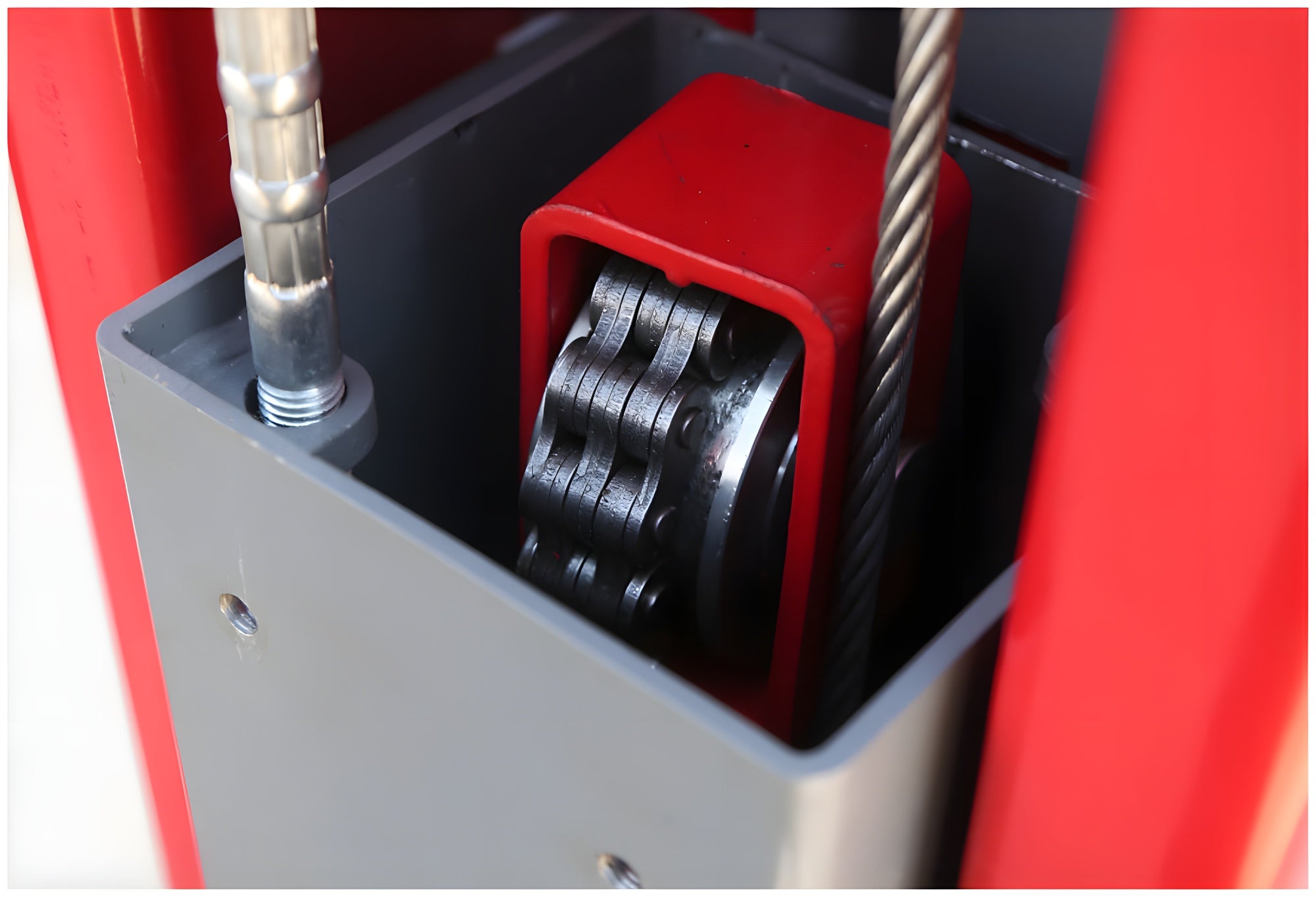

• 5/16-inch synchronization cables and large-diameter pulleys. Reduce cable stress and extend cable life.
• Self-lubricating nylon sliders. The carriages travel the columns with less friction and wear.
• Built-in hydraulic pressure relief valve. Protects the hydraulic system from excess pressure.

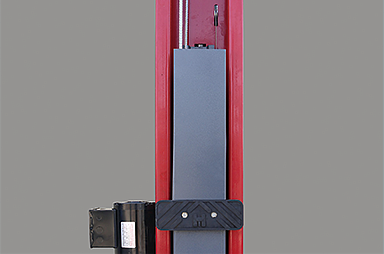

• Rubber door guards. Protect vehicle doors opened near the columns.

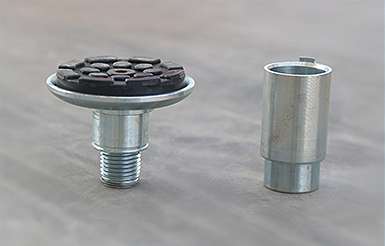

• Truck adapters included. Extra lifting height for trucks, SUVs, and other vehicles with higher lift points.

Fortisky lifts carry a 3-year structural warranty on the arms, columns, carriages, legs, overhead beam, cross rails, tracks, swivel pins, and uprights, plus a 2-year limited parts warranty covering any part found defective in materials or workmanship under normal use. Defective parts are replaced at no charge; on-site labor is not covered.

Normal-maintenance items and wear parts (cables, slider blocks, chains, rubber pads, pulleys) are excluded. After the first 30 days, repairs are handled with a seal kit and installation instructions rather than lift replacement. Inspect the lift for freight damage before signing the delivery receipt (freight damage is a carrier claim, not a warranty claim), and report any missing parts to us within 72 hours of delivery. The warranty applies to the original purchaser and requires installation, operation, and maintenance per Fortisky's specifications.

How much ceiling height does the FL-100TX need?

The lift stands 144.4 inches (12 feet) tall to the top of the overhead beam, so the ceiling has to clear that. Because the beam is overhead, the raised vehicle also has to fit under it: the overhead limit bar stops travel before the roof reaches the beam.

What is the difference between the FL-100TX and the FL-100GX?

Same 10,000 lb capacity, arms, and power unit. The FL-100TX routes its hydraulic line and equalizer cables through an overhead beam, leaving the floor between the columns clear; the FL-100GX uses a floor plate instead and needs less ceiling height.

What power does it run on?

A 2.2 kW motor on 220-volt supply. A full lift takes about 50 to 60 seconds.

Is it symmetric or asymmetric?

Symmetric. All four arms share the same geometry, reaching from 28.8 inches retracted to 41.4 inches extended, which keeps the vehicle centered between the columns.

How is it delivered?

The FL-100TX ships via freight, or you can pick it up at the warehouse. Choose the delivery option above; we contact you to schedule freight delivery.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
