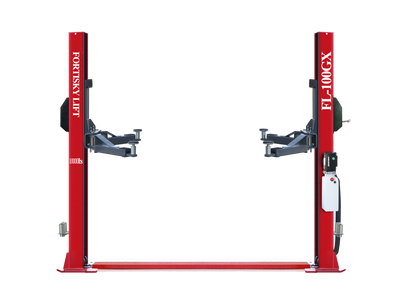

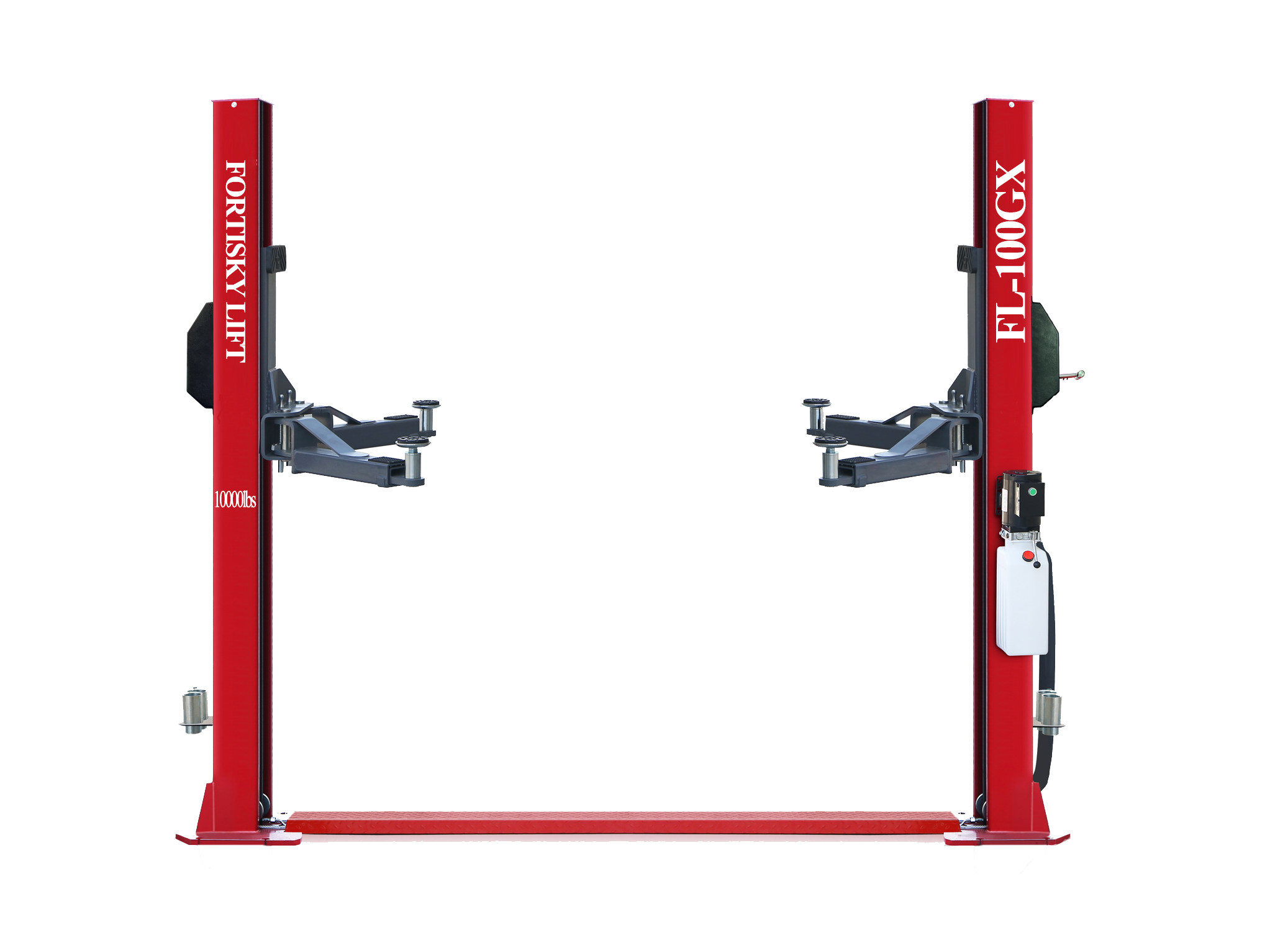

Fortisky FL-100GX 10,000 lb Base Plate Two-Post Lift

The Fortisky FL-100GX is a 10,000 lb base-plate two-post lift built for passenger cars, SUVs, and light trucks. It lifts to a 75-inch pad height in about 50 to 60 seconds on a 2.2 kW, 220-volt power unit, and the arms drop to a 4.3-inch minimum height for low-clearance vehicles. Because it is a base-plate design, the hydraulic line and equalizer cables run through a floor plate between the columns instead of an overhead beam, so the lift stands 111 inches tall overall.

A single-point lock release drops both columns' locks together, and automatic arm restraints engage each symmetric arm as soon as it takes load. The lift is CE-certified and tested to 115 percent of rated capacity under dynamic load and 150 percent under static load. Truck adapters ship with the lift for vehicles with higher lifting points.

• 10,000 lb capacity. Handles the range from passenger cars through SUVs and light trucks.

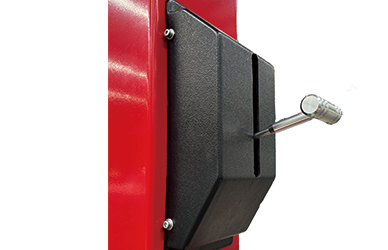

• Single-point lock release. One release lowers the locks on both columns.

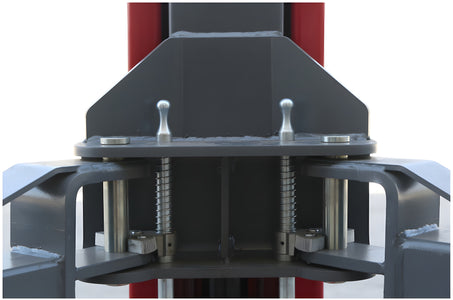

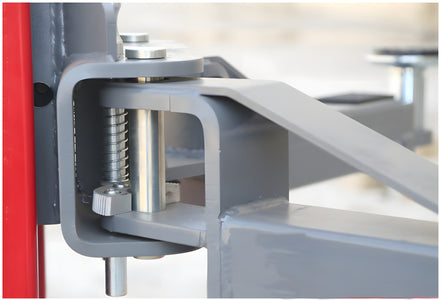

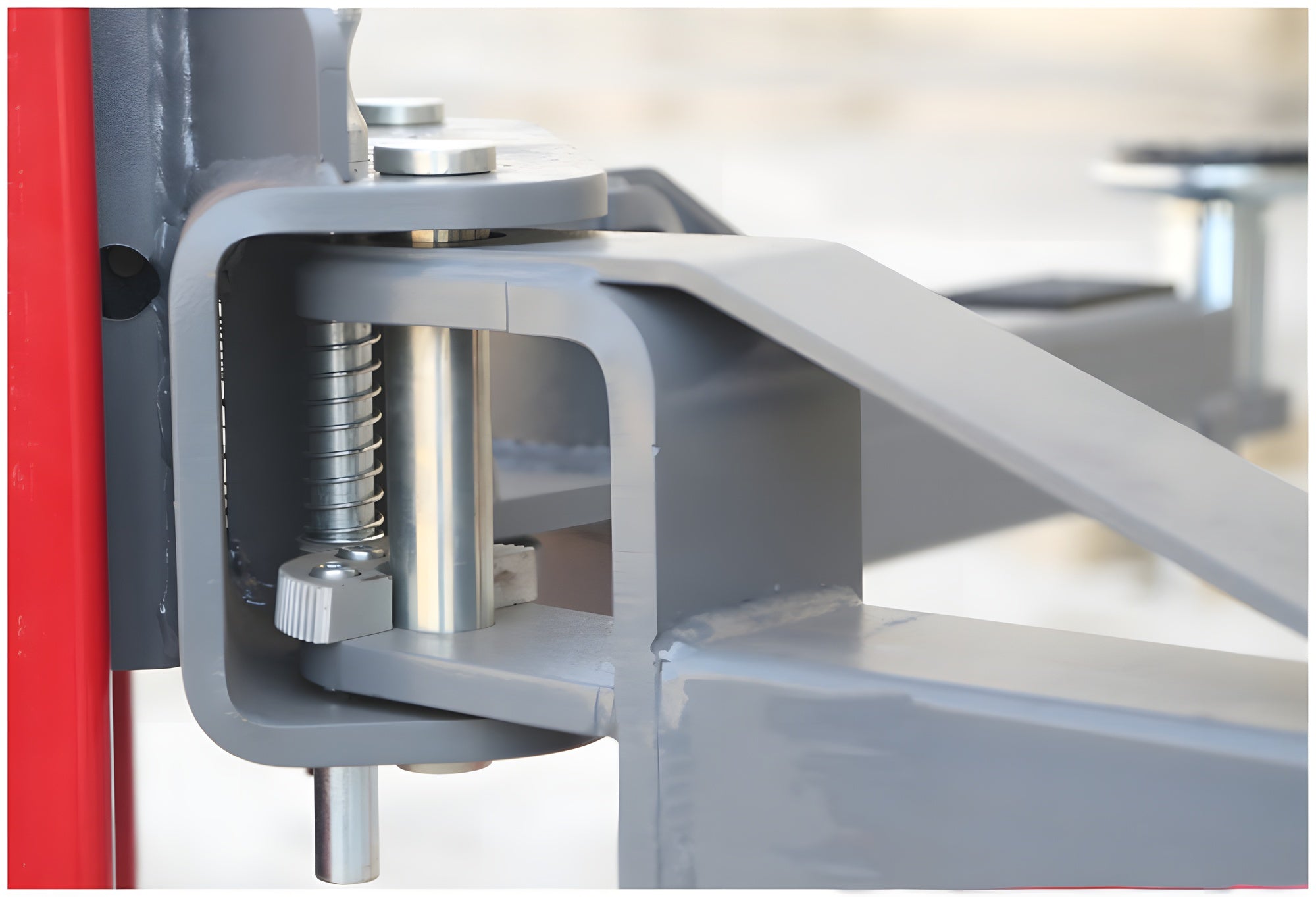

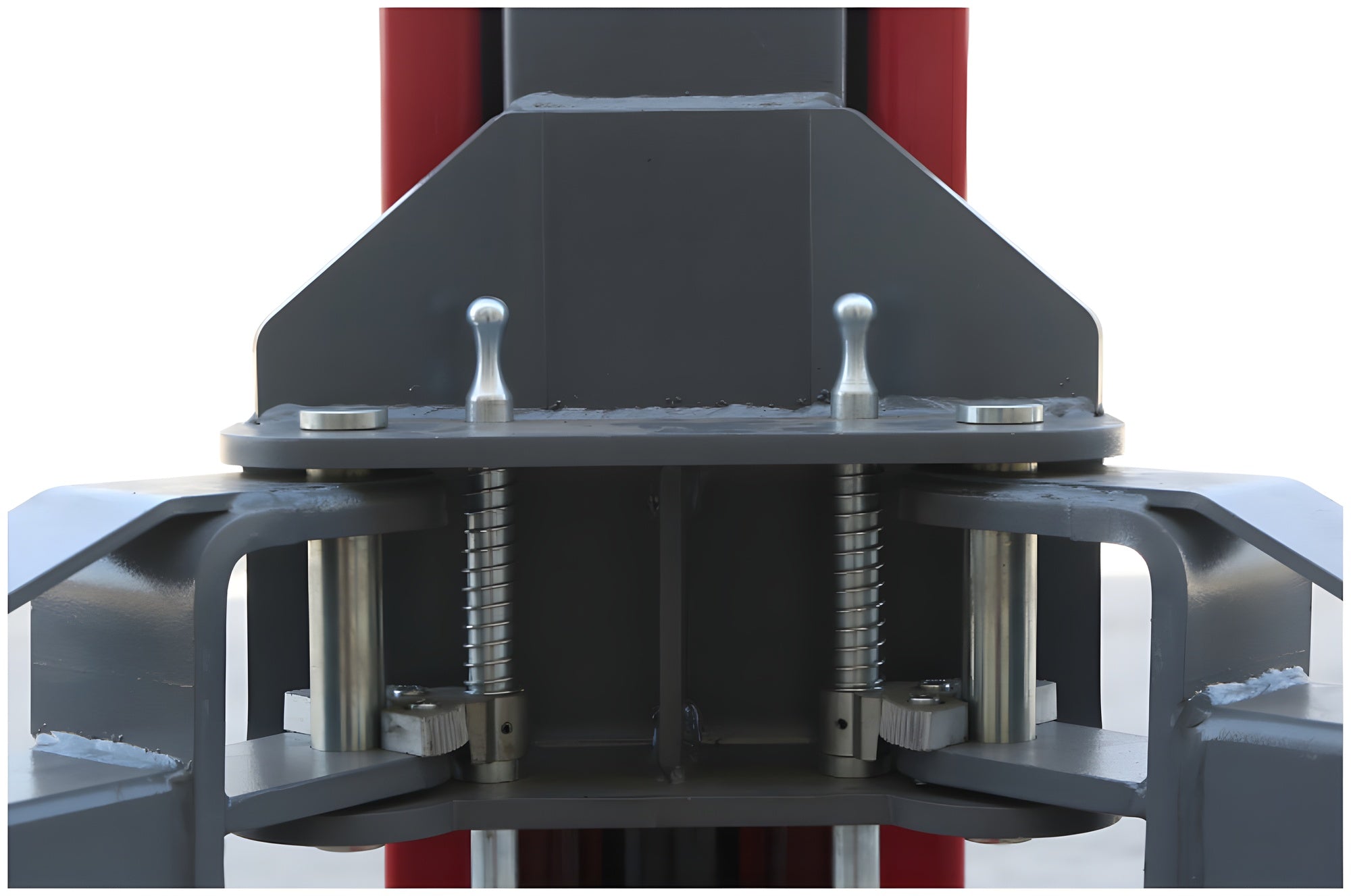

• Automatic arm restraints. Restraints engage the lifting arms during operation to hold arm position under load.
• Symmetric arm design. Balanced lifting geometry with flexible vehicle positioning.
• Extra-large column base plates. 18.5 x 15.36 inch plates, 0.63 inch thick, for a stable anchored footprint.
• 5/16-inch synchronization cables and large-diameter pulleys. Reduce cable stress and extend cable life.
• Self-lubricating nylon sliders. The carriages travel the columns with less friction and wear.
• Built-in hydraulic pressure relief valve. Protects the hydraulic system from excess pressure.

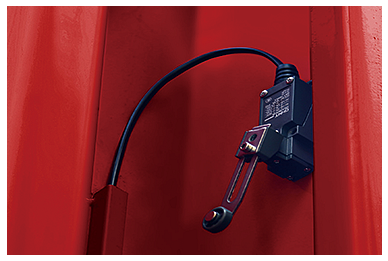

• Top limit switch. Stops upward travel automatically at maximum lift height.

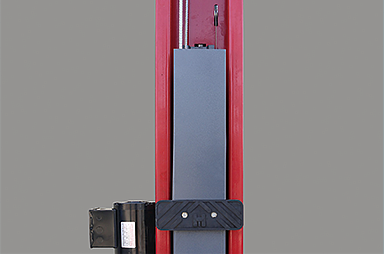

• Rubber door guards. Protect vehicle doors opened near the columns.

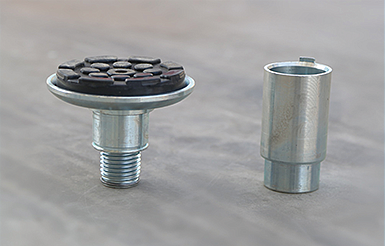

• Truck adapters included. Extra lifting height for trucks, SUVs, and other vehicles with higher lift points.

Fortisky lifts carry a 3-year structural warranty on the arms, columns, carriages, legs, cross rails, tracks, swivel pins, and uprights, plus a 2-year limited parts warranty covering any part found defective in materials or workmanship under normal use. Defective parts are replaced at no charge; on-site labor is not covered.

Normal-maintenance items and wear parts (cables, slider blocks, chains, rubber pads, pulleys) are excluded. After the first 30 days, repairs are handled with a seal kit and installation instructions rather than lift replacement. Inspect the lift for freight damage before signing the delivery receipt (freight damage is a carrier claim, not a warranty claim), and report any missing parts to us within 72 hours of delivery. The warranty applies to the original purchaser and requires installation, operation, and maintenance per Fortisky's specifications.

How much ceiling height does the FL-100GX need?

The lift itself stands 111 inches (9 feet 3 inches) tall. As a base-plate design there is no overhead beam, so your ceiling only needs to clear the raised vehicle: 75 inches of pad height plus the height of the tallest vehicle you plan to lift.

What power does it run on?

A 2.2 kW motor on 220-volt supply. A full lift takes about 50 to 60 seconds.

Is it symmetric or asymmetric?

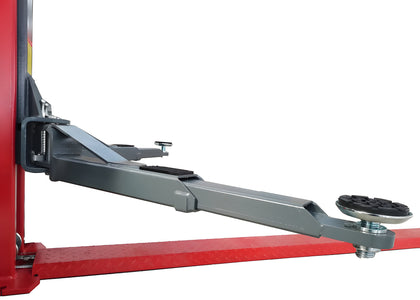

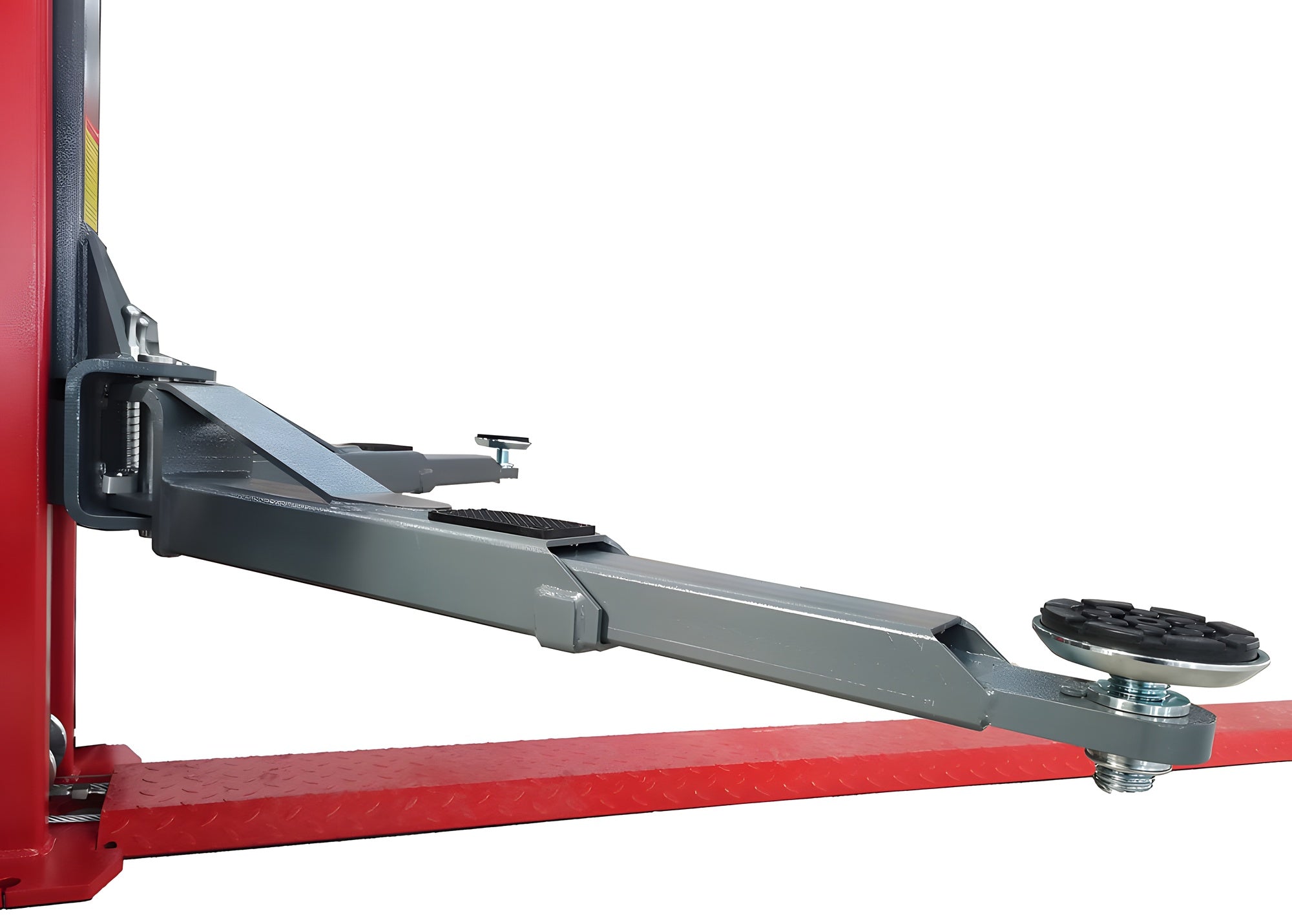

Symmetric. All four arms share the same geometry, reaching from 28.8 inches retracted to 41.4 inches extended, which keeps the vehicle centered between the columns.

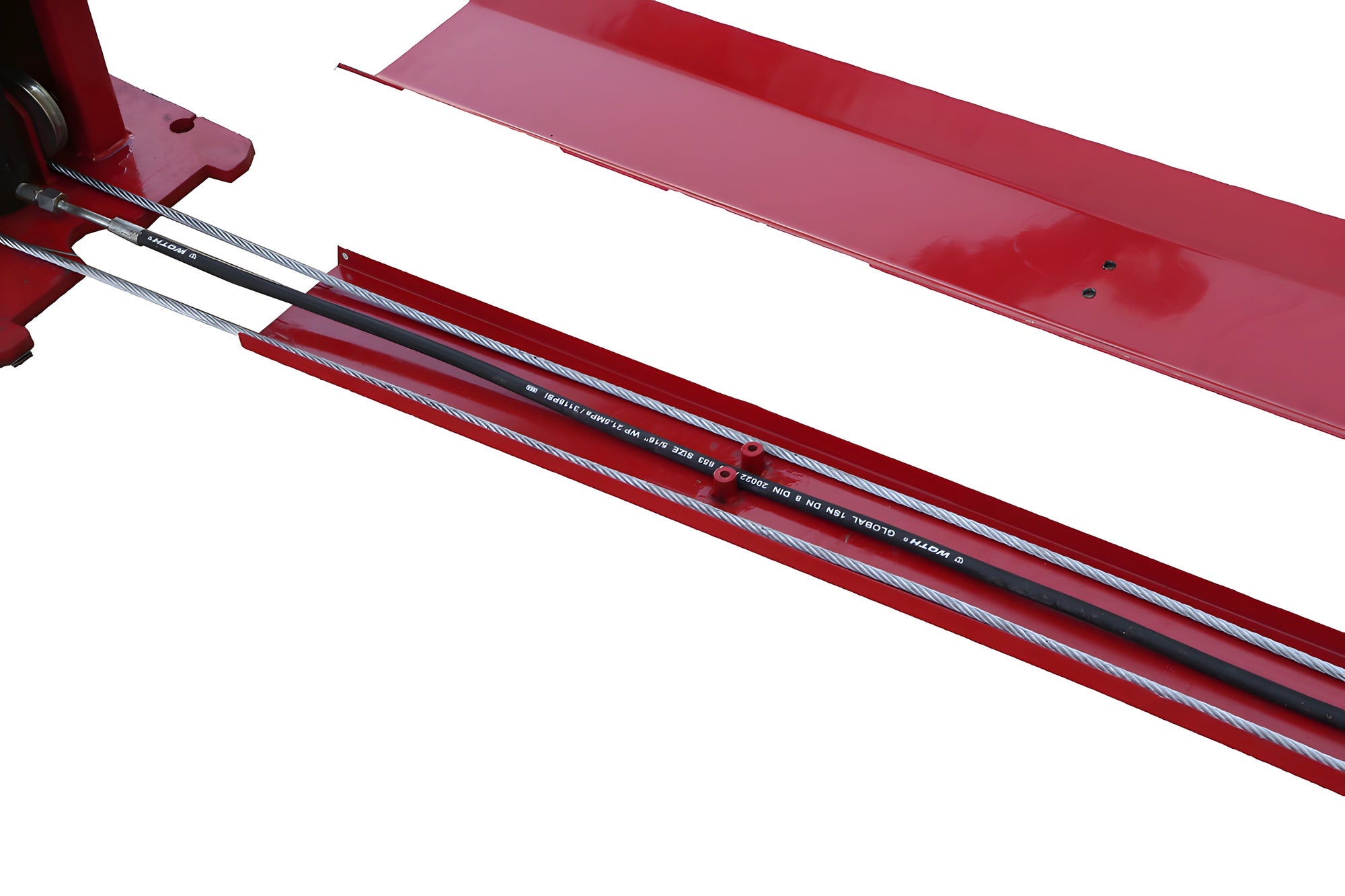

What is the floor plate between the columns for?

It carries the hydraulic line and the two equalizer cables from the power-unit column to the other side. Vehicles drive over it, and it removes the need for an overhead crossbeam.

How is it delivered?

The FL-100GX ships via freight, or you can pick it up at the warehouse. Choose the delivery option above; we contact you to schedule freight delivery.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
