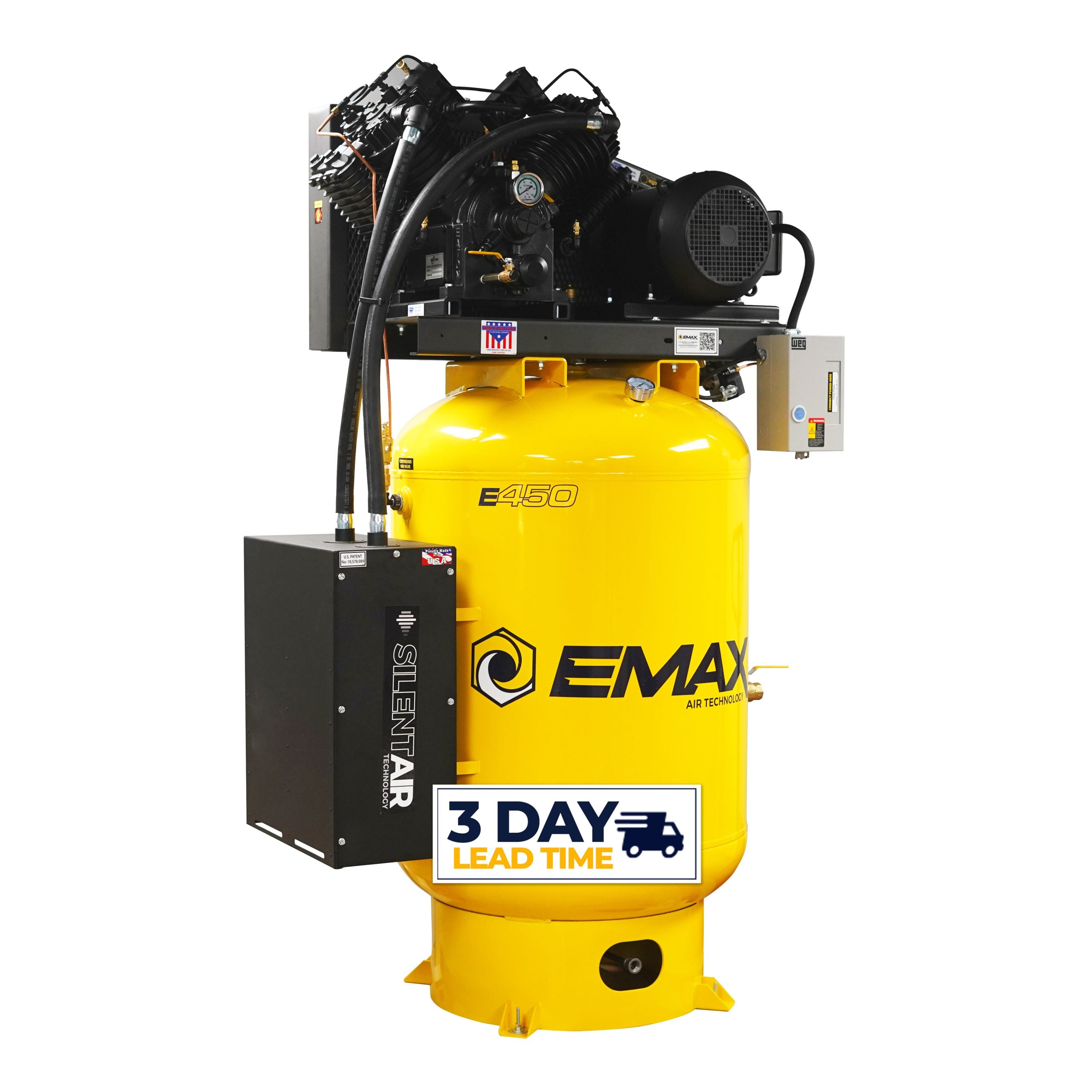

Silent Air Patented Noise Suppression
Intake noise is the loudest source of compressor sound, so the Silent Air silencer is engineered to suppress it at the source. The design uses noise-reducing baffle plates and high-capacity filter media, and is built to run at or below conversational volume — a design target of up to 50% quieter to the human ear, where each 10 dBA drop equals a halving of perceived loudness. Unlike enclosed cabinet systems, the silencer keeps the pump fully accessible for routine service.
Pressure-Lubricated Pump
A rear-mounted gear-driven oil pump generates positive oil pressure and delivers a continuous flow of oil to every bearing point, keeping bearings cool and extending pump life. The crankshaft and connecting rods are rifle-drilled (gun-drilled) for direct oil flow to high-friction wear points, an automotive-style spin-on oil filter keeps the oil clean, and a liquid-filled analog gauge lets the operator monitor oil pressure directly. Unlike splash-lubricated pumps, pressure lubrication places oil precisely where it is needed — the more effective method for high-stress, continuous-duty operation.
100% Cast Iron Construction
All major pump components are cast iron rather than aluminum, for durability and rigidity under high-duty-cycle compression: the crankcase, cylinder heads, cylinders, connecting rods, crankshaft, and high-pressure piston. There are no aluminum sleeves beneath the paint. The low-pressure pistons on this two-stage pump are aluminum by design, since they operate under low stress (around 45 PSI).
Cast Iron Flywheel
The Eaton-built pump uses a heavy-duty cast-iron flywheel whose added mass stores kinetic energy to reduce amp draw and overall energy use. The 10 HP pump runs a 20-inch flywheel with two B-style groove belts for a larger belt contact area and longer belt life, and the flywheel is cast with large cooling fins to pull heat off the pump.
Piston and Connecting Rod Design
The high-pressure pistons are cast iron to withstand heavy loads and resist cylinder scoring. The connecting rods are CNC-machined solid cast iron for maximum rigidity, with replaceable bearing inserts and wrist pins that make the rod assembly fully rebuildable rather than throw-away.
Each piston uses a four-ring design instead of three: two oil-control rings clear excess oil on the downstroke and two compression rings seal under compression to prevent blow-by. The rings are engineered to overlap, which maximizes sealing, reduces oil carryover, and extends ring life. A rifle-drilled oil port carries oil through the crankshaft and up the rod to the piston pin and bearing for continuous lubrication.
Oil Pump
The automotive-style gear oil pump pressurizes the crankshaft bearings and the upper connecting-rod assembly. A bleeder valve allows quick priming, an adjustable regulator sets oil pressure across the RPM range, the liquid-filled gauge gives clear readings during operation, and the spin-on filter removes debris to extend pump service life.
Disc Valves
The pump uses CNC-machined concentric-ring (disc) valves, precision surface-ground for sealing and long service life. Disc valves are more durable than the feather or reed valves used on many pumps, and service is simple — remove the retainer, lift out the valve for inspection, and reinstall within minutes. All valves are engineered to support an automatic head-unloader system.
Cast Iron Cylinder Heads
The cylinder heads are solid cast iron, not aluminum, for durability and rigidity under demanding conditions. Tapped holes provide superior thread strength, and the disc-valve design holds a secure head-gasket seal without retorquing.
Cast Iron Cylinders
The cylinders are CNC-machined cast iron with deep cooling fins to maximize cylinder cooling under high-duty-cycle operation. The precision bore holds concentricity to reduce oil carryover, deep-bored and threaded holes allow proper head torque, and every bore is precision-honed for easier break-in and longer ring life.
Continuous-Run Head Unloaders
Head unloaders are recommended for electric units running at 40% or higher duty cycle. They relieve the intake valve during operation, holding it open so the piston keeps cycling without compressing — this circulates cool air through the cylinder, reduces wear and heat, and protects the motor and magnetic starter by minimizing repeated starting under load.
Dual-Bolt Belt Tensioner
A dual-bolt belt tensioner makes belt adjustment precise and repeatable, holding proper alignment and tension to reduce wear and extend belt life. Pry bars are no longer needed to tension the belts.
Pump Riser
A pump-mounting-plate riser lifts the pump to allow 360-degree airflow from the flywheel across the oil reservoir and underneath the pump, for maximum cooling.
Automatic Tank Drain
A dual-timer electric auto drain expels moisture and condensate from the receiver tank automatically, with an adjustable interval from 1 to 45 minutes and an adjustable open duration. An air muffler is included for quiet draining.
