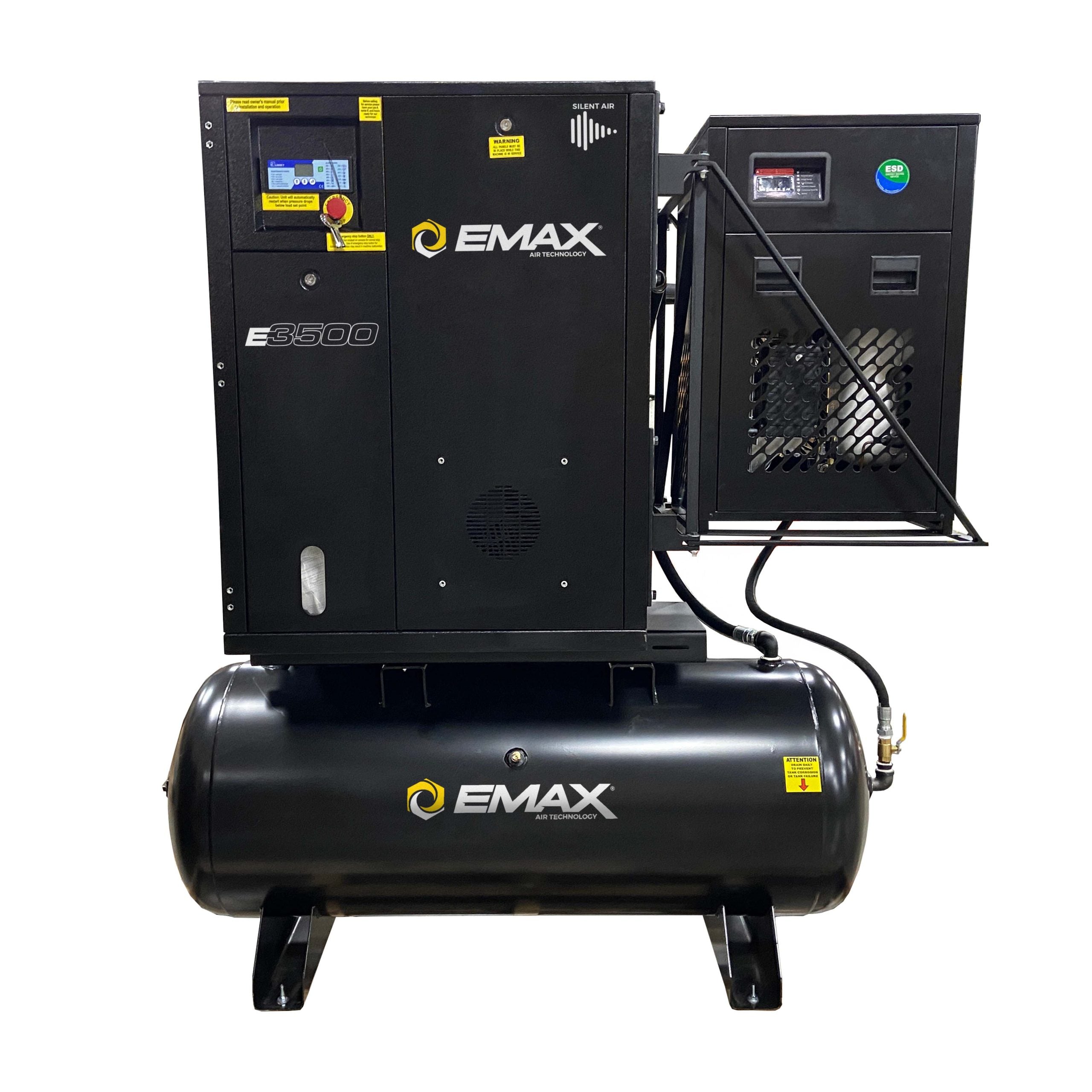

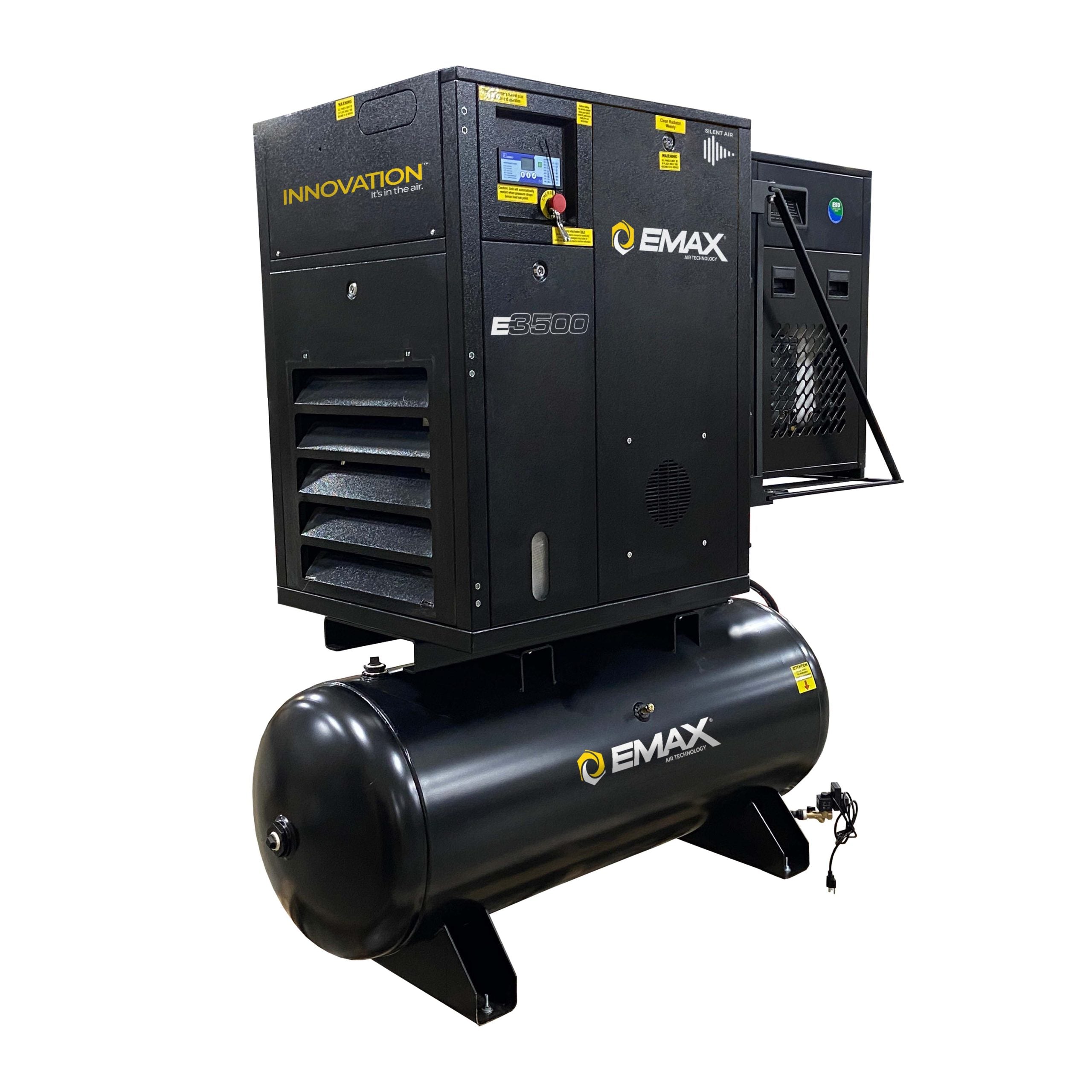

EMAX 10 HP 120-Gallon Single-Phase Rotary Screw Air Compressor with 58 CFM Refrigerated Dryer and Swing Arm — Matte Black, ERIK010001

The EMAX 10 HP rotary screw air compressor delivers a steady 45 CFM at 100 PSI from a single-phase, 230-volt circuit — no three-phase service required. Its oil-injected rotary screw air end is engineered for up to 100% duty cycle, so it runs through long production cycles instead of resting to cool down, and EMAX rates the air end for an estimated 60,000 hours of service life. Compressed air builds in a 120-gallon horizontal receiver tank finished in matte black, and an integrated refrigerated air dryer rated for up to 58 CFM — comfortably more than the compressor's output — pulls moisture out of the line before it reaches your tools.

Clean, dry air is built into the package. The refrigerated dryer mounts on a swing arm that hinges away from the compressor for service access, and a dual-timer electric auto drain clears condensate from the tank automatically on an adjustable cycle, so water never sits in the tank between uses. The system runs to a maximum of 145 PSI on a fixed-speed motor that holds a constant 1,750 RPM through every run cycle.

Oil-injected rotary screw air end

A rotary screw air end uses matched oil-injected male and female rotors to produce continuous, steady airflow rather than the pulsed delivery of a piston pump. It is engineered for up to 100% duty cycle, runs relatively quietly, and carries an estimated 60,000-hour service life at a maximum working pressure of 145 PSI.

Integrated refrigerated air dryer

The matched refrigerated dryer is rated for up to 58 CFM and chills the compressed air to condense out moisture before it travels downstream. A condenser cooling fan circulates ambient air across the dryer coil to shed the heat it pulls from the air stream, protecting tools, lines, and finishes from water carryover.

Swing-arm dryer mount

The dryer is mounted on a swing arm that hinges away from the compressor cabinet, opening up room around the unit for routine service and component access without disconnecting the dryer.

Dual-timer electric auto drain

An electric dual-timer auto drain expels water from the receiver tank on its own. Both the interval between drain cycles (adjustable from 1 to 45 minutes) and how long the drain stays open are adjustable, and an inline air muffler quiets the discharge.

Fixed-speed operation

The compressor operates at a constant speed and holds the same 1,750 RPM throughout every run cycle, giving predictable output without the added cost and complexity of variable-speed controls.

Multi-belt V-belt drive

A multi-belt V-belt drive using wider B- and C-width belts spreads the load across more surface area for better grip and lower belt tension. That reduces strain on the motor and compressor bearings and lowers noise and vibration, for a durable, low-maintenance drive built for thousands of hours of service.

• EMAX 10 HP single-stage rotary screw air compressor, belt drive
• 120-gallon horizontal receiver tank, matte black
• Integrated refrigerated air dryer rated to 58 CFM, on a swing-arm mount
• Dual-timer electric auto drain with air muffler
• Hydraulic connection hoses
• Factory break-in oil and filters

EMAX covers the compressor and the dryer separately.

Rotary screw compressor

The compressor carries a 1-year standard warranty against defects in materials and workmanship, covering the rotary screw pump and all components including the electric motor, with one year of warranty labor from an authorized technician. EMAX ships replacement parts with ground freight covered for the first 180 days.

Two upgrades are available by enrolling in EMAX's SMART OIL maintenance program: an Extended Warranty that raises coverage to 10 years on the rotary screw pump, 5 years on the single-phase motor, and 5 years on most other components; and a Limited Lifetime Warranty on the rotary screw pump (not prorated, no hour limit) through the SMART OIL auto-ship program. Both upgrades require using EMAX SMART OIL and filters on the published maintenance schedule.

Refrigerated dryer

The dryer carries a 1-year standard warranty on materials, workmanship, and parts, with one year of warranty labor, and can be extended to 3 years by registering and purchasing one Airbase dryer filter replacement kit per year along with the required routine maintenance.

What electrical service does it need?

It runs on 230V single-phase power and draws 38.3 full-load amps at a 1.15 service factor. EMAX recommends a 55-amp breaker. Because it is single-phase, you do not need three-phase service in the shop.

How does it remove moisture from the air?

Two ways. The integrated refrigerated dryer (rated to 58 CFM) condenses moisture out of the compressed air before it reaches your tools, and the dual-timer electric auto drain expels condensate from the tank automatically so water does not collect between uses.

Can it run continuously?

Yes. The oil-injected rotary screw air end is engineered for up to 100% duty cycle and is rated for an estimated 60,000 hours of service life, so it is built for shops that keep air flowing through the workday.

What maintenance and oil does it use?

The pump holds 1.33 gallons of oil. Each unit ships with factory break-in oil and filters that are changed at 600 hours; after that, EMAX calls for oil and filter changes annually or every 4,000 hours, whichever comes first. Staying on EMAX's SMART OIL program with genuine oil and filters is what qualifies the compressor for the extended and limited-lifetime warranty tiers.

How does it ship?

It ships freight on a pallet. Crated, it weighs 1,455 lbs and measures 84 in L × 47 in W × 77 in H, so a forklift or a liftgate-equipped truck is needed to receive it. Contact MGS at sales@mygaragesupplies.com or 307-381-1810 to schedule freight delivery.
