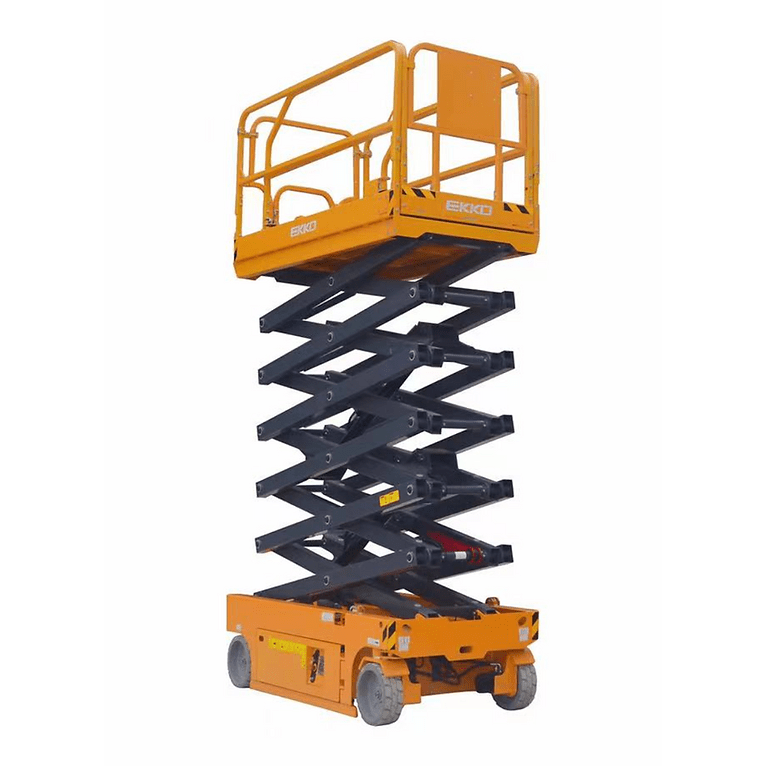

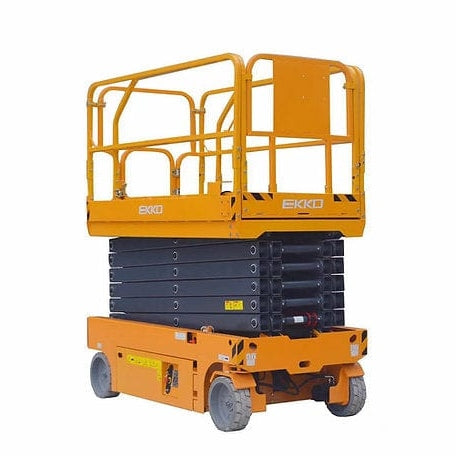

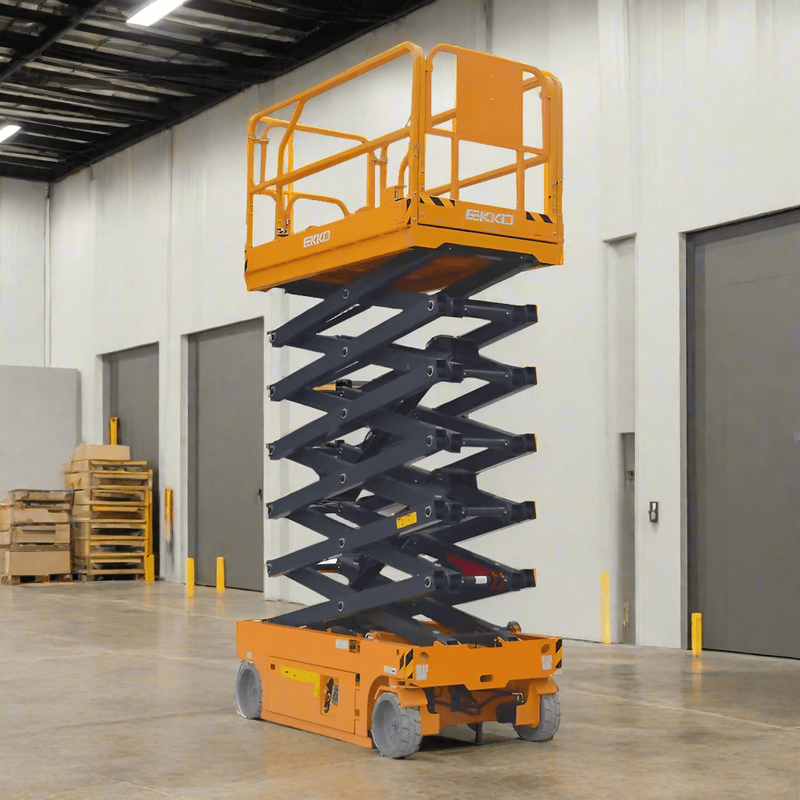

The EKKO ES80E Scissor Aerial Work Platform is a 990-lb compact platform with four wheels and a Curtis controller allowing you to lift, transport loads, and move products easily and safely. This product also complies with GB25849 and EN280 standards.
-Load Capacity 990 lb
-Raised Height 26.2' (315")
-Lowered Height 90.6''
-Size: Length 89" x Width 45"
-Steel construction
-3 Years Limited Warranty
Specifications
ES80E | ||
product dimensions | ||

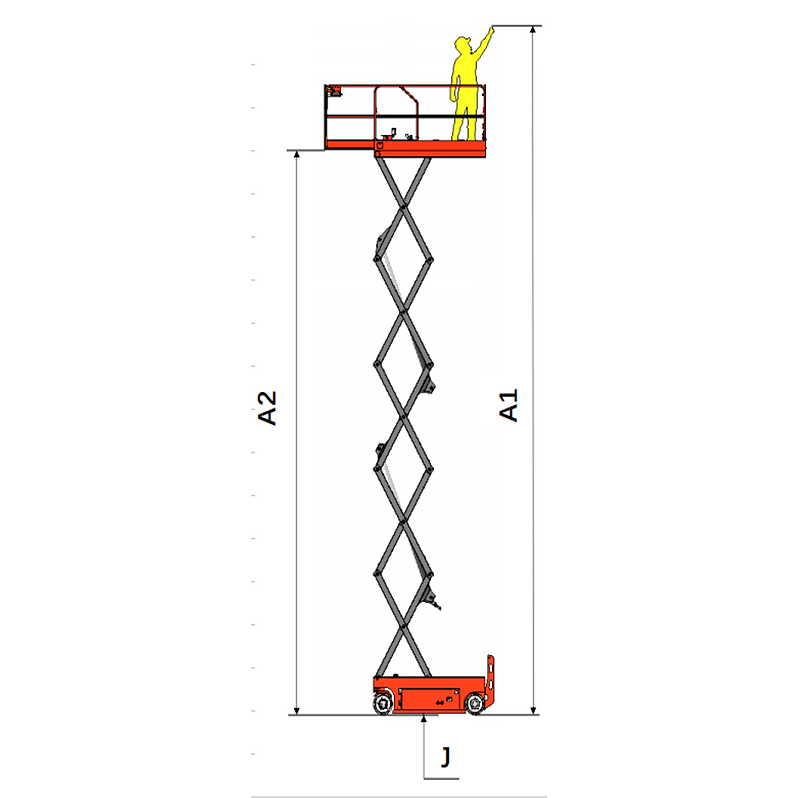

A1 Max working height | Inch | 32.8' (394'') |
A2 Max platform height | Inch | 26.2' (315'') |

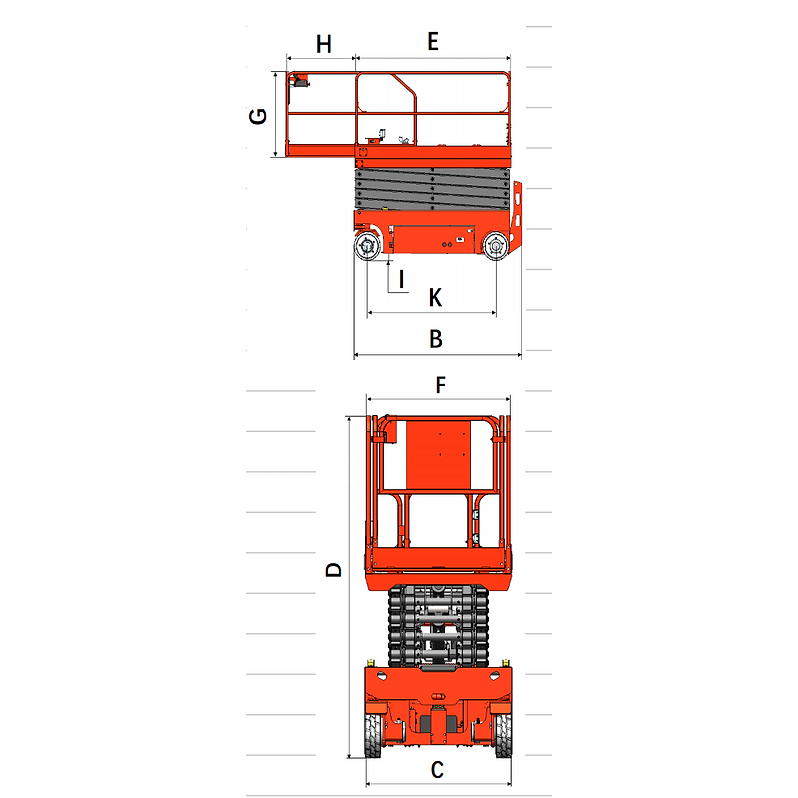

B Length | Inch | 94.5 |
C Width | Inch | 45.27 |
D Overall height (guardrail not folded) | Inch | 91.5 |
Overall height (folding guardrail) | Inch | 67 |
Platform size (length EX width FX height G) | Inch | 88.58x45.27 |
G Guardrail height | Inch | 43.3 |
H Platform extension size | Inch | 39.37 |
I Ground clearance (closed state) | Inch | 3.74 |
J Ground clearance (lifting state) | Inch | 0.78 |
K Wheelbase | Inch | 72.83 |
product performance | ||
Maximum number of workers (indoor/outdoor) | 2 / 1 | |
load rating | LBS | 990 |
Extended platform load rating | LBS | 265 |
Driving speed (folding state) | km/h | 0-3.2 |
Driving speed (lifting condition) | km/h | 0~0.8 |
Minimum Turning radius (inside) | Inch | 0 |
Minimum turning radius (outside) | Inch | 86.61 |
Rise/fall time | s | 32/35 |
Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
Maximum allowable wind speed (indoor/outdoor) | m/s | 0/12.5 |
Maximum allowable lateral force (indoor/outdoor) | N | 400/200 |
Gradeability | % | 30 |
control | proportional control | |
actuator | Double front wheels | |
braking | Double rear wheels | |
Tyre specification/type | Inch | 15*5 |
Product power | ||
Lift/drive motor | kw | 3.3/0.7x2 |
Battery voltage/capacity | V/Ah | 6x4/225 |
Charger input voltage | VAC | 100-240 |
Charger output current | A | 36 |
control voltage | VDC | 24 |
Hydraulic tank capacity | L | 22 |
total weight | lbs | 5412 |
