EKKO ES60E Aerial Work Platform Lift Height 19' (228'')

SKU ES60E
Save 5% Save 5%
Original price $19,999.00
Original price $19,999.00 - Original price $19,999.00
Original price $19,999.00
Current price $18,999.05
$18,999.05 - $18,999.05
Current price $18,999.05
Availability:
in stock, leaves warehouse in 24hrs
Free Shipping. Authorized Dealer. Lowest Prices Guaranteed.

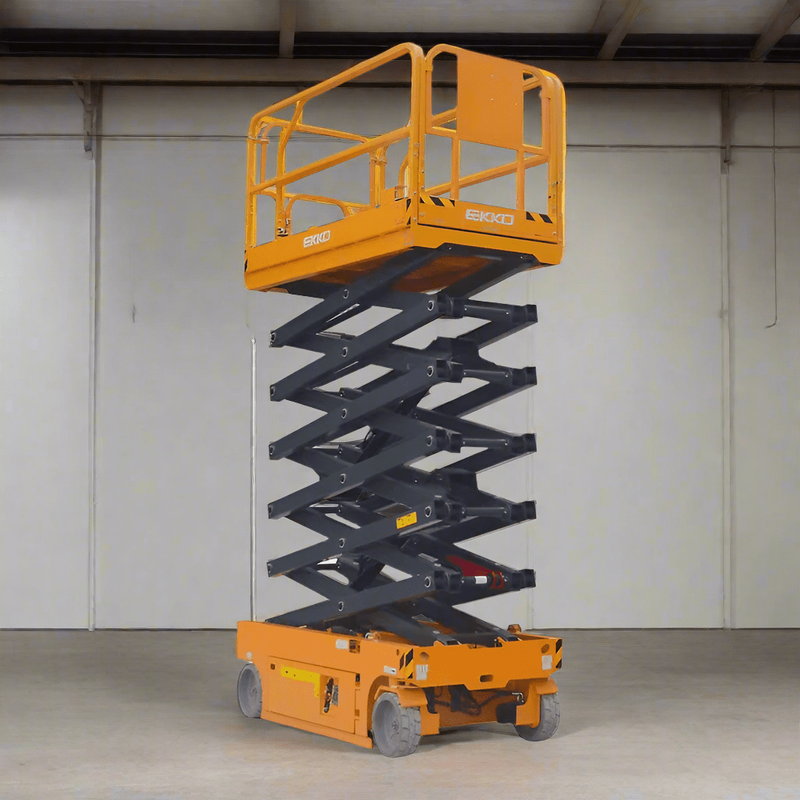

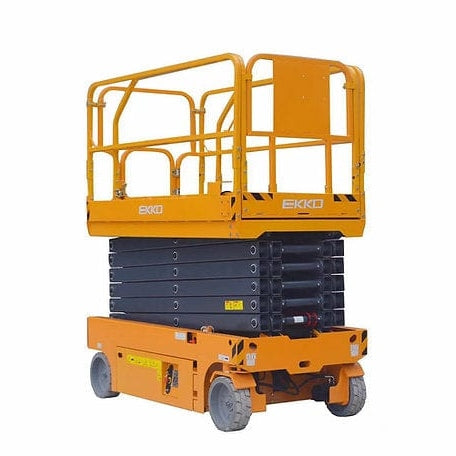

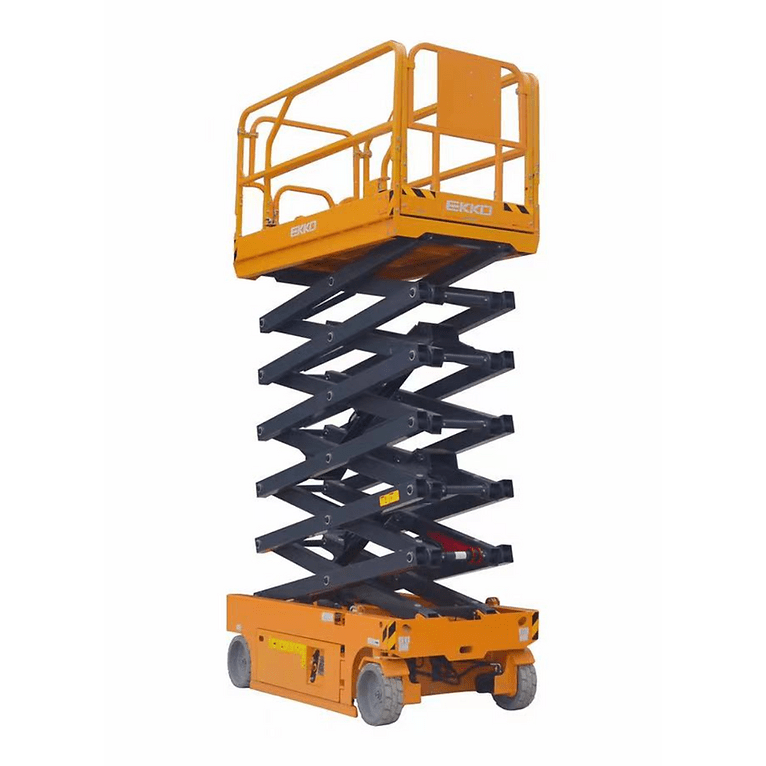

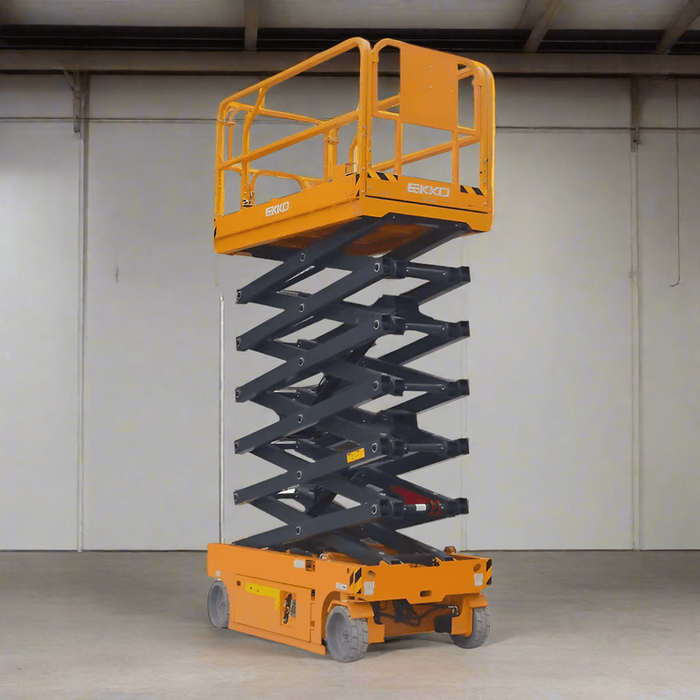

The EKKO ES60E Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 500 lb

-Raised Height 19' (228")

-Lowered Height 86''

-Size: Length 65" x Width 30"

-Steel construction

-3 Years Limited Warranty

Specifications

  ES60E

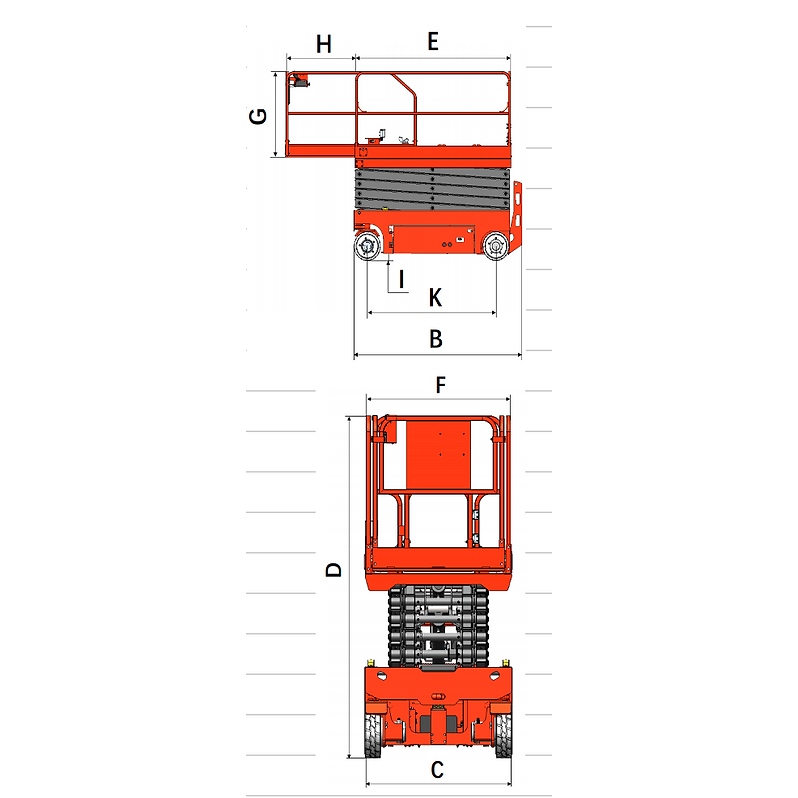

product dimensions

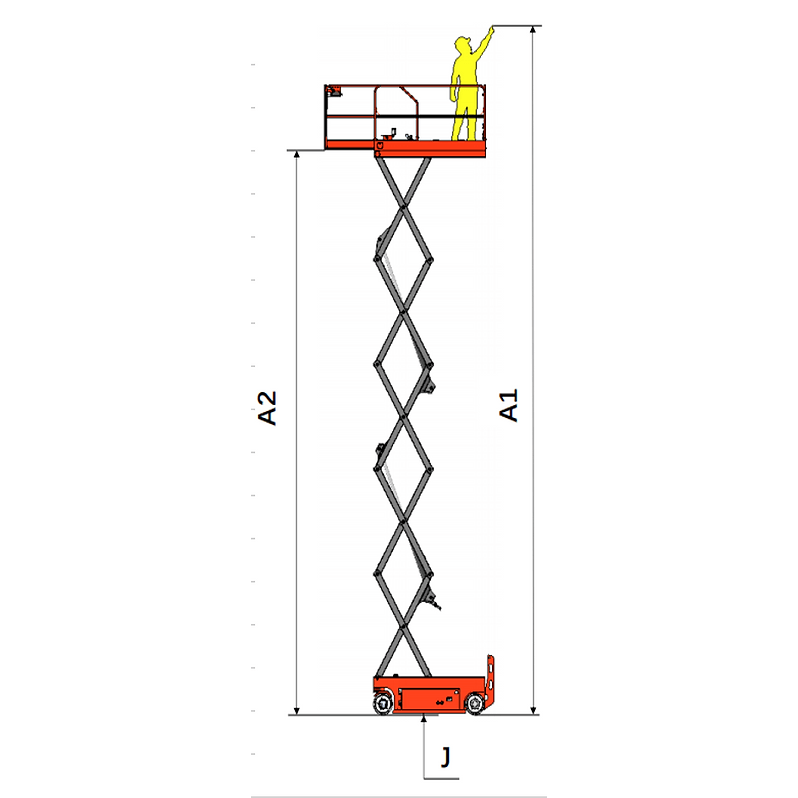

A1 Max working height  Inch 25.5' (307'')
A2 Max platform height Inch 19' (228'')
B Length Inch 72.44
C Width Inch 29.92
D  Overall height (guardrail not folded)  Inch 85.75
Overall height (folding guardrail)  Inch 65
Platform size (length EX width FX height G)  Inch 64.96x29.92
G Guardrail height Inch 43.31
H Platform extension size  Inch 35.43
 I Ground clearance (closed state)  Inch 2.36
J  Ground clearance (lifting state)  Inch 0.59
 K Wheelbase  Inch 1.36
 product performance
Maximum number of workers (indoor/outdoor)   2 / –
 load rating  LBS 506
Extended platform load rating LBS 264
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 61
Rise/fall time s 18/28
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
control   proportional control
actuator   Double front wheels
braking    Double rear wheels
 Tyre specification/type Inch 12.71*3.93
Product power
Lift/drive motor kw 2.2/0.7x2
Battery voltage/capacity V/Ah 6x4/225
Charger input voltage VAC 100-240
Charger output current A 36
control voltage VDC 24
Hydraulic tank capacity L 8
total weight  lbs 3256
