EKKO ES40E-Li Aerial Work Platform Lift Height 13' (157'')

SKU ES40E-LI
You save: 5% ($699.95) You save: 5%
Original price $13,999.00
Original price $13,999.00 - Original price $13,999.00
Original price $13,999.00
Current price $13,299.05
$13,299.05 - $13,299.05
Current price $13,299.05
Availability:
in stock, leaves warehouse in 24hrs
BLACK FRIDAY: 5% Applied At Checkout
Black Friday is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings while they last.

Description

-

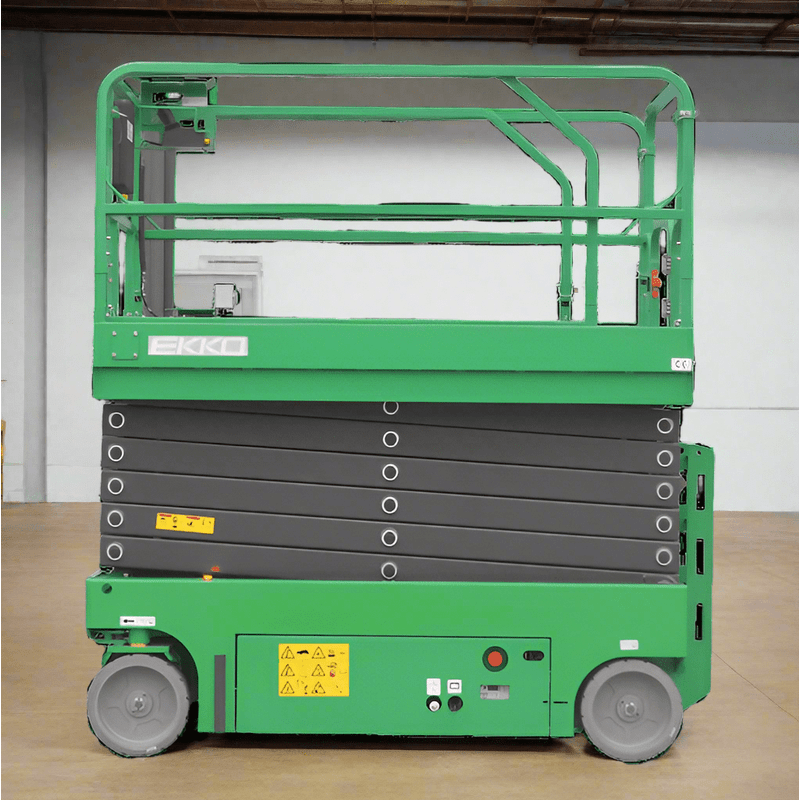

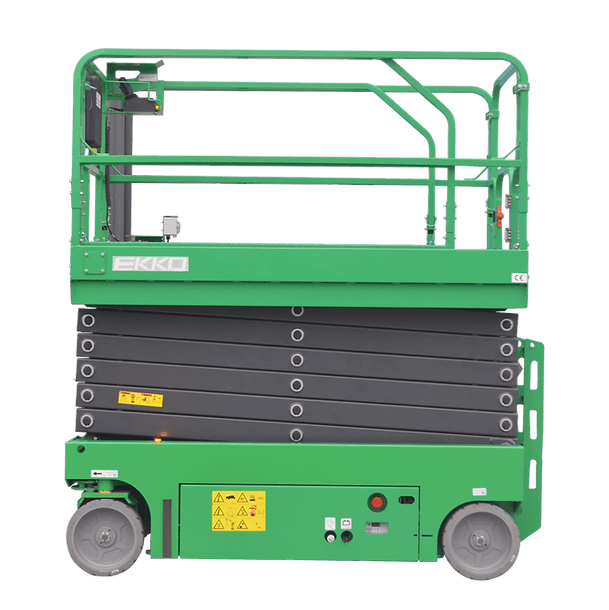

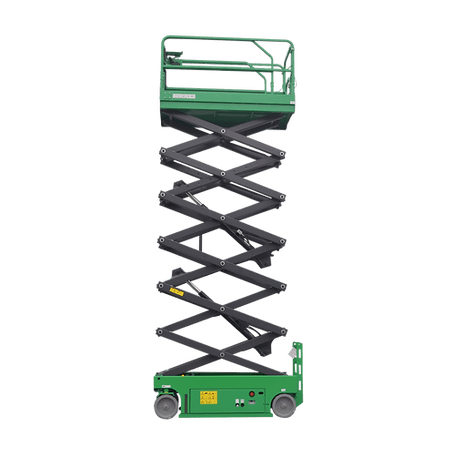

The EKKO ES40E-Li Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 500 lb

-Raised Height 13' (157")

-Lowered Height 77''

-Size: Length 57" x Width 30"

-Steel construction

-3 Years Limited Warranty

Specifications

? ES40E-Li

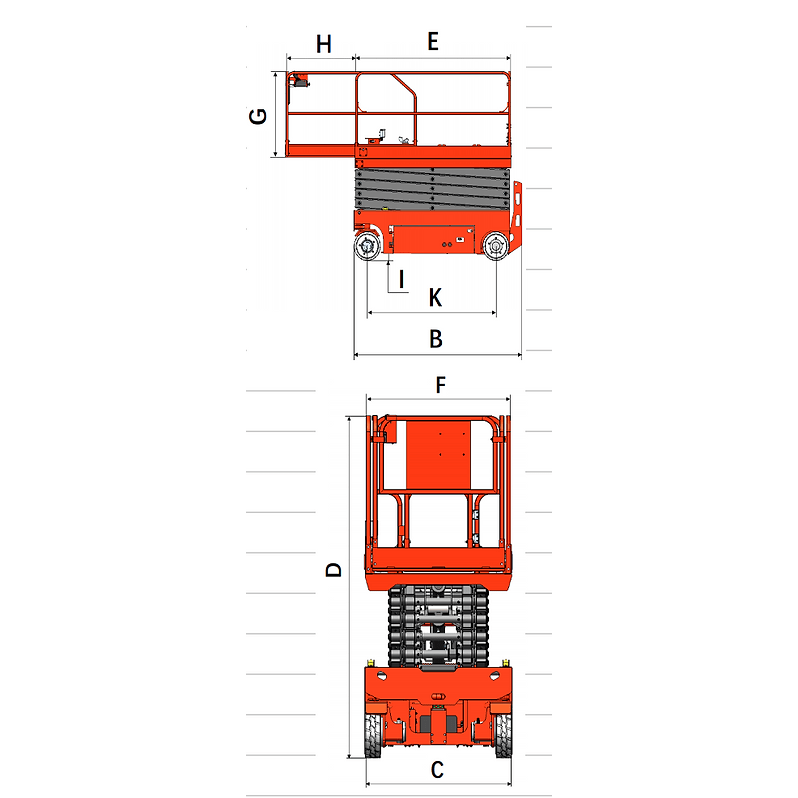

product dimensions ? ?

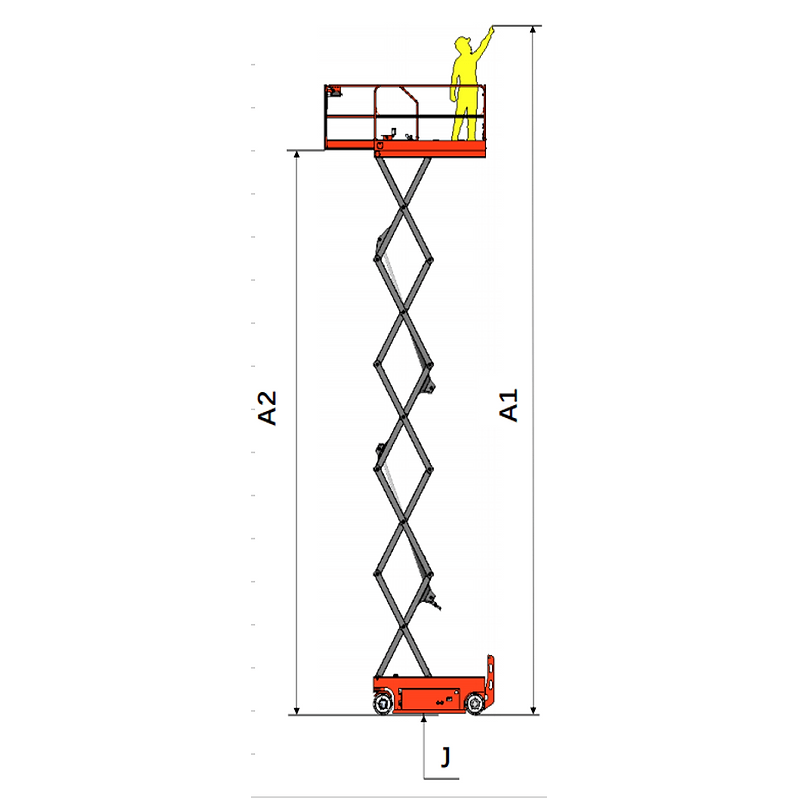

A1 Max working height Inch 19.7' (236.2'')
A2 Max platform height Inch 13' (157'')
B Length Inch 57.1
C Width Inch 29.9
D Overall height (guardrail not folded) Inch 76.8
Overall height (folding guardrail) Inch 63
Platform size (length EX width FX height G) Inch 50.4*29.1
G Guardrail height Inch 43.3
H Platform extension size Inch 23.6
I Ground clearance (closed state) Inch 2.36
J Ground clearance (lifting state) Inch 0.59
K Wheelbase Inch 40.6
product performance ? ?
Maximum number of workers (indoor/outdoor) ? 2 /
load rating LBS 500
Extended platform load rating LBS 220
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 61
Rise/fall time s 25/25
Maximum allowable tilting Angle (front/left/right) 3/1.5
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 25
control proportional control
actuator ? Dual front wheels
braking Double front wheels
Tyre specification/type Inch 9*3.1
Product power ? ?
Lift/drive motor kw 1.2/0.4*2
Battery voltage/capacity V/Ah 25.6V/75AH
Charger input voltage VAC 100-240
Charger output current A 10
control voltage VDC 24
Hydraulic tank capacity L 3
total weight lbs 2046
