EKKO ES120E-LI Aerial Work Platform Lift Height 39' (468'')

SKU ES120E-LI
You save: 5% ($1,549.95) You save: 5%
Original price $30,999.00
Original price $30,999.00 - Original price $30,999.00
Original price $30,999.00
Current price $29,449.05
$29,449.05 - $29,449.05
Current price $29,449.05
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Description

-

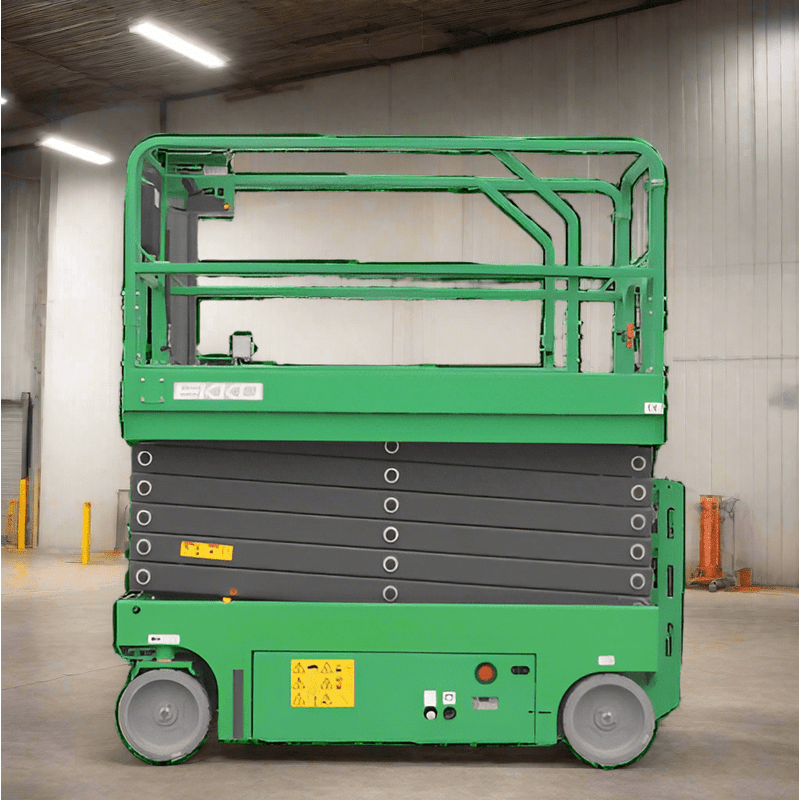

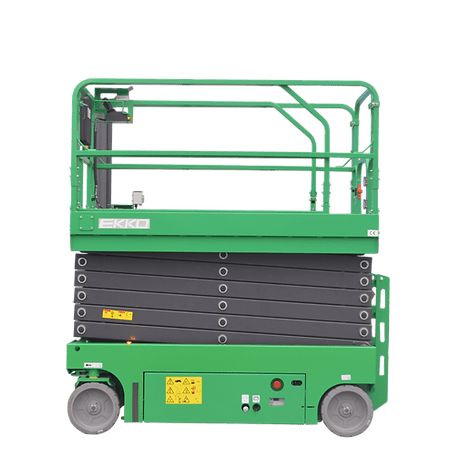

The EKKO ES120E-LI Scissor Aerial Work Platform is a 700-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 700 lb

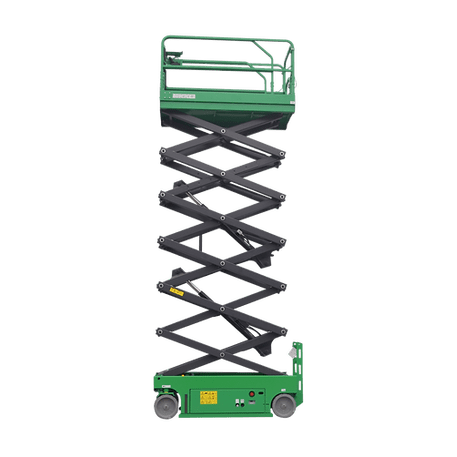

-Raised Height 39' (468'')

-Lowered Height 102.36''

-Size: Length 89" x Width 45"

-Steel construction

-3 Years Limited Warranty

Specifications

? ? ES120E-LI

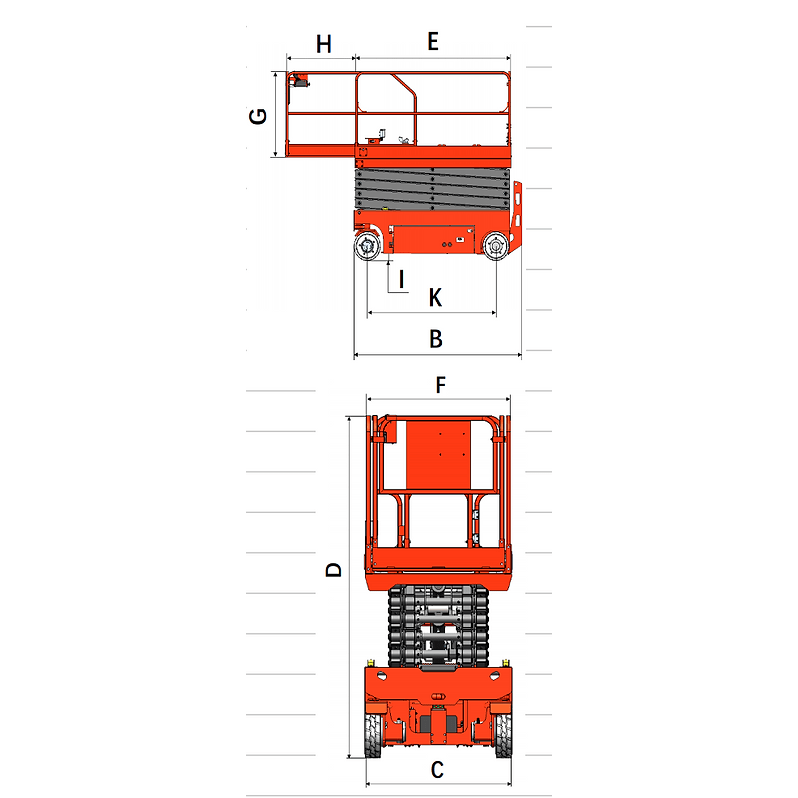

product dimensions ? ?

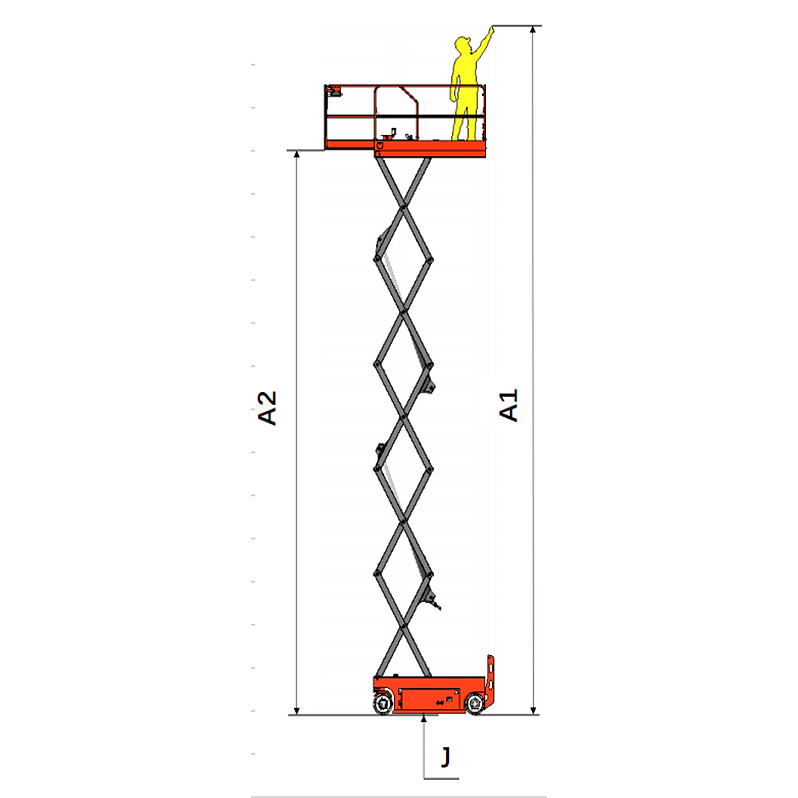

A1 Max working height Inch 45' (547'')
A2 Max platform height Inch 39' (468'')
B Length Inch 94.5
C Width Inch 45.27
D Overall height (guardrail not folded) Inch 102"
Overall height (folding guardrail) Inch 77"
Platform size (length EX width FX height G) Inch 88.58x45.27
G Guardrail height Inch 43.3
H Platform extension size Inch 39.37
I Ground clearance (closed state) Inch 3.74
J Ground clearance (lifting state) Inch 0.78
K Wheelbase Inch 72.83
product performance ? ?
Maximum number of workers (indoor/outdoor) ? 2 / -
load rating LBS 700
Extended platform load rating LBS 265
Driving speed (folding state) km/h 0-3.2
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 86.61
Rise/fall time s 52/52
Maximum allowable tilting Angle (front/left/right) 3/1.5
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
control proportional control
actuator ? Double front wheels
braking Double rear wheels
Tyre specification/type Inch 15*5
Product power ? ?
Lift/drive motor kw 3.3/0.7x2
Battery voltage/capacity V/Ah 25.6V/230AH
Charger input voltage VAC 25.6V
Charger output current A 36
control voltage VDC 24
Hydraulic tank capacity L 22
total weight lbs 6490
