EKKO ES100E-LI Aerial Work Platform Lift Height 32.8' (394'')

SKU ES100E-LI
Save 5% Save 5%
Original price $28,999.00
Original price $28,999.00 - Original price $28,999.00
Original price $28,999.00
Current price $27,549.05
$27,549.05 - $27,549.05
Current price $27,549.05
Availability:
in stock, leaves warehouse in 24hrs
Free Shipping. Authorized Dealer. Lowest Prices Guaranteed.

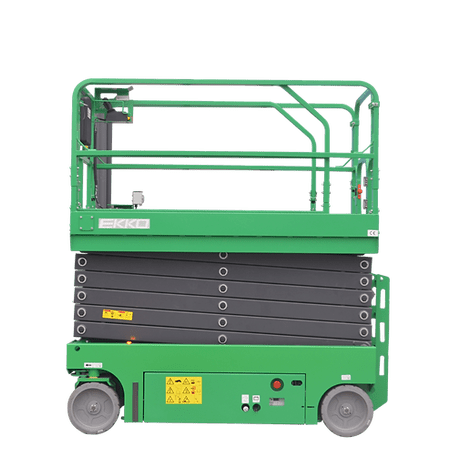

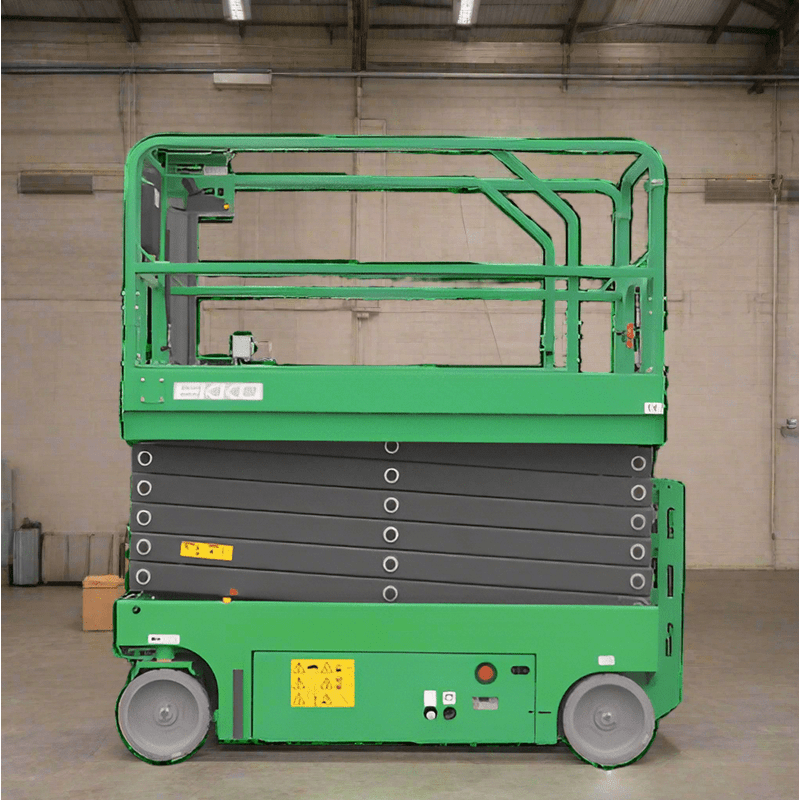

The EKKO ES100E-LI Scissor Aerial Work Platform is a 700-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

-Load Capacity 700 lb

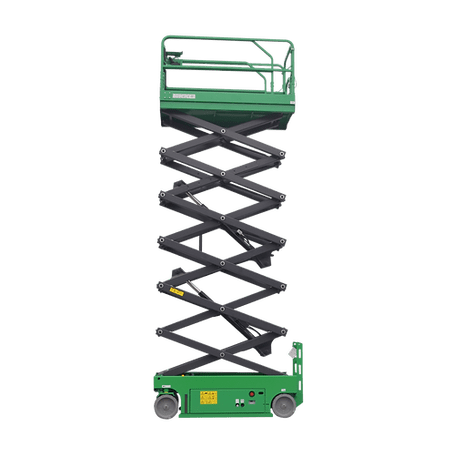

-Raised Height 32.8' (394")

-Lowered Height 96.85''

-Size: Length 89" x Width 45"

-Steel construction

-3 Years Limited Warranty

Specifications

  ES100E-LI

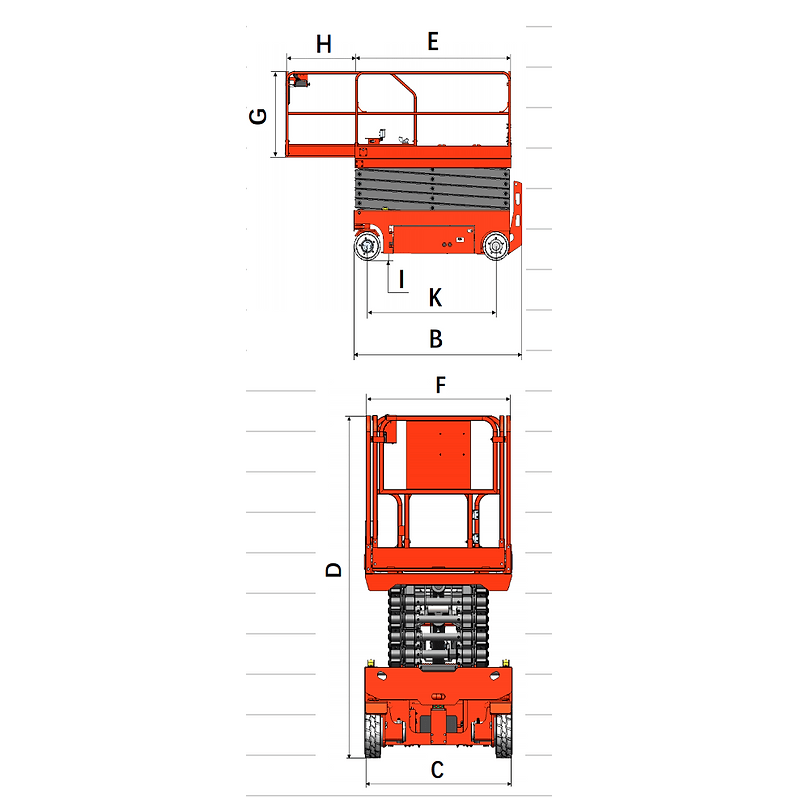

product dimensions

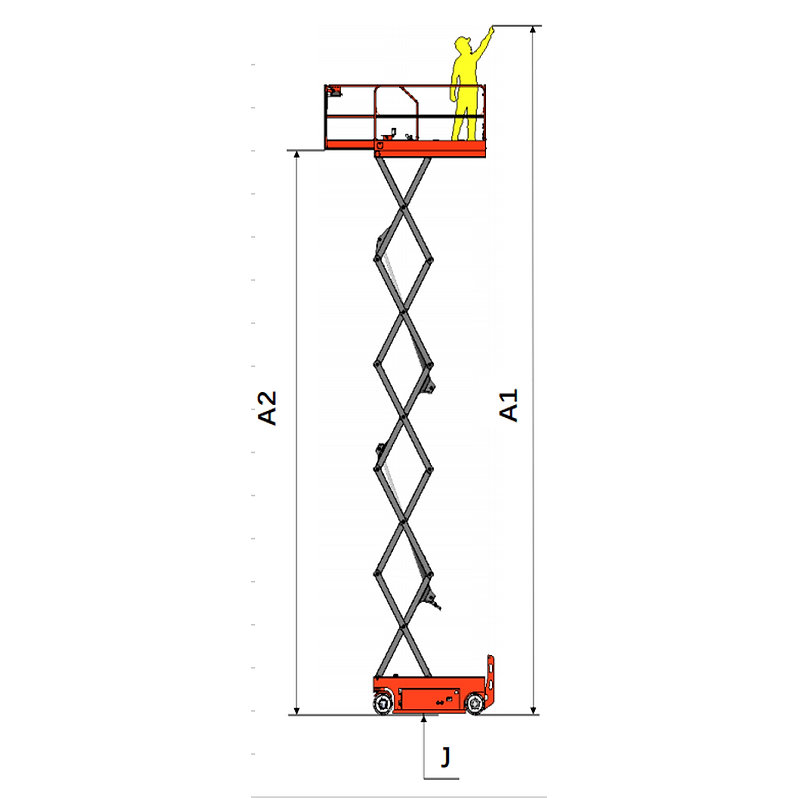

A1 Max working height  Inch 39' (472'')
A2 Max platform height Inch 32.8' (394'')
B Length Inch 94.5
C Width Inch 45.27
D  Overall height (guardrail not folded)  Inch 96"
Overall height (folding guardrail)  Inch 72"
Platform size (length EX width FX height G)  Inch 88.58x45.27
G Guardrail height Inch 43.3
H Platform extension size  Inch 39.37
 I Ground clearance (closed state)  Inch 3.74
J  Ground clearance (lifting state)  Inch 0.78
 K Wheelbase  Inch 72.83
 product performance
Maximum number of workers (indoor/outdoor)   2 / 1
 load rating  LBS 700
Extended platform load rating LBS 265
Driving speed (folding state) km/h 0-3.2
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 86.61
Rise/fall time s 52/48
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/12.5
Maximum allowable lateral force (indoor/outdoor) N 400/200
Gradeability % 30
control   proportional control
actuator   Double front wheels
braking    Double rear wheels
 Tyre specification/type Inch 15*5
Product power
Lift/drive motor kw 3.3/0.7x2
Battery voltage/capacity V/Ah 25.6V/230AH
Charger input voltage VAC 25.6V
Charger output current A 36A
control voltage VDC 24
Hydraulic tank capacity L 22
total weight  lbs 6304
