Overview

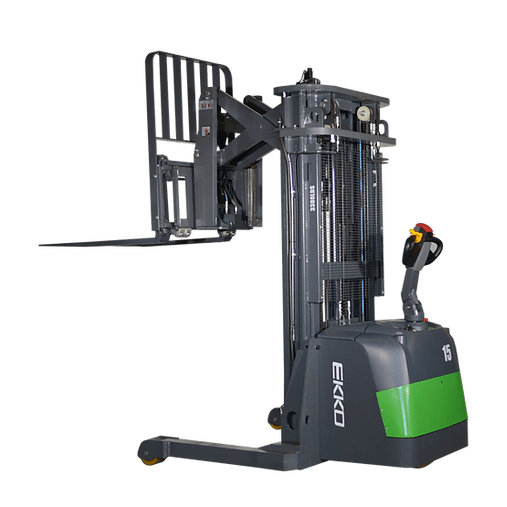

-The EKKO ER15-177Li Walkie Reach Truck combines the functionality of a forklift, reach truck, and walkie stacker into one versatile solution. It is designed to streamline material handling operations, making it ideal for applications such as loading and unloading trucks, managing loading docks, organizing stock rooms, and operating on manufacturing floors or in warehouses.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
Key Features
-- Load Capacity: 3,300 lbs
- Lift Height: 177" (14.75 ft)
- Reach Distance: 19.7"
- Side Shift: Included for enhanced maneuverability
- Tilt: Improved control for precision handling
- Free Lift: 60.2"
- Fork Length: 45.3"
- Controller: Curtis Instrument Controller
- Steering: EPS (Electronic Power Steering)
- Drive Motor: 24V AC
- Lift Motor: 24V, 4.5 KW
- Battery: 24V/200Ah Lithium
- Tires: Polyurethane for smooth operations
- Ergonomics: Ergonomic handle and controls for operator comfort
- Construction: High-quality steel with robotic welding
- Charger: Included (24V/50A)
- Batteries Included
Specifications
-Model | ER15-177Li | |
Lift | Electric | |
Drive | Electric | |
Load Capacity | (lb) | 3,300 |
Load Center Distance | (in) | 24 |
Lifting Height | (in) | 177 |
Side Shift | Y | |
Lowered Mast Height | (in) | 82.3 |
Overall Length | (in) | 86.6 |
Overall Width (Body/Legs) | (in) | 32.3/59.1 |
Fork Size (Thick/Width/Length) | (in) | 1.38/3.9/45.3 |
Fork Width | (in) | 32.2 |
Reach Distance | (in) | 19.7 |
Turning Radius | (in) | 63.4 |
Charger | (V/A) | 24V/50A |
Driving Motor | (KW) | AC 1.5 |
EPS Steering Motor | AC Speed Control | |
Lifting Motor | (KW) | 4.5 |
Battery Voltage | (V/Ah) | 24V/200Ah Lithium |
Service Weight | (lb) | 4,565 |
