Overview
-The EKKO ER15-138Li Walkie Reach Truck combines the versatility of a forklift, reach truck, and a walkie stacker. It is ideal for a wide range of material handling tasks, including loading and unloading trucks, working on loading docks, stock rooms, manufacturing floors, and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
Key Features
-- Load Capacity: 3,300 lbs
- Lift Height: 138" (11.5 ft)
- Reach Distance: 19.7"
- Side Shift: Included for precision
- Tilt: Enhanced control for handling
- Fork Length: 45.3"
- Controller: Curtis Instrument Controller
- Steering: EPS (Electronic Power Steering)
- Drive Motor: 24V AC
- Lift Motor: 24V, 4.5 KW
- Battery: 24V/200Ah Lithium
- Tires: Polyurethane Wheels for smooth operations

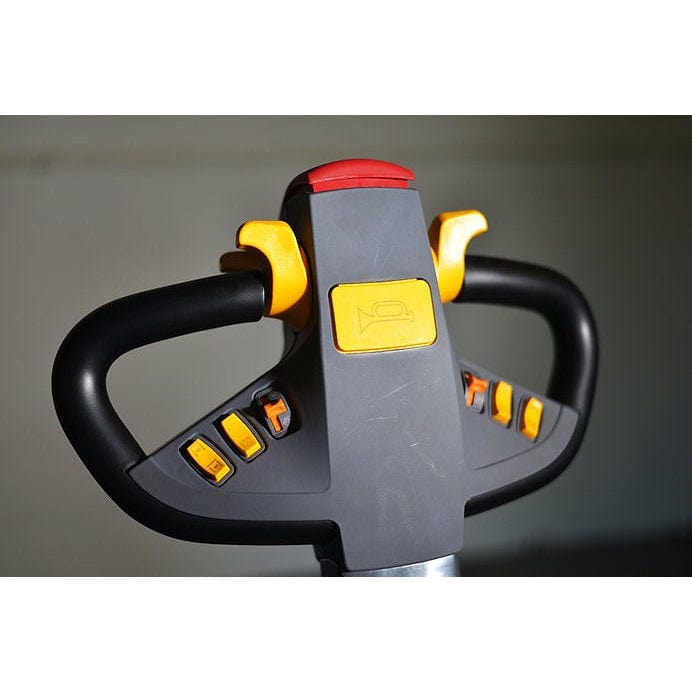

- Ergonomics: Ergonomic handle and controls
- Construction: High-quality steel with robotic welding
- Charger: Included (24V/50A)
- Weight: 3,780 lbs
Specifications
-Model | ER15-138Li | |
Lift | Electric | |
Drive | Electric | |
Load Capacity | (lb) | 3,300 |
Load Center Distance | (in) | 24 |
Lifting Height | (in) | 138 |
Side Shift | Y | |
Lowered Mast Height | (in) | 92.9 |
Overall Length | (in) | 86.6 |
Overall Width (Body/Legs) | (in) | 32.3/59.1 |
Fork Size (Thick/Width/Length) | (in) | 1.38/3.9/45.3 |
Fork Width | (in) | 32.2 |
Reach Distance | (in) | 19.7 |
Turning Radius | (in) | 63.4 |
Charger | (V/A) | 24V/50A |
Driving Motor | (KW) | AC 1.5 |
EPS Steering Motor | AC Speed Control | |
Lifting Motor | (KW) | 4.5 |
Battery Voltage | (V/Ah) | 24V/200Ah Lithium |
Service Weight | (lb) | 3,780 |
