EKKO EPF15LI Pallet Jack 3300 lb Capacity

SKU EPF15LI
You save: 5% ($119.95) You save: 5%
Original price $2,399.00
Original price $2,399.00 - Original price $2,399.00
Original price $2,399.00
Current price $2,279.05
$2,279.05 - $2,279.05
Current price $2,279.05
Availability:
in stock, leaves warehouse in 24hrs
BLACK FRIDAY: 5% Applied At Checkout
Black Friday is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings while they last.

Description

-

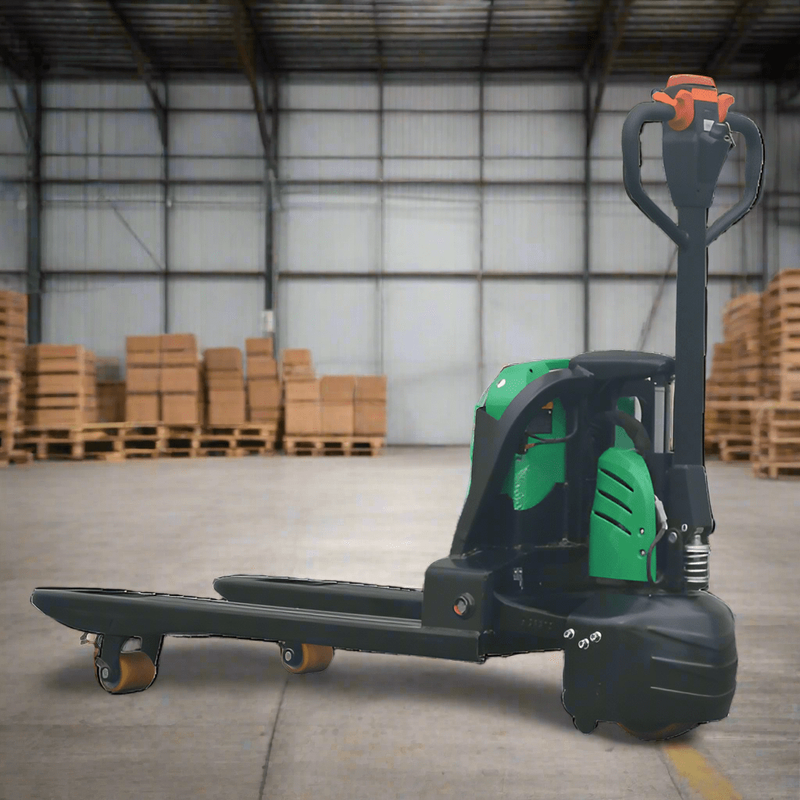

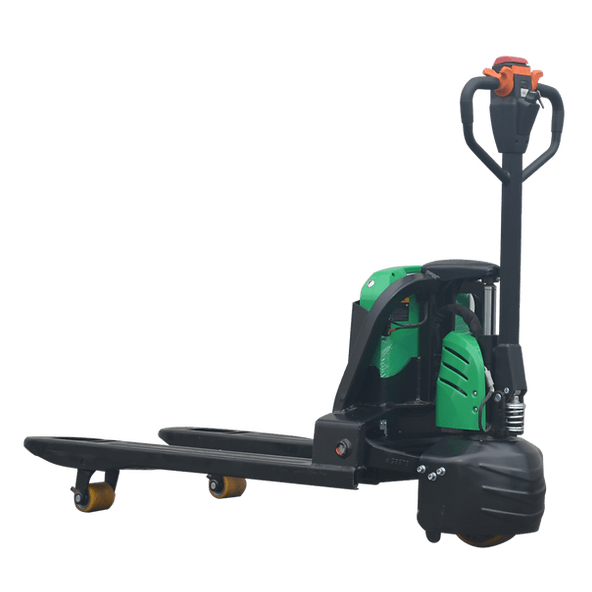

The EKKO EPF15LI Lithium Iron Phoshate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Lithium 24V Powered
  • Load Capacity 3300 lb
  • Fork Size 27x45
  • Raised Height 7.87"
  • Lowered Height 2.95"
  • Pinwheel Capability
  • Polyurethane Wheels

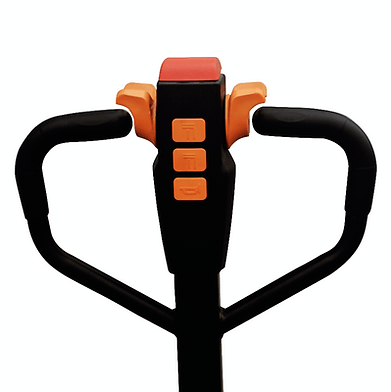

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron Battery LiFePO4 Included 24V/30Ah
  • 3 Years Limited Warranty

Specifications

Mode EPF15LI
Drive type Electric
Manner of operation Walkie
Load Capacity Q (LBS) 3300
Load Centre c (Inch) 23.6
Distance between fork backrest and front wheel x (Inch) 39.92
Wheel Base y (Inch) 51.69
Tire material PU
Driving wheel size ?w(Inch) ?8.272.76
Bearing wheel size ?w(Inch) ?3.153.35
Qty of wheel,Front/Rear(x=driving wheel) 1x/2
Tread b11 (Inch) 21.06
Lifting Height h3 (Inch) 7.87
The height of handle in the operation position h14 (Inch) 29.13/45.67
Lowered fork height h13 (Inch) 2.95
Overall Length l1 (Inch) 65.86
Body Length l2 (Inch) 17.83
Overall Width b1/ b2 (Inch) 26.97
Fork Size s/e/l (Inch) 1.97/5.91/45
Fork Width b5 (Inch) 26.97
Min.Ground clearance m2 (Inch) 1.38
Aisle width for pallets 39.37*47.24 crossways Ast (Inch) 73.78
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch) 75.75
Turing Radius Wa (Inch) 57.8
Driving Speed,load/unload (km/h) 4.2/4.5
Maximum gradeability load/unload (%) 5/10
Brake Type Electromagnetic brake
Drive Motor (kW) 0.75
Lift Motor (kW) 0.8
Lithium LiFePO4 Battery voltage rate capacity (V/Ah) 24/30
Battery Weight(5%) LBS 17
Type of drive control DC
Noise level (dB(A)) ?70
Service Weight(with battery) LBS 345
