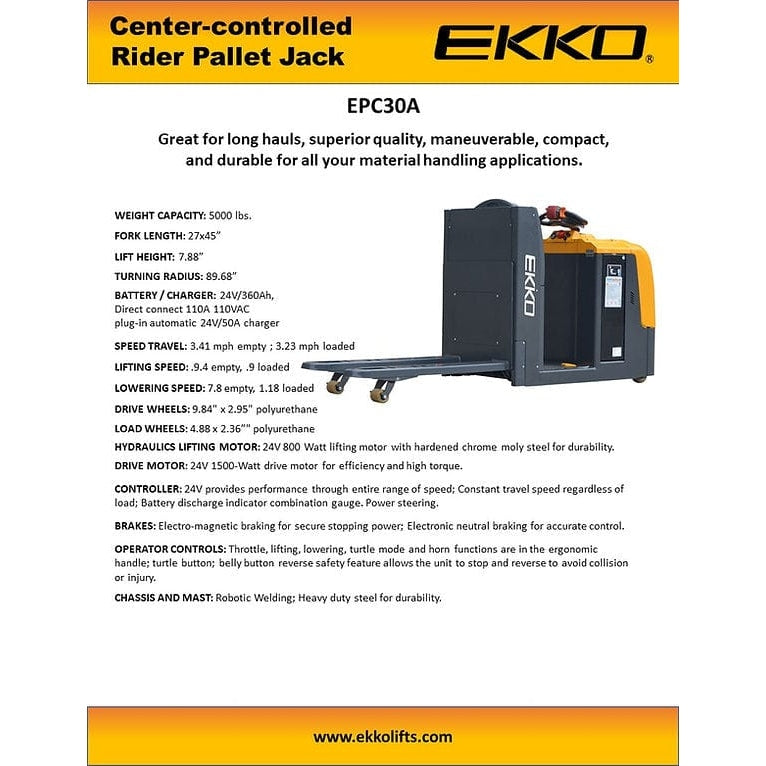

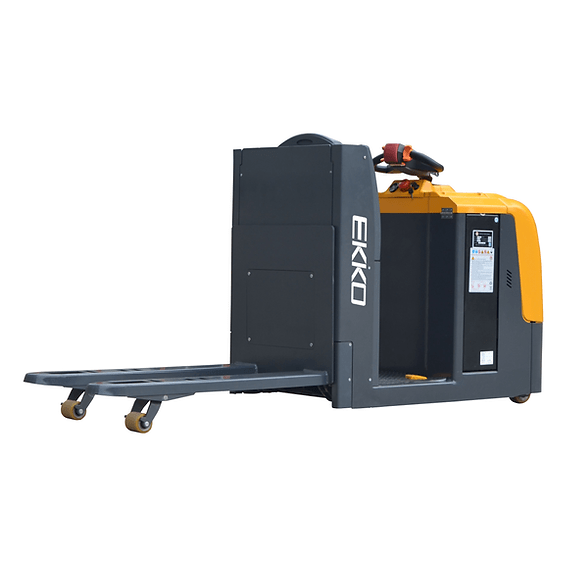

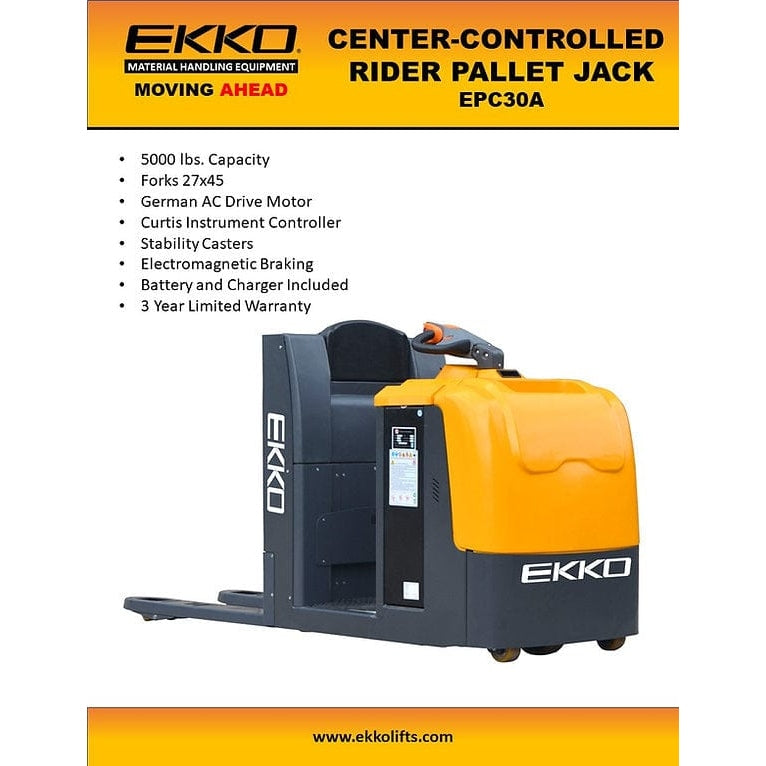

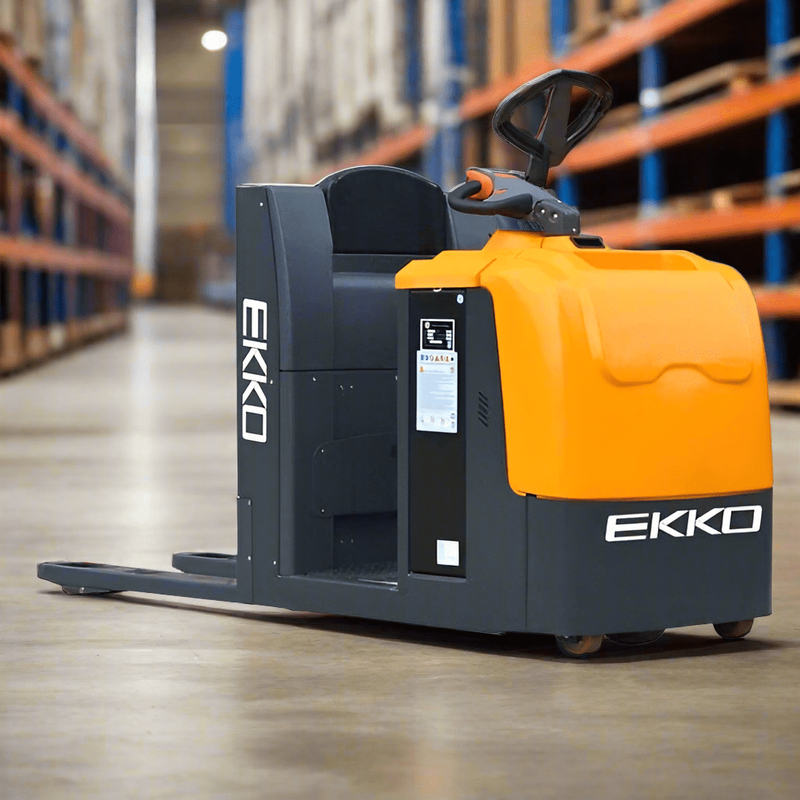

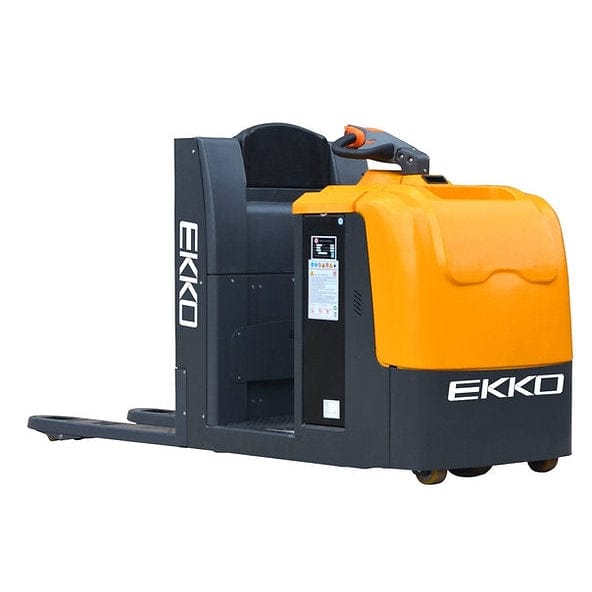

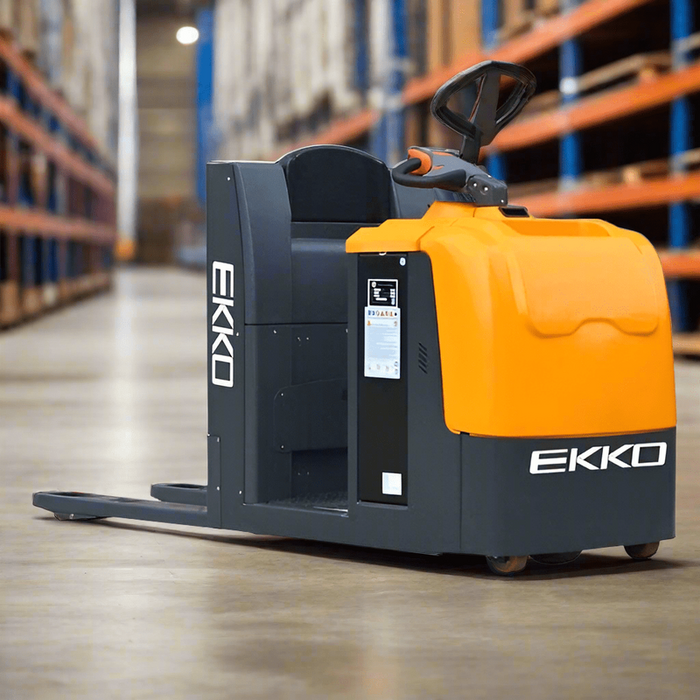

The EKKO EPC30A Center-Controlled Rider Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 5000lbs.
- Fork Size 27x45
- Raised Height 7.88"
- Lowered Height 3.35"
- Curtis Controller
- ZF German AC Driver Motor
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery 24V/360Ah Included
- 3 Years Limited Warranty

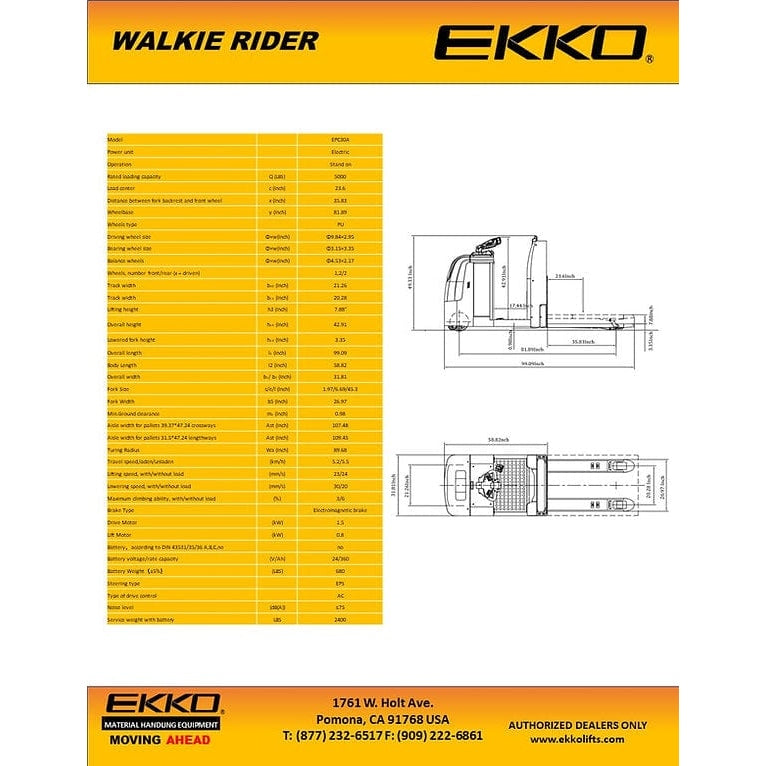

Specifications
Model | EPC30A | |
Power unit | Electric | |
Operation | Stand on | |
Rated loading capacity | Q (LBS) | 5000 |
Load centre | c (Inch) | 23.6 |
Distance between fork backrest and front wheel | x (Inch) | 35.83 |
Wheel base | y (Inch) | 81.89 |
Wheels type | PU | |
Driving wheel size | Φ×w(Inch) | Φ9.84×2.95 |
Bearing wheel size | Φ×w(Inch) | Φ3.15×3.35 |
Balance wheels | Φ×w(Inch) | Φ4.53×2.17 |
Wheels, number front/rear (x = driven) | 1,2/2 | |
Track width | b10 (Inch) | 21.26 |
Track width | b11 (Inch) | 20.28 |
Lifting height | h3 (Inch) | 7.88" |
Overall height | h14 (Inch) | 42.91 |
Lowered fork height | h13 (Inch) | 3.35 |
Overall length | l1 (Inch) | 99.09 |
Body Length | l2 (Inch) | 58.82 |
Overall width | b1/ b2 (Inch) | 31.81 |
Fork Size | s/e/l (Inch) | 1.97/6.69/45.3 |
Fork Width | b5 (Inch) | 26.97 |
Min.Ground clearance | m2 (Inch) | 0.98 |
Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 107.48 |
Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 109.45 |
Turing Radius | Wa (Inch) | 89.68 |
Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
Lifting speed, with/without load | (mm/s) | 23/24 |
Lowering speed, with/without load | (mm/s) | 30/20 |
Maximum climbing ability, with/without load | (%) | 3/6 |
Brake Type | Electromagnetic brake | |
Drive Motor | (kW) | 1.5 |
Lift Motor | (kW) | 0.8 |
Battery,according to DIN 43531/35/36 A,B,C,no | no | |
Battery voltage/rate capacity | (V/Ah) | 24/360 |
Battery Weight(±5%) | (LBS) | 680 |
Steering type | EPS | |
Type of drive control | AC | |
Noise level | (dB(A)) | ≤75 |
Service weight with battery | LBS | 2400 |
