Overview

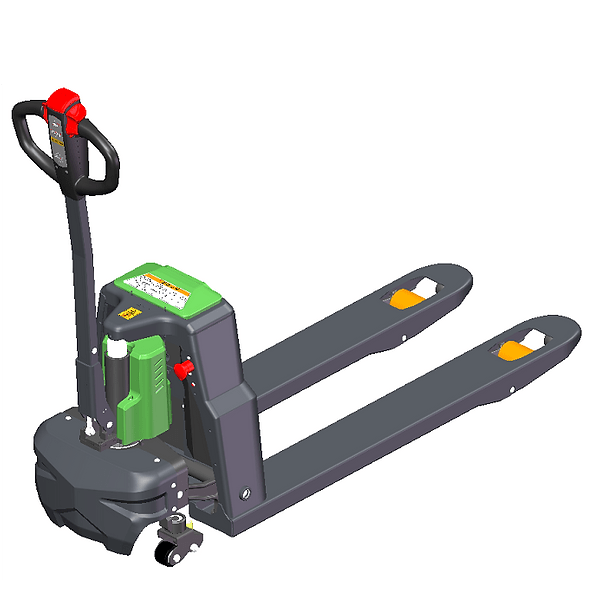

-The EKKO EPC20Li Full-Powered Lithium Pallet Jack combines the versatility of a pallet jack with the power and efficiency of full-powered lifting and driving capabilities. Perfect for long hauls, loading and unloading trucks, loading docks, stock rooms, and warehouses, this pallet jack delivers exceptional performance for material handling operations.
Crafted from high-quality steel and equipped with durable components, the EPC20Li is designed to withstand demanding applications with ease and reliability.
Key Features
-- Lithium Battery Powered: 48V for superior energy efficiency
- Load Capacity: 4400 lbs
- Fork Size: 27 x 45 inches
- Raised Height: 7.68 inches
- Lowered Height: 3.35 inches
- Polyurethane Wheels: Smooth and reliable operation
- Ergonomic Handle and Controls: Enhanced operator comfort
- Steel Construction: Built for durability
- Robotic Welding: Precision engineering for quality
- Battery and Charger Included: Ready for immediate use
- 3-Year Limited Warranty: Peace of mind and assurance
Specifications
-Model | EPC20Li | |
Power Unit | Lithium Battery | |
Operation | Control | |
Rated Loading Capacity | (lbs) | 4400 |
Load Center Distance | (in) | 24 |
Wheel Base | (in) | 81.89 |
Wheels Type | PU | |
Lifting Height | (in) | 7.68 |
Overall Height | (in) | 42.91 |
Lowered Fork Height | (in) | 3.35 |
Overall Length | (in) | 64.17 |
Overall Width | (in) | 31.81 |
Fork Size | (in) | 2.24/6.3/45.28 |
Fork Width | (in) | 26.97 |
Min. Ground Clearance | (in) | 0.98 |
Aisle Width for Pallets (Crossways) | (in) | 88.5 |
Aisle Width for Pallets (Lengthways) | (in) | 85.2 |
Turning Radius | (in) | 58.82 |
Travel Speed (Laden/Unladen) | (mph) | 2.49/2.8 |
Lifting Speed (Laden/Unladen) | (in/s) | 0.59/0.76 |
Lowering Speed (Laden/Unladen) | (in/s) | 6/10 |
Brake Type | Electromagnetic | |
Drive Motor | (kW) | 0.85 |
Lift Motor | (kW) | 0.7 |
Battery Voltage/Rate Capacity | (V/Ah) | 48/20 |
Battery Weight | (lbs) | 20 |
Type of Drive Control | DC | |
Service Weight (With Battery) | (lbs) | 291.2 |
