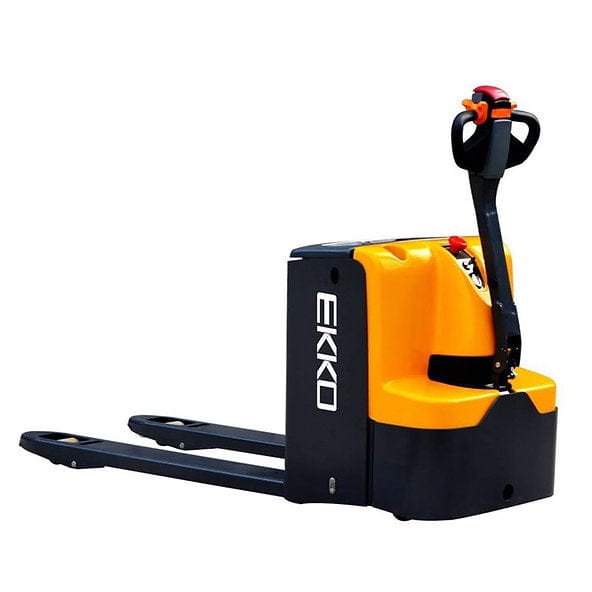

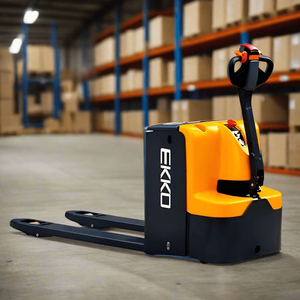

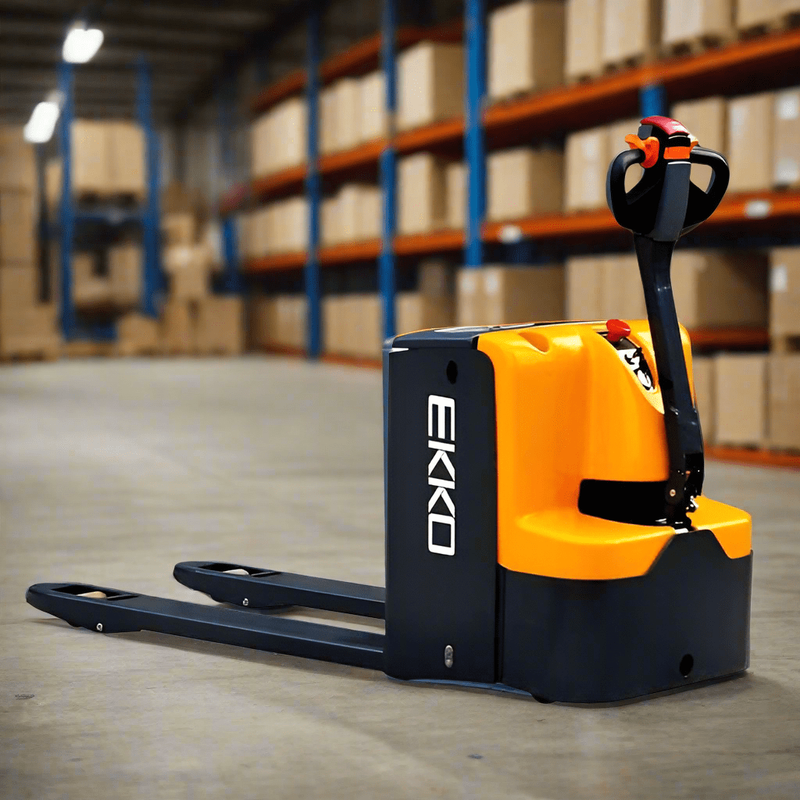

The EKKO EP20E Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

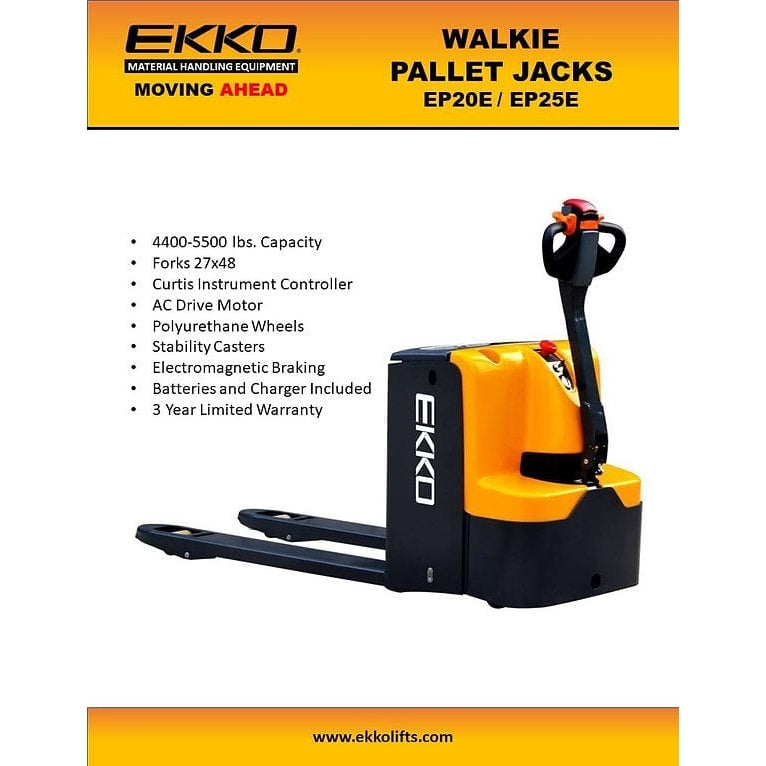

- Load Capacity 4400lbs.
- Fork Size 27x48
- Raised Height 7.9"
- Lowered Height 3.3"
- Curtis Controller
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Built-in Charger Included
- Battery Included
- Optional Backrest
- 3 Years Limited Warranty

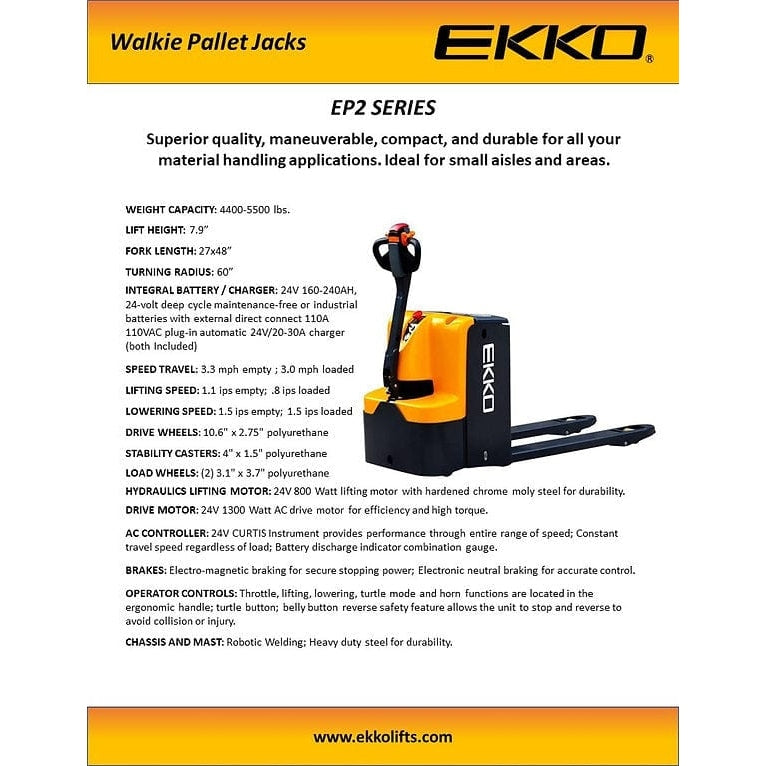

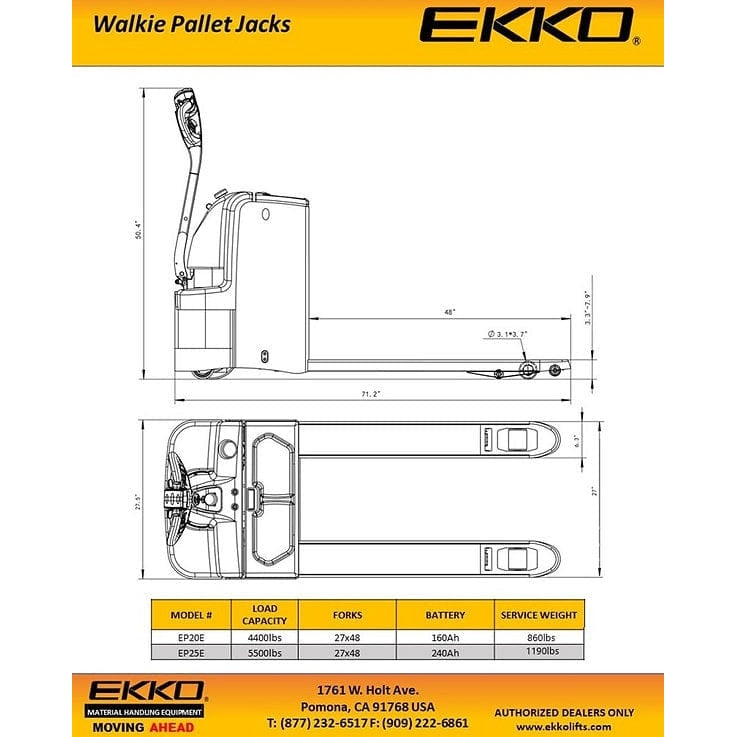

Specifications
Model |
|
EP20E |
Lift |
|
Electric |
Drive |
|
Electric |
Load capacity |
(lbs) |
4400 |
Load center |
(in) |
24 |
Wheel base |
(in) |
53 |
Lowered fork height |
(in) |
3.3 |
Lifting height |
(in) |
7.9 |
Overall length |
(in) |
71.2 |
Overall width |
(in) |
28 |
Fork size |
s/e/l (in) |
2/6/48 |
Outside distance of fork |
(in) |
27 |
Turning radius |
(in) |
60 |
Lifting speed, laden/unladen |
(in/s) |
0.8/1.1 |
Lowering speed, laden/unladen |
(in/s) |
1.5/1.5 |
Max gradient performance laden/unladen |
(%) |
8/15 |
Brake type |
|
electromagnetic |
Drive motor |
(kW) |
1.3 |
Lift motor |
(kW) |
0.8 |
Charger |
(V/A) |
24V/15A |
Battery voltage/rated capacity |
(V/Ah) |
24/160 |
Type of the drive motor |
|
AC Motor speed control |
Noise level at operator sear |
(dB(A)) |
68 |
Service weight(with battery) |
(lbs) |
860 |
