Description
-The EKKO EP18LI Lithium Iron Phosphate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000 lb
- Fork Size 27x48
- Raised Height 7.7"
- Lowered Height 3.3"
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Built-In Charger
- Lithium Iron LiFePO4 24V/40Ah
- Optional Backrest
- 3 Years Limited Warranty

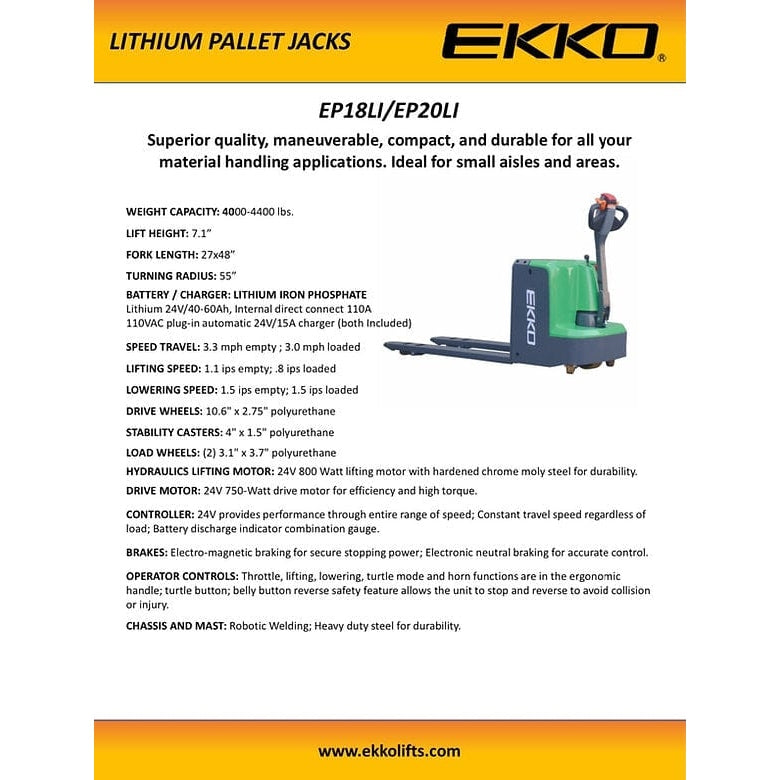

Specifications
Model |
EP18LI |
|
Lift |
Electric |
|
Drive |
Electric |
|
Load capacity |
(lb) |
4000 |
Load center |
(in) |
24 |
Wheel base |
(in) |
53 |
Lowered fork height |
(in) |
3.3 |
Lifting height |
(in) |
7.7 |
Overall length |
(in) |
67.2 |
Overall width |
(in) |
27.5 |
Fork size |
s/e/l (in) |
2/6/48 |
Outside distance of fork |
(in) |
27 |
Turning radius |
(in) |
55 |
Lifting speed, laden/unladen |
(in/s) |
0.8/1.1 |
Lowering speed, laden/unladen |
(in/s) |
1.5/1.5 |
Max gradient performance laden/unladen |
(%) |
8/15 |
Brake type |
electromagnetic |
|
Drive motor |
(W) |
750W |
Lift motor |
(W) |
80W |
Lithium LiFePO4 Battery voltage/rated capacity |
(V/Ah) |
24V/40Ah |
DC Drive Motor |
DC Motor speed control |
|
Noise level at operator sear |
(dB(A)) |
68 |
Service weight(with battery) |
(lb) |
650 |
