Overview

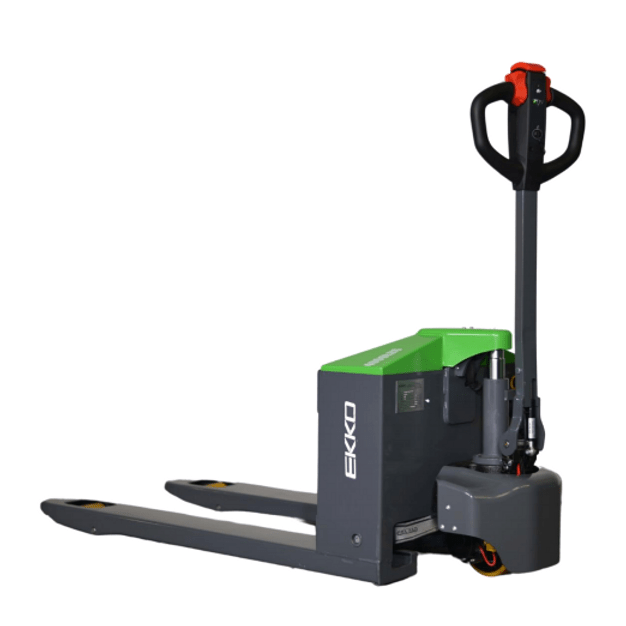

-The EKKO EP18JLIC Lithium Walkie Pallet Jack is the ultimate tool for efficient and powerful material handling. Combining the versatility of a pallet jack with full power lifting and driving capabilities, this electric walkie pallet jack is perfect for loading docks, stock rooms, warehouses, and manufacturing floors. Its advanced lithium technology ensures long-lasting performance and reliability.
Key Features
-- Lithium 24V Powered: Efficient energy solution
- Load Capacity: 4,000 lbs
- Fork Size: 2.24" x 6.3" x 45.28"
- Raised Height: 7.48"
- Lowered Height: 2.95"
- Pinwheel Capability: Maneuver easily in tight spaces
- Polyurethane Wheels: For smooth operation
- Ergonomic Handle: Designed for comfort and control
- Robotic Welding Construction: Built for durability
- Charger and Battery Included: Ready to use
- 3 Years Limited Warranty: Reliable support
Specifications
-Model | EP18JLIC |
Drive type | Electric |
Manner of operation | Walkie |
Load Capacity | 4000 LBS |
Load Centre | 23.6 Inch |
Axle centre to fork face | 37 Inch |
Wheel Base | 50.3 Inch |
Tire material | Polyurethane |
Driving wheel size | Φ8.27×2.95 Inch |
Bearing wheel size | Φ2.91×3.66 Inch |
Qty of wheel (Front/Rear) | 1x/2 |
Tread | 21.06 Inch |
Lifting Height | 7.48 Inch |
Height of handle in operation | 48.2 Inch |
Lowered fork height | 2.95 Inch |
Overall Length | 64 Inch |
Body Length | 16.53 Inch |
Overall Width | 27 Inch |
Fork Size | 2.24/6.3/45.28 Inch |
Fork Width | 27 Inch |
Min. Ground Clearance | 1.06 Inch |
Aisle width (crossways) | 88.9 Inch |
Aisle width (lengthways) | 83.9 Inch |
Turning Radius | 57.5 Inch |
Driving Speed (load/unload) | 2.6/2.8 km/h |
Maximum Gradeability (load/unload) | 0.24/0.39 in/s |
Brake Type | Electromagnetic brake |
Drive Motor | 0.75 kW |
Lift Motor | 0.8 kW |
Battery (Lithium LiFePO4) | 24/40 V/Ah |
Battery Weight | 21.1 LBS |
Drive Control | DC |
Noise Level | ≤70 dB(A) |
Service Weight (with battery) | 346 LBS |
Why Choose the EKKO EP18JLIC?
-The EKKO EP18JLIC offers a perfect blend of strength, efficiency, and maneuverability. Designed for the most demanding material handling tasks, its ergonomic features and high-quality build make it a standout choice for warehouses and logistics centers. With its robust lithium battery and advanced controls, this walkie pallet jack ensures top performance for years to come.
