Overview

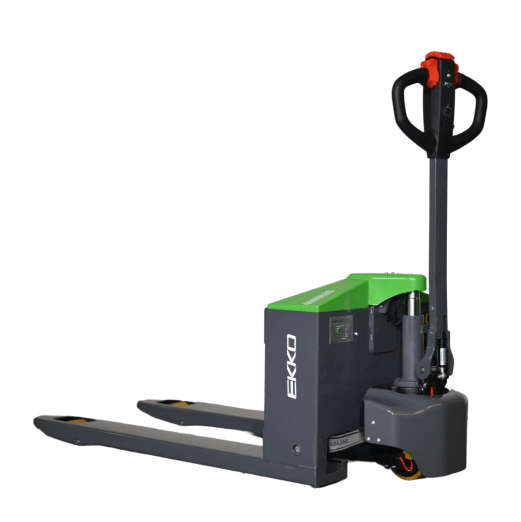

-The EKKO EP15JLIC Lithium Walkie Pallet Jack combines the versatility of a traditional pallet jack with the convenience of full-power lifting and driving capabilities. It’s perfect for handling tasks such as loading and unloading trucks, stocking warehouses, and managing materials on manufacturing floors.
Built from high-quality steel and premium components, this pallet jack is engineered for durability and reliability. Its robust design ensures smooth operation across various terrains and applications.
Key Features
-- Powered by Lithium 24V for efficient operation
- Load Capacity: 3300 lbs
- Fork Size: 2.24 x 45.28 inches
- Raised Height: 7.48 inches
- Lowered Height: 2.95 inches
- Pinwheel Capability: Maneuver in tight spaces
- Polyurethane Wheels: For smooth and quiet operation
- Ergonomic Handle and Controls: Enhance operator comfort
- Steel Construction: Built for long-lasting durability
- Robotic Welding: Ensures high-quality assembly
- Battery and Charger Included
- 3-Year Limited Warranty
Specifications
-Model | EP15JLIC | |
Drive Type | Electric | |
Manner of Operation | Walkie | |
Load Capacity | (lbs) | 3300 |
Load Center | (in) | 23.6 |
Axle Center to Fork Face | (in) | 37 |
Wheel Base | (in) | 50.3 |
Tire Material | Polyurethane | |
Driving Wheel Size | (in) | Φ8.27 × 2.95 |
Bearing Wheel Size | (in) | Φ2.91 × 3.66 |
Number of Wheels (Front/Rear) | 1x/2 | |
Tread | (in) | 21.06 |
Lifting Height | (in) | 7.48 |
Height of Handle in Operation | (in) | 48.2 |
Lowered Fork Height | (in) | 2.95 |
Overall Length | (in) | 64 |
Body Length | (in) | 16.53 |
Overall Width | (in) | 27 |
Fork Size | (in) | 2.24/6.3/45.28 |
Fork Width | (in) | 27 |
Min Ground Clearance | (in) | 1.06 |
Aisle Width for Pallets 39.37 x 47.24 (Crossways) | (in) | 88.9 |
Aisle Width for Pallets 31.5 x 47.24 (Lengthways) | (in) | 83.9 |
Turning Radius | (in) | 57.5 |
Driving Speed (Load/Unload) | (km/h) | 2.6/2.8 |
Maximum Gradeability (Load/Unload) | (in/s) | 0.24/0.39 |
Brake Type | Electromagnetic | |
Drive Motor | (kW) | 0.75 |
Lift Motor | (kW) | 0.8 |
Lithium LiFePO4 Battery | (V/Ah) | 24/30 |
Battery Weight | (lbs) | 21.1 |
Type of Drive Control | DC | |
Noise Level | (dB(A)) | ≤70 |
Service Weight (with Battery) | (lbs) | 328 |
