Overview

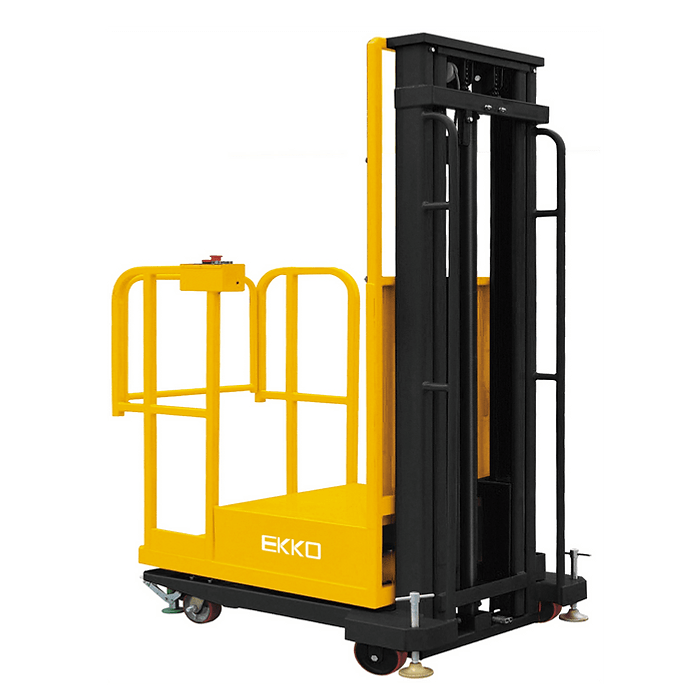

-The EKKO EOPS20-177 Semi-Electric Order Picker is designed to optimize order picking processes in racking systems, storage facilities, manufacturing floors, and warehouses. This efficient order picker ensures smooth and hassle-free retrieval of goods.
Crafted with durable steel construction and high-quality components, the EOPS20-177 boasts a robust drive system that excels across various terrains and operational conditions, ensuring reliability and performance.
Key Features
-- Load Capacity: 440 lbs
- Lift Height: 177" (14.75 ft)
- Overloading Protection: Prevents overloading with built-in safeguards
- Safety Brackets: Provides additional operational security
- Brake System: Two brakes and two brake pads for enhanced control
- Emergency Features: Emergency stop and emergency down button
- Battery: 12V/120Ah Included
- Wheels: Polyurethane for smooth and stable operation
- Construction: Steel with robotic welding for long-lasting durability
- Charger: Internal charger included for convenience
- Warranty: 3 Years Limited Warranty
Specifications
-Model | EOPS20-177 | |
Power Unit | Semi-Electric | |
Operation | Stand-on | |
Rated Loading Capacity | Q (lbs) | 440 |
Wheelbase | y (Inch) | 53.46 |
Wheels Type | PU | |
Driving Wheel Size | Φ×w(Inch) | Φ9.84×5 |
Bearing Wheel Size | Φ×w(Inch) | Φ5.9×3.23 |
Wheels, Number Front/Rear (x = driven) | 1/2 | |
Track Width | b11 (Inch) | 37.8 |
Lifting Height | h3 (Inch) | 177" |
Overall Length | (Inch) | 51.18 |
Overall Height | (Inch) | 78.54 |
Overall Width | (Inch) | 33.46 |
Travel Speed, Laden/Unladen | (km/h) | 8 |
Lift Motor | (kW) | 1.6 |
Battery Voltage/Rate Capacity | (V/Ah) | 12/120 |
Service Weight | (lbs) | 925 |
