Overview

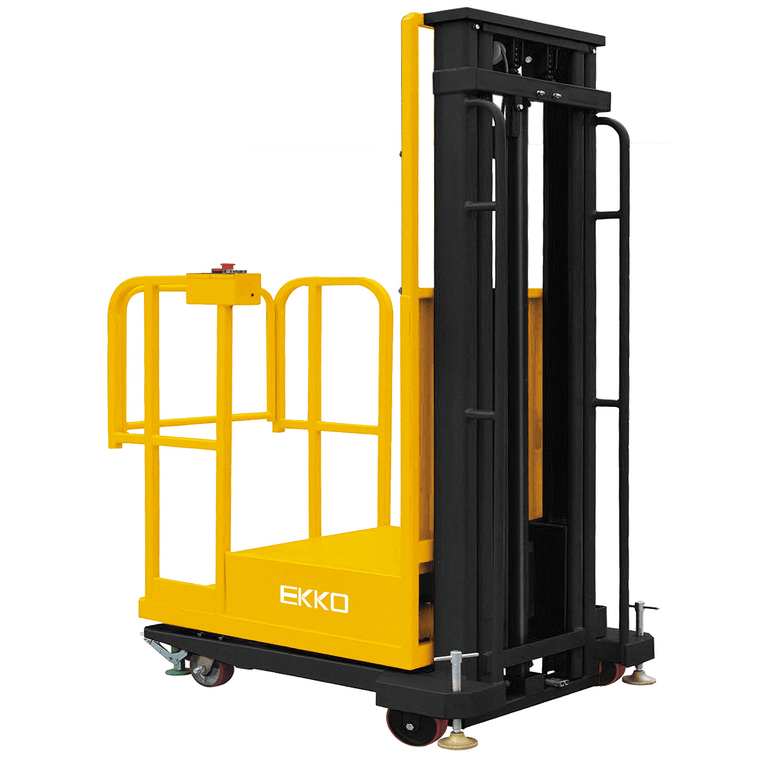

-The EKKO EOPS20-157 Semi-Electric Order Picker is designed to enhance order picking efficiency across racking systems, storage facilities, manufacturing floors, and warehouses. This equipment is an excellent choice for streamlining order retrieval processes.
Engineered with durable steel construction and high-quality components, the EOPS20-157 features a robust drive system to handle diverse terrains and challenging operational conditions with ease.
Key Features
-- Load Capacity: 440 lbs
- Lift Height: 157" (13.1 ft)
- Overloading Protection: Includes safety features to prevent overloading
- Safety Brackets: Ensures secure operation
- Brake System: Equipped with two brakes and two brake pads
- Emergency Features: Emergency stop and emergency down button
- Battery: 12V/120Ah Included
- Wheels: Polyurethane for smooth operation
- Construction: Steel with robotic welding
- Charger: Internal charger included
- Warranty: 3 Years Limited Warranty
Specifications
-Model | EOPS20-157 | |
Power Unit | Semi-Electric | |
Operation | Stand-on | |
Rated Loading Capacity | Q (lbs) | 440 |
Wheelbase | y (Inch) | 53.46 |
Wheels Type | PU | |
Driving Wheel Size | Φ×w(Inch) | Φ9.84×5 |
Bearing Wheel Size | Φ×w(Inch) | Φ5.9×3.23 |
Wheels, Number Front/Rear (x = driven) | 1/2 | |
Track Width | b11 (Inch) | 37.8 |
Lifting Height | h3 (Inch) | 157" |
Overall Length | (Inch) | 51.18 |
Overall Height | (Inch) | 71.85 |
Overall Width | (Inch) | 33.46 |
Travel Speed, Laden/Unladen | (km/h) | 8 |
Lift Motor | (kW) | 1.6 |
Battery Voltage/Rate Capacity | (V/Ah) | 12/120 |
Service Weight | (lbs) | 837 |
