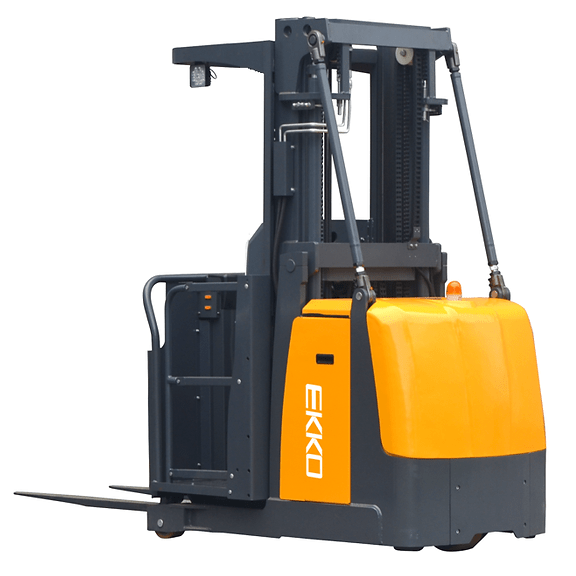

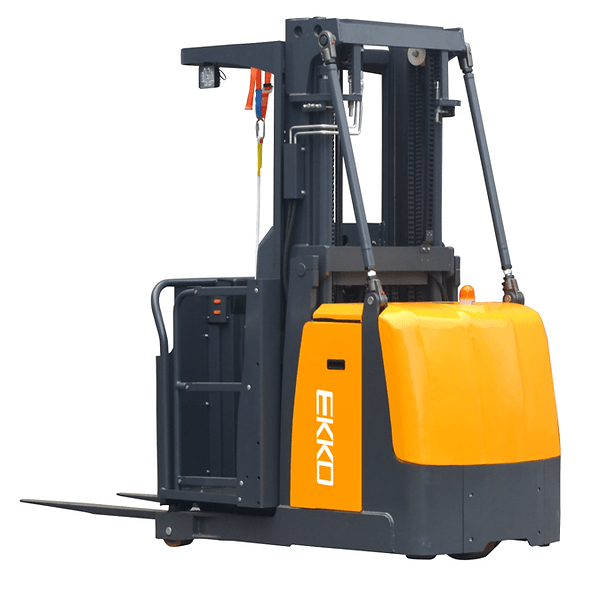

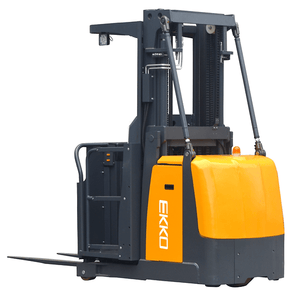

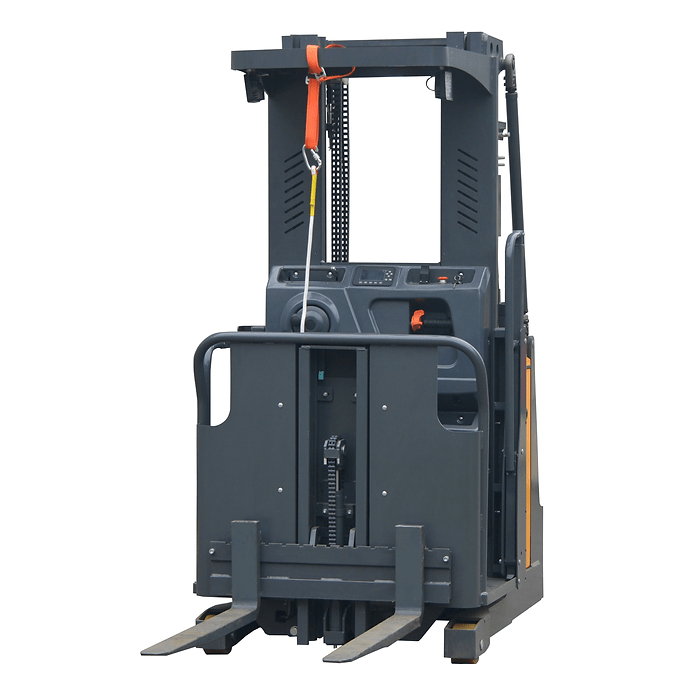

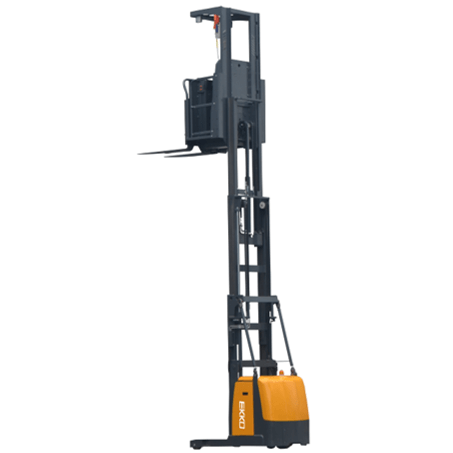

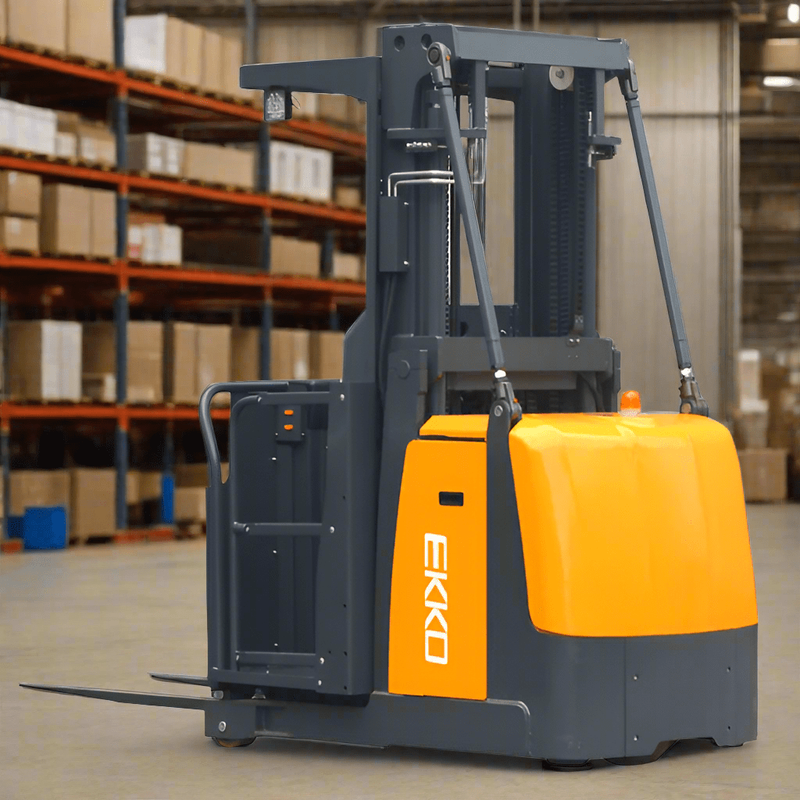

EKKO EOP70 Order Picker 2200lb. Cap., 196" Lift

SKU EOP70
Save 5% Save 5%
Original price $23,999.00
Original price $23,999.00 - Original price $23,999.00
Original price $23,999.00
Current price $22,799.05
$22,799.05 - $22,799.05
Current price $22,799.05
Availability:
in stock, leaves warehouse in 24hrs
Free Shipping. Authorized Dealer. Lowest Prices Guaranteed.

The EKKO EOP70 Electic Mid-Level Order Picker is designed it's sole purpose to pick your ordersfrom your racking and storage facility rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

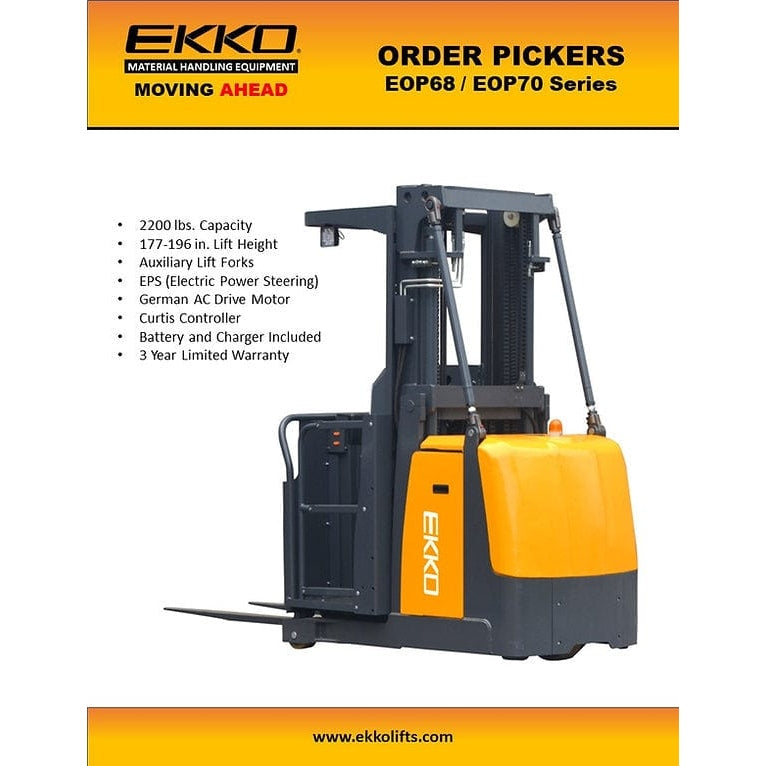

  • Load Capacity 2200 lb
  • Raised Height 196" (16.33 ft.)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 24V/350Ah
  • 24V/50A
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Specifications

Model



EOP70

Power unit



Electric

Operation



Stand on

Rated loading capacity

Q (lbs)

2200

Load centre

c (Inch)

19.68

Between fork backrest & front wheel

x (Inch)

7.56

Wheelbase

y (Inch)

53.46

Service weight with battery

lbs

6600

Wheels type



PU

Driving wheel size

Φ×w(Inch)

Φ9.84×5

Bearing wheel size

Φ×w(Inch)

Φ5.9×3.23

Wheels, number front/rear (x = driven)



1,/2

Track width

b11 (Inch)

37.8

Lowered mast height

h1 (Inch)

93.11

Lifting height

h3 (Inch)

196"

Extended mast height

h4 (Inch)

285

Height of overhead guard(cabin)

h6 (Inch)

89.48

height of seat/stand-on platform

h7 (Inch)

10.67

Additional lift height

h9 (Inch)

30.71

total lift height

h10 (Inch)

227

Platform lifting height

h12  (Inch)

206.873

Lowered fork height

h13 (Inch)

1.97

Picking height

h15 Inch)

258.01

Overall length

l1 (Inch)

111.41

Body Length

l2 (Inch)

69.29

Overall width

b1/ b2 (Inch)

39.37/145.28

Fork Size

s/e/l (Inch)

1.37/3.93/42.13

Width of fork fixing frame

b3 (Inch)

35.83

outside fork width

b5 (Inch)

34.33

Min.Ground clearance

m2 (Inch)

1.97

Aisle width for pallets 39.37*47.24 crossways

Ast (Inch)

122.24

Aisle width for pallets 31.5*47.24 lengthways

Ast (Inch)

126.77

Turing Radius

Wa (Inch)

61.81

Travel speed,laden/unladen

(km/h)

8

Lifting speed, with/without load(cabin)

(mm/s)

n/a

Lifting speed, with/without load(Fork)

(mm/s)

n/a

Lowering speed, with/without load(cabin)

(mm/s)

n/a

Lowering speed, with/without load(Fork)

(mm/s)

n/a

Climbing ability, with/without load

(%)

3/6

Brake Type



Electromagnetic brake

Drive Motor

(kW)

3

Lift Motor

(kW)

6

Battey, DIN 43531/35/36 A,B,C,no



no

Battery voltage/rate capacity

(V/Ah)

24/350

Battery Weight(±5%)

(LBS)

n/a

Type of drive control



AC

Noise level

(dB(A))

≤75
