Description

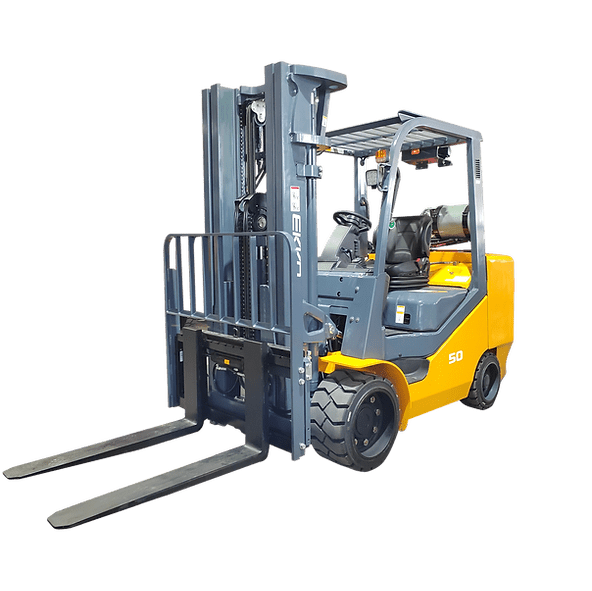

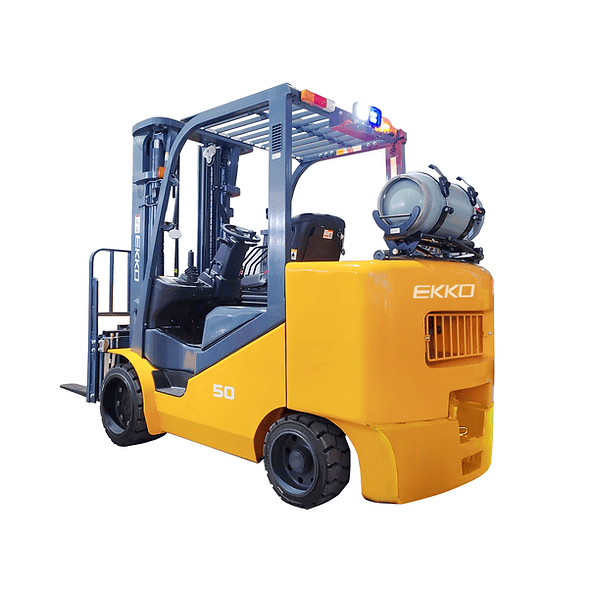

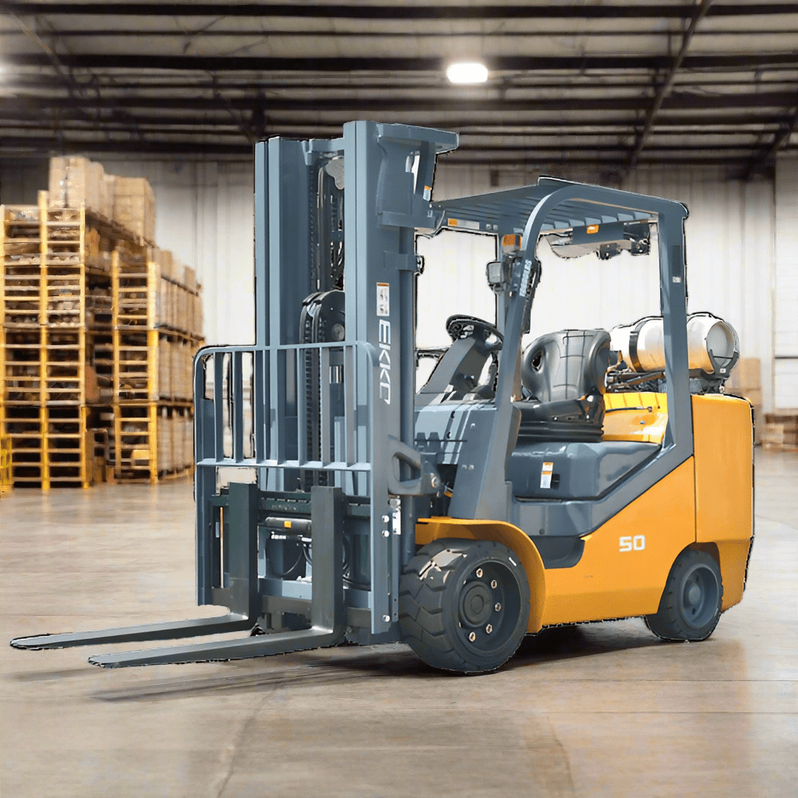

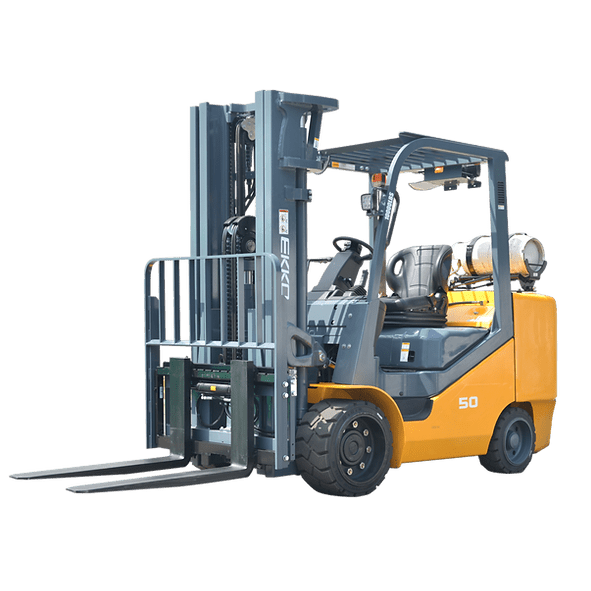

-The EKKO EK50LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
- Multifunction instrument panel - motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.

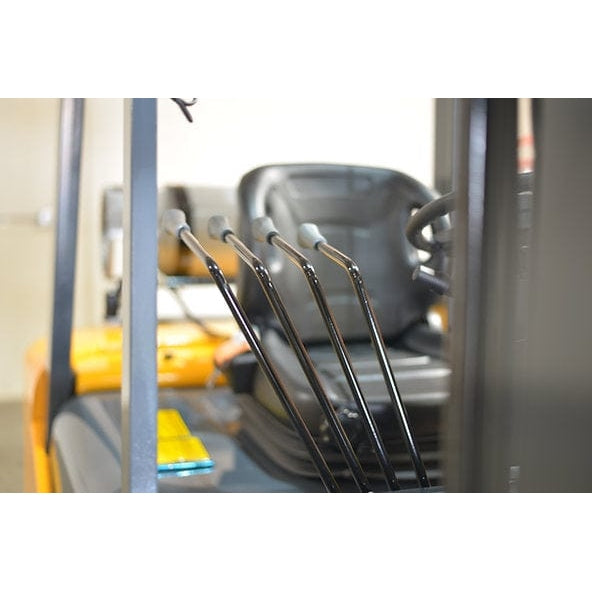

- Hydraulic controls
Specifications
Model |
EK50LP |
|
Drive type |
LPG |
|
Type of operation |
Propane |
|
Load Capacity |
LBS |
10,000 |
Load Center |
in |
24 |
Liftheight |
in |
185 |
Wheelbase |
in |
61.8 |
Service Weight |
LBS |
16,250 |
Tire material |
Pattern Cush. Tire | |
Traction Pin Height |
in |
11.2 |
Service Brake |
Hydraulic Foot Pedal | |
Overall width |
in |
55.9 |
Overall length with forks |
in |
157 |
Overall lengthwithout forks |
in |
109 |
Min ground clearance (at the mast) |
in |
4.3 |
Max traveling speed (loaded/unloaded) |
mph |
10.5/11.2 |
Mast Overall height |
in |
91.9 |
Free liftingheight |
in |
44.3 |
Backrest height (from the surface of the forks) |
in |
47.6 |
Fork Size |
in |
48x5.9x1.97 |
Parking Brake |
Mechanicl Hand Lever |
|

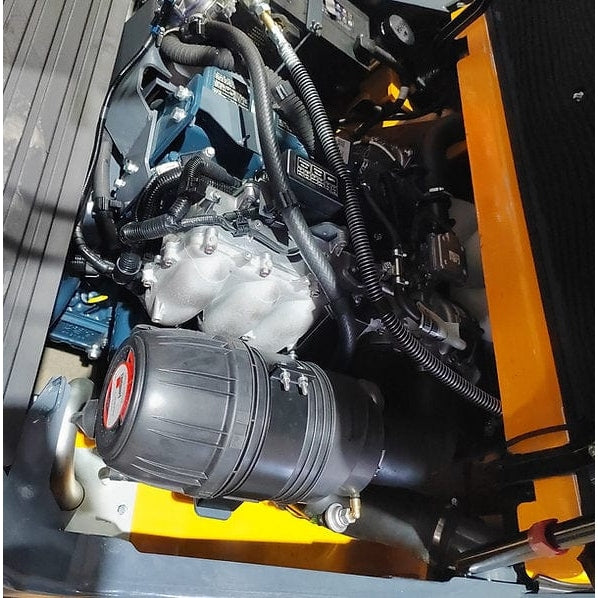

Engine Mode |
Kubota WG3800 |
|
Engine rated power |
HP/rpm |
63.2 |
