Description

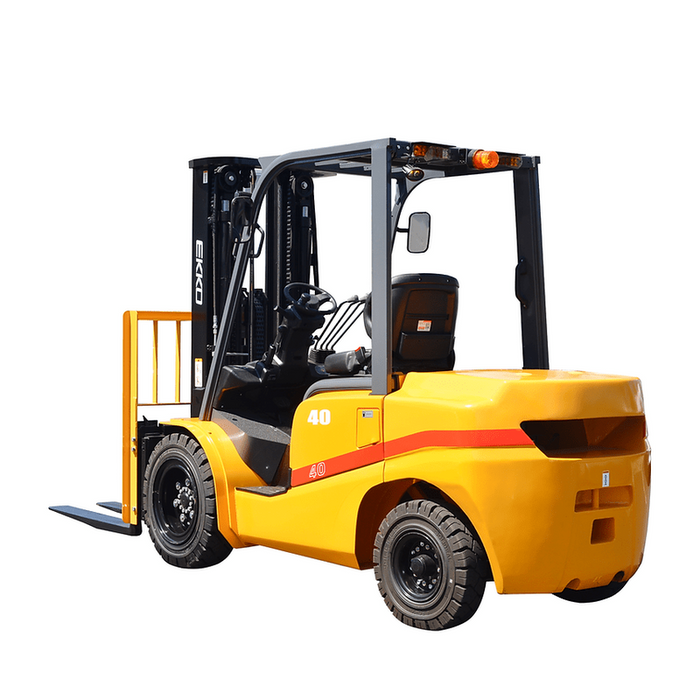

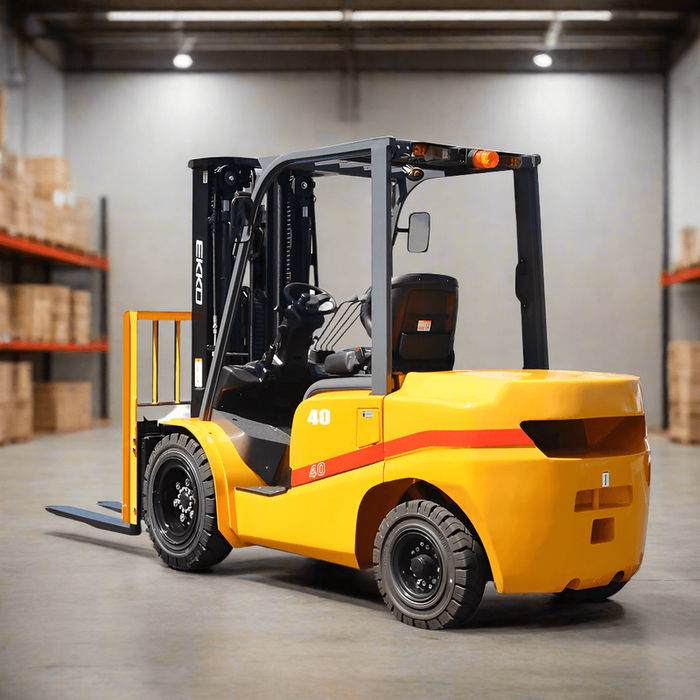

-The EKKO EK40D Diesel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with a Mitsubishi 4EG engine and competitive pricing.
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Multifunctional suspended seat increase the support of the driver, and reduce vibration, and balancing the weight of the driver.
- Steering wheel adjusting mechanism is disposed in the appopriate position making it easily adjustable.
- By using impedance composited muffler, this truck reduces the level of sound output.
Specifications
Model |
EK40D |
|
Drive type |
Diesel |
|
Type of operation |
Diesel | |
Load Capacity |
LBS |
8500 |
Load Center |
in |
24 |
Liftheight |
in |
185 |
Wheelbase |
in |
70.8 |
Service Weight |
LBS |
11,519 |
Tire material |
Solid Pneumatic Tire | |
Wheel |
250-15-16PR/6.50-10-10PR |
|
Service Brake |
Hydraulic Floor Pedal | |
Overall width |
in |
52.9 |
Overall length with forks |
in |
157 |
Overall lengthwithout forks |
in |
112 |
Min ground clearance (at the mast) |
in |
4.7 |
Max traveling speed (loaded/unloaded) |
mph |
10.3/11.2 |
Mast Overall height |
in |
86.2 |
Free liftingheight |
in |
37.9 |
Overal Height w/ forks lifted |
in |
234 |
Fork Size |
in |
42.1x5.9x1.9 |
Battery |
V/ Ah |
12/80 |
Engine Mode |
Mitsubishi 4EG |
|
Engine rated power |
HP/rpm |
Diesel: 49/2250 |
