Description

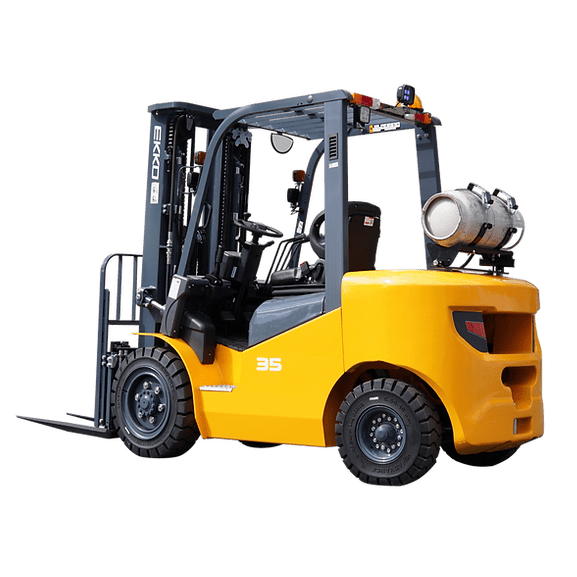

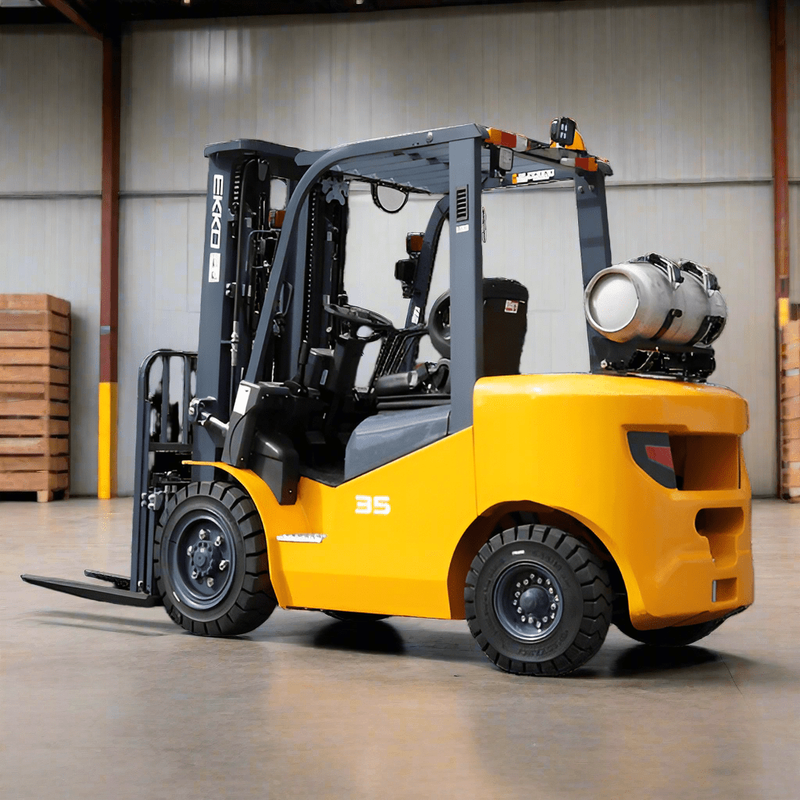

-The EKKO EK35LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
- Multifunction instrument panel - motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.

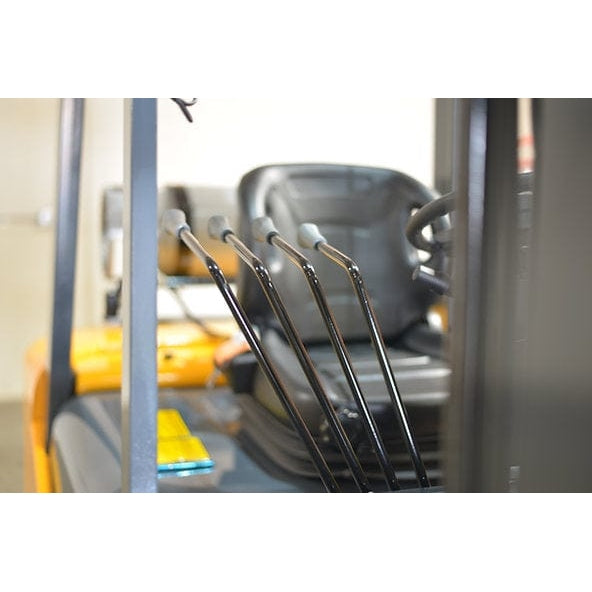

- Hydraulic controls
Specifications
Model |
EK35LP |
|
Drive type |
LPG |
|
Type of operation |
Propane |
|
Load Capacity |
LBS |
7,000 |
Load Center |
in |
24 |
Liftheight |
in |
189 |
Wheelbase |
in |
68.9 |
Service Weight |
LBS |
10,605 |
Tire material |
Solid Pneumatic Tire | |
Traction Pin Height |
in |
12.2 |
Service Brake |
Hydraulic Foot Pedal | |
Overall width |
in |
48.2 |
Overall length with forks |
in |
150.4 |
Overall lengthwithout forks |
in |
108.3 |
Min ground clearance (at the mast) |
in |
5.3 |
Traveling speed |
mph |
11.875 |
Mast Overall height |
in |
89.4 |
Free liftingheight |
in |
42.9 |
Backrest height (from the surface of the forks) |
in |
46.3 |
Fork Size |
in |
42.1X4.9X1.97 |
Parking Brake |
Mechanicl Hand Lever |
|

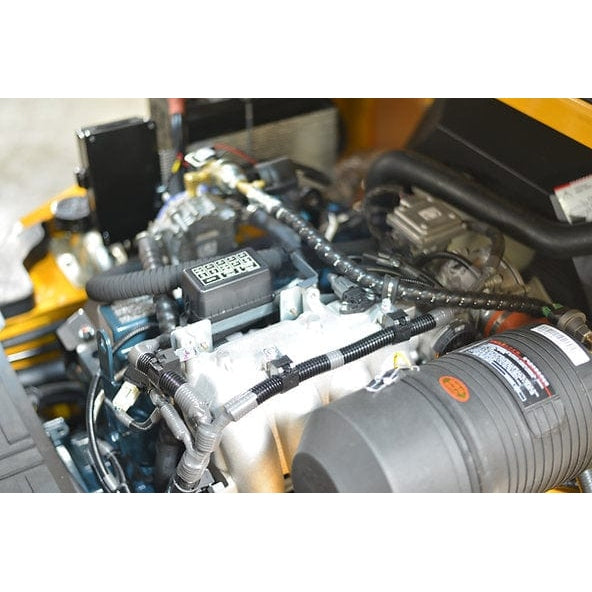

Engine Mode |
Kubota WG2503 |
|
Engine rated power |
HP/rpm |
60.1/2400 |
