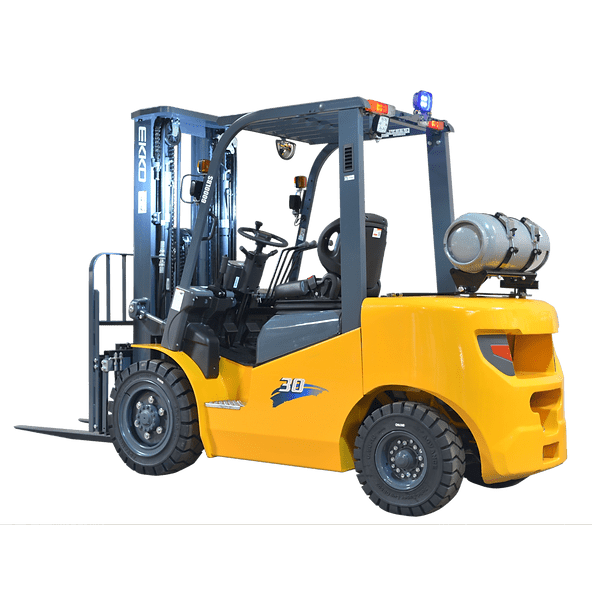

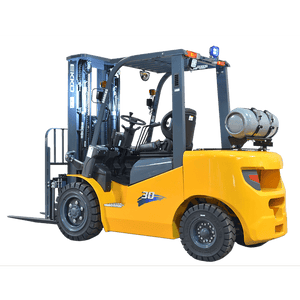

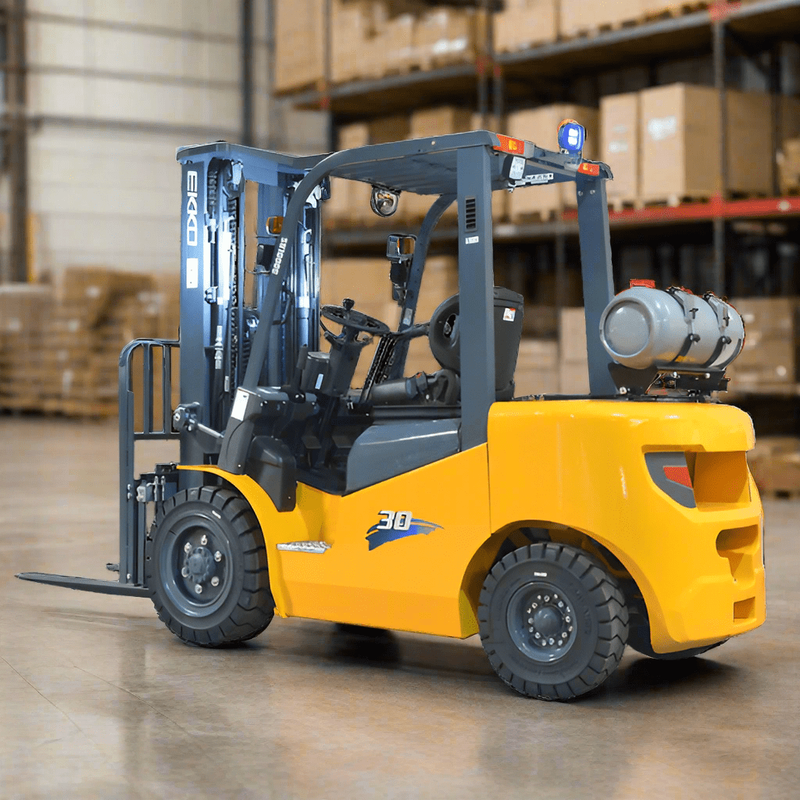

The EKKO EK30LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
- Multifunction instrument panel - motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.

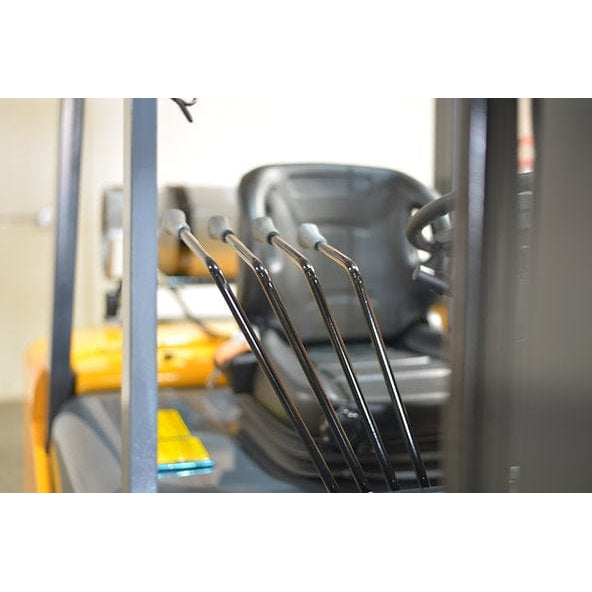

- Hydraulic controls
Specifications
Model |
|
EK30LP |
Drive type |
|
LPG |
Type of operation |
|
Propane |
Load Capacity |
LBS |
6000 |
Load Center |
in |
24 |
Lift height |
in |
189 |
Wheelbase |
in |
69 |
Service Weight |
LBS |
10,320 |
Tire material |
|
Pneumatic |
Wheel size(Front / Rear) |
in |
28x9-15-12PR / 6.50-10-10PR |
Service Brake |
|
Hydraulic Floor Pedal |
Overall width |
in |
48.2 |
Overall length with forks |
in |
150.3 |
Overall length without forks |
in |
108.2 |
Min ground clearance (at the mast) |
in |
4.53 |
Max traveling speed (loaded/unloaded) |
mph |
11.8/11.8 |
Mast Overall height |
in |
89.40 |
Free lifting height |
in |
40.9 |
Backrest height (from the surface of the forks) |
in |
46.54 |
Fork Size |
in |
42.13x4.92x1.77 |
Battery |
V/ Ah |
12/80 |

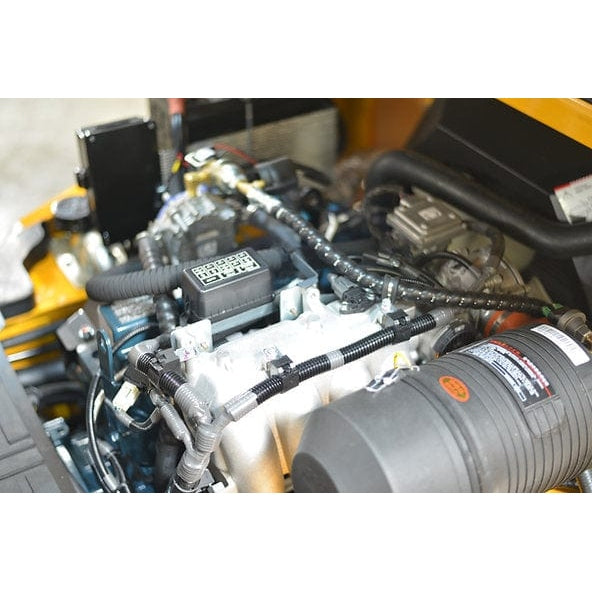

Engine Mode |
|
Kubota WG2503 |
Engine rated power |
HP/rpm |
LPG: 58.3/2600 |
