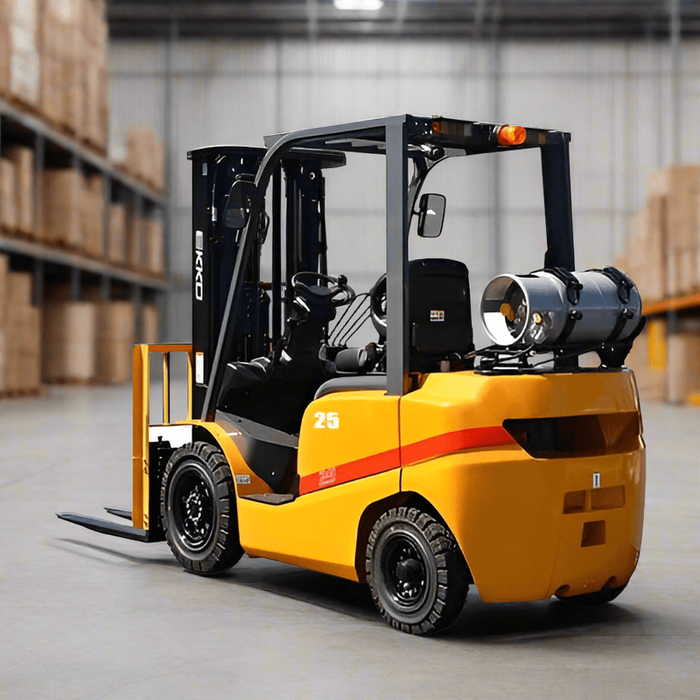

The EKKO EK25TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI 2.4l engine and competitive pricing.
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
Specifications
Model |
|
EK25TLP |
Drive type |
|
LPG |
Type of operation |
|
Propane |
Load Capacity |
LBS |
5000 |
Load Center |
in |
24 |
Lift height |
in |
185 |
Wheelbase |
in |
62.9 |
Service Weight |
LBS |
8465 |
Tire material |
|
Solid Pneumatic Tire |
Wheel |
|
7.00-12-12PR/6.00-9-10PR |
Service Brake |
|
Hydraulic Floor Pedal |
Overall width |
in |
45.2 |
Overall length with forks |
in |
144.6 |
Overall length without forks |
in |
99.6 |
Min ground clearance (at the mast) |
in |
4.3 |
Max traveling speed (loaded/unloaded) |
mph |
10.6/11.8 |
Mast Overall height |
in |
83 |
Free lifting height |
in |
43.7 |
Overal Height w/ forks lifted |
in |
225 |
Fork Size |
in |
42.1x4.8x1.5 |
Battery |
V/ Ah |
12/60 |
Engine Mode |
|
PSI 2.4 |
Engine rated power |
HP/rpm |
LPG: 63/2700 |
