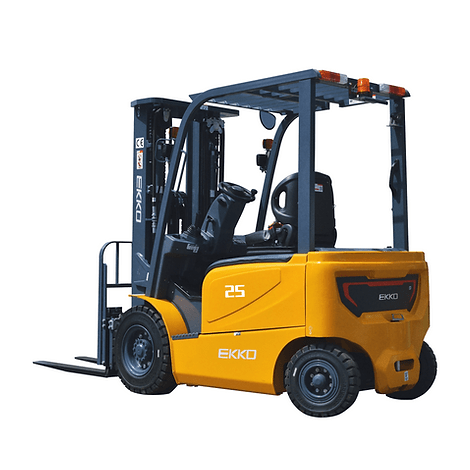

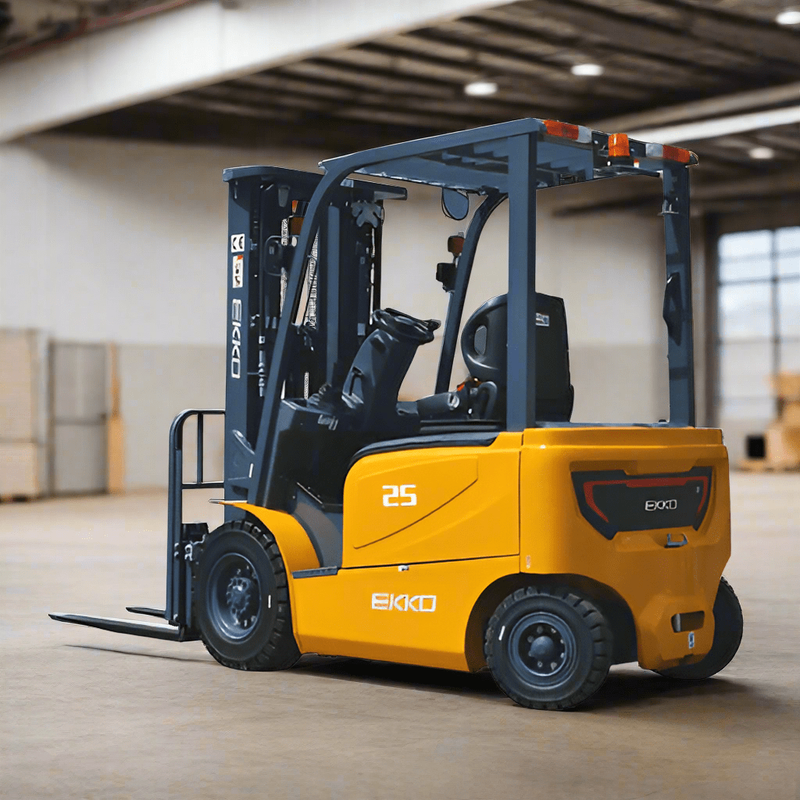

The EKKO EK25GB Wheel Electric Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 5000 lb
- Raised Height 189" (15.75ft)
- Side Shift
- Free Lift 47.48”
- Fork Length 42“
- ZAPI Controller
- Battery 48/600AH Lead Acid
- Solid Pneumatic Tires

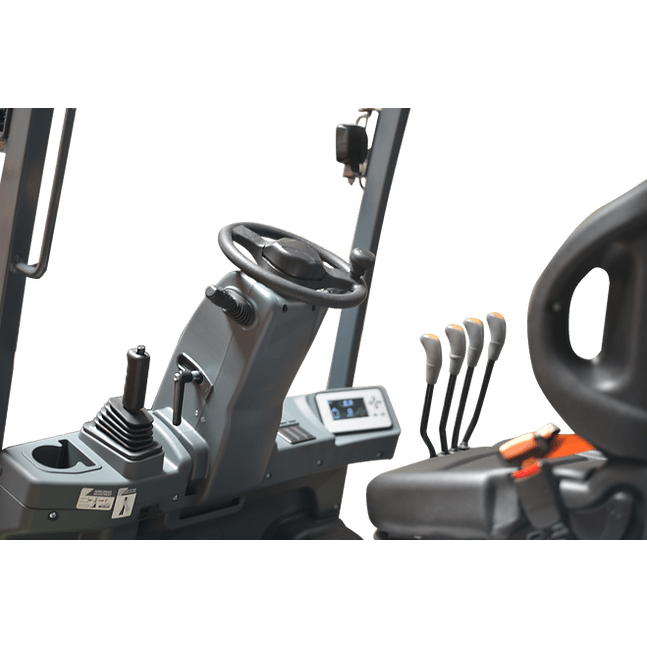

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Phase 480V Chager (optional 220V)
- 3 Year Limited Warranty
Specifications
Model |
|
EK25GB |
Lift |
|
Electric |
Drive |
|
Electric |
Load capacity |
(lb) |
5000 |
Load center distance |
(in) |
24 |
Wheel base |
(in) |
65.35 |
Lifting height |
(in) |
189 |
Free lifting height |
(in) |
47.48 |
Lowered mast height |
(in) |
83 |
Mast/Fork carriage tilt forward/backward |
( °) |
6/6 |
Side Shifting Forks |
|
3-way valve |
Overall length |
(in) |
137.95 |
Overall width |
(in) |
46.45 |
Fork size, Thick/Width/Length |
(in) |
1.57/4.72/42.12 |
Fork adjust width |
(in) |
8.7-29 |
Turning radius |
(in) |
84.2 |
Max.gradient performance, laden/unladen |
(%) |
15/25 |
Battery voltage |
(V/Ah) |
48/600 AH Lead acid |
Service Weight |
(lb) |
9,981 |
Lifting Motor |
(K/W) |
12 |
Driving Motor |
(K/W) |
11 |
