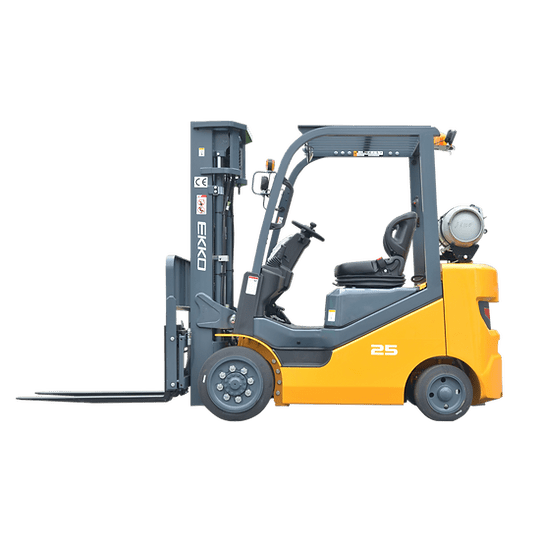

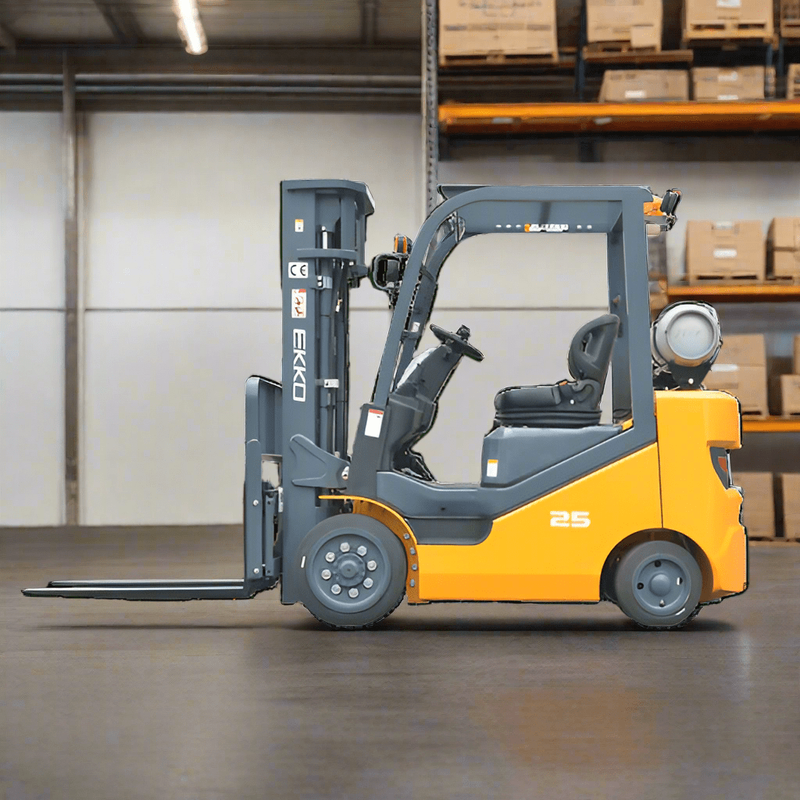

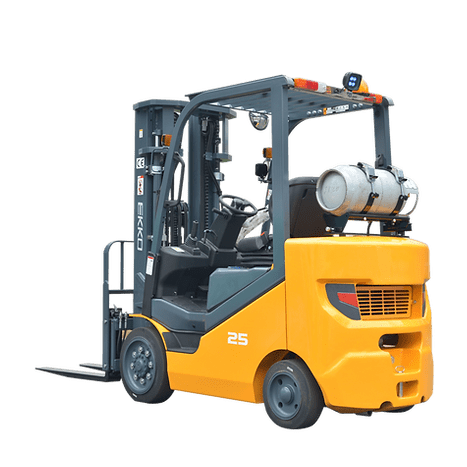

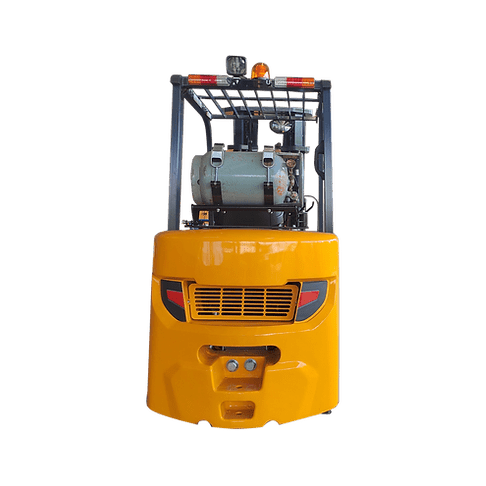

The EKKO EK25CLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI engine and competitive pricing.
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
Specifications
Model |
|
EK25CLP |
Drive type |
|
LPG |
Type of operation |
|
Propane |
Load Capacity |
LBS |
5000 |
Load Center |
in |
24 |
Lift height |
in |
189 |
Wheelbase |
in |
58 |
Service Weight |
LBS |
9370 |

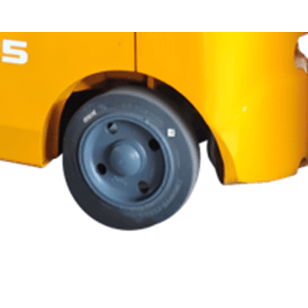

Tire material |
|
Cushion Tire |
Wheel size(Front / Rear) |
in |
21x7-15/16x6-10.5 |
Service Brake |
|
Hydraulic Floor Pedal |
Overall width |
in |
42 |
Overall length with forks |
in |
136.8 |
Overall length without forks |
in |
94.5 |
Min ground clearance (at the mast) |
in |
3.5 |
Max traveling speed (loaded/unloaded) |
mph |
10.8/10.8 |
Mast Overall height |
in |
85 |
Free lifting height |
in |
44 |
Backrest height (from the surface of the forks) |
in |
40 |
Fork Size |
in |
42x4.8x1.57 |
Battery |
V/ Ah |
12/60 |
Engine Mode |
|
Mitsubishi 4G64 (PSI Engine) |
Engine rated power |
HP/rpm |
LPG: 63/2700 |
