Description

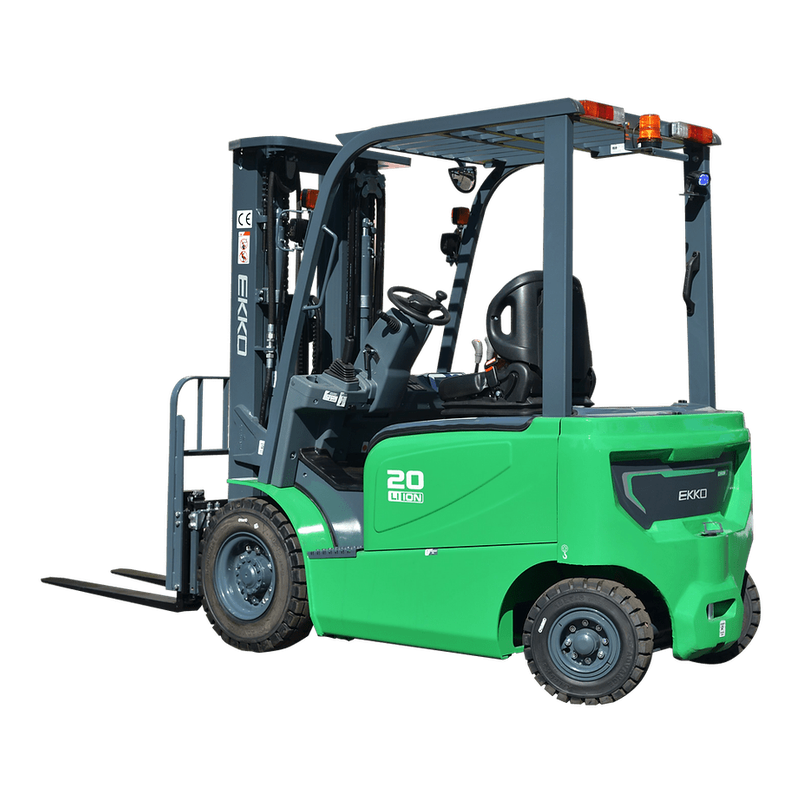

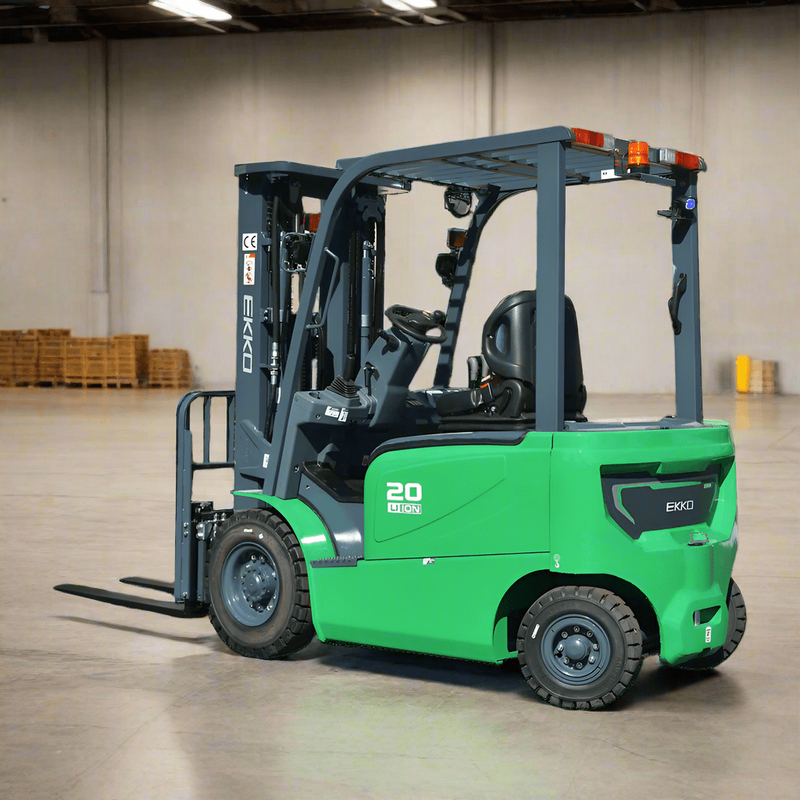

-The EKKO EK20G-LI 4 Wheel Electric Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4500 lb
- Raised Height 189" (15.75ft)
- Side Shifting Forks
- Free Lift 47.48
- Fork Length 42
- ZAPI Controller
- Battery 80/202 Ah Lithium
- Solid Pneumatic Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Phase 480V Chager (optional 220V & 110V)
- 3 Year Limited Warranty
Specifications
Model |
EK20G-LI |
|
Drive type |
Lithium Forklift |
|
Type of operation |
Lithium battery |
|
Load Capacity |
LBS |
4,500 |
Load Center distance |
in |
20 |
Liftheight |
in |
189 |
Wheelbase |
in |
65.4 |
Service Weight |
LBS |
9,032 |
Tire material |
Solid Pneumatic Tire | |
Driving Mode |
Seated |
|
Service Brake |
Hydraulic Foot Pedal | |
Overall width |
in |
46.45 |
Overall length with forks |
in |
133 |
Overall lengthwithout forks |
in |
96 |
Min outisde turning radius |
in |
85 |
Traveling speed (laden/unladen) |
mph |
9/9.3 |
Ground clearance (at mast) |
in |
3.95 |
Lowered Mast Height |
in |
79 |
Free Lift |
in |
47.48 |
Tilt |
deg |
6/6 |
Side Shift |
3-way valve |
|
Engine Mode |
Zapi Controller |
